8xvt

The core subcomplex of human NuA4/TIP60 complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–456； UniProt 1–456 Author chain C； PDBConstruct 1–456； UniProt 1–456 Author chain E； PDBConstruct 1–456； UniProt 1–456

RuvB-like 2

Homo sapiens

UniProt Q9Y230

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–463； UniProt 1–463 Author chain D； PDBConstruct 1–463； UniProt 1–463 Author chain F； PDBConstruct 1–463； UniProt 1–463

DNA methyltransferase 1-associated protein 1

Homo sapiens

UniProt Q9NPF5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DMAP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–467； UniProt 1–467

Isoform 2 of E1A-binding protein p400

Homo sapiens

UniProt Q96L91

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EP400_HUMAN
Isoform	Q96L91-2
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–3123； UniProt 1–3123

Actin-like protein 6A

Homo sapiens

UniProt O96019

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACL6A_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–429； UniProt 1–429 Author chain J； PDBConstruct 1–429； UniProt 1–429

Actin, cytoplasmic 1

Homo sapiens

UniProt P60709

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTB_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 1–375； UniProt 1–375

Isoform 2 of Enhancer of polycomb homolog 1

Homo sapiens

UniProt Q9H2F5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Vacuolar protein sorting-associated protein 72 homolog × 1 （Q15906） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EPC1_HUMAN
Isoform	Q9H2F5-2
PDB entities	7
Chains and sequence ranges	Author chain M； PDBConstruct 1–813； UniProt 1–813

Vacuolar protein sorting-associated protein 72 homolog

Homo sapiens

UniProt Q15906

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 13	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） DNA methyltransferase 1-associated protein 1 × 1 （Q9NPF5） Isoform 2 of E1A-binding protein p400 × 1 （Q96L91） Actin-like protein 6A × 2 （O96019） Actin, cytoplasmic 1 × 1 （P60709） Isoform 2 of Enhancer of polycomb homolog 1 × 1 （Q9H2F5） ADENOSINE-5'-DIPHOSPHATE × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VPS72_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain N； PDBConstruct 1–364； UniProt 1–364

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xvt
Deposition date deposition_date	2024-01-15
Structure title title	The core subcomplex of human NuA4/TIP60 complex
Keywords keywords	Remodeler; Histone Acetyltransferase Complex; NuA4; TIP60, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xvt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xvt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

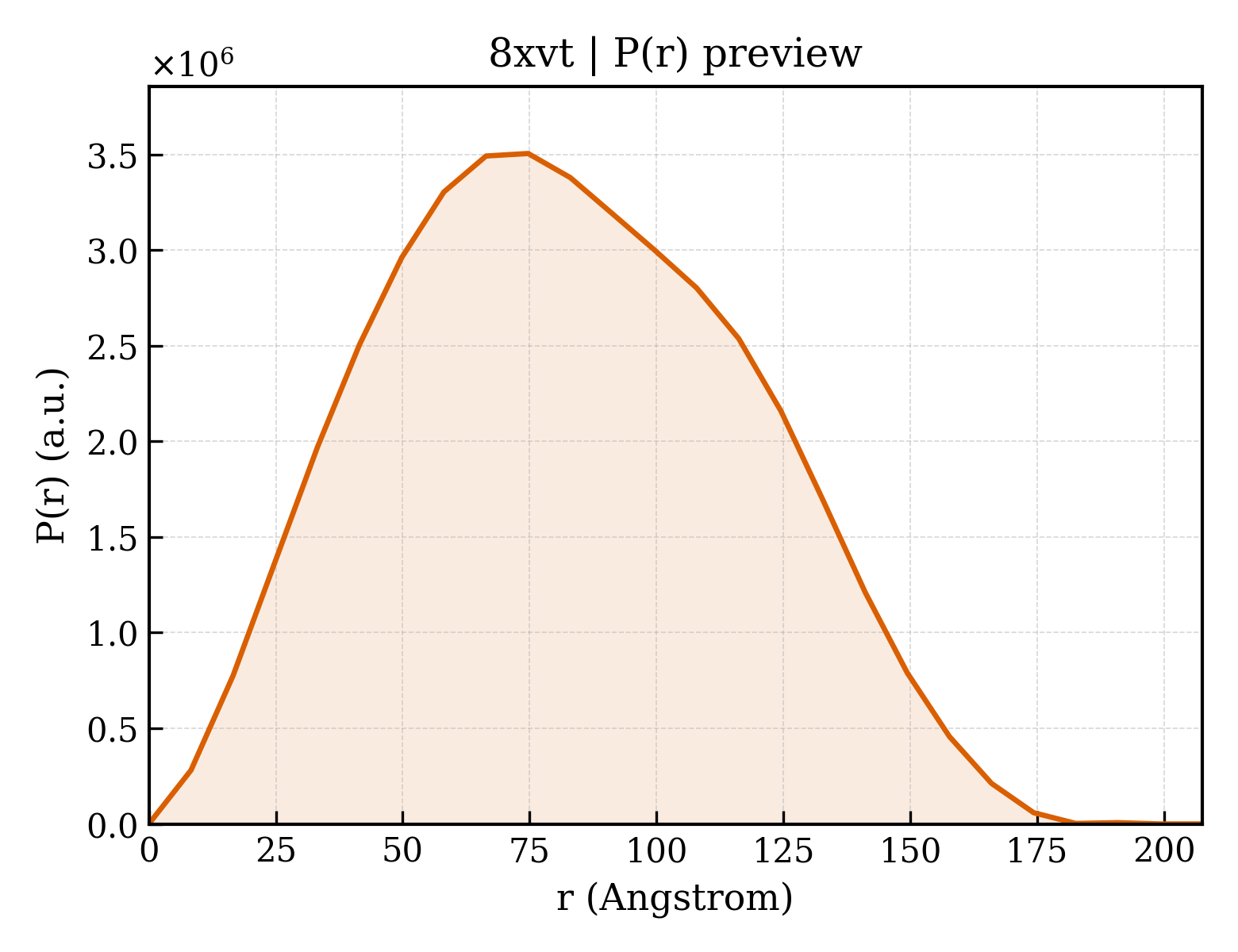

8xvt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.33 Å
Rg (electron density)	62.99 Å
Total Rg	63.00 Å
Atom count	38987
Residues	4920
Excluded volume	695820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xvt__assembly_1__model_1`	tridecameric （13）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	RuvB-like 1
Molecular weight formula_weight	50296.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	38987

MKIEEVKSTTKTQRIASHSHVKGLGLDESGLAKQAASGLVGQENAREACGVIVELIKSKKMAGRAVLLAGPPGTGKTALALAIAQELGSKVPFCPMVGSEVYSTEIKKTEVLMENFRRAIGLRIKETKEVYEGEVTELTPCETENPMGGYGKTISHVIIGLKTAKGTKQLKLDPSIFESLQKERVEAGDVIYIEANSGAVKRQGRCDTYATEFDLEAEEYVPLPKGDVHKKKEIIQDVTLHDLDVANARPQGGQDILSMMGQLMKPKKTEITDKLRGEINKVVNKYIDQGIAELVPGVLFVDEVHMLDIECFTYLHRALESSIAPIVIFASNRGNCVIRGTEDITSPHGIPLDLLDRVMIIRTMLYTPQEMKQIIKIRAQTEGINISEEALNHLGEIGTKTTLRYSVQLLTPANLLAKINGKDSIEKEHVEEISELFYDAKSSAKILADQQDKYMK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	RuvB-like 2
Molecular weight formula_weight	51222.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

MATVTATTKVPEIRDVTRIERIGAHSHIRGLGLDDALEPRQASQGMVGQLAARRAAGVVLEMIREGKIAGRAVLIAGQPGTGKTAIAMGMAQALGPDTPFTAIAGSEIFSLEMSKTEALTQAFRRSIGVRIKEETEIIEGEVVEIQIDRPATGTGSKVGKLTLKTTEMETIYDLGTKMIESLTKDKVQAGDVITIDKATGKISKLGRSFTRARDYDAMGSQTKFVQCPDGELQKRKEVVHTVSLHEIDVINSRTQGFLALFSGDTGEIKSEVREQINAKVAEWREEGKAEIIPGVLFIDEVHMLDIESFSFLNRALESDMAPVLIMATNRGITRIRGTSYQSPHGIPIDLLDRLLIVSTTPYSEKDTKQILRIRCEEEDVEMSEDAYTVLTRIGLETSLRYAIQLITAASLVCRKRKGTEVQVDDIKRVYSLFLDESRSTQYMKEYQDAFLFNELKGETMDTS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	DNA methyltransferase 1-associated protein 1
Molecular weight formula_weight	53090.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MATGADVRDILELGGPEGDAASGTISKKDIINPDKKKSKKSSETLTFKRPEGMHREVYALLYSDKKDAPPLLPSDTGQGYRTVKAKLGSKKVRPWKWMPFTNPARKDGAMFFHWRRAAEEGKDYPFARFNKTVQVPVYSEQEYQLYLHDDAWTKAETDHLFDLSRRFDLRFVVIHDRYDHQQFKKRSVEDLKERYYHICAKLANVRAVPGTDLKIPVFDAGHERRRKEQLERLYNRTPEQVAEEEYLLQELRKIEARKKEREKRSQDLQKLITAADTTAEQRRTERKAPKKKLPQKKEAEKPAVPETAGIKFPDFKSAGVTLRSQRMKLPSSVGQKKIKALEQMLLELGVELSPTPTEELVHMFNELRSDLVLLYELKQACANCEYELQMLRHRHEALARAGVLGGPATPASGPGPASAEPAVTEPGLGPDPKDTIIDVVGAPLTPNSRKRRESASSSSSVKKAKKP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Isoform 2 of E1A-binding protein p400
Molecular weight formula_weight	340198.1 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MHHGTGPQNVQHQLQRSRACPGSEGEEQPAHPNPPPSPAAPFAPSASPSAPQSPSYQIQQLMNRSPATGQNVNITLQSVGPVVGGNQQITLAPLPLPSPTSPGFQFSAQPRRFEHGSPSYIQVTSPLSQQVQTQSPTQPSPGPGQALQNVRAGAPGPGLGLCSSSPTGGFVDASVLVRQISLSPSSGGHFVFQDGSGLTQIAQGAQVQLQHPGTPITVRERRPSQPHTQSGGTIHHLGPQSPAAAGGAGLQPLASPSHITTANLPPQISSIIQGQLVQQQQVLQGPPLPRPLGFERTPGVLLPGAGGAAGFGMTSPPPPTSPSRTAVPPGLSSLPLTSVGNTGMKKVPKKLEEIPPASPEMAQMRKQCLDYHYQEMQALKEVFKEYLIELFFLQHFQGNMMDFLAFKKKHYAPLQAYLRQNDLDIEEEEEEEEEEEEKSEVINDEQQALAGSLVAGAGSTVETDLFKRQQAMPSTGMAEQSKRPRLEVGHQGVVFQHPGADAGVPLQQLMPTAQGGMPPTPQAAQLAGQRQSQQQYDPSTGPPVQNAASLHTPLPQLPGRLPPAGVPTAALSSALQFAQQPQVVEAQTQLQIPVKTQQPNVPIPAPPSSQLPIPPSQPAQLALHVPTPGKVQVQASQLSSLPQMVASTRLPVDPAPPCPRPLPTSSTSSLAPVSGSGPGPSPARSSPVNRPSSATNKALSPVTSRTPGVVASAPTKPQSPAQNATSSQDSSQDTLTEQITLENQVHQRIAELRKAGLWSQRRLPKLQEAPRPKSHWDYLLEEMQWMATDFAQERRWKVAAAKKLVRTVVRHHEEKQLREERGKKEEQSRLRRIAASTAREIECFWSNIEQVVEIKLRVELEEKRKKALNLQKVSRRGKELRPKGFDALQESSLDSGMSGRKRKASISLTDDEVDDEEETIEEEEANEGVVDHQTELSNLAKEAELPLLDLMKLYEGAFLPSSQWPRPKPDGEDTSGEEDADDCPGDRESRKDLVLIDSLFIMDQFKAAERMNIGKPNAKDIADVTAVAEAILPKGSARVTTSVKFNAPSLLYGALRDYQKIGLDWLAKLYRKNLNGILADEAGLGKTVQIIAFFAHLACNEGNWGPHLVVVRSCNILKWELELKRWCPGLKILSYIGSHRELKAKRQEWAEPNSFHVCITSYTQFFRGLTAFTRVRWKCLVIDEMQRVKGMTERHWEAVFTLQSQQRLLLIDSPLHNTFLELWTMVHFLVPGISRPYLSSPLRAPSEESQDYYHKVVIRLHRVTQPFILRRTKRDVEKQLTKKYEHVLKCRLSNRQKALYEDVILQPGTQEALKSGHFVNVLSILVRLQRICNHPGLVEPRHPGSSYVAGPLEYPSASLILKALERDFWKEADLSMFDLIGLENKITRHEAELLSKKKIPRKLMEEISTSAAPAARPAAAKLKASRLFQPVQYGQKPEGRTVAFPSTHPPRTAAPTTASAAPQGPLRGRPPIATFSANPEAKAAAAPFQTSQASASAPRHQPASASSTAASPAHPAKLRAQTTAQASTPGQPPPQPQAPSHAAGQSALPQRLVLPSQAQARLPSGEVVKIAQLASITGPQSRVAQPETPVTLQFQGSKFTLSHSQLRQLTAGQPLQLQGSVLQIVSAPGQPYLRAPGPVVMQTVSQAGAVHGALGSKPPAGGPSPAPLTPQVGVPGRVAVNALAVGEPGTASKPASPIGGPTQEEKTRLLKERLDQIYLVNERRCSQAPVYGRDLLRICALPSHGRVQWRGSLDGRRGKEAGPAHSYTSSSESPSELMLTLCRCGESLQDVIDRVAFVIPPVVAAPPSLRVPRPPPLYSHRMRILRQGLREHAAPYFQQLRQTTAPRLLQFPELRLVQFDSGKLEALAILLQKLKSEGRRVLILSQMILMLDILEMFLNFHYLTYVRIDENASSEQRQELMRSFNRDRRIFCAILSTHSRTTGINLVEADTVVFYDNDLNPVMDAKAQEWCDRIGRCKDIHIYRLVSGNSIEEKLLKNGTKDLIREVAAQGNDYSMAFLTQRTIQELFEVYSPMDDAGFPVKAEEFVVLSQEPSVTETIAPKIARPFIEALKSIEYLEEDAQKSAQEGVLGPHTDALSSDSENMPCDEEPSQLEELADFMEQLTPIEKYALNYLELFHTSIEQEKERNSEDAVMTAVRAWEFWNLKTLQEREARLRLEQEEAELLTYTREDAYSMEYVYEDVDGQTEVMPLWTPPTPPQDDSDIYLDSVMCLMYEATPIPEAKLPPVYVRKERKRHKTDPSAAGRKKKQRHGEAVVPPRSLFDRATPGLLKIRREGKEQKKNILLKQQVPFAKPLPTFAKPTAEPGQDNPEWLISEDWALLQAVKQLLELPLNLTIVSPAHTPNWDLVSDVVNSCSRIYRSSKQCRNRYENVIIPREEGKSKNNRPLRTSQIYAQDENATHTQLYTSHFDLMKMTAGKRSPPIKPLLGMNPFQKNPKHASVLAESGINYDKPLPPIQVASLRAERIAKEKKALADQQKAQQPAVAQPPPPQPQPPPPPQQPPPPLPQPQAAGSQPPAGPPAVQPQPQPQPQTQPQPVQAPAKAQPAITTGGSAAVLAGTIKTSVTGTSMPTGAVSGNVIVNTIAGVPAATFQSINKRLASPVAPGALTTPGGSAPAQVVHTQPPPRAVGSPATATPDLVSMATTQGVRAVTSVTASAVVTTNLTPVQTPARSLVPQVSQATGVQLPGKTITPAHFQLLRQQQQQQQQQQQQQQQQQQQQQQQQQQQQQTTTTSQVQVPQIQGQAQSPAQIKAVGKLTPEHLIKMQKQKLQMPPQPPPPQAQSAPPQPTAQVQVQTSQPPQQQSPQLTTVTAPRPGALLTGTTVANLQVARLTRVPTSQLQAQGQMQTQAPQPAQVALAKPPVVSVPAAVVSSPGVTTLPMNVAGISVAIGQPQKAAGQTVVAQPVHMQQLLKLKQQAVQQQKAIQPQAAQGPAAVQQKITAQQITTPGAQQKVAYAAQPALKTQFLTTPISQAQKLAGAQQVQTQIQVAKLPQVVQQQTPVASIQQVASASQQASPQTVALTQATAAGQQVQMIPAVTATAQVVQQKLIQQQVVTTASAPLQTPGAPNPAQVPASSDSPSQQPKLQMRVPAVRLKTPTKPPCQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Actin-like protein 6A
Molecular weight formula_weight	47509.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MSGGVYGGDEVGALVFDIGSYTVRAGYAGEDCPKVDFPTAIGMVVERDDGSTLMEIDGDKGKQGGPTYYIDTNALRVPRENMEAISPLKNGMVEDWDSFQAILDHTYKMHVKSEASLHPVLMSEAPWNTRAKREKLTELMFEHYNIPAFFLCKTAVLTAFANGRSTGLILDSGATHTTAIPVHDGYVLQQGIVKSPLAGDFITMQCRELFQEMNIELVPPYMIASKEAVREGSPANWKRKEKLPQVTRSWHNYMCNCVIQDFQASVLQVSDSTYDEQVAAQMPTVHYEFPNGYNCDFGAERLKIPEGLFDPSNVKGLSGNTMLGVSHVVTTSVGMCDIDIRPGLYGSVIVAGGNTLIQSFTDRLNRELSQKTPPSMRLKLIANNTTVERRFSSWIGGSILASLGTFQQMWISKQEYEEGGKQCVERKCP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	Actin, cytoplasmic 1
Molecular weight formula_weight	41782.7 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	Isoform 2 of Enhancer of polycomb homolog 1
Molecular weight formula_weight	90988.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MSKLSFRARALDASKPLPVFRCEDLPDLHEYASINRAVPQMPTGMEKEEESEHHLQRAISAQQVYGEKRDNMVIPVPEAESNIAYYESIYPGEFKMPKQLIHIQPFSLDAEQPDYDLDSEDEVFVNKLKKKMDICPLQFEEMIDRLEKGSGQQPVSLQEAKLLLKEDDELIREVYEYWIKKRKNCRGPSLIPSVKQEKRDGSSTNDPYVAFRRRTEKMQTRKNRKNDEASYEKMLKLRRDLSRAVTILEMIKRREKSKRELLHLTLEIMEKRYNLGDYNGEIMSEVMAQRQPMKPTYAIPIIPITNSSQFKHQEAMDVKEFKVNKQDKADLIRPKRKYEKKPKVLPSSAAATPQQTSPAALPVFNAKDLNQYDFPSSDEEPLSQVLSGSSEAEEDNDPDGPFAFRRKAGCQYYAPHLDQTGNWPWTSPKDGGLGDVRYRYCLTTLTVPQRCIGFARRRVGRGGRVLLDRAHSDYDSVFHHLDLEMLSSPQHSPVNQFANTSETNTSDKSFSKDLSQILVNIKSCRWRHFRPRTPSLHDSDNDELSCRKLYRSINRTGTAQPGTQTCSTSTQSKSSSGSAHFAFTAEQYQQHQQQLALMQKQQLAQIQQQQANSNSSTNTSQGFVSKTLDSASAQFAASALVTSEQLMGFKMKDDVVLGIGVNGVLPASGVYKGLHLSSTTPTALVHTSPSTAGSALLQPSNITQTSSSHSALSHQVTAANSATTQVLIGNNIRLTVPSSVATVNSIAPINARHIPRTLSAVPSSALKLAAAANCQVSKVPSSSSVDSVPRENHESEKPALNNIADNTVAMEVT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 polymer

Description description	Vacuolar protein sorting-associated protein 72 homolog
Molecular weight formula_weight	40658.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MSLAGGRAPRKTAGNRLSGLLEAEEEDEFYQTTYGGFTEESGDDEYQGDQSDTEDEVDSDFDIDEGDEPSSDGEAEEPRRKRRVVTKAYKEPLKSLRPRKVNTPAGSSQKAREEKALLPLELQDDGSDSRKSMRQSTAEHTRQTFLRVQERQGQSRRRKGPHCERPLTQEELLREAKITEELNLRSLETYERLEADKKKQVHKKRKCPGPIITYHSVTVPLVGEPGPKEENVDIEGLDPAPSVSALTPHAGTGPVNPPARCSRTFITFSDDATFEEWFPQGRPPKVPVREVCPVTHRPALYRDPVTDIPYATARAFKIIREAYKKYITAHGLPPTASALGPGPPPPEPLPGSGPRALRQKIVIK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	9

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	701594

The core subcomplex of human NuA4/TIP60 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RuvB-like 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA methyltransferase 1-associated protein 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Isoform 2 of E1A-binding protein p400

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Actin-like protein 6A

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Actin, cytoplasmic 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Isoform 2 of Enhancer of polycomb homolog 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Vacuolar protein sorting-associated protein 72 homolog

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8xvt__assembly_1__model_1

8xvt__assembly_1__model_1 | I(q)

8xvt__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
