SAXSdb — 8xwn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-X-C chemokine receptor type 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain R； UniProt 2–360	Not recorded	MDNCF-a × 2 （P10145）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.29 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4MPA Crystal structure of NHERF1-CXCR2 signaling complex in P21 space group Deposited 2013-09-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 356–360（5 aa） Fragment：SEE REMARK 999	Not recorded	ACY ACETIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；100 mM sodium acetate, pH 4.8, 0.2 M ammonium acetate, 24% PEG4000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.10 Å R-free 0.157
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 356–360（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
4Q3H The crystal structure of NHERF1 PDZ2 CXCR2 complex revealed by the NHERF1 CXCR2 chimeric protein Deposited 2014-04-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 356–360（5 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100 mM Tris HCl, pH 8.5, 8% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.195
5TYT Crystal Structure of the PDZ domain of RhoGEF bound to CXCR2 C-terminal peptide Deposited 2016-11-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360) Chain B 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG8000, 0.1 M sodium citrate, 0.2 M sodium acetate	Resolution 2.40 Å R-free 0.240
5TYT Crystal Structure of the PDZ domain of RhoGEF bound to CXCR2 C-terminal peptide Deposited 2016-11-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360) Chain D 356–360（5 aa） Fragment：Rho (UNP residues 41-123), CXCR2 C-terminal peptide (UNP residues 356-360)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；25% PEG8000, 0.1 M sodium citrate, 0.2 M sodium acetate	Resolution 2.40 Å R-free 0.240
6KVA Structure of anti-hCXCR2 abN48-2 in complex with its CXCR2 epitope Deposited 2019-09-03	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 9–19（11 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES pH 7.5, 25% w/v Polyethylene glycol 3350	Resolution 2.20 Å R-free 0.234
6KVA Structure of anti-hCXCR2 abN48-2 in complex with its CXCR2 epitope Deposited 2019-09-03	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain b 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES pH 7.5, 25% w/v Polyethylene glycol 3350	Resolution 2.20 Å R-free 0.234
6KVF Structure of anti-hCXCR2 abN48 in complex with its CXCR2 epitope Deposited 2019-09-04	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain b 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium pH 7.5, 2% v/v Polyethylene glycol 400, 2.0M Ammonium sulfate	Resolution 2.79 Å R-free 0.264
6KVF Structure of anti-hCXCR2 abN48 in complex with its CXCR2 epitope Deposited 2019-09-04	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 9–19（11 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES sodium pH 7.5, 2% v/v Polyethylene glycol 400, 2.0M Ammonium sulfate	Resolution 2.79 Å R-free 0.264
6LFL Crystal structure of a class A GPCR Deposited 2019-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–241（205 aa） Chain A 244–344（101 aa）	Mutation：L135W, A249E, G303A Mutation：L135W, A249E, G303A	EBX 4-[[3,4-bis(oxidanylidene)-2-[[(1~{R})-1-(4-propan-2-ylfuran-2-yl)propyl]amino]cyclobuten-1-yl]amino]-~{N},~{N}-dimethyl-3-oxidanyl-pyridine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；100mM HEPES pH7.0, 32% PEG 400, 50-150 mM Sodium tartrate dibasic dihydrate salt	Resolution 3.20 Å R-free 0.264
6LFM Cryo-EM structure of a class A GPCR Deposited 2019-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 1–360（360 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6LFO Cryo-EM structure of a class A GPCR monomer Deposited 2019-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 1–360（360 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8XVU Structure of CXCR2 bound to CXCL2 (Ligand-receptor focused map) Deposited 2024-01-15	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8XWA Structure of CXCR2 bound to CXCL1 (Ligand-receptor focused map) Deposited 2024-01-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.48 Å
8XWF Structure of CXCR2 bound to CXCL3 (Ligand-receptor focused map) Deposited 2024-01-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
8XWM Structure of CXCR2 bound to CXCL6 (Ligand-receptor focused map) Deposited 2024-01-16	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.71 Å
8XWS Structure of CXCR2 bound to CXCL5 (Ligand-receptor focused map) Deposited 2024-01-16	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–360（359 aa） Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.06 Å
8XWV Structure of CXCR2 bound to CXCL1 (CXCR2-CXCL1-Go Full map) Deposited 2024-01-16	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8XX3 Structure of CXCR2 bound to CXCL3 (CXCR2-CXCL3-Go Full map) Deposited 2024-01-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
8XX6 Structure of CXCR2 bound to CXCL8 (CXCR2-CXCL8-Go Full map) Deposited 2024-01-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8XX7 Structure of CXCR2 bound to CXCL5 (CXCR2-CXCL5-Go Full map) Deposited 2024-01-17	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 2–360（359 aa） Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.32 Å
8XXH Structure of CXCR2 bound to CXCL2 (CXCR2-CXCL2-Go Full map) Deposited 2024-01-18	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8XXR Structure of CXCR2 bound to CXCL6 (CXCR2-CXCL6-Go Full map) Deposited 2024-01-18	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
8XXX Structure of CXCR2 bound to CXCL6 (Composite map) Deposited 2024-01-19	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 2–360（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å

20 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CXCR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 58–416； UniProt 2–360

MDNCF-a

Homo sapiens

UniProt P10145

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 21–99 Chain E； UniProt 21–99	Not recorded	C-X-C chemokine receptor type 2 × 1 （P25025）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.29 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ICW INTERLEUKIN-8, MUTANT WITH GLU 38 REPLACED BY CYS AND CYS 50 REPLACED BY ALA Deposited 1996-09-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Mutation：E38C, C50A Mutation：E38C, C50A	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.01 Å R-free 0.266
1IKL NMR study of monomeric human interleukin-8 (minimized average structure) Deposited 1995-08-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–99（72 aa）	Mutation：DEL(1-3), H LEU 25 MODIFIED TO N-METHYL Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1IKM NMR study of monomeric human interleukin-8 (30 structures) Deposited 1995-08-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–99（72 aa）	Mutation：DEL(1-3), THE AMIDE PROTON OF LEU 25 MODIFIED TO N-METHYL Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1IL8 THREE-DIMENSIONAL STRUCTURE OF INTERLEUKIN 8 IN SOLUTION Deposited 1990-03-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1ILP CXCR-1 N-TERMINAL PEPTIDE BOUND TO INTERLEUKIN-8 Deposited 1998-12-16	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；308 K；Ionic strength (raw mmCIF value) 0.15 M；Pressure 1	Resolution not provided
1ILQ CXCR-1 N-TERMINAL PEPTIDE BOUND TO INTERLEUKIN-8 (MINIMIZED MEAN) Deposited 1998-12-17	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；308 K；Ionic strength (raw mmCIF value) 0.15 M；Pressure 1	Resolution not provided
1QE6 INTERLEUKIN-8 WITH AN ADDED DISULFIDE BETWEEN RESIDUES 5 AND 33 (L5C/H33C) Deposited 1999-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Mutation：L5C, H33C Mutation：L5C, H33C	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；292 K；NACL, AMMONIUM SULFATE, PEG 8000, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.35 Å R-free 0.278
1QE6 INTERLEUKIN-8 WITH AN ADDED DISULFIDE BETWEEN RESIDUES 5 AND 33 (L5C/H33C) Deposited 1999-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 28–99（72 aa） Chain D 28–99（72 aa）	Mutation：L5C, H33C Mutation：L5C, H33C	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；292 K；NACL, AMMONIUM SULFATE, PEG 8000, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.35 Å R-free 0.278
1QE6 INTERLEUKIN-8 WITH AN ADDED DISULFIDE BETWEEN RESIDUES 5 AND 33 (L5C/H33C) Deposited 1999-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 28–99（72 aa） Chain B 28–99（72 aa） Chain C 28–99（72 aa） Chain D 28–99（72 aa）	Mutation：L5C, H33C Mutation：L5C, H33C Mutation：L5C, H33C Mutation：L5C, H33C	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；292 K；NACL, AMMONIUM SULFATE, PEG 8000, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.35 Å R-free 0.278
1ROD CHIMERIC PROTEIN OF INTERLEUKIN 8 AND HUMAN MELANOMA GROWTH STIMULATING ACTIVITY PROTEIN, NMR Deposited 1995-11-24	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–80（53 aa） Fragment：INTERLEUKIN 8 RESIDUES 1 - 53, HUMAN MELANOMA GROWTH STIMULATING ACTIVITY PROTEIN RESIDUES 54 - 72 Chain B 28–80（53 aa） Fragment：INTERLEUKIN 8 RESIDUES 1 - 53, HUMAN MELANOMA GROWTH STIMULATING ACTIVITY PROTEIN RESIDUES 54 - 72	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
2IL8 THREE-DIMENSIONAL STRUCTURE OF INTERLEUKIN 8 IN SOLUTION Deposited 1990-03-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–99（72 aa） Chain B 28–99（72 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
3IL8 CRYSTAL STRUCTURE OF INTERLEUKIN 8: SYMBIOSIS OF NMR AND CRYSTALLOGRAPHY Deposited 1990-12-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 28–99（72 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
4XDX The crystal structure of soluble human interleukin 8 expressed in Pichia pastoris Deposited 2014-12-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–99（70 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.17 M Ammonium acetate, 0.085 M Sodium citrate tribasic dihydrate pH 5.6, 20% w/v Polyethylene glycol 4,000, 15% v/v Glycerol	Resolution 0.95 Å R-free 0.136
5D14 The atomic resolution crystal structure of human IL-8 Deposited 2015-08-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–99（70 aa） Fragment：unp residues 30-99	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；291 K；0.17 M Ammonium acetate, 0.085 M Sodium citrate tribasic dihydrate pH 5.6, 20% w/v Polyethylene glycol 4,000, 15% v/v Glycerol. All crystals were grown at 18 deg C.	Resolution 1.00 Å R-free 0.135
5WDZ Structure of monomeric Interleukin-8 (1-66) Deposited 2017-07-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–93（66 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.3；313 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 20 mM [U-13C; U-15N] IL-8 1-66, 20 mM HEPES, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM [U-15N] IL-8, 20 mM HEPES, 70 mM sodium chloride, 13.5 mg/L Y21M bacteriophage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM [U-15N] IL-8 1-66, 20 mM HEPES, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6LFM Cryo-EM structure of a class A GPCR Deposited 2019-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 28–99（72 aa） Chain E 28–99（72 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6LFO Cryo-EM structure of a class A GPCR monomer Deposited 2019-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 28–92（65 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6N2U IL-8 Structure from Bacterial Expression Source Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–99（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.4 M Ammonium Phosphate dibasic, 0.1 M Tris HCl pH 8.5	Resolution 1.25 Å R-free 0.223
6WZM LY3041658 Fab bound to CXCL8 Deposited 2020-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 28–93（66 aa） Chain F 28–93（66 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% PEG 3350, 200mM Magnesium Chloride	Resolution 2.28 Å R-free 0.229
6XMN Solution NMR CXCL8-CXCR1 N-domain complex structure Deposited 2020-06-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–93（66 aa） Fragment：residues 28-93	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.4 mM [U-13C; U-15N] CXCL8, 1.2 mM CXCR1, 50 mM sodium phosphate, 0.01 % sodium azide, 10 % [U-100% 2H] D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.2 mM CXCL8, 0.5 mM [U-13C; U-15N] CXCR1, 50 mM sodium phosphate, 0.01 % sodium azide, 10 % [U-100% 2H] D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8IC0 Cryo-EM structure of CXCL8 bound C-X-C chemokine receptor 1 in complex with Gi heterotrimer Deposited 2023-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 28–99（72 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；50 mM HEPES pH8.0, 100 mM NaCl, 1 mM MgCl2, 0.5 mM TCEP, 0.001% LMNG, 0.0001% CHS, 1 uM IL8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
8XX6 Structure of CXCR2 bound to CXCL8 (CXCR2-CXCL8-Go Full map) Deposited 2024-01-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 21–99（79 aa） Chain E 21–99（79 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.99 Å
8YNF Structure of Duffy Antigen Receptor for Chemokines (DARC)/ACKR1 in complex with the chemokine, CXCL8 Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 21–99（79 aa） Chain E 21–99（79 aa） Chain G 21–99（79 aa） Chain H 21–99（79 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å

21 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–79； UniProt 21–99 Author chain E； PDBConstruct 1–79； UniProt 21–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xwn
Deposition date deposition_date	2024-01-16
Structure title title	Structure of CXCR2 bound to CXCL8 (Ligand-receptor focused map)
Keywords keywords	GPCR, Arrestin, SIGNALING PROTEIN-IMMUNE SYSTEM complex; SIGNALING PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.25 Å
Radius of gyration Rg (electron density) rg_electron	28.12 Å
Forward intensity I(0) i0	35239100.00
Molecular weight molecular_weight	49662.0 kDa
Excluded volume excluded_volume	63873 Å³
Envelope volume envelope_volume	81912 Å³
Hydration-shell volume shell_volume	26382 Å³
Envelope diameter envelope_diameter	98.1 Å
Shell Rg shell_rg	33.02 Å
Envelope Rg envelope_rg	28.51 Å
Shape Rg shape_rg	28.13 Å
Total Rg total_rg	28.66 Å
Total atoms total_atoms	3496
Residues n_residues	441
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

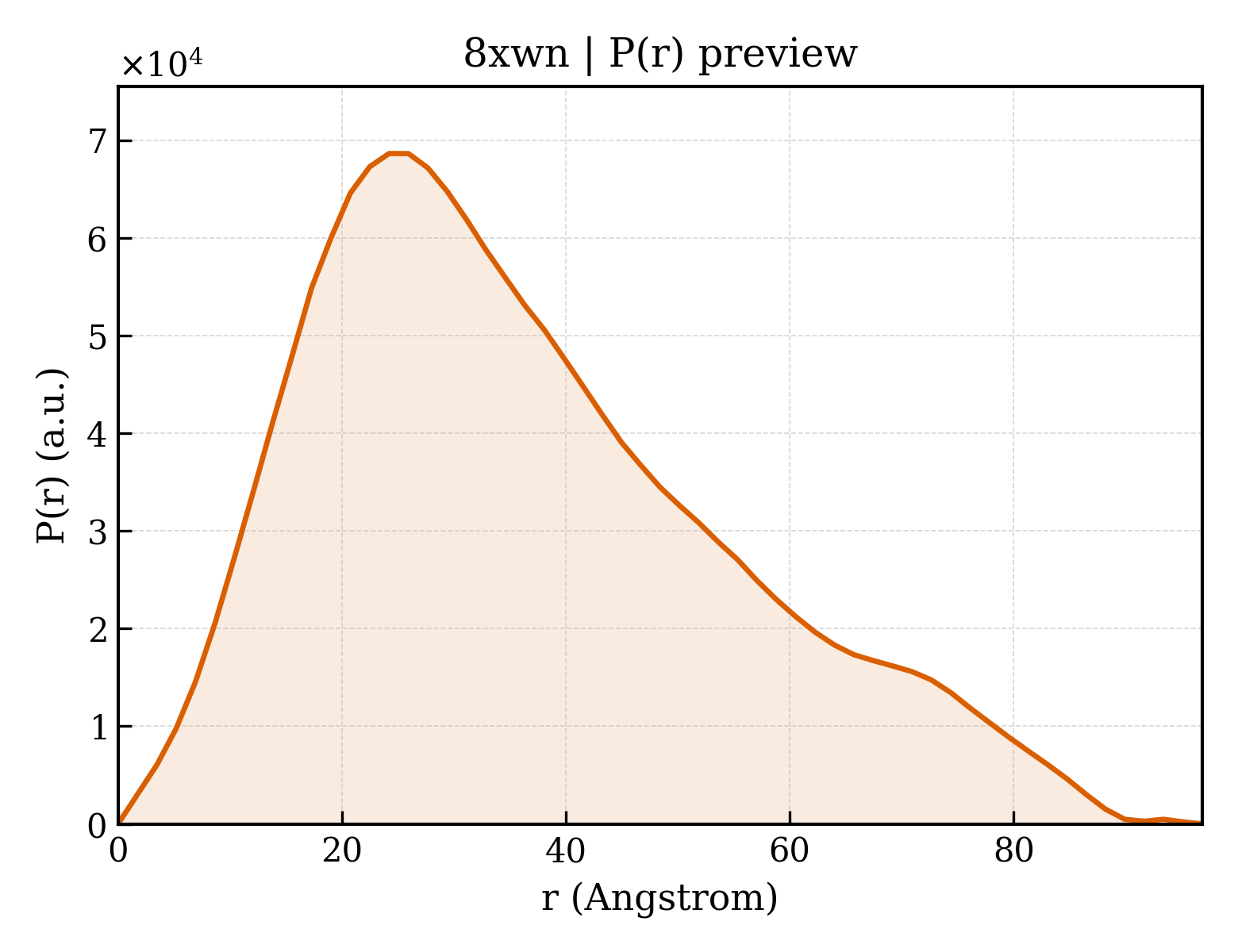

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.8 Å
Rg (real space) rg_real	28.68 Å
Rg uncertainty (real space) rg_real_error	1.01 Å
I(0) (real space) i0_real	3.5240e+07
I(0) uncertainty (real space) i0_real_error	5.4550e+05
Rg (reciprocal space) rg_reciprocal	28.55 Å
I(0) (reciprocal space) i0_reciprocal	35240000.0000
Solution quality estimate total_estimate	0.7994
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.2 Å
Skewness Skewness skewness	0.624
Kurtosis Kurtosis kurtosis	-0.265
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11770000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.631; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.621; Smooth: 0.883

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	C-X-C chemokine receptor type 2
Molecular weight formula_weight	46699.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R
Atom count atom_count	3496

MGKTIIALSYIFCLVFADYKDDDDAANFTPVNGSSGNQSVRLVTSSSLEVLFQGPGSEDFNMESDSFEDFWKGEDLSNYSYSSTLPPFLLDAAPCEPESLEINKYFVVIIYALVFLLSLLGNSLVMLVILYSRVGRSVTDVYLLNLALADLLFALTLPIWAASKVNGWIFGTFLCKVVSLLKEVNFYSGILLLACISVDRYLAIVHATRTLTQKRYLVKFICLSIWGLSLLLALPVLLFRRTVYSSNVSPACYEDMGNNTANWRMLLRILPQSFGFIVPLLIMLFCYGFTLRTLFKAHMGQKHRAMRVIFAVVLIFLLCWLPYNLVLLADTLMRTQVIQETCERRNHIDRALDATEILGILHSCLNPLIYAFIGQKFRHGLLKILAIHGLISKDSLPKDSRPSFVGSSSGHTSTTL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	MDNCF-a
Molecular weight formula_weight	9125.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

EGAVLPRSAKELRCQCIKTYSKPFHPKFIKELRVIESGPHCANTEIIVKLSDGRELCLDPKENWVQRVVEKFLKRAENS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.29 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	99138

fit	/app/data/saxs_computation/xw/8xwn/8xwn.fit
pddf	/app/data/pr_computation/xw/8xwn/8xwn.pr.out
profile	/app/data/saxs_computation/xw/8xwn/8xwn.dat
