8xz3

Mycobacterium smegmatis 50S ribosomal subunit with Erythromycin

Method: ELECTRON MICROSCOPY D_max: 270.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

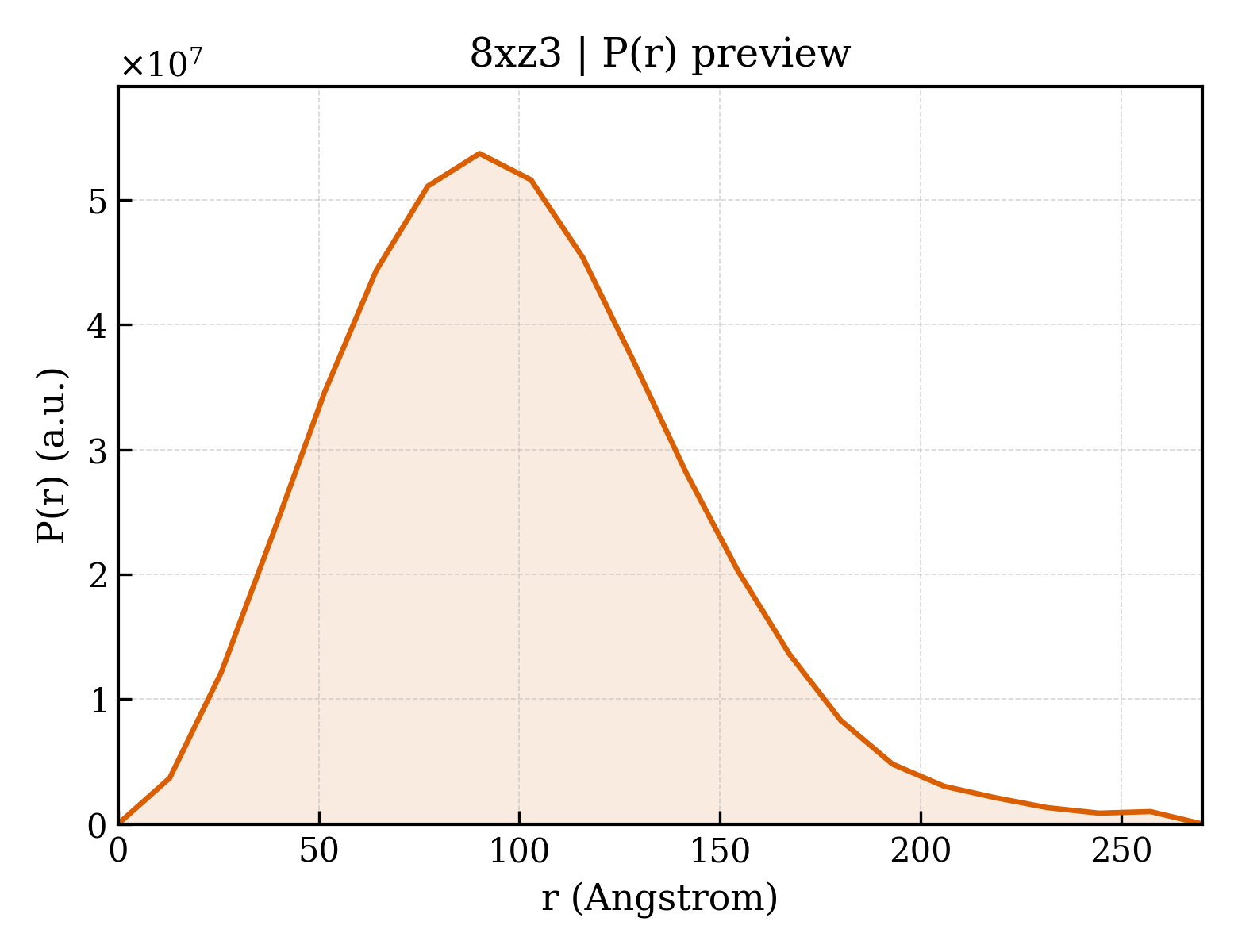

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xz3
沉积日期 deposition_date	2024-01-20
结构标题 title	Mycobacterium smegmatis 50S ribosomal subunit with Erythromycin
关键词 keywords	Antibiotic, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	73.25 Å
回转半径 Rg (电子) rg_electron	74.17 Å
零角强度 I(0) i0	71193800000.00
分子量 molecular_weight	1454300.0 kDa
排除体积 excluded_volume	1481500 Å³
包络体积 envelope_volume	2588600 Å³
水化壳体积 shell_volume	267760 Å³
包络直径 envelope_diameter	259.8 Å
壳层 Rg shell_rg	86.46 Å
包络 Rg envelope_rg	73.74 Å
形状 Rg shape_rg	74.22 Å
总 Rg total_rg	74.15 Å
总原子数 total_atoms	97719
残基数 n_residues	6918
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	270.2 Å
Rg (实空间) rg_real	76.25 Å
Rg 误差 (实空间) rg_real_error	1.64 Å
I(0) (实空间) i0_real	7.1190e+10
I(0) 误差 (实空间) i0_real_error	1.7060e+09
Rg (倒空间) rg_reciprocal	73.93 Å
I(0) (倒空间) i0_reciprocal	71320000000.0000
解质量估计 total_estimate	0.8853
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	90.1 Å
偏度 Skewness skewness	0.530
峰度 Kurtosis kurtosis	0.323
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.9700
最高正则化参数 α highest_alpha	7015000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.672; Stabil: 0.892; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.888

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (35)

Entity 1 polymer

描述 description	50S ribosomal protein bL37
分子量 formula_weight	2710.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3
原子数 atom_count	97741

AKRGRKKRDRKHSKANHGKRPNA

Entity 2 polymer

描述 description	23S rRNA
分子量 formula_weight	1011834.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

AAGUGUUUAAGGGCGCAUGGUGGAUGCCUUGGCACUGGGAGCCGAUGAAGGACGUAGGAGGCUGCGAUAAGCCUCGGGGAGCUGUCAACCGAGCGUUGAUCCGAGGAUGUCCGAAUGGGGAAACCCGGCACGAGUGAUGUCGUGUCACCAGGCGCUGAAUAUAUAGGCGUCUGGGGGGAACGCGGGGAAGUGAAACAUCUCAGUACCCGUAGGAAGAGAAAACAAAAUGUGAUUCCGUGAGUAGUGGCGAGCGAAAGCGGAGGAUGGCUAAACCGUAUGCAUGUGAUACCGGGUAGGGGUUGUGUGUGCGGGGUUGUGGGACCUAUCUUUCCGGCUCUACCUGGCUGGAGGGCAGUGAGAAAAUGUUGUGGUUAGCGGAAAUGGCUUGGGAUGGCCUGCCGUAGACGGUGAGAGCCCGGUACGUGAAAACCCGACGUCUGUCUUGAUGGUGUUCCCGAGUAGCAGCGGGCCCGUGGAAUCUGCUGUGAAUCUGCCGGGACCACCCGGUAAGCCUGAAUACUUCCCAGUGACCGAUAGCGGAUUAGUACCGUGAGGGAAUGGUGAAAAGUACCCCGGGAGGGGAGUGAAAGAGUACCUGAAACCGUGCGCUUACAAUCCGUCAGAGCCCUCGACGUGUCGUGGGGUGAUGGCGUGCCUUUUGAAGAAUGAGCCUGCGAGUCAGGGACAUGUCGCGAGGUUAACCCGGGUGGGGUAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGUAUCCACACAAGAGUGUGUGGUGUAGUGGUGUGUUCUGGACCCGAAGCGGAGUGAUCUACCCAUGGCCAGGGUGAAGCGCGGGUAAGACCGCGUGGAGGCCCGAACCCACUUAGGUUGAAGACUGAGGGGAUGAGCUGUGGGUAGGGGUGAAAGGCCAAUCAAACUCCGUGAUAGCUGGUUCUCCCCGAAAUGCAUUUAGGUGCAGCGUCGCAUGUUUCUUGCCGGAGGUAGAGCUACUGGAUGGCCGAUGGGCCCCACAGGGUUACUGACGUCAGCCAAACUCCGAAUGCCGGUAAGUCCAAGAGUGCGGCAGUGAGACGGCGGGGGAUAAGCUCCGUGCGUCGAGAGGGAAACAGCCCAGAUCGCCGGCUAAGGCCCCUAAGCGUGUGCUAAGUGGAAAAGGAUGUGCAGUCGCGAAGACAACCAGGAGGUUGGCUUAGAAGCAGCCACCCUUGAAAGAGUGCGUAAUAGCUCACUGGUCAAGUGAUUGUGCGCCGAUAAUGUAGCGGGGCUCAAGCACACCGCCGAAGCCGCGGCAGCCAACGUGUUGGCUGGGUAGGGGAGCGUCCUGCAUCCGGUGAAGCCGCCGAGUGAUCGAGUGGUGGAGGGUGUGGGAGUGAGAAUGCAGGCAUGAGUAGCGAUUAGGCAAGUGAGAACCUUGCCCGCCGAAAGACCAAGGGUUCCUGGGCCAGGCCAGUCCGCCCAGGGUGAGUCGGGACCUAAGGCGAGGCCGACAGGCGUAGUCGAUGGACAACGGGUUGAUAUUCCCGUACCCGUGUAUGUGCGUCCAUGAUGAAUCAGCGGUACUAACCAUCCAAAACCACCGUGACCGCACCUUUCGGGGUGUGGCGUUGGUGGGGCUGCAUGGGACCUUCGUUGGUAGUAGUCAAGCGAUGGGGUGACGCAGGAAGGUAGCCGUACCGGUCAGUGGUAAUACCGGGGUAAGCCUGUAGGGAGUCAGAUAGGUAAAUCCGUCUGGCAUAUAUCCUGAGAGGUGAUGCAUAGCCGAGUGAGGCGAAUUCGGUGAUCCUAUGCUGCCGAGAAAAGCCUCUAGCGAGGACAUACACGGCCCGUACCCCAAACCAACACAGGUGGUCAGGUAGAGAAUACUAAGGCGUACGAGUGAACUAUGGUUAAGGAACUCGGCAAAAUGCCCCCGUAACUUCGGGAGAAGGGGGACCCACAUGGCGUGUAAGCCUUUACGGCCCAAGCGUGAGUGGGUGGCACAAACCAGUGAGAAGCGACUGUUUACUAAAAACACAGGUCCGUGCGAAGUCGCAAGACGAUGUAUACGGACUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGACCCGUUAACUCCCUUUGGGGGUGAAGCGGAGAAUUUAAGCCCCAGUAAACGGCGGUGGUAACUAUAACCAUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAACGACUUCUCAACUGUCUCAACCAUAGACUCGGCGAAAUUGCACUACGAGUAAAGAUGCUCGUUACGCGCGGCAGGACGAAAAGACCCCGGGACCUUCACUACAACUUGGUAUUGGUGCUCGAUACGGUUUGUGUAGGAUAGGUGGGAGACUGUGAAGCUCACACGCCAGUGUGGGUGGAGUCGUUGUUGAAAUACCACUCUGAUCGUAUUGGGCCUCUAACCUCGGACCGUAUAUCCGGUUCAGGGACAGUGCCUGGUGGGUAGUUUAACUGGGGCGGUUGCCUCCUAAAAUGUAACGGAGGCGCCCAAAGGUUCCCUCAACCUGGACGGCAAUCAGGUGUUGAGUGUAAGUGCACAAGGGAGCUUGACUGCGAGACGGACAUGUCGAGCAGGGACGAAAGUCGGGACUAGUGAUCCGGCACCUCUGAGUGGAAGGGGUGUCGCUCAACGGAUAAAAGGUACCCCGGGGAUAACAGGCUGAUCUUCCCCAAGAGUCCAUAUCGACGGGAUGGUUUGGCACCUCGAUGUCGGCUCGUCGCAUCCUGGGGCUGGAGCAGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGCACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCUCUAUCCGCCGCGCGCGUCAGAAGCUUGAGGAAACCUGUCCCUAGUACGAGAGGACCGGGACGGACGAACCUCUGGUAUACCAGUUGUCCCACCAGGGGCACGGCUGGAUAGCCACGUUCGGACAGGAUAACCGCUGAAAGCAUCUAAGCGGGAAACCUCUUCCAAGACCAGGCUUCUCACCCUCUAGGAGGGAUAAGGCCCCCCGCAGACCACGGGAUUGAUAGACCAGACCUGGAAGCCUAGUAAUAGGUGCAGGGAACUGGCACUAACCGGCCGAAAACUUAC

Entity 3 polymer

描述 description	5S rRNA
分子量 formula_weight	38061.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GUUACGGCGGUCCAUAGCGGCAGGGAAACGCCCGGUCCCAUCCCGAACCCGGAAGCUAAGCCUGCCAGCGCCGAUGAUACUACCCAUCCGGGUGGAAAAGUAGGACACCGCCGAACAC

Entity 4 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	30008.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

GIRKYKPTTPGRRGASVSDFAEITRSTPEKSLVRPLHGKGGRNAHGRITTRHKGGGHKRAYRVIDFRRHDKDGVNAKVAHIEYDPNRTANIALLHYLDGEKRYIIAPQGLKQGDVIESGANADIKPGNNLPLRNIPAGTVIHAVELRPGGGAKLARSAGVSIQLLGKEGTYAALRMPSGEIRRVDVRCRATVGEVGNAEQSNINWGKAGRMRWKGKRPTVRGVVMNPVDHPHGGGEGKTSGGRHPVSPWGKPEGRTRKPNKPSDKLIVRRRRTGK

Entity 5 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	22621.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

ARKGILGTKLGMTQVFDENNKVVPVTVVKAGPNVVTRIRTTERDGYSAVQLAYGEISPRKVIKPVAGQFAAAGVNPRRHVAELRLDDEAAVAEYEVGQELTAEIFSDGAYVDVTGTSKGKGFAGTMKRHGFRGQGAAHGAQAVHRRPGSIGGCATPGRVFKGTRMSGRMGNDRVTTQNLKVHKVDAENGVLLIKGAIPGRNGGLVVVRSAIKRG

Entity 6 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22346.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

TLKVDVKTPAGKTDGSVELPAELFDVEPNIALMHQVVTAQLAAKRQGTHSTKTRGEVSGGGKKPYRQKGTGRARQGSTRAPQFTGGGTVHGPKPRDYSQRTPKKMIAAALRGALSDRARNDRIHAVTELVEGQTPSTKSAKTFLGTLTENKKVLVVIGRTDEVGAKSVRNLPGVHVISPDQLNTYDVLNADDVVFSVEALNAYISANSK

Entity 7 polymer

描述 description	Large ribosomal subunit protein uL5
分子量 formula_weight	20588.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

KALPRLKQRYREEIREALQQEFNYANVMQIPGVVKVVVNMGVGDAARDAKLINGAINDLALITGQKPEVRRARKSIAQFKLREGMPIGARVTLRGDRMWEFLDRLISIALPRIRDFRGLSPKQFDGTGNYTFGLNEQSMFHEIDVDSIDRPRGMDITVVTTATNDAEGRALLRALGFPFKEN

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19165.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

SRIGKQPVPVPSGVDVTINGQNLSVKGPKGTLTLDVAEPISVSRAEDGAIVVTRPDDERRSRSLHGLSRTLIANLVTGVTEGYTQKMEIFGVGYRVQLKGQNLEFALGYSHPVLIEAPEGITFAVESPTKFSVSGIDKQKVGQISAVIRRLRRPDPYKGKGVRYEGEQIRRKVGKT

Entity 9 polymer

描述 description	50S ribosomal protein L9
分子量 formula_weight	15949.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MKLILTAEVEHLGAAGDTVEVKDGYGRNYLLPRGLAIVASRGAERQAEEIRRARESKVIRDIEHANELKTALEGLGDVTLSVNAAGDTGKLFGSVTAADVVNAIKKAGGPNLDKRTVQLAKAHIKSVGTHPVTVKLHTGVEAKVSLNVVAQ

Entity 10 polymer

描述 description	Large ribosomal subunit protein uL10
分子量 formula_weight	13095.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAKADKATAVADIAEQFKASTATVVTEYRGLTVANLAELRRALGDSATYTVAKNTLVKRAASEAGIEGLDELFAGPTAIAFVKGEAVDAAKAIKKFAKDNKALVIKGGYMDGKALSVADVEKIADL

Entity 11 polymer

描述 description	Large ribosomal subunit protein uL11
分子量 formula_weight	14109.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

LIKLQIQAGQANPAPPVGPALGQHGVNIMEFCKAYNAATESQRGNVIPVEITVYEDRSFTFALKTPPAAKLLLKAAGVQKGSGEPHKTKVAKVTWDQVREIAETKKADLNANDIDAAAKIIAGTARSMGITVE

Entity 12 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16015.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

PTYTPKAGDTTRSWYVIDASDVVLGRLASAAATLLRGKHKPTFTPNVDGGDFVIVINADKIAVSGDKLTKKFAYRHSGYPGGLRKRTIGELLEKHPTRVVENAIIGMLPHNKLGRQIQKKLKVYAGPDHPHAAQQPIPFEIKQVAQ

Entity 13 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13400.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MIQQESRLKVADNTGAKEILCIRVLGGSSRRYAGIGDVIVATVKDAIPGGNVKRGDVVKAVVVRTVKERRRADGSYIKFDENAAVIIKNDNDPRGTRIFGPVGRELREKKFMKIVSLAPEVL

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	15384.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

VIKLHDLKPAPGEKKAKTRVGRGEGSKGKTAGRGTKGTKARKNVPVMFEGGQMPIHMRLPKLKGFKNRFRTEYQVVNVGDINKAFPQGGTVGVDELVAKGLVRKNSLVKVLGDGKLTVKVDVTANKFSGSAREAITAAGGSATEL

Entity 15 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15498.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MLIPRKVKHRKQHHPEQRGIASGGTSVSFGDYGIQALEHAYITNRQIESARIAINRHIKRGGKVWINIFPDRPLTKKPAETRMGSGKGSPEWWVANVKPGRVLFELSYPDEKTARDALTRAIHKLPIKARIVTREE

Entity 16 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	13210.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

PKPTKGPRLGGSSSHQSALLANLATSLFEHGRIKTTEPKARALRPYAEKLITHAKKGALHNRREVMKKIRDKDVVHTLFAEIGPFYADRNGGYTRIIKVENRKGDNAPMAVIELVREK

Entity 17 polymer

描述 description	Large ribosomal subunit protein uL18
分子量 formula_weight	13580.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

AHKPVGQNISEVRRNARLRRHARLRKKVAGTAEVPRLVVNRSARHIHVQLVNDLNGTTLAAASSIEADVRAIDGDKKAHSVRVGQLIAERAKAAGVETVVFDRGGYTYGGRIAALADAAREAGLKF

Entity 18 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	12892.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MNTLDFVDQASLRDDIPTFSPGDTVNVHVKVIEGSKERIQVFKGVVIRRQGGGISETFTVRKESYGVGVERTFPVHSPNIDHIDVLTRGDVRRAKLYYLRELRGKKAKIKEKR

Entity 19 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	14035.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

ARVKRALNAQKKRRTVLKASKGYRGQRSRLYRKAKEQQLHSLTYAYRDRRARKGEFRKLWISRINAAARANDITYNRLIQGLKAAGVEVDRKNLAELAVSDPAAFTALVDVARAALPEDVNAPS

Entity 20 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	10724.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

TYAIVKTGGKQYKVAAGDVVKVEKLDSEPGASVSLPVALVVDGANVTSKADDLAKVAVTAEVLEHTKGPKIRIHKFKNKTGYHKRQGHRQQLTVLKVTGI

Entity 21 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	12408.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

EFPSATAKARYVRVSATKARRVIDLVRGKSVEEALDILRWAPQAASEPVAKVIASAAANAQNNEGLDPSTLVVATVYADEGPTAKRIRPRAQGRAFRIRKRTSHITVIVESRPP

Entity 22 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10748.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

ATITDPRDIILAPVISEKSYGLIEDNVYTFVVHPDSNKTQIKIAIEKIFDVKVDSVNTANRQGKRKRTRTGFGKRKSTKRAIVKLAAGSKPIDLFGA

Entity 23 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11228.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MKVHKGDTVLVISGKDKGAKGKVLVAYPDRNKVLVEGVNRIKKHTAVSANERGASSGGIVTQEAPIHVSNVMVVDSDGKPTRVGYRIDDETGKKVRIAKTNGKDI

Entity 24 polymer

描述 description	Large ribosomal subunit protein bL25
分子量 formula_weight	20331.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

TANIPNKLTANVRTRTGKGASRQARRDGKVPAVLYGHGTDPQHLELNARDFAAVLRSHGTNAILTLDIEGTEQLALTKALDVHPIRRNIQHADLLVVQRGEKVTVEVTVLVEGDATPGTLVTQDANTIEIEAEALSIPEQLTVSVEGVEAGTQITAGQISLPEGVNLISDPELLVVNVVEAPSAEALEEEGA

Entity 25 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	8322.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

SSSRNGRDSAAQRLGVKRFGGQVVKAGEILVRQRGTHFHPGVNVGRGGDDTLFALAPGAVEFGAKRGRKTVNIVPVARP

Entity 26 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	6759.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

AAVCDICGKGPGFGKSVSHSHRRTSRRWNPNIQPVRAVTRPGGNKQRINACTSCIKAGKVSRA

Entity 27 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	7590.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

GTTPGELRELTDDELKDKLRESKEELFNLRFQMATGQLSNNRRLRTVRQEIARVYTVLRERELG

Entity 28 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6761.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

AELKITQVRSTIGARWKQRESLRTLGLKKIRQSVVREDNAQTRGLINTVHHLVEVEEVG

Entity 29 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	6050.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

AVPKRRMSRANTRSRRAQWKAEAPGLVTVSVAGQQRKVPRRLLKAARLGLVDLD

Entity 30 polymer

描述 description	Large ribosomal subunit protein bL33A
分子量 formula_weight	5833.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

DVRPKITLACEVCKHRNYITKKNRRNDPDRLEIKKFCPNCGTHQPHKES

Entity 31 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5391.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

AKGKRTFQPNNRRRARVHGFRLRMRTRAGRAIVANRRSKGRRALTA

Entity 32 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7167.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

PKAKTHSGASKRFRRTGTGKIVRQKANRRHLLEHKPTKRTRRLDGRTTVSAADNSRINKLLNG

Entity 33 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4341.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MKVNPSVKPICDKCRVIRRHGRVMVICSDPRHKQRQG

Entity 34 polymer

描述 description	Large ribosomal subunit protein bL31
分子量 formula_weight	5258.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MKTGIHPEYVDTTVQCGCGHSFTTRSTKQSGTIVVEVCSQCHPFYTGK

Entity 35 non-polymer

描述 description	ERYTHROMYCIN A
分子量 formula_weight	733.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	43558

fit	/app/data/saxs_computation/xz/8xz3/8xz3.fit
pddf	/app/data/pr_computation/xz/8xz3/8xz3.pr.out
profile	/app/data/saxs_computation/xz/8xz3/8xz3.dat

Mycobacterium smegmatis 50S ribosomal subunit with Erythromycin

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (35)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 non-polymer

7. 引用文献 (1)

8. 文件与曲线 (10)
