8y3y

The Cryo-EM structure of anti-phage defense associated DSR2 tetramer bound with two DSAD1 inhibitors (opposite side)

Method: ELECTRON MICROSCOPY D_max: 232.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8y3y
沉积日期 deposition_date	2024-01-29
最后修订 last_revision	2024-09-11
结构标题 title	The Cryo-EM structure of anti-phage defense associated DSR2 tetramer bound with two DSAD1 inhibitors (opposite side)
关键词 keywords	NADase, anti-phage defense, complex, immune evasion, IMMUNOSUPPRESSANT; IMMUNOSUPPRESSANT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	75.60 Å
回转半径 Rg (电子) rg_electron	77.01 Å
零角强度 I(0) i0	2914370000.00
分子量 molecular_weight	475140.0 kDa
排除体积 excluded_volume	601430 Å³
包络体积 envelope_volume	952840 Å³
水化壳体积 shell_volume	111820 Å³
包络直径 envelope_diameter	269.6 Å
壳层 Rg shell_rg	62.50 Å
包络 Rg envelope_rg	77.07 Å
形状 Rg shape_rg	76.98 Å
总 Rg total_rg	76.86 Å
总原子数 total_atoms	33586
残基数 n_residues	4034
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

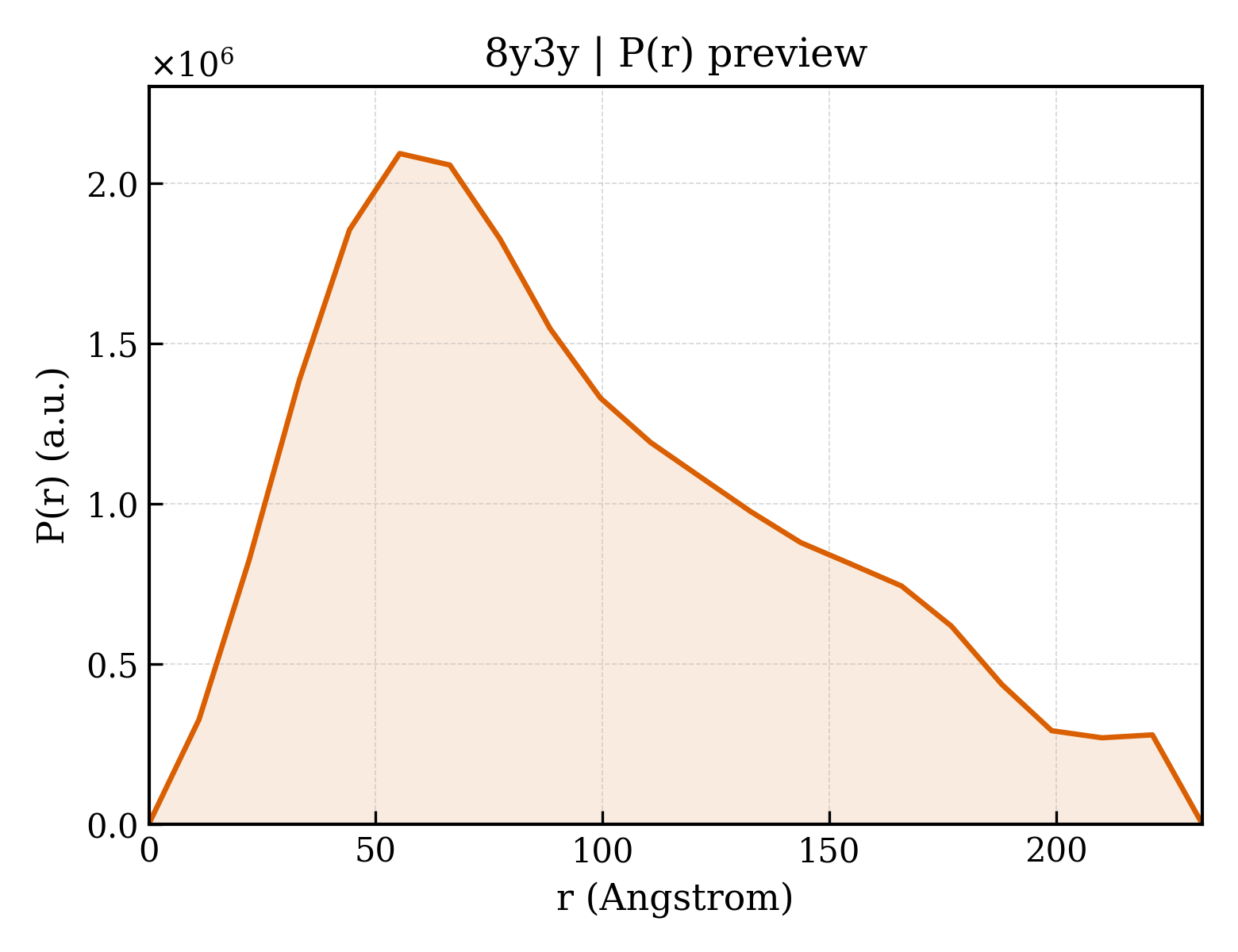

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.2 Å
Rg (实空间) rg_real	75.09 Å
Rg 误差 (实空间) rg_real_error	1.53 Å
I(0) (实空间) i0_real	2.8930e+09
I(0) 误差 (实空间) i0_real_error	6.2300e+07
Rg (倒空间) rg_reciprocal	72.33 Å
I(0) (倒空间) i0_reciprocal	2890000000.0000
解质量估计 total_estimate	0.7905
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	55.3 Å
偏度 Skewness skewness	0.590
峰度 Kurtosis kurtosis	-0.470
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0551
最高正则化参数 α highest_alpha	263200000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.719; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.135

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	SIR2-like domain-containing protein
分子量 formula_weight	118635.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,E
原子数 atom_count	33586

MVKVDLESKRYGEKLKEVFLMLDNNVVECIKEITESSRNGKLVFFVGAGVSTLSDYPQWWRLVDKYHEELYGSPKKGNYSSDEYLRIPQIFYNVKGEMAFDGILKDFFQVDKPTNPIHDKILAMNPAHVITTNYDNLIDTACWKRGKYFSVISAEEDVANATSSRYLLKVHGDFRKGFKGENVVLKEDDYLNYDQNYPLISNLMKTIIATHTIVFIGYGLGDYNINMLLNWVRKLQKDSFHKPFFIRTDPSPIENETLIYYENKGLRIIDAASLIDSNEYDYLERYSAVMDLLIESQENKFITKDDEVIDYIYGKISPLFALQYIRKIDLKHVFEYDYHFEVNGTVVRHKNKGFGYMERFFELKESCDERSKLSKKQYERFNALFNFFEKNGVICMAKDAGTLNTSIEINSLAYHGKYDVMKKFIEEQSVSIEDDYKKAFFLACLGRWEESYDLYSNIILNSIDESNGCVYYLSQINRYRIYQSITQAVTQFNGLGLLTFGRHYKPFTDEFLARIEREMTNFNIDDLFNGMPFEFQKKYKILEFLSDNQFLYDDTVKLFELTNKVRSEMSEGSYSFGMSSDIVVLLRLYDNLRFLYENCLWSVSFHEFHQYIRNSMSLLIEKAEYERTRDIDELGFSFFGKKSGFFMEYYDFVNISRHFKIDDIKNLERSCSIDKIRFGEQEKIEEYLVGIAEEITKQFSANGMNVVFYTQFISEAKAALYFAKYVKLSEEGLGKIVKALLFYFPERDLDIGKRYVWLERLTKCNELPKSIISIIDDFLVLQAEKHIDQNYSEVSSNGLYSRDYGALIKHFEKNFISKRLSEITLCLTQDKQKQIDFLFKLLPLLSTNAKSHLLSFKSVENINDLMNGIRIGLIDEFTPEHEELIIEYLETRKVNYIVEKEKGIQTFSSNDYMSTFGIWYFLEEINNSKMEEFIGMDDQYDFFVDPENFDYKKFIPSWLKNYNDKLLGKIAGNKHMKHHVIEVLKERVKNSNDKRYLEILMNYFI

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli B

Entity 2 polymer

描述 description	DSR anti-defence 1
分子量 formula_weight	13872.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

MIEIFKDTGATHDLVYHSKINTFVWDVEFDIVLSDSKELNKCYFVKCFNPYRINGKCDFAVSSIDIFSEGKRLLIENEFNFKITKAVHVATSKDVTEIVLHLSERISSPFPIVKEVVYLD

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli B

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.33 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	91205

fit	/app/data/saxs_computation/y3/8y3y/8y3y.fit
pddf	/app/data/pr_computation/y3/8y3y/8y3y.pr.out
profile	/app/data/saxs_computation/y3/8y3y/8y3y.dat
