8y64

Crystal structure of open state ferulic acid decarboxylase from Saccharomyces cerevisiae, F397V/I398L/T438P/P441V mutant

Method: X-RAY DIFFRACTION D_max: 110.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8y64
沉积日期 deposition_date	2024-02-01
最后修订 last_revision	2025-01-01
结构标题 title	Crystal structure of open state ferulic acid decarboxylase from Saccharomyces cerevisiae, F397V/I398L/T438P/P441V mutant
关键词 keywords	ferulic acid decarboxylase, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.51 Å
回转半径 Rg (电子) rg_electron	31.90 Å
零角强度 I(0) i0	181519000.00
分子量 molecular_weight	112300.0 kDa
排除体积 excluded_volume	142260 Å³
包络体积 envelope_volume	169100 Å³
水化壳体积 shell_volume	44074 Å³
包络直径 envelope_diameter	112.7 Å
壳层 Rg shell_rg	38.90 Å
包络 Rg envelope_rg	31.87 Å
形状 Rg shape_rg	31.87 Å
总 Rg total_rg	32.54 Å
总原子数 total_atoms	7902
残基数 n_residues	1004
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

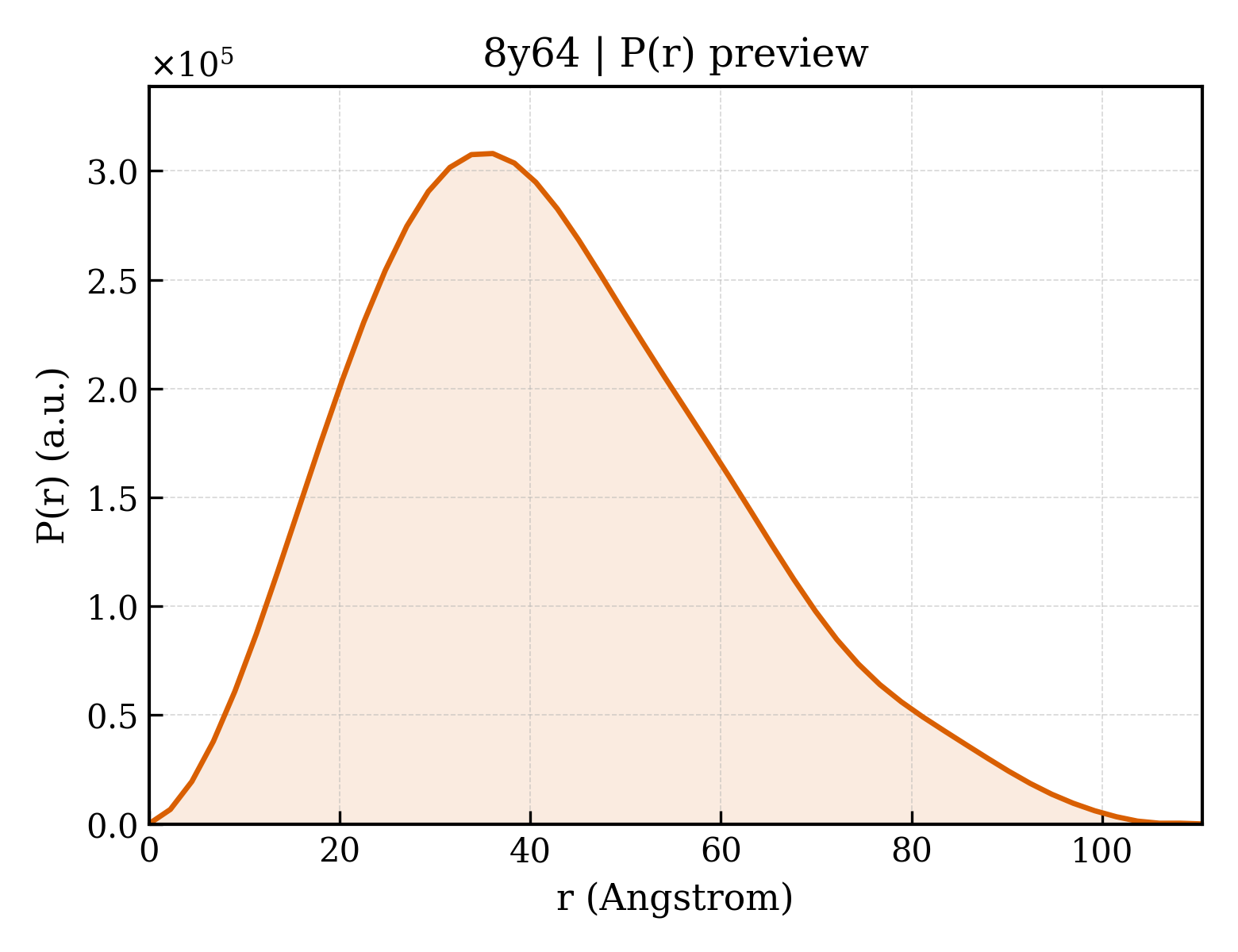

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	110.5 Å
Rg (实空间) rg_real	32.61 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	1.8150e+08
I(0) 误差 (实空间) i0_real_error	3.0500e+06
Rg (倒空间) rg_reciprocal	32.57 Å
I(0) (倒空间) i0_reciprocal	181500000.0000
解质量估计 total_estimate	0.8632
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.470
峰度 Kurtosis kurtosis	-0.201
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	43440000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.791; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.864

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Ferulic acid decarboxylase 1
分子量 formula_weight	56181.7 kDa
EC 编号 ec_number	4.1.1.102
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8977

MRKLNPALEFRDFIQVLKDEDDLIEITEEIDPNLEVGAIMRKAYESHLPAPLFKNLKGASKDLFSILGCPAGLRSKEKGDHGRIAHHLGLDPKTTIKEIIDYLLECKEKEPLPPITVPVSSAPCKTHILSEEKIHLQSLPTPYLHVSDGGKYLQTYGMWILQTPDKKWTNWSIARGMVVDDKHITGLVIKPQHIRQIADSWAAIGKANEIPFALCFGVPPAAILVSSMPIPEGVSESDYVGAILGESVPVVKCETNDLMVPATSEMVFEGTLSLTDTHLEGPFGEMHGYVFKSQGHPCPLYTVKAMSYRDNAILPVSNPGLCTDETHTLIGSLVATEAKELAIESGLPILDAFMPYEAQALWLILKVDLKGLQALKTTPEEFCKKVGDIYFRTKVGVLVHEIILVADDIDIFNFKEVIWAYVTRHTPVADQMAFDDVPSFVLAPFVSQSSRSKTMKGGKCVTNCIFRQQYERSFDYITCNFEKGYPKGLVDKVNENWKRYGYK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1059

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	81.778 Å
晶胞边长 b length_b	81.830 Å
晶胞边长 c length_c	166.321 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.970 Å
最低分辨率 resolution_low	30.810 Å
R 因子 r_factor	0.1522
R_work r_work	0.1506
R_free r_free	0.1841
