Near-atomic structure of icosahedrally averaged jumbo bacteriophage PhiKZ capsid

Method: ELECTRON MICROSCOPY D_max: 331.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8y6v
沉积日期 deposition_date	2024-02-03
最后修订 last_revision	2024-08-14
结构标题 title	Near-atomic structure of icosahedrally averaged jumbo bacteriophage PhiKZ capsid
关键词 keywords	phiKZ, capsid protein, viral assembly, Pseudomonas aeruginosa, jumbo phage, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	125.30 Å
零角强度 I(0) i0	52270200000.00
分子量 molecular_weight	1969800.0 kDa
排除体积 excluded_volume	2471600 Å³
包络体积 envelope_volume	4118600 Å³
水化壳体积 shell_volume	273880 Å³
包络直径 envelope_diameter	466.1 Å
壳层 Rg shell_rg	96.41 Å
包络 Rg envelope_rg	127.30 Å
形状 Rg shape_rg	125.30 Å
总 Rg total_rg	125.20 Å
总原子数 total_atoms	138685
残基数 n_residues	17716
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

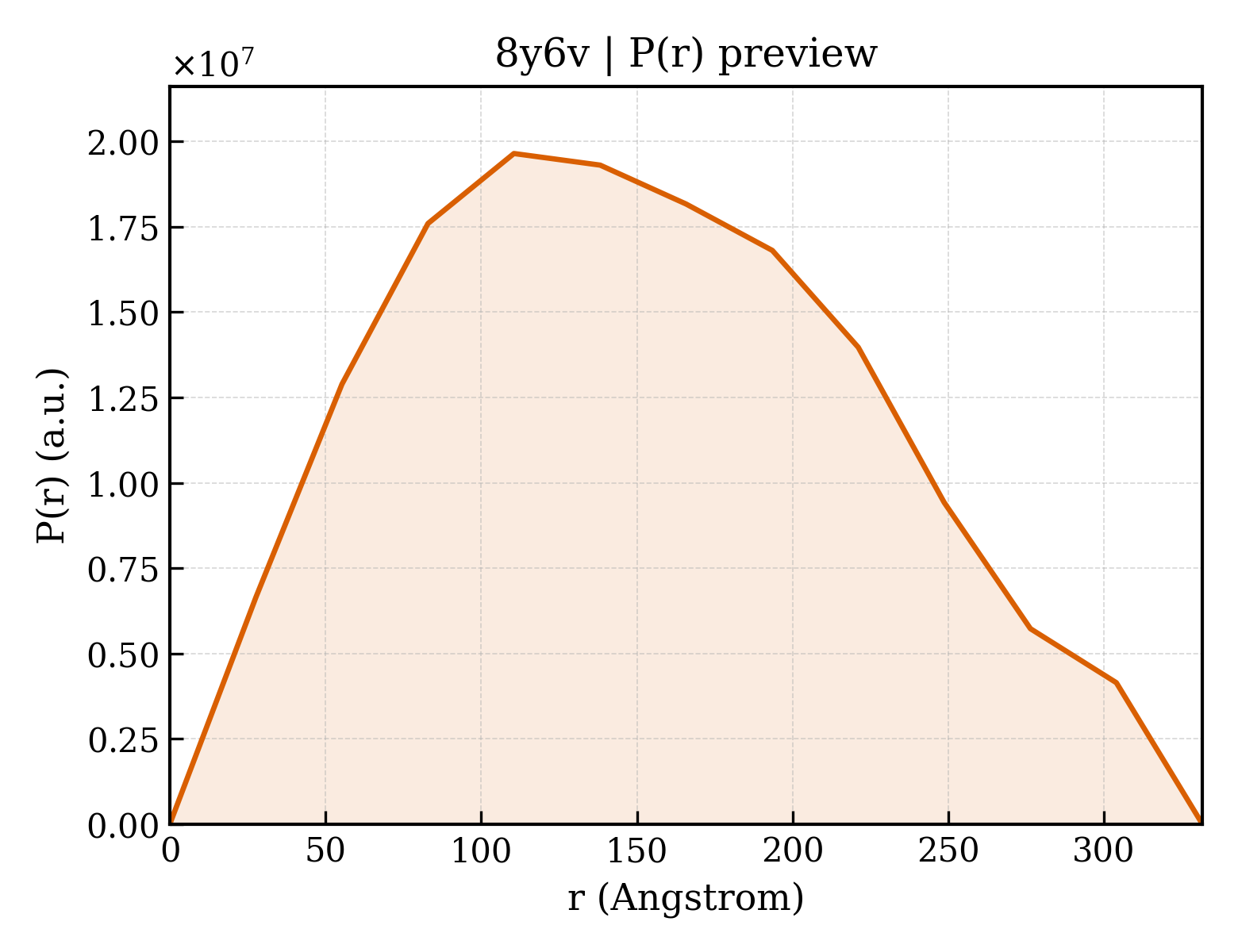

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	331.6 Å
Rg (实空间) rg_real	117.50 Å
Rg 误差 (实空间) rg_real_error	1.52 Å
I(0) (实空间) i0_real	5.0130e+10
I(0) 误差 (实空间) i0_real_error	1.1160e+09
Rg (倒空间) rg_reciprocal	113.00 Å
I(0) (倒空间) i0_reciprocal	50130000000.0000
解质量估计 total_estimate	0.9193
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	110.5 Å
偏度 Skewness skewness	0.224
峰度 Kurtosis kurtosis	-0.746
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	0.5836
最高正则化参数 α highest_alpha	777700000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.005; Oscil: 0.998; Stabil: 0.988; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	gp28
分子量 formula_weight	36511.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D
原子数 atom_count	138685

MFLLPYETTVCKTLYNPTGGGKLYPKQYVDQIENAIKKANVYLPIPPVDARNGETLEHSGQITPVDDFEDIKKFTQIVNIGDRDNPKLVVDARLYKKIEQRTGIPRIIQQNEWQFQYIRMALNIKLLREGPDFLHRLGDIPVKVFYNWISGILTQKYSLPPESTQAIWVICAVYYFAMQDDDLTEPGQERDRLIPIISRLTYIPAGFIADVIDTLGPLHNAGDLAYEISTNGRSIRMGKLKFSDLQLLVSPSWFGTASRENVGVALEHMPTYITLIYMALADRSYRKTVLSQKVEMISRSDDASRFINLVNEAVSSQFVK

Entity 2 polymer

描述 description	gp35
分子量 formula_weight	29713.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAKRKARAVSAPVTLSEISEIPNEVTNAEDSVNELETTPTEIVSTESSENENTTADSENTAATDSTTDEESEDTSSTEANGDGESEEPDLSENQEDPKEPIETPEEPVEDDDGSGDPDGGTSEEKPTEGDPEDPEEPTEPTDPEEPTDPVDPVEPPPEEPKAFQLNLATVKSQFGDLPTYWAIELIKRYFSAPPAIYIPDVVDNPDFKIMVQQVKFFGNGLRPIYNSKNMITFTTMLEGASEATILEDMKKQQPALLSLLPWYDPNAEIDK

Entity 3 polymer

描述 description	gp85
分子量 formula_weight	16438.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F

MQQLGFELSRILKQLPNLGGSDRKTRAMLLANAVALQIPFETLLDFDEQQDKAVAKFKKILSKVNENIAVDTKLAVTYFNNILRIRQSLITGITDPCLVKAVLTSDTANDYLTVDDVNIVSAVVNGPDYNRIQADMGNALNQLIGSIDE

Entity 4 polymer

描述 description	gp86
分子量 formula_weight	48893.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSEVKPMSHVKEVDVEEEKLFFDENQPEMVEGEEETVSSASAPEVLAKMCVAVEAIHQLSDIYAITKLEGVSKPDVDGIRALVKRMSTEGFEAPKKAVASLEQYASMFTPTRSTLNVTISQEAVMATIINTLKTWFEKLMELFAKLIRWISDFKKRDVVVATRYGKIVRAVDQARTLFQELLVKNRLGNRKDALLEKFDAIAQSIIDDPKILASRIYAAAFGSVYYQKEIININNEARTELGTMEKLVGTIIEYVNYNGDDYRALMPIANIREIGKLATRCNELSTVYPDRSSIPDFPDKNFWKNSHLLKDRFVAPLDDLLKAYRNSSDALRKLKQLSRNYSQETIDAIGESVQLINTSLEGMRRITDTMFEYSQAQYLAASCVLNYYGKCAQVVSEDYKIHGFNDAIREWQRRFDKVIDDFKRGYAM

Entity 5 polymer

描述 description	gp91
分子量 formula_weight	20817.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MEGIDMPATNAVRPFGRNYSGGQQQAISRFTARPGDPQVEELYLIFTNFPAQTAYWEFHKKVLACAIRLFSGNYNWFILQDNNSNIDSYNYQFLLDTVRYIATGHRRISITQWPMLLATEPDAGAQLIEPRAEIATLFNELKLDLDTVSMIQNWVKHKNGMNDLMYTLHLLFGSVEVIDKD

Entity 6 polymer

描述 description	gp93
分子量 formula_weight	47656.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M

MSLLKMLDKLSLESIEDQGTTIHGDVELVVENETSADVSSVLAEVDQIENNPVEEVLDADDAVQPTALDTEVTIVQAEDELGLIEDAKEALEKFQGLLLQAGEDGISRQAAAFMHVGMESIDRILGIEKSGLTAALENYDASPRSAIQKAAVISLEDLKEKLKEAGKKALEIIKKIVAMIKQKIKDFNPKLIALDMRITKTIDAIKSLKAGDLKKEEIKFTPSEYMVSSSGFIANNPKTIADFMTVFSTQYVSALRKYGELGVRYLKGDKSIDIDQVTSDLQAKMAEDINKAVEKAPGNVKLEVTSSKSGVNKWEVVEGDGETDLHEVEVDVRAPSKILAHLNILKGLVIKLQDFNKIDYKIAENLEKALADWNPDEAGMSKETARDALNIGGIDNSALVNYIAKCIAAQYTFIVKHELAAYGKETSKAPENDEK

Entity 7 polymer

描述 description	gp119
分子量 formula_weight	20254.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MTQVLVMPKAVFESYKTAGVQFNKLLDTNYIVSETSVNDLAEIHQALTAFPFLLPEKLDIKLAVSPIIKVAELGEIDGPEQFKMKDLHNRLESRLATNELRDAGNRNLVYDYYLYPVDENLWVAVQQSAHIASSDPRRVSIQLNHTFFDSMINEMLNTRPRESVASTQIFTYYLESC

Entity 8 polymer

描述 description	gp120
分子量 formula_weight	83022.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	27

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x,y,z,A

MSVHALRELFKHKGEKNYEVFSMEDFIGRLESEIGLNDSVVSQGRSLISSISHENFGTVQATDIQDAAAIYNKMQMLVNDYGFERVSSSDPQVRAREERVRENQITAATMAAIACADETKYIRALRGITKAKASNEDHVKVVQHQFNGPAGGIQVFENGVGLENYNEKSQRDFRVVTIGYNLAASRQDEFAERIYPTTVINPIEGGVVQVLPYIAVMKDVYHEVSGVKMDNEEVNMVEAYRDPSILDDESIALIPALDPAGSNADFFVDPALVPPYTIKNEQNLTITTAPLKANVRLDLMGNSNANLLIQRGMLEVSDTIDPAGRLKNLFVLLGGKVVKFKVDRLPRAVFQPDLVGDTRNAVIRFDSDDLVVSGDTTFIDGSADGVINDLKTAKLSLRLSVGFGGTISLSKGDSKFGATDTYVDKVLNEDGQVMDNADPAVKAILDQLTDLAVIGFELDTRFTNTNRRQRGHLLQTRALQFRHPIPMHAPVTLPMDTMTDEGPGEVVKALTVNTNIRNSNNAVKRMLNYLAQLREVVHNGYNRPKFGIIEGALSAVMRPTYRYKELDLEKVIDTIKSKDRWDDVCAAILNCVKAELFPAHRDSNIEAAFRVISGNQDETPMYLFCSDKEIANYLMTKGDDRTLGAYLKYDIVSTNNQLFDGKLVVIPTRAVQQENDILSWGQFFYVSTVIADLPITRGGHQVTREIAAIPFNLHVNNIPFALEFKITGFQKVMGETQFNGKLADLKP

Entity 9 polymer

描述 description	gp162
分子量 formula_weight	57705.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,O,P

MAKKKTVPAMDFFASLERVSDAEDKNVNLDVGKELPEQLKDDEDGKVNPCDEVTNVVTNTPIDVCKGPDVDGTADKINDKKIHVSQGLKEFQVAKGDRVENEITETADEMITKVSDTKDLNVSTKKPHQIADVPSNEDISIMEANETEQLDHGYDATALLETTEDIITGELDDHLESLSVEMFTIVNELTKVESVQTALENYIGLVSNRHHRGHDVDHDLAKAISIALESFDYKYFNNTVPSMESFISPLTRPKASIEVLDNLQAKAKEVSTVALDFIKKLIRIVVETYQRIRQNVSNQIERVNKIMKRVKENELPDEVRTIAIPRDLILGDTGESWVGVDPVQGVTVIRNLFDSIEKNGLRALKAALAGKTTDDKALALAKGMFGTATKINANGVRYASPVVPGNRVYTFGKDKAAVDFSILDAPGKPNYGITVELLVDKNVVMAQLKAVHNLLNHLNNIRGISKESTAEIIAQMTDKEATNVGKAYLTGTTEASNDLFKCVMIWITVLEKLVDSEIKETE

Entity 10 polymer

描述 description	gp184
分子量 formula_weight	25300.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MSKPNLEWLASLESKEAKSTVDSSDMDNDQKEGSDKSQQDEATEPEKKITATDVQIAIEEYARIRALTTTKDLPTDPEPGDTYHVNGVDWIYQEDGGWVTMQGIYGHEHFDENGLNIEASGIDQKSGATKRYVVTGYNAQTNPAAMPGDNLTECVILMQNGLVPEVGVNGLTADCLLKIVKDLFEGYQAGPFACEENQVVINSMDRALSAIHQRLVRRKEQGTEGTYSGN

Entity 11 polymer

描述 description	gp244
分子量 formula_weight	13427.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MPTYIELINIVNDDTPEDDAVISDLMSQMNDKQTVLDSCRINHKGNAYFKFHVKGSISKDKLKALNETLKDSNLVVTDASTQRGFMPPNKFDDITYTEESVGYRAMVWTSFTIEKLLV

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	903900

fit	/app/data/saxs_computation/y6/8y6v/8y6v.fit
pddf	/app/data/pr_computation/y6/8y6v/8y6v.pr.out
profile	/app/data/saxs_computation/y6/8y6v/8y6v.dat
