8ycv

;HosA transcriptional regulator from enteropathogenic Escherichia coli O127:H6 (strain E2348/69) bound with 4-hydroxy benzoic acid - Conformation II at 2.16 angstrom resolution (STARANISO processed) ;

Method: X-RAY DIFFRACTION D_max: 61.2 Å Quality: GOOD

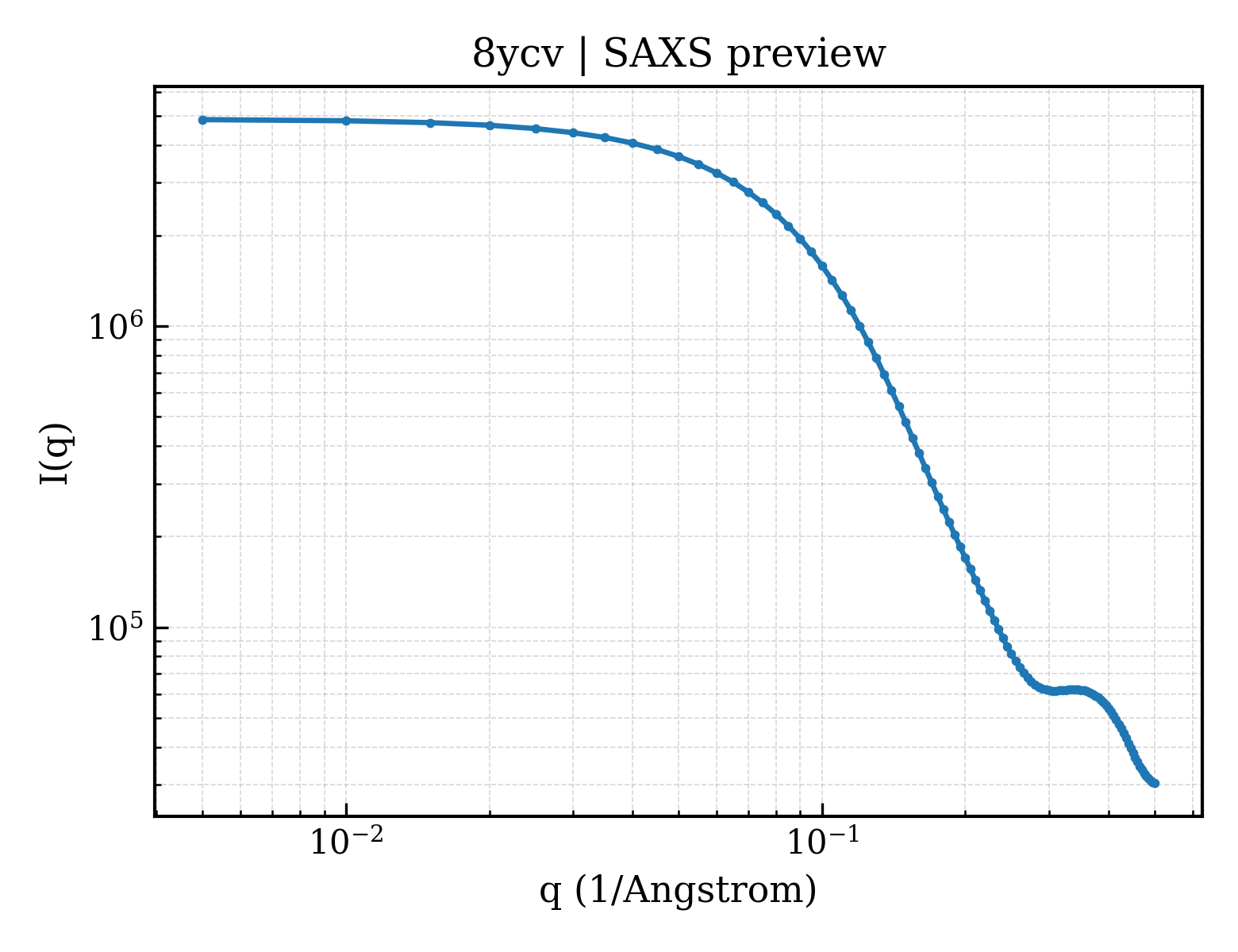

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ycv
沉积日期 deposition_date	2024-02-18
结构标题 title	;HosA transcriptional regulator from enteropathogenic Escherichia coli O127:H6 (strain E2348/69) bound with 4-hydroxy benzoic acid - Conformation II at 2.16 angstrom resolution (STARANISO processed) ;
关键词 keywords	Antibiotic resistance, MarR transcription factor, HosA, Enteropathogenic Escherichia coli, DNA binding protein, Paraben; DNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	18.48 Å
回转半径 Rg (电子) rg_electron	17.48 Å
零角强度 I(0) i0	4868840.00
分子量 molecular_weight	15599.0 kDa
排除体积 excluded_volume	19503 Å³
包络体积 envelope_volume	24896 Å³
水化壳体积 shell_volume	12831 Å³
包络直径 envelope_diameter	62.8 Å
壳层 Rg shell_rg	22.19 Å
包络 Rg envelope_rg	17.64 Å
形状 Rg shape_rg	17.46 Å
总 Rg total_rg	18.42 Å
总原子数 total_atoms	2206
残基数 n_residues	133
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	61.2 Å
Rg (实空间) rg_real	18.50 Å
Rg 误差 (实空间) rg_real_error	0.45 Å
I(0) (实空间) i0_real	4.8690e+06
I(0) 误差 (实空间) i0_real_error	6.0880e+04
Rg (倒空间) rg_reciprocal	18.50 Å
I(0) (倒空间) i0_reciprocal	4869000.0000
解质量估计 total_estimate	0.8116
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	21.0 Å
偏度 Skewness skewness	0.323
峰度 Kurtosis kurtosis	-0.352
角度范围 angular_range	— – 0.4300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	440900.0000
实空间数据点数 n_real_points	74
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Transcriptional regulator HosA
分子量 formula_weight	16592.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2257

MALRNKAFHQLRQLFQQHTARWQHELPDLTKPQYAVMRAIADKPGIEQVALIEAAVSTKATLAEMLARMENRGLVRREHDAADKRRRFVWLTAEGEKVLAAAIPIGDSVDEEFLGRLSAEEQELFMQLVRKMMNTLEHHHHHH

来源 Source

来源生物 organism	Escherichia coli O127:H6 str. E2348/69
NCBI 分类编号 ncbi_taxonomy_id	574521
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	P-HYDROXYBENZOIC ACID
分子量 formula_weight	138.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	51

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	67.169 Å
晶胞边长 b length_b	67.169 Å
晶胞边长 c length_c	95.104 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 43 2 2
空间群编号 int_tables_number	95
晶系 crystal_system	tetragonal

分辨率 resolution	2.160 Å
最低分辨率 resolution_low	67.170 Å
R 因子 r_factor	0.2035
R_work r_work	0.2018
R_free r_free	0.2319
