1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8yig
沉积日期 deposition_date	2024-02-29
结构标题 title	DmDcr-2/LoqsPD/slm2 in initial binding state
关键词 keywords	RNAi; Dcr-2; Loqs-PD; esiRNA; Cryo-EM, STRUCTURAL PROTEIN/RNA, STRUCTURAL PROTEIN-RNA complex; STRUCTURAL PROTEIN/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	61.21 Å
回转半径 Rg (电子) rg_electron	59.52 Å
零角强度 I(0) i0	2524330000.00
分子量 molecular_weight	402400.0 kDa
排除体积 excluded_volume	494790 Å³
包络体积 envelope_volume	765120 Å³
水化壳体积 shell_volume	106460 Å³
包络直径 envelope_diameter	235.8 Å
壳层 Rg shell_rg	65.45 Å
包络 Rg envelope_rg	56.73 Å
形状 Rg shape_rg	59.44 Å
总 Rg total_rg	59.91 Å
总原子数 total_atoms	28154
残基数 n_residues	3264
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	221.3 Å
Rg (实空间) rg_real	61.33 Å
Rg 误差 (实空间) rg_real_error	2.25 Å
I(0) (实空间) i0_real	2.5240e+09
I(0) 误差 (实空间) i0_real_error	5.4890e+07
Rg (倒空间) rg_reciprocal	61.09 Å
I(0) (倒空间) i0_reciprocal	2523000000.0000
解质量估计 total_estimate	0.6306
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	85.1 Å
偏度 Skewness skewness	0.346
峰度 Kurtosis kurtosis	-0.181
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0017
最高正则化参数 α highest_alpha	151100000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 0.001; Positv: 1.000; Valcen: 1.000; Smooth: 0.949

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Dicer-2, isoform A
分子量 formula_weight	197875.5 kDa
EC 编号 ec_number	3.1.21.1,3.1.26.-,3.1.26.3,3.6.1.3
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E
原子数 atom_count	28154

EDVEIKPRGYQLRLVDHLTKSNGIVYLPTGSGKTFVAILVLKRFSQDFDKPIESGGKRALFMCNTVELARQQAMAVRRCTNFKVGFYVGEQGVDDWTRGMWSDEIKKNQVLVGTAQVFLDMVTQTYVALSSLSVVIIDECHHGTGHHPFREFMRLFTIANQTKLPRVVGLTGVLIKGNEITNVATKLKELEITYRGNIITVSDTKEMENVMLYATKPTEVMVSFPHQEQVLTVTRLISAEIEKFYVSLDLMNIGVQPIRRSKSLQCLRDPSKKSFVKQLFNDFLYQMKEYGIYAASIAIISLIVEFDIKRRQAETLSVKLMHRTALTLCEKIRHLLVQKLQDMTYDDDDDNVNTEEVIMNFSTPKVQRFLMSLKVSFADKDPKDICCLVFVERRYTCKCIYGLLLNYIQSTPELRNVLTPQFMVGRNNISPDFESVLERKWQKSAIQQFRDGNANLMICSSVLEEGIDVQACNHVFILDPVKTFNMYVQSKGRARTTEAKFVLFTADKEREKTIQQIYQYRKAHNDIAEYLKDRVLEKTEPELYEIKGHFQDDIDPFTNENGAVLLPNNALAILHRYCQTIPTDAFGFVIPWFHVLQEDERDRIFGVSAKGKHVISINMPVNCMLRDTIYSDPMDNVKTAKISAAFKACKVLYSLGELNERFVPKTLKERVASIADVHFEHWNKYGDSVTATVNKADKSKDRTYKTECPLEFYDALPRVGEICYAYEIFLEPQFESCEYTEHMYLNLQTPRNYAILLRNKLPRLAEMPLFSNQGKLHVRVANAPLEVIIQNSEQLELLHQFHGMVFRDILKIWHPFFVLDRRSKENSYLVVPLILGAGEQKCFDWELMTNFRRLPQSHGSNVQQREQQPAPRPEDFEGKIVTQWYANYDKPMLVTKVHRELTPLSYMEKNQQDKTYYEFTMSKYGNRIGDVVHKDKFMIEVRDLTEQLTFYVHNRGKFNAKSKAKMKVILIPELCFNFNFPGDLWLKLIFLPSILNRMYFLLHAEALRKRFNTYLNLHLLPFNGTDYMPRPLEIDYSLKRNVDPLGNVIPTEDIEEPKSLLEPMPTKSIEASVANLEITEFENPWQKYMEPVDLSRNLLSTYPVELDYYYHFSVGNVCEMNEMDFEDKEYWAKNQFHMPTGNIYGNRTPAKTNANVPALMPSKPTVRGKVKPLLILQKTVSKEHITPAEQGEFLAAITASSAADVFDMERLEILGNSFLKLSATLYLASKYSDWNEGTLTEVKSKLVSNRNLLFCLIDADIPKTLNTIQFTPRYTWLPPGISLPHNVLALWRENPEFAKIIGPHNLRDLALGDEESLVKGNCSDINYNRFVEGCRANGQSFYAGADFSSEVNFCVGLVTIPNKVIADTLEALLGVIVKNYGLQHAFKMLEYFKICRADIDKPLTQLLNLELGGKKMRANVNTTEIDGFLINHYYLEKNLGYTFKDRRYLLQALTHPSYPTNRITGSYQELEFIGNAILDFLISAYIFENNTKMNPGALTDLRSALVNNTTLACICVRHRLHFFILAENAKLSEIISKFVNFQESQGHRVTNYVRILLEEADVQPTPLDLDDELDMTELPHANKCISQEAEKGVPPKGEFNMSTNVDVPKALGDVLEALIAAVYLDCRDLQRTWEVIFNLFEPELQEFTRKVPINHIRQLVEHKHAKPVFSSPIVEGETVMVSCQFTCMEKTIKVYGFGSNKDQAKLSAAKHALQQLSKCDA

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI 分类编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Isoform PD of Protein Loquacious
分子量 formula_weight	38502.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F

MDQENFHGSSLPQQLQNLHIQPQQASPNPVQTGFAPRRHYNNLVGLGNGNAVSGSPVKGAPLGQRHVKLKKEKISAQVAQLSQPGQLQLSDVGDPALAGGSGLQGGVGLMGVILPSDEALKFVSETDANGLAMKTPVSILQELLSRRGITPGYELVQIEGAIHEPTFRFRVSFKDKDTPFTAMGAGRSKKEAKHAAARALIDKLIGAQLPESPSSSAGPSVTGLTVAGSGGDGNANATGGGDASDKTVGNPIGWLQEMCMQRRWPPPSYETETEVGLPHERLFTIACSILNYREMGKGKSKKIAKRLAAHRMWMRLQETPIDSGKISDSICGELEGEVSIIQDIDRYEQVSKDFEFIKI

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI 分类编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	slm2
分子量 formula_weight	33415.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	D,C

GGUUAGCUCCCGGCGCUUCACAGGCGCUGGAAAAUCUUAACCGCCGGAAGUCACUUCCGCUGGCUUUGAUUUUCCAGCGUCUGUCGAGCGGAAGGAGGGACCUU

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI 分类编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Drosophila melanogaster

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.15 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	161787

fit	/app/data/saxs_computation/yi/8yig/8yig.fit
pddf	/app/data/pr_computation/yi/8yig/8yig.pr.out
profile	/app/data/saxs_computation/yi/8yig/8yig.dat

DmDcr-2/LoqsPD/slm2 in initial binding state

SAXS 散射曲线 SAXS Profile

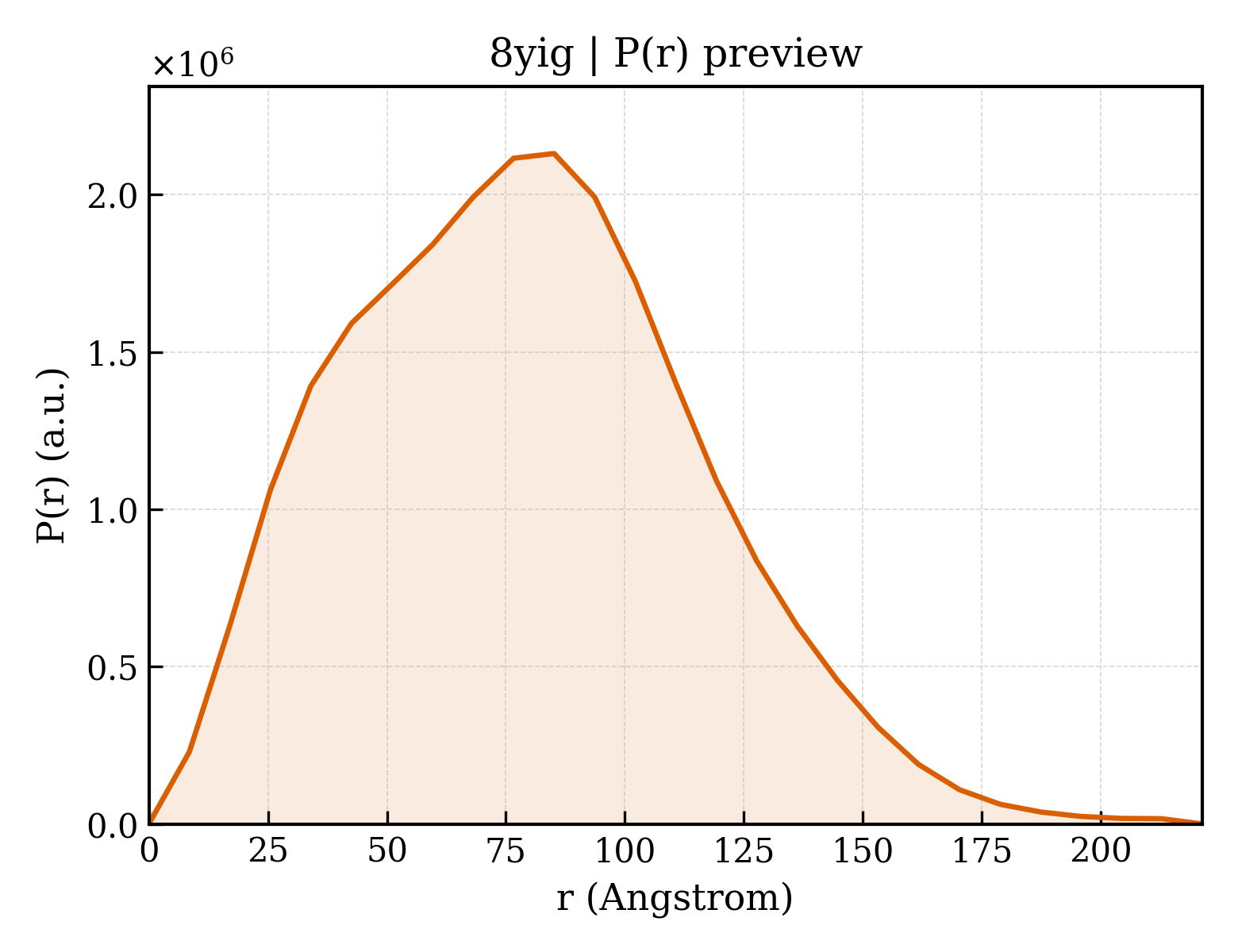

P(r) 距离分布 P(r) Distribution
