SAXSdb — 8yxp

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8yxp
沉积日期 deposition_date	2024-04-02
结构标题 title	Structure of mumps virus L protein (state2)
关键词 keywords	Mumps virus polymerase complex, RNA-dependent RNA synthesis, Large protein, phosphoprotein., VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.95 Å
回转半径 Rg (电子) rg_electron	32.81 Å
零角强度 I(0) i0	348403000.00
分子量 molecular_weight	153470.0 kDa
排除体积 excluded_volume	193750 Å³
包络体积 envelope_volume	245150 Å³
水化壳体积 shell_volume	59454 Å³
包络直径 envelope_diameter	106.1 Å
壳层 Rg shell_rg	41.89 Å
包络 Rg envelope_rg	32.15 Å
形状 Rg shape_rg	32.83 Å
总 Rg total_rg	33.47 Å
总原子数 total_atoms	10784
残基数 n_residues	1350
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.6 Å
Rg (实空间) rg_real	33.69 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	3.4840e+08
I(0) 误差 (实空间) i0_real_error	5.2910e+06
Rg (倒空间) rg_reciprocal	33.85 Å
I(0) (倒空间) i0_reciprocal	348500000.0000
解质量估计 total_estimate	0.9021
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	47.1 Å
偏度 Skewness skewness	-0.004
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	91090000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.966

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase L
分子量 formula_weight	256833.1 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	10784

MAGLNEILLPEVHLNSPIVRYKLFYYILHGQLPNDLEPDDLGPLANQNWKAIRAEESQVHARLKQIRVELIARIPSLRWTRSQREIAILIWPRILPILQAYDLRQSMQLPTVWEKLTQSTVNLISDGLERVVLHISNQLTGKPNLFTRSRAGQDTKDYSIPSTRELSQIWFNNEWSGSVKTWLMIKYRMRQLITNQKTGELTDLVTIVDTRSTLCIITPELVALYSSEHKALTYLTFEMVLMVTDMLEGRLNVSSLCTASHYLSPLKKRIEVLLTLVDDLALLMGDKVYGIVSSLESFVYAQLQYGDPVIDIKGTFYGFICNEILDLLTEDNIFTEEEANKVLLDLTSQFDNLSPDLTAELLCIMRLWGHPTLTASQAASKVRESMCAPKVLDFQTIMKTLAFFHAILINGYRRSHNGIWPPTTLHGNAPKSLIEMRHDNSELKYEYVLKNWKSISMLRIHKCFDASPDEDLSIFMKDKAISCPRQDWMGVFRRSLIKQRYRDANRPLPQPFNRRLLLNFLEDDRFDPIKELEYVTSGEYLRDPEFCASYSLKEKEIKATGRIFAKMTKRMRSCQVIAESLLANHAGKLMRENGVVLDQLKLTKSLLTMNQIGIISEHSRRSTADNMTLAHSGSNKHRINNSQFKKNKDNKHEMPDDGFEIAACFLTTDLTKYCLNWRYQVIIPFARTLNSMYGIPHLFEWIHLRLMRSTLYVGDPFNPPSDPTQLDLDTALNDDIFIVSPRGGIEGLCQKLWTMISISTIILSATEANTRVMSMVQGDNQAIAITTRVVRSLSHSEKKEQAYKASKLFFERLRANNHGIGHHLKEQETILSSDFFIYSKRVFYKGRILTQALKNVSKMCLTADILGDCSQASCSNLATTVMRLTENGVEKDLCYFLNAFMTIRQLCYDLVFPQTKSLSQDITNAYLNHPILISRLCLLPSQLGGLNFLSCSRLFNRNIGDPLVSAIADVKRLIKAGCLDIWVLYNILGRRPGKGKWSTLAADPYTLNIDYLVPSTTFLKKHAQYTLMERSVNPMLRGVFSENAAEEEEELAQYLLDREVVMPRVAHVILAQSSCGRRKQIQGYLDSTRTIIRYSLEVRPLSAKKLNTVIEYNLLYLSYNLEIIEKPNIVQPFLNAINVDTCSIDIARSLRKLSWATLLNGRPIEGLETPDPIELVHGCLIIGSDECEHCSSGDDKFTWFFLPKGIRLDDDPASNPPIRVPYIGSKTDERRVASMAYIKGASVSLKSALRLAGVYIWAFGDTEESWQDAYELASTRVNLTLEQLQSLTPLPTSANLVHRLDDGTTQLKFTPASSYAFSSFVHISNDCQILEIDDQVTDSNLIYQQVMITGLALIETWNNPPINFSVYETTLHLHTGSSCCIRPVESCVVNPPLLPVPLINVPQMNKFVYDPEPLSLLEMEKIEDIAYQTRIGGLDQIPLLEKIPLLAHLTAKQMVNSITGLDEATSIMNDAVVQADYTSNWISECCYTYIDSVFVYSGWALLLELSYQMYYLRIQGIQGILDYVYMTLRRIPGMAITGISSTISHPRILRRCINLDVIAPINSPHIASLDYTKLSIDAVMWGTKQVLTNISQGIDYEIVVPSESQLTLSDRVLNLVARKLSLLAIIWANYNYPPKVKGMSPEDKCQALTTHLLQTVEYVEYIQIEKTNIRRMIIEPKLTAYPSNLFYLSRKLLNAIRDSEEGQFLIASYYNSFGYLEPILMESKIFNLSSSESASLTEFDFILNLELSDASLEKYSLPSLLMTAENMDNPFPQPPLHHVLRPLGLSSTSWYKTISVLNYISHMKISDGAHLYLAEGSGASMSLIETFLPGETIWYNSLFNSGENPPQRNFAPLPTQFIESVPYRLIQAGIAAGNGIVQSFYPLWNGNSDITDLSTKTSVEYIIHKVGADTCALVHVDLEGVPGSMNSMLERAQVHALLITVTVLKPGGLLILKASWEPFNRFSFLLTVLWQFFSTIRILRSSYSDPNNHEVYIIATLAVDPTTSSFTTALNRARTLNEQGFSLIPPELVSEYWRKRVEQGQIIQDCIDKVISECVRDQYLADNNIILQAGGTPSTRKWLDLPDYSSFNELQSEMARLITIHLKEVIEILKGQASDHDTLLFTSYNVGPLGKINTILRLIVERILMYTVRNWCILPTQTRLTLRQSIELGEFRLRDVITPMEILKLSPNRKYLKSALNQSTFNHLMGETSDILLNRAYQKRIWKAIGCVIYCFGLLTPDVEGSERIDVDNDIPDYDIHGDII

来源 Source

来源生物 organism	Mumps orthorubulavirus
NCBI 分类编号 ncbi_taxonomy_id	2560602
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.01 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	477568

fit	/app/data/saxs_computation/yx/8yxp/8yxp.fit
pddf	/app/data/pr_computation/yx/8yxp/8yxp.pr.out
profile	/app/data/saxs_computation/yx/8yxp/8yxp.dat

Structure of mumps virus L protein (state2)

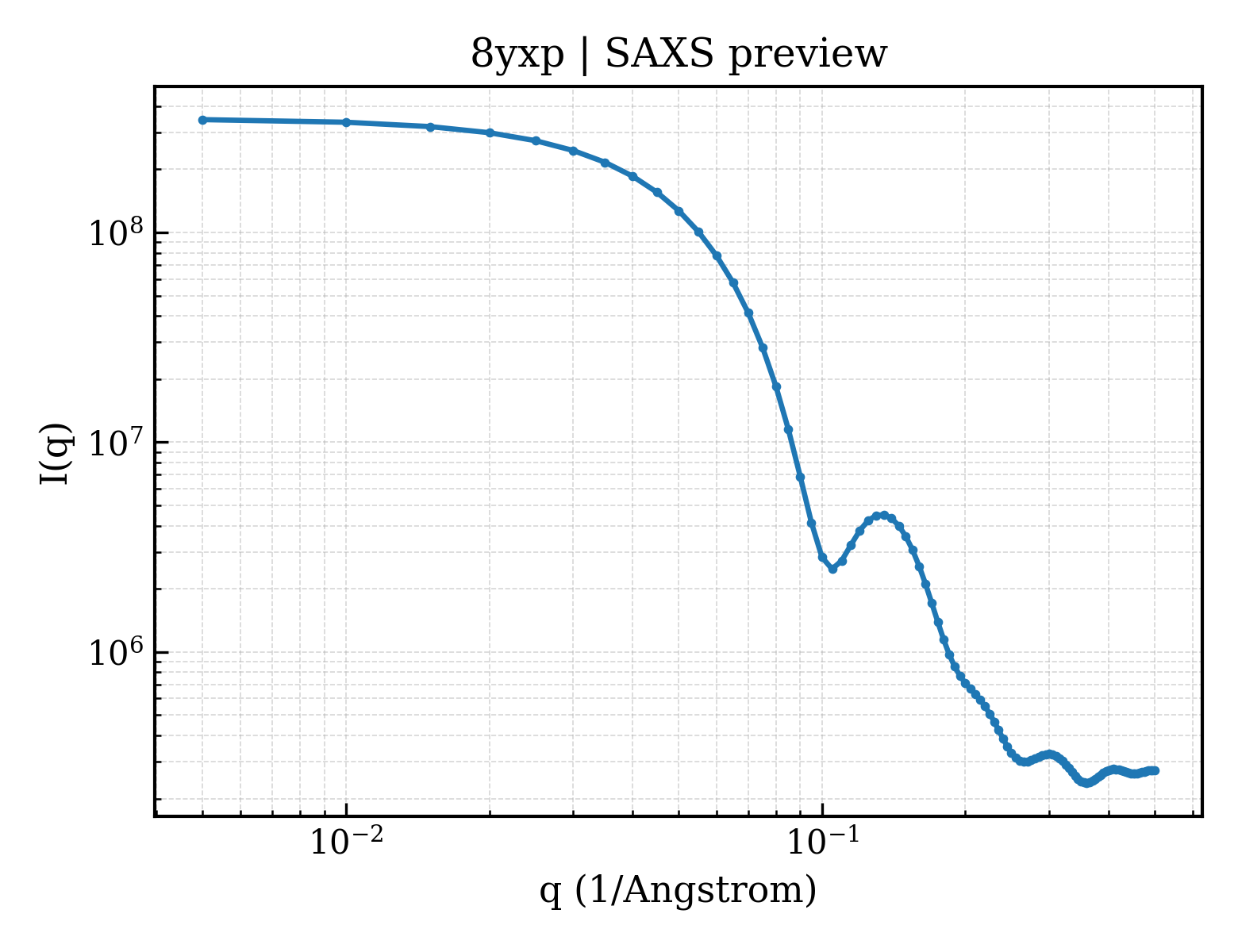

SAXS 散射曲线 SAXS Profile

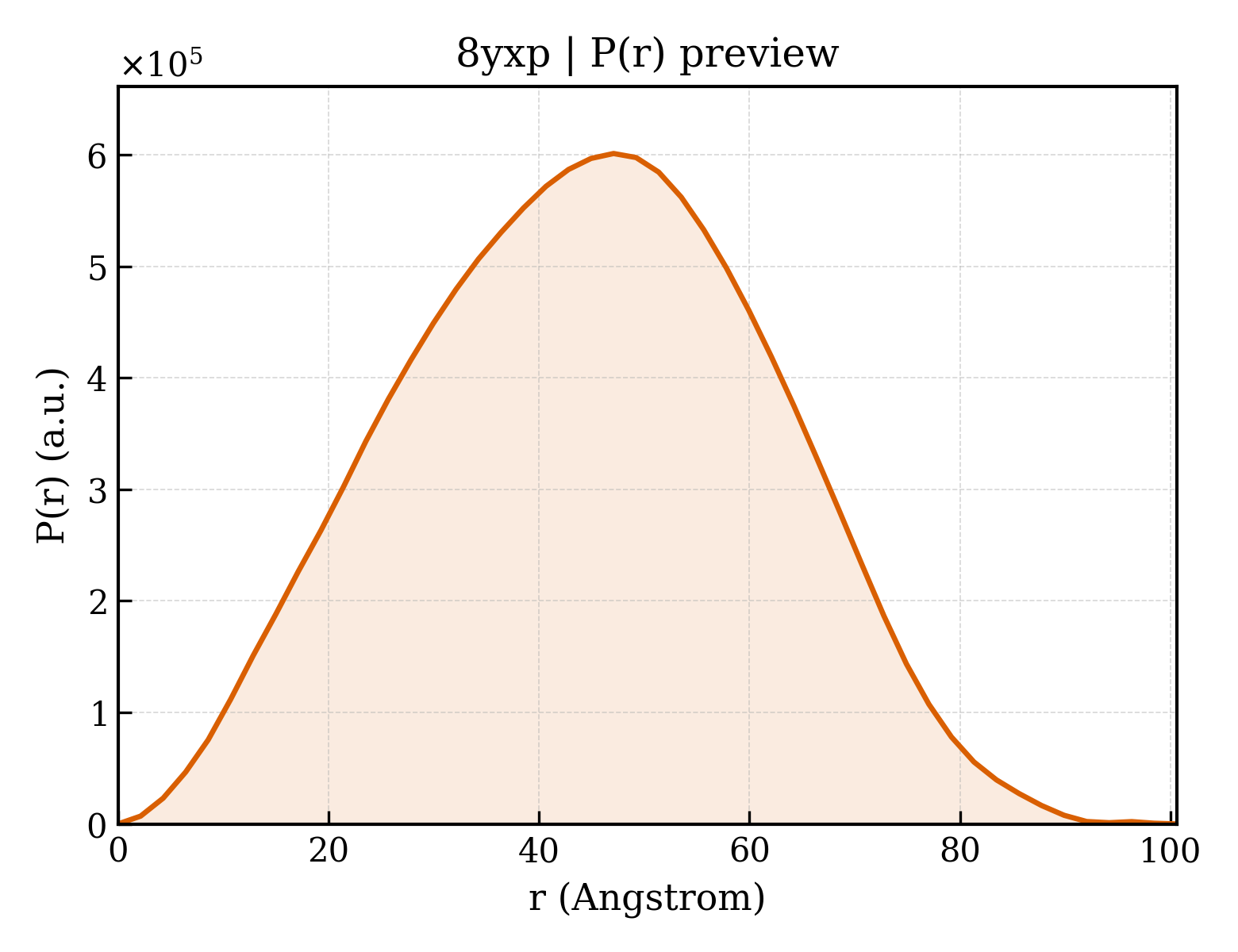

P(r) 距离分布 P(r) Distribution
