SAXSdb — 8z5t

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8z5t
沉积日期 deposition_date	2024-04-18
结构标题 title	human phosphorylase kinase - phosphorylation and Ca2+ bound state
关键词 keywords	Kinase, glycogenolysis, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	92.58 Å
回转半径 Rg (电子) rg_electron	92.30 Å
零角强度 I(0) i0	17557400000.00
分子量 molecular_weight	1139000.0 kDa
排除体积 excluded_volume	1428700 Å³
包络体积 envelope_volume	2477100 Å³
水化壳体积 shell_volume	224000 Å³
包络直径 envelope_diameter	348.8 Å
壳层 Rg shell_rg	88.75 Å
包络 Rg envelope_rg	91.99 Å
形状 Rg shape_rg	92.33 Å
总 Rg total_rg	92.17 Å
总原子数 total_atoms	80132
残基数 n_residues	10064
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	243.0 Å
Rg (实空间) rg_real	88.44 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	1.6770e+10
I(0) 误差 (实空间) i0_real_error	3.1880e+08
Rg (倒空间) rg_reciprocal	91.57 Å
I(0) (倒空间) i0_reciprocal	17500000000.0000
解质量估计 total_estimate	0.9145
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	114.4 Å
偏度 Skewness skewness	0.135
峰度 Kurtosis kurtosis	-0.683
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.9254
最高正则化参数 α highest_alpha	716500000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.996; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Phosphorylase b kinase regulatory subunit alpha, skeletal muscle isoform
分子量 formula_weight	140108.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E,I,M
原子数 atom_count	80156

MRSRSNSGVRLDGYARLVQQTILCHQNPVTGLLPASYDQKDAWVRDNVYSILAVWGLGLAYRKNADRDEDKAKAYELEQSVVKLMRGLLHCMIRQVDKVESFKYSQSTKDSLHAKYNTKTCATVVGDDQWGHLQLDATSVYLLFLAQMTASGLHIIHSLDEVNFIQNLVFYIEAAYKTADFGIWERGDKTNQGISELNASSVGMAKAALEALDELDLFGVKGGPQSVIHVLADEVQHCQSILNSLLPRASTSKEVDASLLSVVSFPAFAVEDSQLVELTKQEIITKLQGRYGCCRFLRDGYKTPKEDPNRLYYEPAELKLFENIECEWPLFWTYFILDGVFSGNAEQVQEYKEALEAVLIKGKNGVPLLPELYSVPPDRVDEEYQNPHTVDRVPMGKLPHMWGQSLYILGSLMAEGFLAPGEIDPLNRRFSTVPKPDVVVQVSILAETEEIKTILKDKGIYVETIAEVYPIRVQPARILSHIYSSLGCNNRMKLSGRPYRHMGVLGTSKLYDIRKTIFTFTPQFIDQQQFYLALDNKMIVEMLRTDLSYLCSRWRMTGQPTITFPISHSMLDEDGTSLNSSILAALRKMQDGYFGGARVQTGKLSEFLTTSCCTHLSFMDPGPEGKLYSEDYDDNYDYLESGNWMNDYDSTSHARCGDEVARYLDHLLAHTAPHPKLAPTSQKGGLDRFQAAVQTTCDLMSLVTKAKELHVQNVHMYLPTKLFQASRPSFNLLDSPHPRQENQVPSVRVEIHLPRDQSGEVDFKALVLQLKETSSLQEQADILYMLYTMKGPDWNTELYNERSATVRELLTELYGKVGEIRHWGLIRYISGILRKKVEALDEACTDLLSHQKHLTVGLPPEPREKTISAPLPYEALTQLIDEASEGDMSISILTQEIMVYLAMYMRTQPGLFAEMFRLRIGLIIQVMATELAHSLRCSAEEATEGLMNLSPSAMKNLLHHILSGKEFGVERSVRPTDSNVSPAISIHEIGAVGATKTERTGIMQLKSEIKQVEFRRLSISAESQSPGTSMTPSSGSFPSAYDQQSSKDSRQGQWQRRRRLDGALNRVPVGFYQKVWKVLQKCHGLSVEGFVLPSSTTREMTPGEIKFSVHVESVLNRVPQPEYRQLLVEAILVLTMLADIEIHSIGSIIAVEKIVHIANDLFLQEQKTLGADDTMLAKDPASGICTLLYDSAPSGRFGTMTYLSKAAATYVQEFLPHSICAMQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Phosphorylase b kinase regulatory subunit beta
分子量 formula_weight	126152.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,J,N

MAGAAGLTAEVSWKVLERRARTKRSGSVYEPLKSINLPRPDNETLWDKLDHYYRIVKSTLLLYQSPTTGLFPTKTCGGDQKAKIQDSLYCAAGAWALALAYRRIDDDKGRTHELEHSAIKCMRGILYCYMRQADKVQQFKQDPRPTTCLHSVFNVHTGDELLSYEEYGHLQINAVSLYLLYLVEMISSGLQIIYNTDEVSFIQNLVFCVERVYRVPDFGVWERGSKYNNGSTELHSSSVGLAKAALEAINGFNLFGNQGCSWSVIFVDLDAHNRNRQTLCSLLPRESRSHNTDAALLPCISYPAFALDDEVLFSQTLDKVVRKLKGKYGFKRFLRDGYRTSLEDPNRCYYKPAEIKLFDGIECEFPIFFLYMMIDGVFRGNPKQVQEYQDLLTPVLHHTTEGYPVVPKYYYVPADFVEYEKNNPGSQKRFPSNCGRDGKLFLWGQALYIIAKLLADELISPKDIDPVQRYVPLKDQRNVSMRFSNQGPLENDLVVHVALIAESQRLQVFLNTYGIQTQTPQQVEPIQIWPQQELVKAYLQLGINEKLGLSGRPDRPIGCLGTSKIYRILGKTVVCYPIIFDLSDFYMSQDVFLLIDDIKNALQFIKQYWKMHGRPLFLVLIREDNIRGSRFNPILDMLAALKKGIIGGVKVHVDRLQTLISGAVVEQLDFLRISDTEELPEFKSFEELEPPKHSKVKRQSSTPSAPELGQQPDVNISEWKDKPTHEILQKLNDCSCLASQAILLGILLKREGPNFITKEGTVSDHIERVYRRAGSQKLWLAVRYGAAFTQKFSSSIAPHITTFLVHGKQVTLGAFGHEEEVISNPLSPRVIQNIIYYKCNTHDEREAVIQQELVIHIGWIISNNPELFSGMLKIRIGWIIHAMEYELQIRGGDKPALDLYQLSPSEVKQLLLDILQPQQNGRCWLNRRQIDGSLNRTPTGFYDRVWQILERTPNGIIVAGKHLPQQPTLSDMTMYEMNFSLLVEDTLGNIDQPQYRQIVVELLMVVSIVLERNPELEFQDKVDLDRLVKEAFNEFQKDQSRLKEIEKQDDMTSFYNTPPLGKRGTCSYLTKAVMNLLLEGEVKPNNDDPCLIS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Phosphorylase b kinase gamma catalytic chain, skeletal muscle/heart isoform
分子量 formula_weight	45084.7 kDa
EC 编号 ec_number	2.7.11.19,2.7.11.1,2.7.11.26
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G,K,O

MTRDEALPDSHSAQDFYENYEPKEILGRGVSSVVRRCIHKPTSQEYAVKVIDVTGGGSFSPEEVRELREATLKEVDILRKVSGHPNIIQLKDTYETNTFFFLVFDLMKRGELFDYLTEKVTLSEKETRKIMRALLEVICTLHKLNIVHRDLKPENILLDDNMNIKLTDFGFSCQLEPGERLREVCGTPSYLAPEIIECSMNEDHPGYGKEVDMWSTGVIMYTLLAGSPPFWHRKQMLMLRMIMSGNYQFGSPEWDDYSDTVKDLVSRFLVVQPQNRYTAEEALAHPFFQQYLVEEVRHFSPRGKFKVIALTVLASVRIYYQYRRVKPVTREIVIRDPYALRPLRRLIDAYAFRIYGHWVKKGQQQNRAALFENTPKAVLLSLAEEDY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	Calmodulin-3
分子量 formula_weight	18921.6 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H,L,P

DYKDDDDKSGPDEVDASGRMADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.74 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	101907

fit	/app/data/saxs_computation/z5/8z5t/8z5t.fit
pddf	/app/data/pr_computation/z5/8z5t/8z5t.pr.out
profile	/app/data/saxs_computation/z5/8z5t/8z5t.dat

human phosphorylase kinase - phosphorylation and Ca2+ bound state

SAXS 散射曲线 SAXS Profile

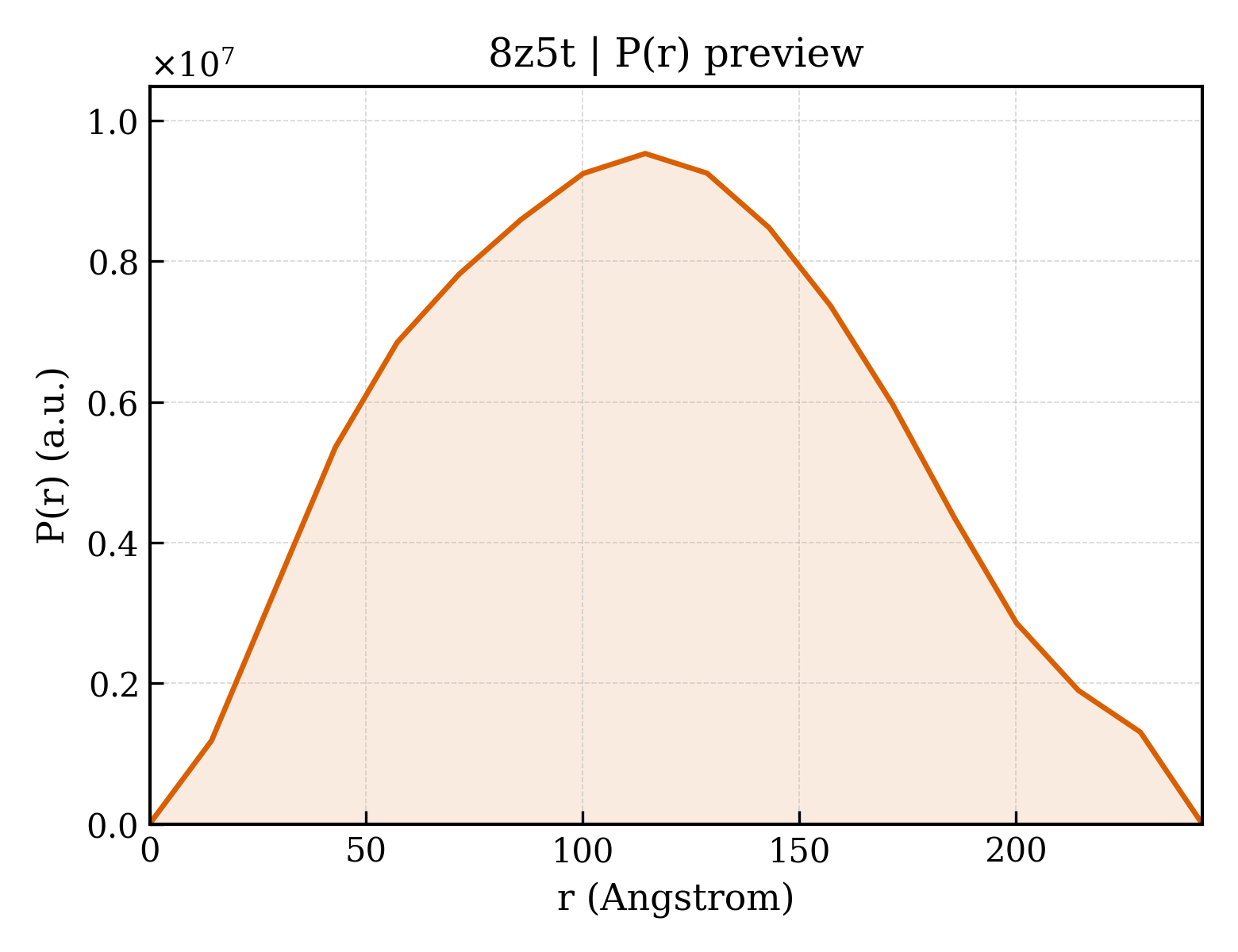

P(r) 距离分布 P(r) Distribution
