SAXSdb — 8z6u

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8z6u
沉积日期 deposition_date	2024-04-19
最后修订 last_revision	2025-02-12
结构标题 title	SARS-CoV-2 EG.5.1 Spike in complex with CYFN1006-2(S-CYFN1006-2 dimer trimer).
关键词 keywords	antibody, viral protein, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	112.00 Å
零角强度 I(0) i0	13242500000.00
分子量 molecular_weight	991690.0 kDa
排除体积 excluded_volume	1243100 Å³
包络体积 envelope_volume	2149300 Å³
水化壳体积 shell_volume	178740 Å³
包络直径 envelope_diameter	412.8 Å
壳层 Rg shell_rg	88.15 Å
包络 Rg envelope_rg	106.20 Å
形状 Rg shape_rg	112.00 Å
总 Rg total_rg	111.80 Å
总原子数 total_atoms	69900
残基数 n_residues	9042
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	301.5 Å
Rg (实空间) rg_real	102.80 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	1.2670e+10
I(0) 误差 (实空间) i0_real_error	2.6670e+08
Rg (倒空间) rg_reciprocal	95.63 Å
I(0) (倒空间) i0_reciprocal	12660000000.0000
解质量估计 total_estimate	0.8755
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	64.6 Å
偏度 Skewness skewness	0.411
峰度 Kurtosis kurtosis	-0.845
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.8534
最高正则化参数 α highest_alpha	462700000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.008; Oscil: 0.852; Stabil: 0.977; Sysdev: 1.000; Positv: 1.000; Valcen: 0.903; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Spike glycoprotein,Fibritin,Expression Tag
分子量 formula_weight	143147.6 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A,C,E,D,F
原子数 atom_count	69900

MPMGSLQPLATLYLLGMLVASVLAQCVNLITRTQSYTNSFTRGVYYPDKVFRSSVLHSTHDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPALPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLDVYQKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKEGNFKNLREFVFKNIDGYFKIYSKHTPINLERDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPVDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFHEVFNATTFASVYAWNRKRISNCVADYSVIYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKPSGNYNYLYRLLRKSKLKPFERDISTEIYQAGNKPCNGVAGPNCYSPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEYVNNSYECDIPIGAGICASYQTQTKSHGSASSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLKRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKYFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTPSALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQGSGYIPEAPRDGQAYVRKDGEWVFLSTFLSGLEVLFQGPGGWSHPQFEKGGGSGGGSGGSAWSHPQFEKGGSHHHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	CYFN1006-2 light chain
分子量 formula_weight	22673.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K,L,P,Q,R

QSALTQPPSASGSPGQSVTISCTGASSDVGGYNYVSWYQQHPGKAPKLMIYEVNKRPSGVPDRFSGSKSGNTASLTISGLQADDEADYYCCSYALSRVVFGGGTMLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	CYFN1006-2 heavy chain
分子量 formula_weight	23388.4 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,M,N,O

QMQLVQSGAEVKKPGESLKISCKGSGYTFSYYWIGWVRQMPGKGLEWMGIIYPGDSDTRYSPSFQGQVTISADKSISTAYLHWSSLKASDTAMYYCARQGDLGDWILLGYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.83 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	66958

fit	/app/data/saxs_computation/z6/8z6u/8z6u.fit
pddf	/app/data/pr_computation/z6/8z6u/8z6u.pr.out
profile	/app/data/saxs_computation/z6/8z6u/8z6u.dat

SARS-CoV-2 EG.5.1 Spike in complex with CYFN1006-2(S-CYFN1006-2 dimer trimer).

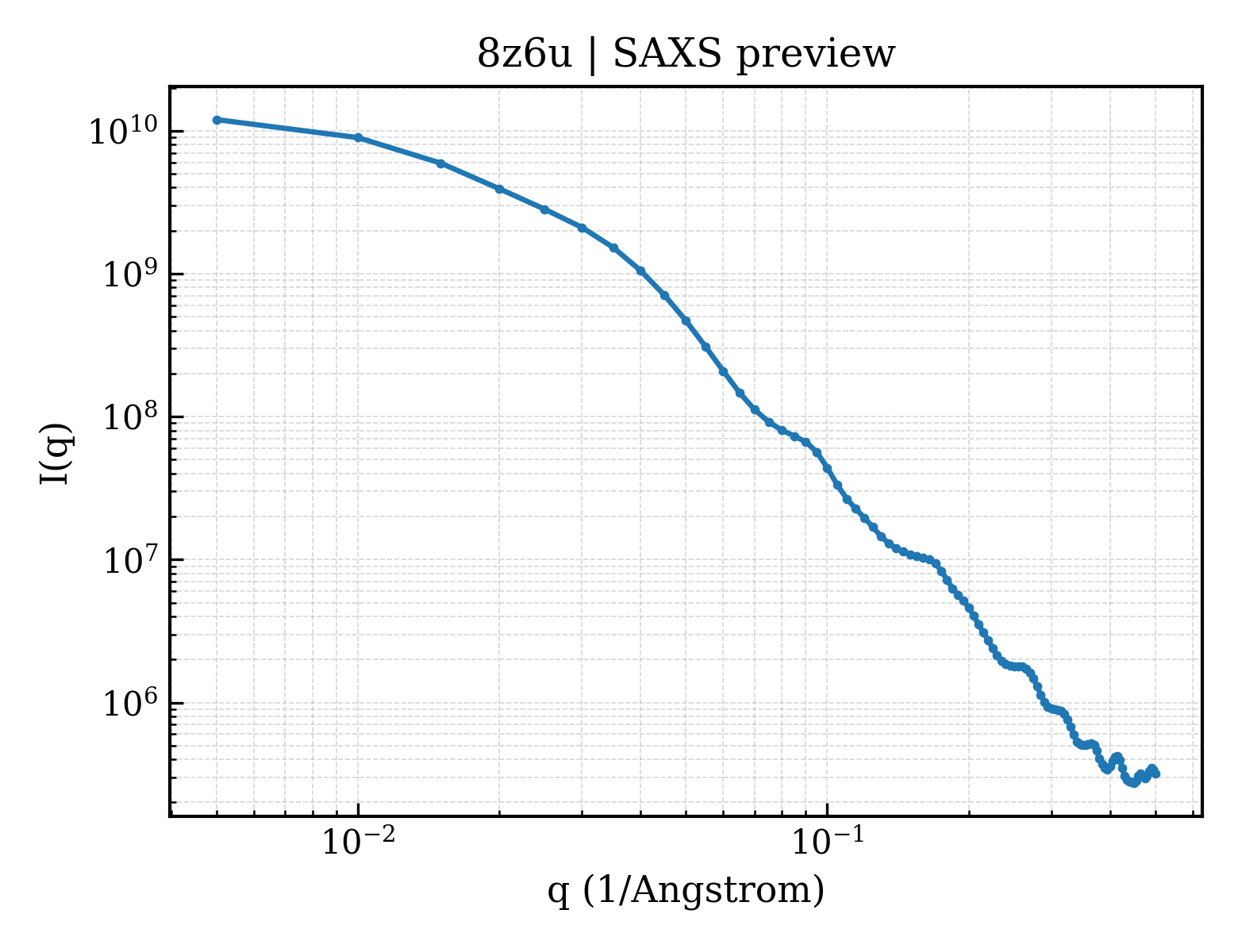

SAXS 散射曲线 SAXS Profile

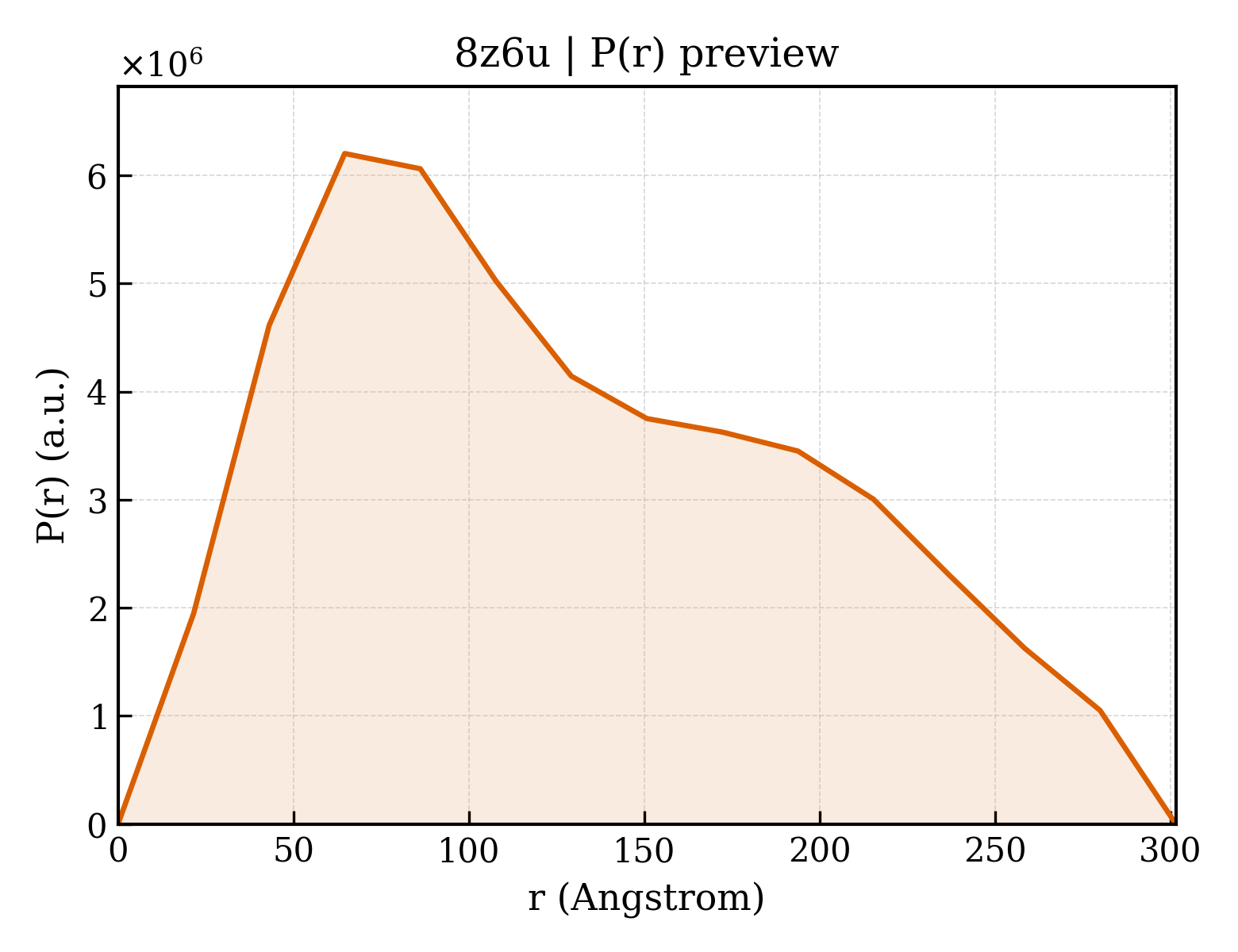

P(r) 距离分布 P(r) Distribution
