1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8zdo
沉积日期 deposition_date	2024-05-02
结构标题 title	Cryo-EM structure of Mycobacteriophage Douge baseplate (gp13, gp17, gp23, gp16, gp18 and gp20)
关键词 keywords	Mycobacteriophage, phage structure, Icosahedral, cryo-EM, protein assembly, VIRUS, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.37 Å
回转半径 Rg (电子) rg_electron	72.07 Å
零角强度 I(0) i0	20236900000.00
分子量 molecular_weight	1230300.0 kDa
排除体积 excluded_volume	1544400 Å³
包络体积 envelope_volume	2224500 Å³
水化壳体积 shell_volume	243890 Å³
包络直径 envelope_diameter	297.1 Å
壳层 Rg shell_rg	81.72 Å
包络 Rg envelope_rg	71.40 Å
形状 Rg shape_rg	72.04 Å
总 Rg total_rg	72.25 Å
总原子数 total_atoms	86910
残基数 n_residues	11289
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	268.8 Å
Rg (实空间) rg_real	75.59 Å
Rg 误差 (实空间) rg_real_error	1.86 Å
I(0) (实空间) i0_real	2.0260e+10
I(0) 误差 (实空间) i0_real_error	4.3390e+08
Rg (倒空间) rg_reciprocal	72.80 Å
I(0) (倒空间) i0_reciprocal	20260000000.0000
解质量估计 total_estimate	0.8686
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	85.5 Å
偏度 Skewness skewness	0.642
峰度 Kurtosis kurtosis	0.660
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.9522
最高正则化参数 α highest_alpha	2770000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.610; Stabil: 0.888; Sysdev: 1.000; Positv: 1.000; Valcen: 0.935; Smooth: 0.881

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Tail tube protein (gp13)
分子量 formula_weight	32112.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L,M,N,O,P,Q,R
原子数 atom_count	86910

MTDFYTIKDAQADLAIAPLNLTVLLAPYSTTPATTLESPTDGSLAIPPGYKSVGHFEKQAGLTLGNEFDSKDIEAYGEPEPIRTIINKRTTTFDFAMYQNQRNVLELIWTQDFSNIQPSEFGGIVLEAPKVPKNIYYRAILVGMDDRNDRPIWLYWLMPKVKLDKLDNQTLNDDNVIEYKPTLKAFRDDVVGYSVAQGFAGPGWRDLVATAGFGEALTALTITPGSPTVTVATGASHTAQLLVEGDNGINYTPDVVFTSSAPDKASVSAAGLVTGVAAGSATITATKGALTATATVTVTA

Entity 2 polymer

描述 description	Tape measure protein (gp16)
分子量 formula_weight	176109.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,U

MAEFVAAQASVLIVPTLGKGANSFHQKLKEQLQTVRESVDVKIKADTAAMVAEVQATKEMLERDPINIRVETDNNGIKELVKSVTEVRHKYEDLKGDFRRGLTLNLKVVGLSALSQLGPMLASLNTSIVQLSQSSLLLPGIMSGVASSVGAAVVGSRGLTDAFKAQSDASKNVAEAGKQQRDANRAIRDSTRDLNNAIRDAKRNIEDLNAQLRDAPLDEAEAMLNLQEAQYEASQKWGKTAFQQQRDALGLAKAESQLAETRRRNVRLGQDVAEANAKGVNGNDAVVAAQERLTKALEDLAMQTGPIRALNDAMAKLSPNARDFVDQVSSLKGAWDGLRSTVQDRLFDGLGASVQTLAGQDLPILERGLAGIAGAINGNLKTAMSQLATDENKGFLGRIFGNTEEAQNRFSTALKPLLDSFMQLSAVGSDYLPRLSNAFGDVLNRFDGFIERADADGSLDKWINNGLDAMTQLGNSLINVGSIMNTISEAFTGTGGKGLLELLETGTKRLADFLKGAEGQQKLKQFFLDARTELNNWKPLLSQLPGLIKNVATAGQQWANLVLPFLTSAASLLKEHPGLVTAIFTAYMTWRTISPIIGTINLLLSSETGMVGAAKKAGRAVGKGEGLTGKLGVLAGMVGQGGVVMTGLSLVAGFLINEWVTAQNEAAEAVSYHASMISRLKGEMDGLTGSLTTQGLQGKLDAARQWTDIHQTDGKPKDLVAAANSFGVDLPTFMGALTPTNQAARNAVTGKARQTVLDDLNKQGLETVLGKDALNALNLYNQNAAPDKKITNDVLADIATGVNPESKKLFEDAKKSNLIHFNESDLLYGYNKPWGFIPGTDPSGKGLSPVARDAANVSGFVLNDTGNALQVGSDIRSTNEALYGKAVLTPAGQQMFGQFGSPQASFENGSKDAAVRVDTTLQNLPPQFVKDVESNGGHFEELPDGVIIHMRKDRAAQYVTAGSYAGGGFLSGPGTGRSDSMLARVSNGEFITRAASVAKYGRGLFDALNSGTLDPSMLPRFDSGGLVDIFLPGGGTAAPPPTGSANPVDLARGLPRGPAVQSAPANRFDPSPLPTDLLPKPVIPMPDLANPGLYDPATGKYGAAPASAVQQPLKPGVDGDKGETSGPNVPPTDPRSPGYKQPNHGLGGSPGPGNGTPHLTGPGGTPVSPGAASALPSNGGIPGLTPSATDPLGLSGLPKEIQPVTILEQIGEILLSAVLGFFGLDPTYFNIGKRIFTGIKGDKPNEANPGVQSILDGYKNPLADGQNPYVGTSIYDASFDPASQRASNMAELMRGKPYTWGGSSLDGTDCSGLVMYVVDAYEGKEFSGRTGGTGGFASSLPAKGGVIISDPSQAPPGTLRVGWNASHTAGTLPDGRNFESSTFGKPIAVGAGASGYNDPQFTNWAYFPAPGYANGGFLSGAGTGRSDSMLARVSNGEFITRASSVAKYGRSLFDALNAGTVDPGMLPGFADGTPPIPGLPVPQPQTPQQAGPLPDPNGQDAQAAQQVTDTAASALDGVAGAMNGVNMGSSGAIPGADAPDGAQQGKDPRSILGAAPTNTDHNNPALSKGIQGAFSTVGSLASMAASAAMSAGTMGAGAAGASGAAGSGIQAGAQIAGQVATGALNILSSLLVGSAPGSTGTTQSAYGAPVLPQGPPQSSGGGPAVVNNYGDIHTANYDEFYKGQQRREAQQQAPILPVR

Entity 3 polymer

描述 description	Baseplate upper protein (gp23)
分子量 formula_weight	33673.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l

MLSTGPIMETLTLTVGSAFEIPGWKLRGEYPAGTTSHLVFTDAAGGTLGEFEGTVSAKEIHYLQAPDDVKNIPHGANFQLFVTYPSMQPQCLYFGTAIRKEPRYPLSTVVSPEDSAVQYKANFVGQYIGPMWKPMGNGWGSLGIHTHALISEAPSMGPNYSLFSSAAARWLWSMNMDSVTIVVRVLNVGAGKFNVIVCADYQMQTYLGIQFETGISNNKVHVITGDGPLNWGYQGDAVNNTTANGDVYTIKYNDLLDTISCYKGTSLTPLIEASGLDVPHGEGFRYTGLAWNTALLSPGVEPTAWEAKDGV

Entity 4 polymer

描述 description	Distal tail protein (gp17)
分子量 formula_weight	33772.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m,n,o,p,q,r

MTDFLKIELIGRDGSHWVLSGPGMGQQGVTLNPNLQQFYDAPVKTLYVPGPFGEEYAGKRVQRREIVFSVQAYDEDPDTWSTVDSLWRWAWDYDEESELRVSTSDGTRFLKVRLMEEPKPYYEKDPHITADNPIVMTVTATFPYWQDEPEELIWTTLSTEDMTRFPVRNDGDVPVWLKWTLTAPGLWILPDFSWGNDMYSRGREDLGRTVAMPELVAGEHVSVDSDPRVQTLIAVNGMPTQNRWKGNDLLYPLMPGKGAEIPVQLKNAPEGGACKLTRPRWYSRPWSRPGVRLNG

Entity 5 polymer

描述 description	Baseplate hub protein (gp18)
分子量 formula_weight	65026.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s,t,u

MANNWTDILAASDGDEWAAFKTIEAQADEVRAGHQALRRAKPLIRLWMNNPDGSEGLVYVGRVDYDDTIRGSFPFKNNTPSQGVLELRDDNYLAVWLKQLPNNPELKKNVVITVDFYGGKKRWSGLLDKWTIKSKEHVKYLEVTFNDDLTMLQYLLCPPNPALPIPVLQFPRIFGIAGPAKWAISTLIFINLFRVQGNLWTLPDDPFNLESWDDILDWSDWQCFVKSNSFLLDDSSVWTFLSSRMNPVDSIIADALDDAQLTITYRRVLTDDGETAEGFPGAHGIKNGALVFEIVDNSNATALEGTFFSGTIVDGFARSVLLYGGGFVEDTLSVVSDDQTLQPDEYYQSGWLATMAKMPWLVVRDNEWTPIESSDLSWGPAKNVSVIVGGDNPAADAIAKLIIETTGNLLGYFLLGGFSSAGTIAADIIMPFLVGTIAAWLQWKNTGRATELGWVHYWELYQQGAETNSWSLAALAALRGGFLVGRSETVHLMALHDSWIIPGLHIDIGQRMGSTVNSKGVENIVWVNQLEEMTAAWDNSAGQTMPLSWVLKAGKSDRAMSIGERVARLAKKMSEALNNVGVHIVQS

Entity 6 polymer

描述 description	Central fiber protein (gp20)
分子量 formula_weight	92774.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v,w,x

MTMPNGSGGLDPGAWLSHWVNQADLSSLAGRTEDEVRAYFENLVQADSGWGDASNTFFNLILGGFQNLSEFVTLIVQAVTGAPGGLTDLQAFLTERWGDLADAFQAVANLIDAIAGEVGSSLADAIAKLATFLTELSPLNAGMLFGLIGTNHLPLLSVSHIANINPELLVNAGFDSDVSVVDNPYWDWDGTVGRTAPLGAVKVVADGTIKDLLSGPDAIPVVEGQKLNVSAWLKYSGLVAGAGAGSIRLSGTAYSADGEVVAYPDFGGIPDGASGTSDWTQVTGQYVVPAGVTQFRLRLSVRENATGGTVWFDDCSVKKAGLLPQGLVDGLVQALSDLLTWLESLVDNVLSALGLDPIGTIVDKILDLADEFGDWLGATEDTAANLSNLLTKLLSDPASVIGPLAQSMITGLTGALGNLNTAINQIGDVLVGTVVTPINSAISNVIDWFNSLLNFQDTTTSNQINQQNFQIATLASGIKKQQWECRYSTAFVTFPEMFCDWGFALGGTTGAQSTGTAHTHTLNTDGLAALQIQILPAGYAIGGYIGISDTTIVDTIAMKMYKETSSAINNVYLEVFREDSTGALTSVGSVDVSGQLTTASDYVEATLPAGVIVNAGERYVVRMRNATTVGNRVGVSVMKELVGGRELSIRTETATDSNKTFYTPSEVLTAQGVSVIMPWAMMAAKNLATTDQSFSDDFNRSAMGGLWFLKSDTGTNQVGVSGGRAAFSGLTDGNQNALYIRPTAGDKQWVEATLYETGIAASGAREGLLMHANRDLSQVVYLGVNLNTAKIYTGPWNSLTERASVSTTGNDVLWQMYFDPATAAYTVLKNGQASGLTWTDSGSVVAHGPNYRFGGLRISRATFFNAGRIDNWTLKDWA

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.97 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	78927

fit	/app/data/saxs_computation/zd/8zdo/8zdo.fit
pddf	/app/data/pr_computation/zd/8zdo/8zdo.pr.out
profile	/app/data/saxs_computation/zd/8zdo/8zdo.dat

Cryo-EM structure of Mycobacteriophage Douge baseplate (gp13, gp17, gp23, gp16, gp18 and gp20)

SAXS 散射曲线 SAXS Profile

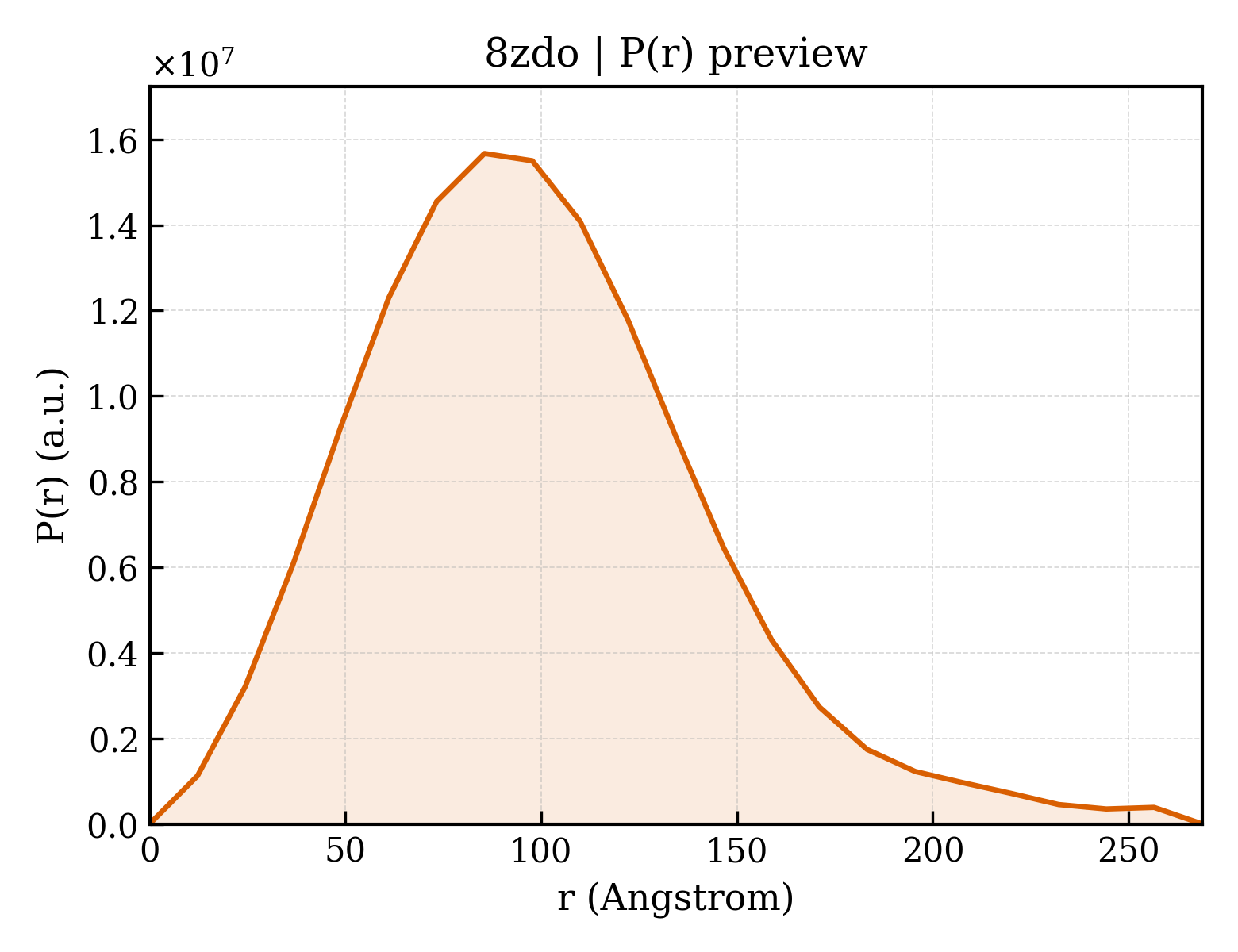

P(r) 距离分布 P(r) Distribution
