8zmw
Structure of a triple-helix region of human Collagen type VII from Trautec
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 8zmw |
| 沉积日期 deposition_date | 2024-05-24 |
| 最后修订 last_revision | 2024-06-26 |
| 结构标题 title | Structure of a triple-helix region of human Collagen type VII from Trautec |
| 关键词 keywords | Human collagen VII, Triple-helix, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |

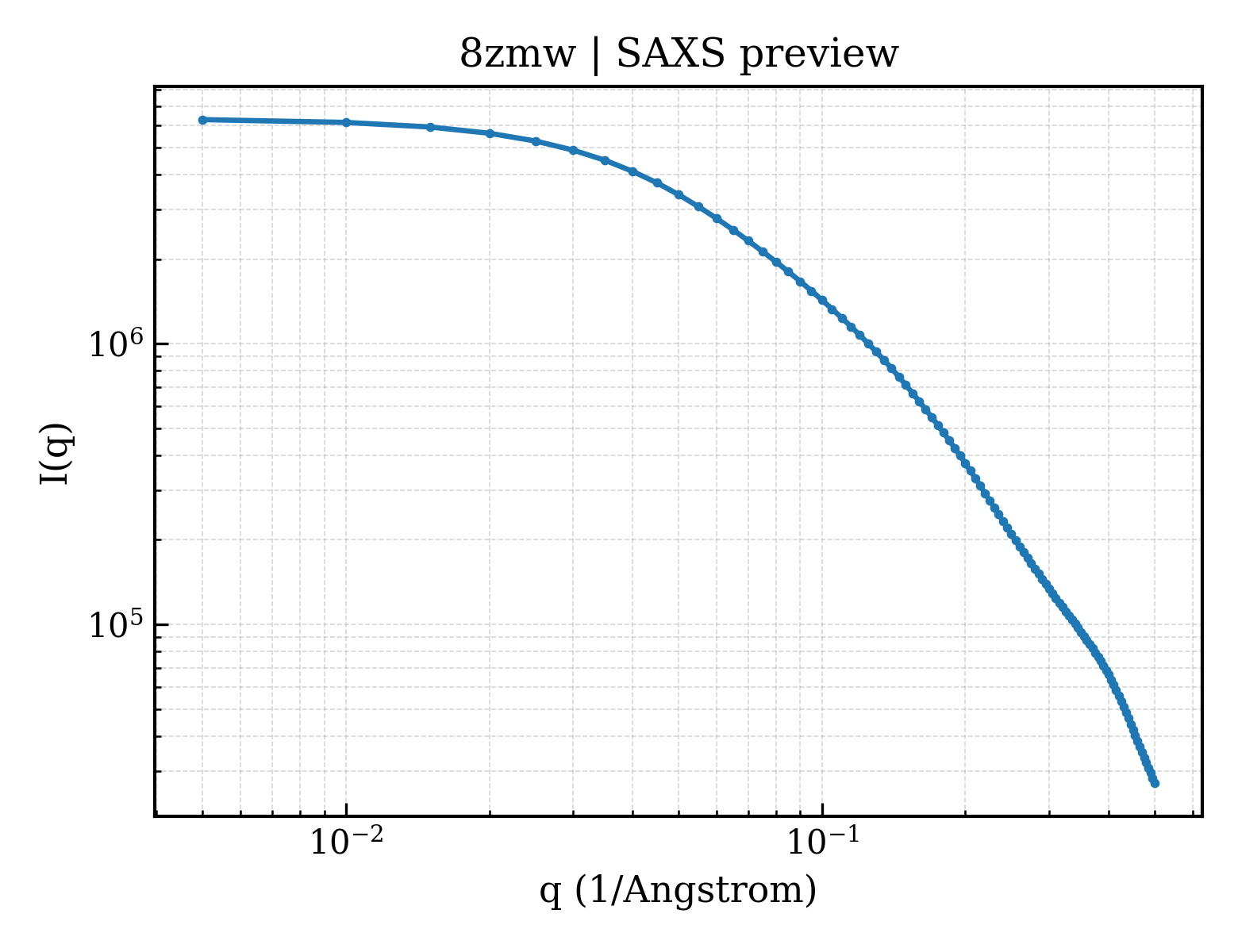

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.29 Å |
| 回转半径 Rg (电子) rg_electron | 31.22 Å |
| 零角强度 I(0) i0 | 6323570.00 |
| 分子量 molecular_weight | 17192.0 kDa |
| 排除体积 excluded_volume | 20790 ų |
| 包络体积 envelope_volume | 27624 ų |
| 水化壳体积 shell_volume | 10679 ų |
| 包络直径 envelope_diameter | 128.6 Å |
| 壳层 Rg shell_rg | 26.47 Å |
| 包络 Rg envelope_rg | 32.46 Å |
| 形状 Rg shape_rg | 31.19 Å |
| 总 Rg total_rg | 30.79 Å |
| 总原子数 total_atoms | 1214 |
| 残基数 n_residues | 144 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

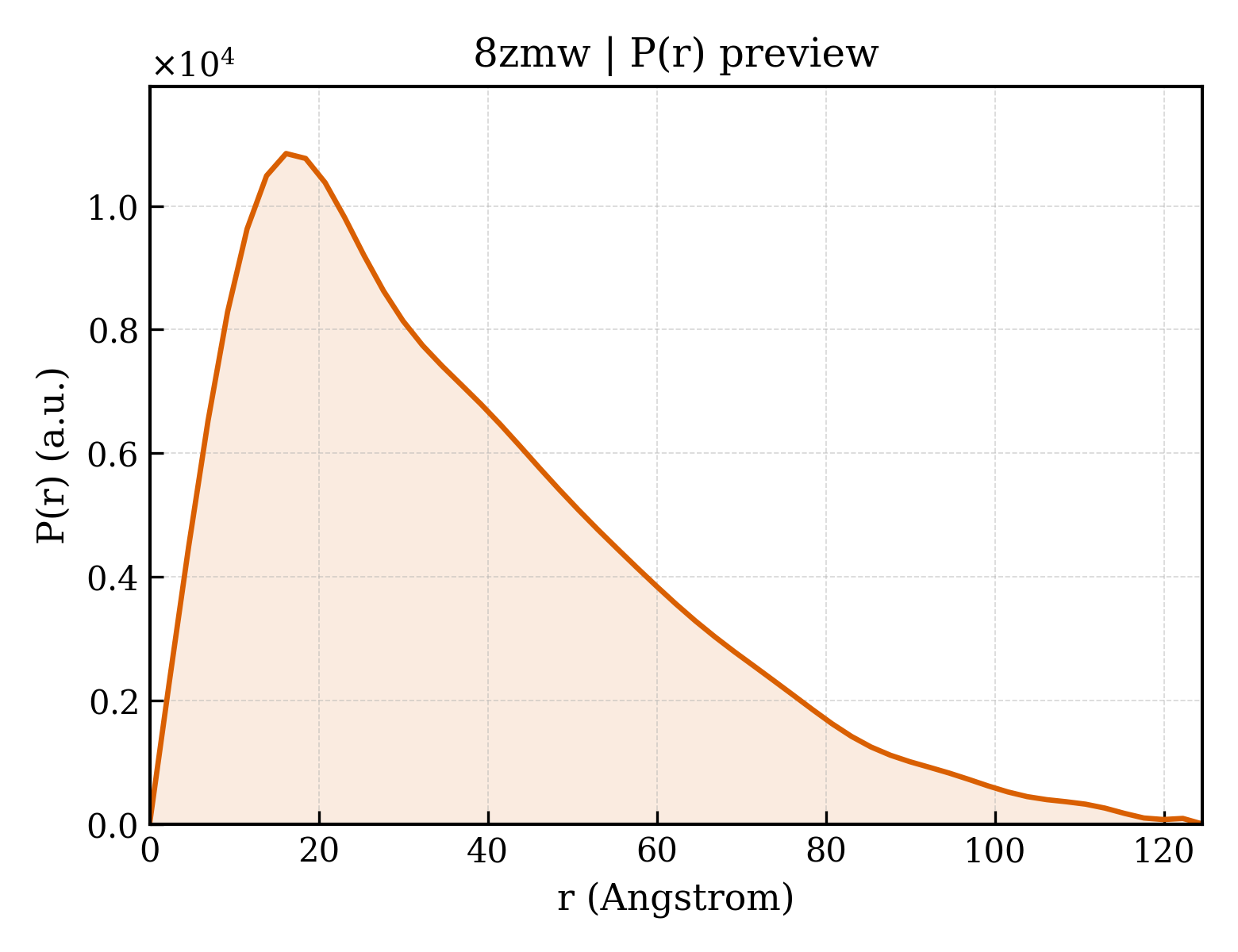

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 124.5 Å |
| Rg (实空间) rg_real | 30.37 Å |
| Rg 误差 (实空间) rg_real_error | 2.41 Å |
| I(0) (实空间) i0_real | 6.3240e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.3420e+05 |
| Rg (倒空间) rg_reciprocal | 29.90 Å |
| I(0) (倒空间) i0_reciprocal | 6321000.0000 |
| 解质量估计 total_estimate | 0.6184 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 16.1 Å |
| 偏度 Skewness skewness | 0.881 |
| 峰度 Kurtosis kurtosis | 0.301 |
| 角度范围 angular_range | — – 0.2700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 188100.0000 |
| 实空间数据点数 n_real_points | 55 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.051; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.003; Smooth: 0.879 |
