8zpk

Cryo-EM structure of origin recognition complex (Orc6 with residues 1 to 270 deleted) with ARS1 DNA bound

Method: ELECTRON MICROSCOPY D_max: 164.0 Å Quality: GOOD

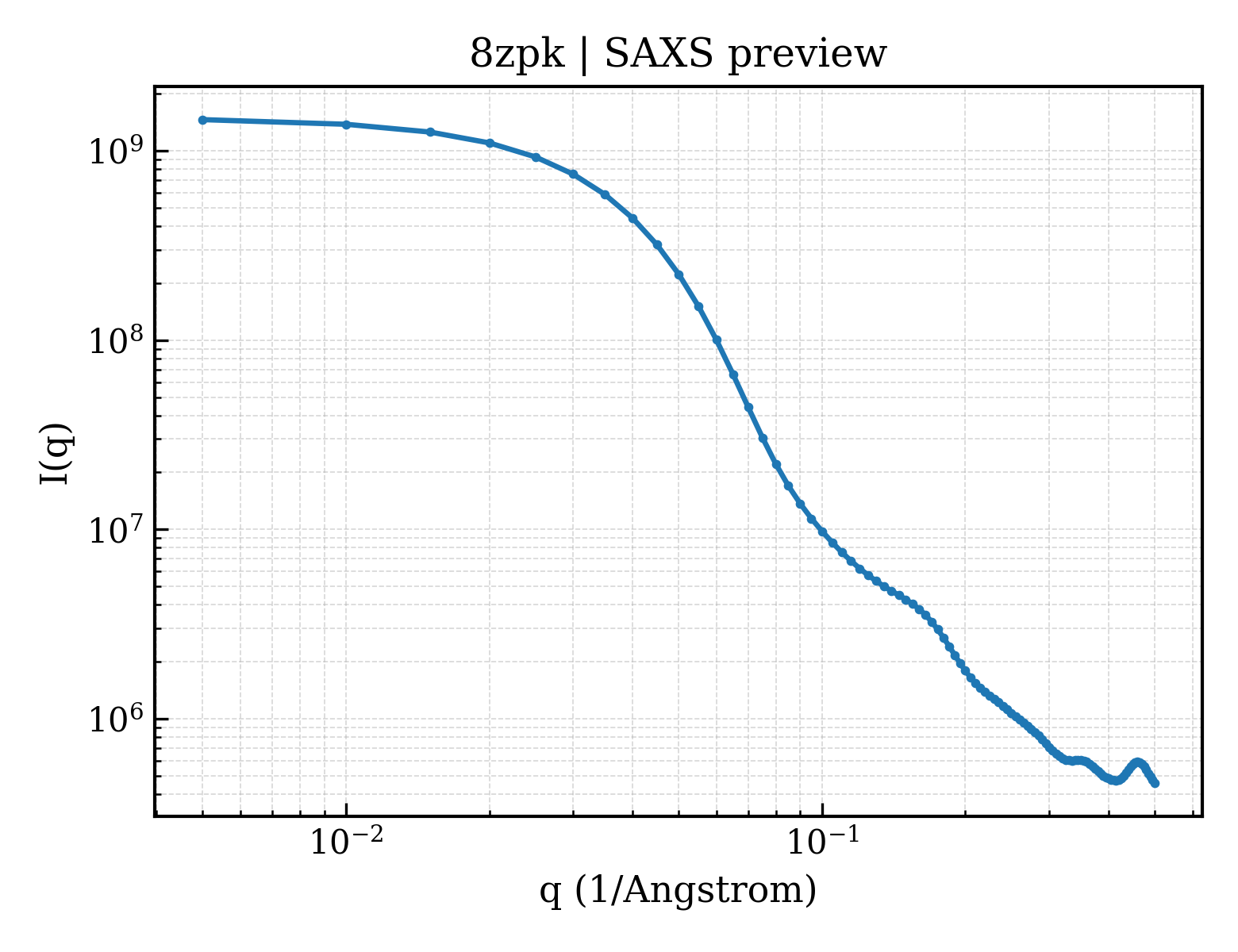

SAXS 散射曲线 SAXS Profile

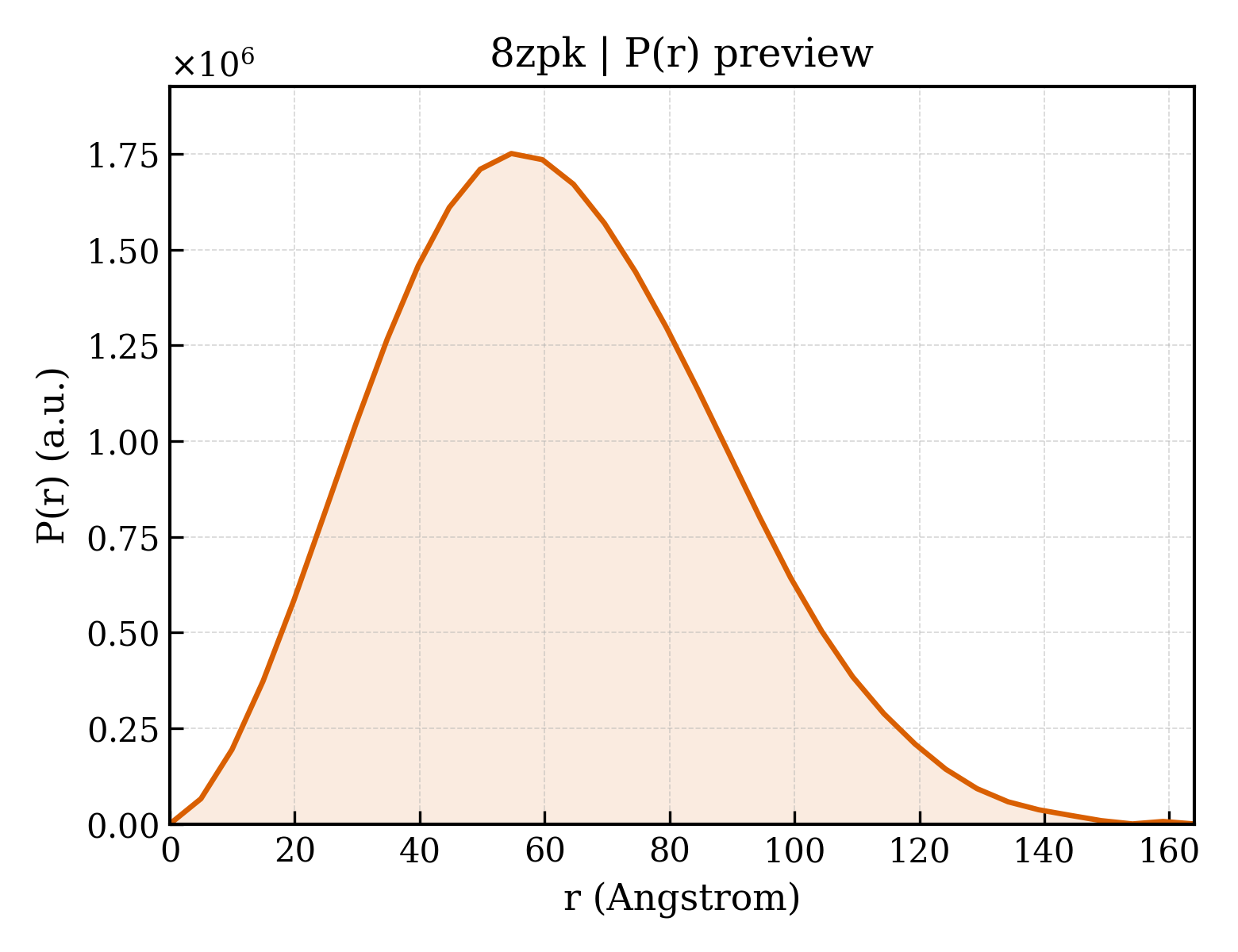

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8zpk
沉积日期 deposition_date	2024-05-30
最后修订 last_revision	2025-04-16
结构标题 title	Cryo-EM structure of origin recognition complex (Orc6 with residues 1 to 270 deleted) with ARS1 DNA bound
关键词 keywords	REPLICATION; REPLICATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.58 Å
回转半径 Rg (电子) rg_electron	47.61 Å
零角强度 I(0) i0	1491670000.00
分子量 molecular_weight	314400.0 kDa
排除体积 excluded_volume	390640 Å³
包络体积 envelope_volume	562620 Å³
水化壳体积 shell_volume	96120 Å³
包络直径 envelope_diameter	177.7 Å
壳层 Rg shell_rg	53.47 Å
包络 Rg envelope_rg	47.13 Å
形状 Rg shape_rg	47.63 Å
总 Rg total_rg	47.75 Å
总原子数 total_atoms	22033
残基数 n_residues	2572
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	164.0 Å
Rg (实空间) rg_real	47.48 Å
Rg 误差 (实空间) rg_real_error	1.38 Å
I(0) (实空间) i0_real	1.4920e+09
I(0) 误差 (实空间) i0_real_error	2.8220e+07
Rg (倒空间) rg_reciprocal	47.58 Å
I(0) (倒空间) i0_reciprocal	1492000000.0000
解质量估计 total_estimate	0.8666
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	54.7 Å
偏度 Skewness skewness	0.335
峰度 Kurtosis kurtosis	-0.247
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	265700000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.934

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Origin recognition complex subunit 2
分子量 formula_weight	71342.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	22033

MLNGEDFVEHNDILSSPAKSRNVTPKRVDPHGERQLRRIHSSKKNLLERISLVGNERKNTSPDPALKPKTPSKAPRKRGRPRKIQEELTDRIKKDEKDTISSKKKRKLDKDTSGNVNEESKTSNNKQVMEKTGIKEKREREKIQVATTTYEDNVTPQTDDNFVSNSPEPPEPATPSKKSLTTNHDFTSPLKQIIMNNLKEYKDSTSPGKLTLSRNFTPTPVPKNKKLYQTSETKSASSFLDTFEGYFDQRKIVRTNAKSRHTMSMAPDVTREEFSLVSNFFNENFQKRPRQKLFEIQKKMFPQYWFELTQGFSLLFYGVGSKRNFLEEFAIDYLSPKIAYSQLAYENELQQNKPVNSIPCLILNGYNPSCNYRDVFKEITDLLVPAELTRSETKYWGNHVILQIQKMIDFYKNQPLDIKLILVVHNLDGPSIRKNTFQTMLSFLSVIRQIAIVASTDHIYAPLLWDNMKAQNYNFVFHDISNFEPSTVESTFQDVMKMGKSDTSSGAEGAKYVLQSLTVNSKKMYKLLIETQMQNMGNLSANTGPKRGTQRTGVELKLFNHLCAADFIASNEIALRSMLREFIEHKMANITKNNSGMEIIWVPYTYAELEKLLKTVLNTL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	Origin recognition complex subunit 5
分子量 formula_weight	55347.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MNVTTPEVAFREYQTNCLASYISADPDITPSNLILQGYSGTGKTYTLKKYFNANPNLHAVWLEPVELVSWKPLLQAIARTVQYKLKTLYPNIPTTDYDPLQVEEPFLLVKTLHNIFVQYESLQEKTCLFLILDGFDSLQDLDAALFNKYIKLNELLPKDSKINIKFIYTMLETSFLQRYSTHCIPTVMFPRYNVDEVSTILVMSRCGELMEDSCLRKRIIEEQITDCTDDQFQNVAANFIHLIVQAFHSYTGNDIFALNDLIDFKWPKYVSRITKENIFEPLALYKSAIKLFLSTDDNLSENGQGESAITTNRDDLENSQTYDLSIISKYLLIASYICSYLEPRYDASIFSRKTRIIQGRAAYGRRKKKEVNPRYLQPSLFAIERLLAIFQAIFPIQGKAESGSLSALREESLMKANIEVFQNLSELHTLKLIATTMNKNIDYLSPKVRWKVNVPWEIIKEISESVHFNISDYFSDIHE

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	Origin recognition complex subunit 6
分子量 formula_weight	21192.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSLLVKKYCKMTTEEIIRLCNDFELPREVAYKIVDEYNINASRLVCPWQLVCGLVLNCTFIVFNERRRKDPRIDHFIVSKMCSLMLTSKVDDVIECVKLVKELIIGEKWFRDLQIRYDDFDGIRYDEIIFRKLGSMLQTTNILVTDDQYNIWKKRIEMDLALTEPLGSGSDYKDDDDKI

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	DNA (38-MER)
分子量 formula_weight	23708.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	G

TACAGATTTTATGTTTAGATCTTTTATGCTTGCTTTTCAAAAGGCCTGCAGGCAAGTGCACAAACAATACTTAAATA

Entity 5 polymer

描述 description	DNA (40-MER)
分子量 formula_weight	23766.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	H

TATTTAAGTATTGTTTGTGCACTTGCCTGCAGGCCTTTTGAAAAGCAAGCATAAAAGATCTAAACATAAAATCTGTA

Entity 6 polymer

描述 description	Origin recognition complex subunit 1
分子量 formula_weight	104546.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MAKTLKDLQGWEIITTDEQGNIIDGGQKRLRRRGAKTEHYLKRSSDGIKLGRGDSVVMHNEAAGTYSVYMIQELRLNTLNNVVELWALTYLRWFEVNPLAHYRQFNPDANILNRPLNYYNKLFSETANKNELYLTAELAELQLFNFIRVANVMDGSKWEVLKGNVDPERDFTVRYICEPTGEKFVDINIEDVKAYIKKVEPREAQEYLKDLTLPSKKKEIKRGPQKKDKATQTAQISDAETRATDITDNEDGNEDESSDYESPSDIDVSEDMDSGEISADELEEEEDEEEDEDEEEKEARHTNSPRKRGRKIKLGKDDIDASVQPPPKKRGRKPKDPSKPRQMLLISSCRANNTPVIRKFTKKNVARAKKKYTPFSKRFKSIAAIPDLTSLPEFYGNSSELMASRFENKLKTTQKHQIVETIFSKVKKQLNSSYVKEEILKSANFQDYLPARENEFASIYLSAYSAIESDSATTIYVAGTPGVGKTLTVREVVKELLSSSAQREIPDFLYVEINGLKMVKPTDCYETLWNKVSGERLTWAASMESLEFYFKRVPKNKKKTIVVLLDELDAMVTKSQDIMYNFFNWTTYENAKLIVIAVANTMDLPERQLGNKITSRIGFTRIMFTGYTHEELKNIIDLRLKGLNDSFFYVDTKTGNAILIDAAGNDTTVKQTLPEDVRKVRLRMSADAIEIASRKVASVSGDARRALKVCKRAAEIAEKHYMAKHGYGYDGKTVIEDENEEQIYDDEDKDLIESNKAKDDNDDDDDNDGVQTVHITHVMKALNETLNSHVITFMTRLSFTAKLFIYALLNLMKKNGSQEQELGDIVDEIKLLIEVNGSNKFVMEIAKTLFQQGSDNISEQLRIISWDFVLNQLLDAGILFKQTMKNDRICCVKLNISVEEAKRAMNEDETLRNL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 7 polymer

描述 description	Origin recognition complex subunit 3
分子量 formula_weight	72161.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSDLNQSKKMNVSEFADAQRSHYTVYPSLPQSNKNDKHIPFVKLLSGKESEVNVEKRWELYHQLHSHFHDQVDHIIDNIEADLKAEISDLLYSETTQKRRCFNTIFLLGSDSTTKIELKDESSRYNVLIELTPKESPNVRMMLRRSMYKLYSAADAEEHPTIKYEDINDEDGDFTEQNNDVSYDLSLVENFKRLFGKDLAMVFNFKDVDSINFNTLDNFIILLKSAFKYDHVKISLIFNINTNLSNIEKNLRQSTIRLLKRNYHKLDVSSNKGFKYGNQIFQSFLDTVDGKLNLSDRFVEFILSKMANNTNHNLQLLTKMLDYSLMSYFFQNAFSVFIDPVNVDFLNDDYLKILSRCPTFMFFVEGLIKQHAPADEILSLLTNKNRGLEEFFVEFLVRENPINGHAKFVARFLEEELNITNFNLIELYHNLLIGKLDSYLDRWSACKEYKDRLHFEPIDTIFQELFTLDNRSGLLTQSIFPSYKSNIEDNLLSWEQVLPSLDKENYDTLSGDLDKIMAPVLGQLFKLYREANMTINIYDFYIAFRETLPKEEILNFIRKDPSNTKLLELAETPDAFDKVALILFMQAIFAFENMGLIKFQSTKSYDLVEKCVWRGI

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 8 polymer

描述 description	Origin recognition complex subunit 4
分子量 formula_weight	60772.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MTISEARLSPQVNLLPIKRHSNEEVEETAAILKKRTIDNEKCKDSDPGFGSLQRRLLQQLYGTLPTDEKIIFTYLQDCQQEIDRIIKQSIIQKESHSVILVGPRQSYKTYLLDYELSLLQQSYKEQFITIRLNGFIHSEQTAINGIATQLEQQLQKIHGSEEKIDDTSLETISSGSLTEVFEKILLLLDSTTKTRNEDSGEVDRESITKITVVFIFDEIDTFAGPVRQTLLYNLFDMVEHSRVPVCIFGCTTKLNILEYLEKRVKSRFSQRVIYMPQIQNLDDMVDAVRNLLTVRSEISPWVSQWNETLEKELSDPRSNLNRHIRMNFETFRSLPTLKNSIIPLVATSKNFGSLCTAIKSCSFLDIYNKNQLSNNLTGRLQSLSDLELAILISAARVALRAKDGSFNFNLAYAEYEKMIKAINSRIPTVAPTTNVGTGQSTFSIDNTIKLWLKKDVKNVWENLVQLDFFTEKSAVGLRDNATAAFYASNYQFQGTMIPFDLRSYQMQIILQELRRIIPKSNMYYSWTQL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 9 non-polymer

描述 description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 10 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.210 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.21 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	146160

fit	/app/data/saxs_computation/zp/8zpk/8zpk.fit
pddf	/app/data/pr_computation/zp/8zpk/8zpk.pr.out
profile	/app/data/saxs_computation/zp/8zpk/8zpk.dat
