SAXSdb — 8zy4

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8zy4
沉积日期 deposition_date	2024-06-16
结构标题 title	Sarbecovirus YN2013 Spike Trimer in a Locked Conformation
关键词 keywords	spike protein, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.19 Å
回转半径 Rg (电子) rg_electron	49.85 Å
零角强度 I(0) i0	1957100000.00
分子量 molecular_weight	371880.0 kDa
排除体积 excluded_volume	466130 Å³
包络体积 envelope_volume	662770 Å³
水化壳体积 shell_volume	107860 Å³
包络直径 envelope_diameter	163.6 Å
壳层 Rg shell_rg	55.60 Å
包络 Rg envelope_rg	49.35 Å
形状 Rg shape_rg	49.88 Å
总 Rg total_rg	49.94 Å
总原子数 total_atoms	26181
残基数 n_residues	3219
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.4 Å
Rg (实空间) rg_real	50.11 Å
Rg 误差 (实空间) rg_real_error	1.53 Å
I(0) (实空间) i0_real	1.9570e+09
I(0) 误差 (实空间) i0_real_error	4.0320e+07
Rg (倒空间) rg_reciprocal	50.25 Å
I(0) (倒空间) i0_reciprocal	1957000000.0000
解质量估计 total_estimate	0.8666
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.9 Å
偏度 Skewness skewness	0.284
峰度 Kurtosis kurtosis	-0.439
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	336200000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.557

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Spike glycoprotein
分子量 formula_weight	137681.4 kDa
突变 mutation	K946P, V947P
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	26181

MLILFVFLPFIAADTCLNFTNLAAPAYNIASSSRRGVYYPDDIFRSDFLHLVNDYFLPFGSNVTQFFTQGTNIDNPTLPFRDGVYFAATEKSNIVRGWIFGSTLDSTSQSAIILNNSTNLIVRVCNFELCKVPLFVVFKSNNSQLSHLFSDSFNCTFEYVSRAFSLDIREQSGNFVDLREFVFRNRNGFLHIYEGYEAISIVRGLPAGFNVLKPLLKIPFGLNVTSFKTFLAVYRVAAGSISVASSAYYVGYLKPLTFMLSYDLNGTIKNAVDCSQDPLAELKCTIKNFNVSKGIYQTSNFRVSPTREVVRFPNITNRCPFDSIFNASRFPSVYAWERTKISDCVADYTVLYNSTLFSTFKCYGVSPSKLIDLCFTSVYADTFLIRFSEVRQVAPGETGVIADYNYRLPDDFTGCVIAWNTANQDVGSYFYRSHRSTKLKPFERDLSSDENGVRTLSTYDFNPNVPLDYQATRVVVLSFELLNAPATVCGPKLSTELVKNQCVNFNFNGLKGTGVLTSSSKRFQSFQQFGRDASDFTDSVRDPQTLEILDITPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPTAIRADQLTPAWRVYSTGVNVFQTQAGCLIGAEHVNASYECDIPIGAGICASYHTASTLRSIGQKSIVAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVMPVSMAKTSVDCTMYICGDSQECSNLLLQYGSFCTQLNRALTGVALEQDKNTQEVFAQVKQMYKTPAIKDFGGFNFSQILPDPSKPTKRSFIEDLLFNKVTLADAGFMKQYGECLGDISARDLICAQKFNGLTVLPPLLTDEMIAAYTAALVSGTATAGWTFGAGAALQIPFAMQMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGRGYHLMSFPQAAPHGVVFLHVTYVPSHEKNFTTAPAICHEGKAYFPREGVFVSNGTSWFITQRNFYSPQIITTDNTFVAGNCDVVIGIINNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQGSGYIPEAPRDGQAYVRKDGEWVLLSTFLLEVLFQGPGHHHHHHHHSAWSHPQFEKGGGSGGGGSGGSAWSHPQFEKSA

来源 Source

来源生物 organism	BtRs-BetaCoV/YN2013
NCBI 分类编号 ncbi_taxonomy_id	1503303
宿主生物 host_organism	Homo sapiens

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	15

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	42

Entity 4 non-polymer

描述 description	;3-[5-[(Z)-(4-ethenyl-3-methyl-5-oxidanylidene-pyrrol-2-ylidene)methyl]-2-[[5-[(Z)-(3-ethenyl-4-methyl-5-oxidanylidene-pyrrol-2-ylidene)methyl]-3-(3-hydroxy-3-oxopropyl)-4-methyl-1H-pyrrol-2-yl]methyl]-4-methyl-1H-pyrrol-3-yl]propanoic acid ;
分子量 formula_weight	584.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.530 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.53 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	452110

fit	/app/data/saxs_computation/zy/8zy4/8zy4.fit
pddf	/app/data/pr_computation/zy/8zy4/8zy4.pr.out
profile	/app/data/saxs_computation/zy/8zy4/8zy4.dat

Sarbecovirus YN2013 Spike Trimer in a Locked Conformation

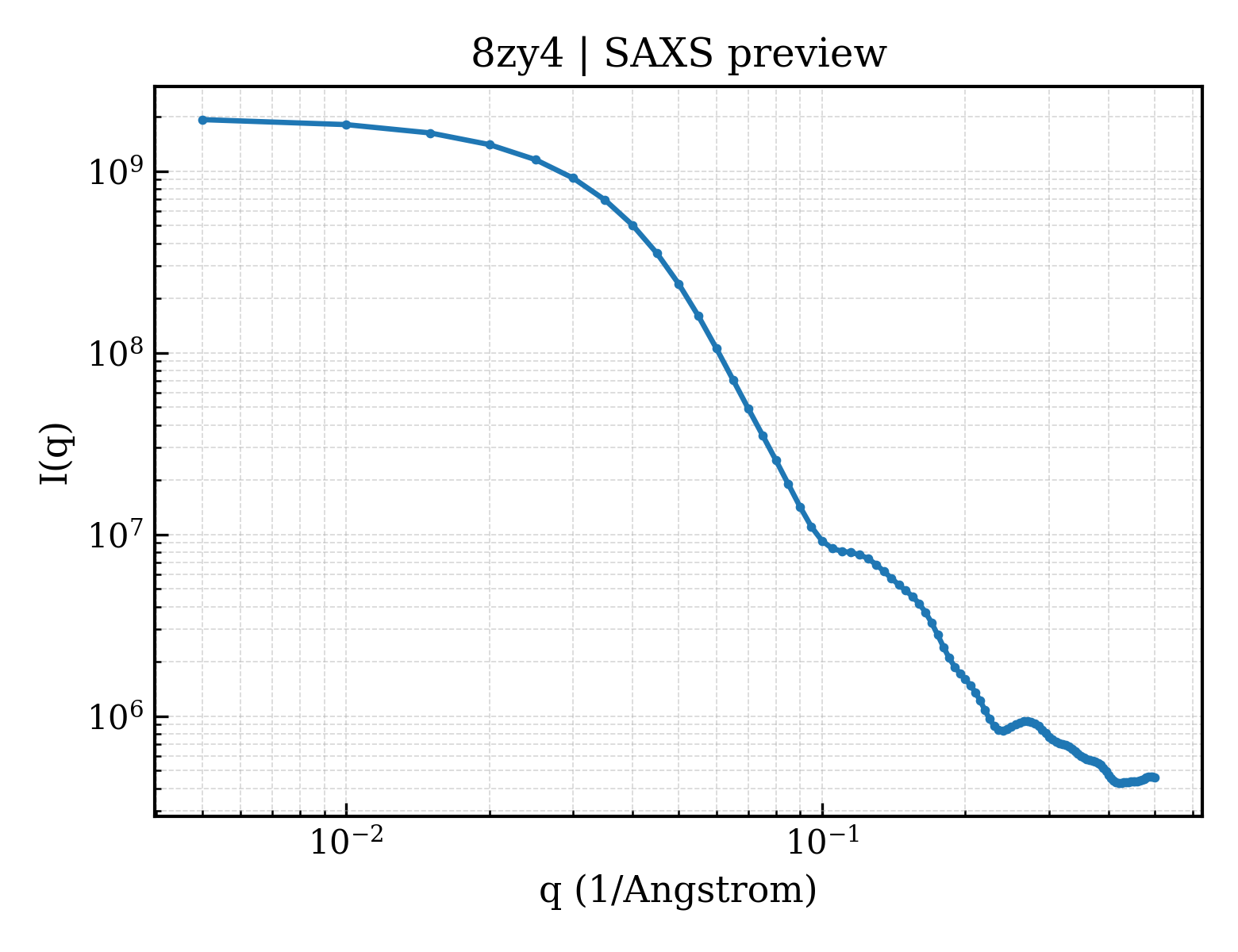

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
