9arq

Crystal structure of SARS-CoV-2 main protease (authentic protein) in complex with an inhibitor TKB-245

Method: X-RAY DIFFRACTION D_max: 75.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9arq
沉积日期 deposition_date	2024-02-23
结构标题 title	Crystal structure of SARS-CoV-2 main protease (authentic protein) in complex with an inhibitor TKB-245
关键词 keywords	SARS-CoV-2 main protease, 3C-like proteinase, VIRAL PROTEIN, SARS-CoV-2, HYDROLASE-INHIBITOR complex; VIRAL PROTEIN, HYDROLASE/INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.50 Å
回转半径 Rg (电子) rg_electron	21.77 Å
零角强度 I(0) i0	20843900.00
分子量 molecular_weight	34431.0 kDa
排除体积 excluded_volume	42905 Å³
包络体积 envelope_volume	50296 Å³
水化壳体积 shell_volume	20127 Å³
包络直径 envelope_diameter	78.9 Å
壳层 Rg shell_rg	27.68 Å
包络 Rg envelope_rg	22.04 Å
形状 Rg shape_rg	21.75 Å
总 Rg total_rg	22.58 Å
总原子数 total_atoms	2412
残基数 n_residues	306
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

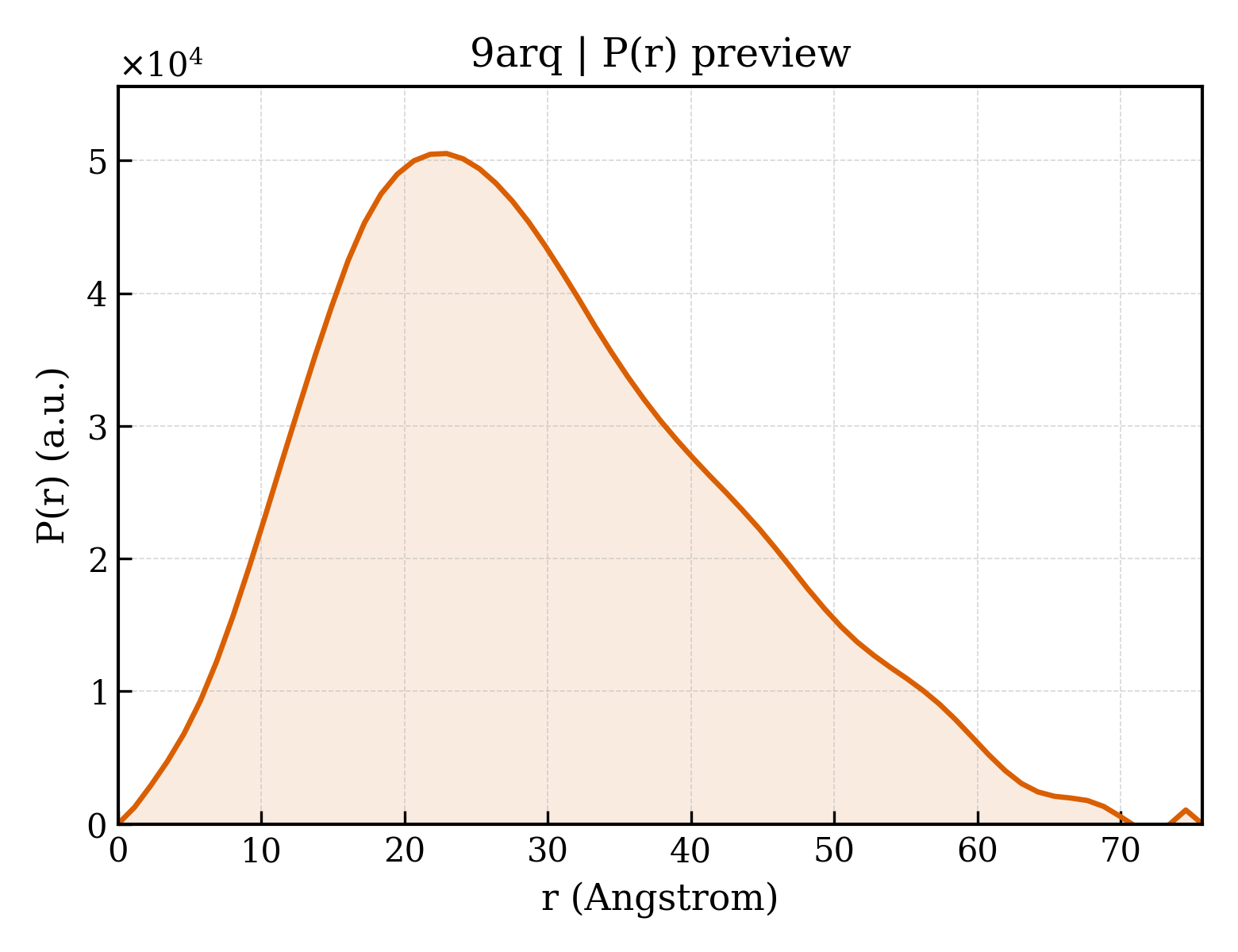

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	75.7 Å
Rg (实空间) rg_real	22.60 Å
Rg 误差 (实空间) rg_real_error	0.59 Å
I(0) (实空间) i0_real	2.0840e+07
I(0) 误差 (实空间) i0_real_error	3.0600e+05
Rg (倒空间) rg_reciprocal	22.58 Å
I(0) (倒空间) i0_reciprocal	20840000.0000
解质量估计 total_estimate	0.6298
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	22.9 Å
偏度 Skewness skewness	0.485
峰度 Kurtosis kurtosis	-0.309
角度范围 angular_range	— – 0.3550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8319000.0000
实空间数据点数 n_real_points	67
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.761; Stabil: 0.999; Sysdev: 0.328; Positv: 1.000; Valcen: 0.921; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	3C-like proteinase nsp5
分子量 formula_weight	33825.5 kDa
EC 编号 ec_number	3.4.22.69
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2503

SGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCSGVTFQ

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(1R,2S,5S)-N-{(1S,2S)-1-(4-fluoro-1,3-benzothiazol-2-yl)-1-hydroxy-3-[(3S)-2-oxopyrrolidin-3-yl]propan-2-yl}-6,6-dimethyl-3-[3-methyl-N-(trifluoroacetyl)-L-valyl]-3-azabicyclo[3.1.0]hexane-2-carboxamide ;
分子量 formula_weight	655.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	91

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	45.627 Å
晶胞边长 b length_b	63.997 Å
晶胞边长 c length_c	105.646 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	41.920 Å
R 因子 r_factor	0.1840
R_work r_work	0.1813
R_free r_free	0.2355
