9awy

;Structure of full-length amyloidogenic immunoglobulin light chain H9 in complex with 3-(2-(4-(3-ethyl-3-phenylpyrrolidin-1-yl)-6-methyl-2-oxopyridin-1(2H)-yl)ethyl)-8-(imidazo[1,5-a]pyrazin-8-yl)-1,3,8-triazaspiro[4.5]decan-2-one ;

Method: X-RAY DIFFRACTION D_max: 123.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9awy
沉积日期 deposition_date	2024-03-05
结构标题 title	;Structure of full-length amyloidogenic immunoglobulin light chain H9 in complex with 3-(2-(4-(3-ethyl-3-phenylpyrrolidin-1-yl)-6-methyl-2-oxopyridin-1(2H)-yl)ethyl)-8-(imidazo[1,5-a]pyrazin-8-yl)-1,3,8-triazaspiro[4.5]decan-2-one ;
关键词 keywords	Kinetic Stabilizer, Amyloid, Light Chain, Dimer, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.12 Å
回转半径 Rg (电子) rg_electron	35.53 Å
零角强度 I(0) i0	135024000.00
分子量 molecular_weight	89853.0 kDa
排除体积 excluded_volume	110970 Å³
包络体积 envelope_volume	149710 Å³
水化壳体积 shell_volume	37016 Å³
包络直径 envelope_diameter	125.9 Å
壳层 Rg shell_rg	39.66 Å
包络 Rg envelope_rg	34.69 Å
形状 Rg shape_rg	35.41 Å
总 Rg total_rg	36.19 Å
总原子数 total_atoms	12363
残基数 n_residues	847
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

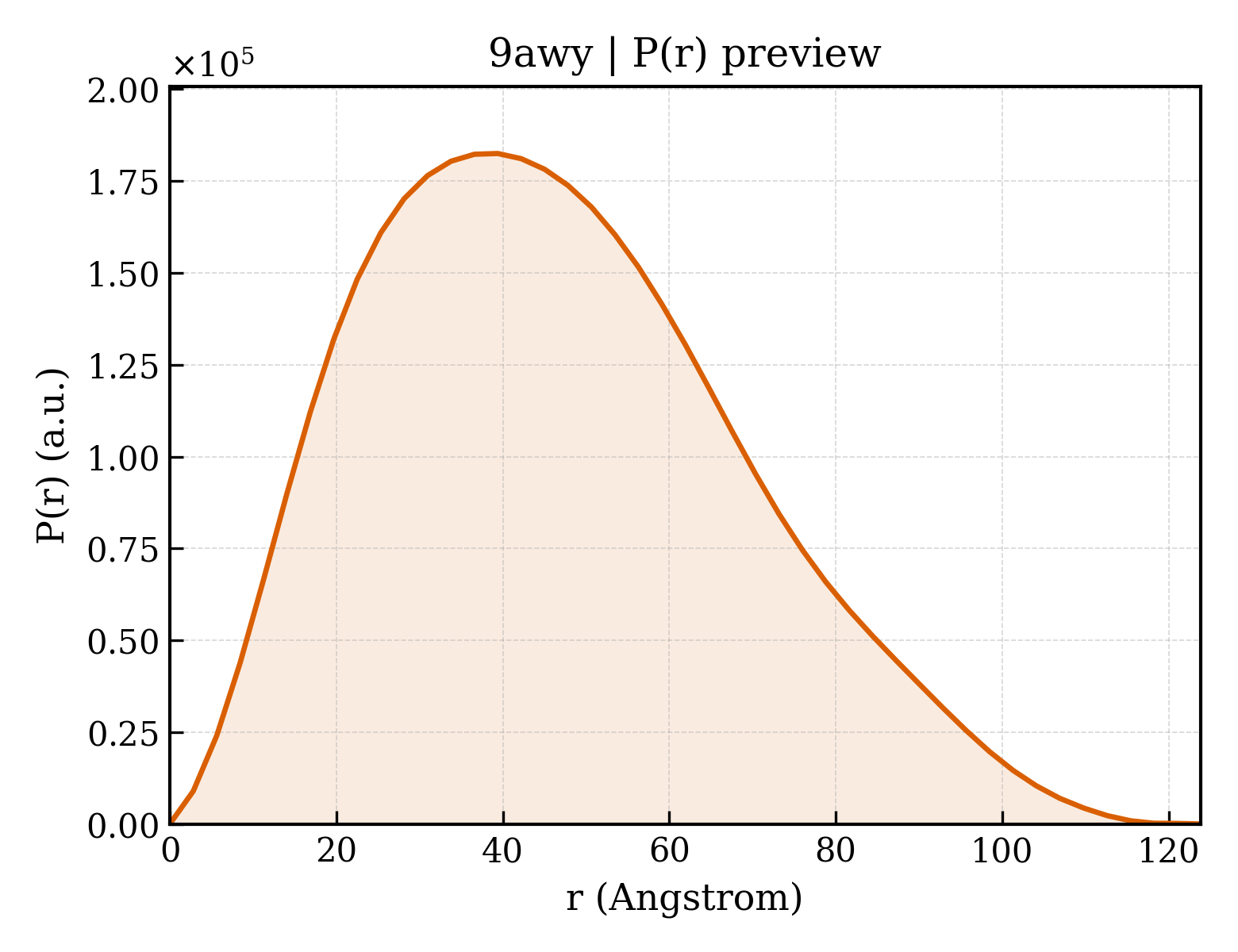

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.8 Å
Rg (实空间) rg_real	36.29 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	1.3500e+08
I(0) 误差 (实空间) i0_real_error	2.4640e+06
Rg (倒空间) rg_reciprocal	36.19 Å
I(0) (倒空间) i0_reciprocal	135000000.0000
解质量估计 total_estimate	0.8694
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	39.4 Å
偏度 Skewness skewness	0.411
峰度 Kurtosis kurtosis	-0.395
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13330000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.866; Smooth: 0.839

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	H9 Immunoglobulin Light Chain
分子量 formula_weight	22549.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	13247

QSALTQPPSASGSPGQSVTISCTGTSSDVGGSDSVSWYQQHPGKAPKLIIYEVSQRPSGVPNRFSGSKSGNTASLTVSGLQAEDDADYYCSSYGGDNNLFFGGGTKVTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 non-polymer

描述 description	;3-(2-{4-[(3R)-3-ethyl-3-phenylpyrrolidin-1-yl]-6-methyl-2-oxopyridin-1(2H)-yl}ethyl)-8-[(4R)-imidazo[1,5-a]pyrazin-8-yl]-1,3,8-triazaspiro[4.5]decan-2-one ;
分子量 formula_weight	580.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	884

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	46.815 Å
晶胞边长 b length_b	63.593 Å
晶胞边长 c length_c	87.432 Å
晶胞夹角 α angle_alpha	84.37 °
晶胞夹角 β angle_beta	85.39 °
晶胞夹角 γ angle_gamma	80.08 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	48.730 Å
R 因子 r_factor	0.2202
R_work r_work	0.2181
R_free r_free	0.2607
