9ax2

;Structure of full-length amyloidogenic immunoglobulin light chain H9 in complex with 2-(1-methyl-3-oxo-5-(2-phenylpropoxy)isoindolin-2-yl)ethyl (3-(1H-imidazol-4-yl)benzyl)carbamate ;

Method: X-RAY DIFFRACTION D_max: 121.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

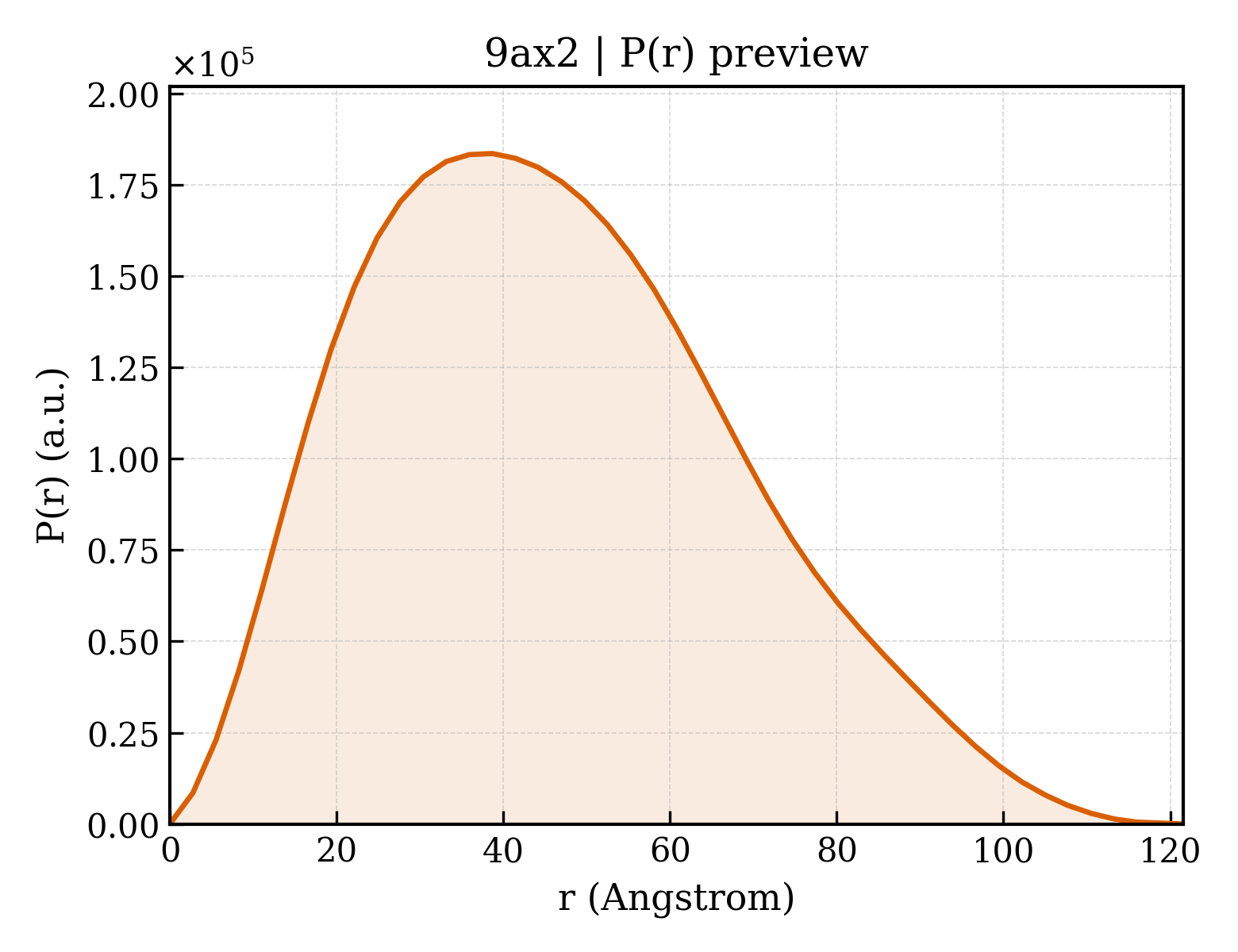

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ax2
沉积日期 deposition_date	2024-03-05
结构标题 title	;Structure of full-length amyloidogenic immunoglobulin light chain H9 in complex with 2-(1-methyl-3-oxo-5-(2-phenylpropoxy)isoindolin-2-yl)ethyl (3-(1H-imidazol-4-yl)benzyl)carbamate ;
关键词 keywords	Light Chain Dimer, Amyloid, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.86 Å
回转半径 Rg (电子) rg_electron	35.27 Å
零角强度 I(0) i0	134650000.00
分子量 molecular_weight	89832.0 kDa
排除体积 excluded_volume	111000 Å³
包络体积 envelope_volume	150570 Å³
水化壳体积 shell_volume	37462 Å³
包络直径 envelope_diameter	125.6 Å
壳层 Rg shell_rg	39.43 Å
包络 Rg envelope_rg	34.42 Å
形状 Rg shape_rg	35.16 Å
总 Rg total_rg	35.92 Å
总原子数 total_atoms	12338
残基数 n_residues	851
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	121.6 Å
Rg (实空间) rg_real	36.01 Å
Rg 误差 (实空间) rg_real_error	1.15 Å
I(0) (实空间) i0_real	1.3470e+08
I(0) 误差 (实空间) i0_real_error	2.3650e+06
Rg (倒空间) rg_reciprocal	35.92 Å
I(0) (倒空间) i0_reciprocal	134600000.0000
解质量估计 total_estimate	0.8710
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.7 Å
偏度 Skewness skewness	0.403
峰度 Kurtosis kurtosis	-0.395
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	15210000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.891; Smooth: 0.790

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	H9 Immunoglobulin Light Chain
分子量 formula_weight	22549.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12874

QSALTQPPSASGSPGQSVTISCTGTSSDVGGSDSVSWYQQHPGKAPKLIIYEVSQRPSGVPNRFSGSKSGNTASLTVSGLQAEDDADYYCSSYGGDNNLFFGGGTKVTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;2-{(1R)-1-methyl-3-oxo-5-[(2S)-2-phenylpropoxy]-1,3-dihydro-2H-isoindol-2-yl}ethyl {[(3M)-3-(1H-imidazol-4-yl)phenyl]methyl}carbamate ;
分子量 formula_weight	524.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	536

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	46.710 Å
晶胞边长 b length_b	63.406 Å
晶胞边长 c length_c	86.595 Å
晶胞夹角 α angle_alpha	84.49 °
晶胞夹角 β angle_beta	85.33 °
晶胞夹角 γ angle_gamma	80.60 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	1.940 Å
最低分辨率 resolution_low	48.570 Å
R 因子 r_factor	0.1990
R_work r_work	0.1979
R_free r_free	0.2190
