9b2f

Crystal structure of short chain dehydrogenase reductase 9 (short chain dehydrogenase reductase 9C4) in complex with NAD+

Method: X-RAY DIFFRACTION D_max: 72.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

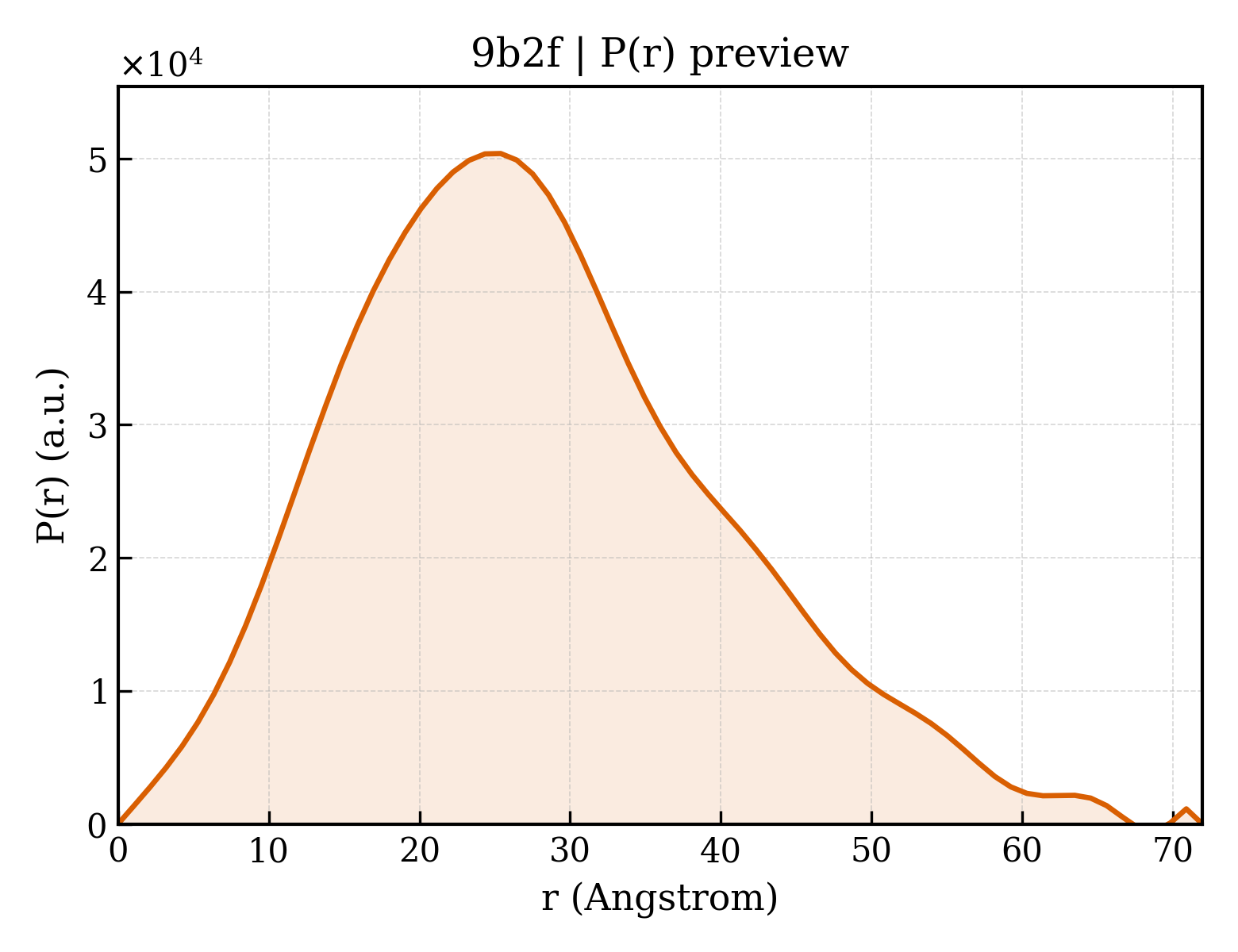

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b2f
沉积日期 deposition_date	2024-03-15
最后修订 last_revision	2025-03-19
结构标题 title	Crystal structure of short chain dehydrogenase reductase 9 (short chain dehydrogenase reductase 9C4) in complex with NAD+
关键词 keywords	short-chain dehydrogenase reductase, oxylipins, polyunsaturated fatty acids, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	21.37 Å
回转半径 Rg (电子) rg_electron	20.68 Å
零角强度 I(0) i0	18611900.00
分子量 molecular_weight	33379.0 kDa
排除体积 excluded_volume	42183 Å³
包络体积 envelope_volume	50553 Å³
水化壳体积 shell_volume	20851 Å³
包络直径 envelope_diameter	75.9 Å
壳层 Rg shell_rg	26.87 Å
包络 Rg envelope_rg	21.08 Å
形状 Rg shape_rg	20.69 Å
总 Rg total_rg	21.51 Å
总原子数 total_atoms	2350
残基数 n_residues	299
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	72.0 Å
Rg (实空间) rg_real	21.43 Å
Rg 误差 (实空间) rg_real_error	0.57 Å
I(0) (实空间) i0_real	1.8610e+07
I(0) 误差 (实空间) i0_real_error	2.6150e+05
Rg (倒空间) rg_reciprocal	21.42 Å
I(0) (倒空间) i0_reciprocal	18610000.0000
解质量估计 total_estimate	0.6153
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	25.4 Å
偏度 Skewness skewness	0.479
峰度 Kurtosis kurtosis	-0.078
角度范围 angular_range	— – 0.3700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3584000.0000
实空间数据点数 n_real_points	69
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.726; Stabil: 1.000; Sysdev: 0.281; Positv: 1.000; Valcen: 0.974; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Dehydrogenase/reductase SDR family member 9
分子量 formula_weight	35289.1 kDa
EC 编号 ec_number	1.1.1.209,1.1.1.53,1.1.1.105
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2537

MLFWLLALLFLCAFLWNYKGQLKIADIADKYVFITGCDTGFGNLAARTFDKKGFRVIAACLTESGSAALKAKTSERLHTVLLDVTDPENVKKTAQWVKSHVGEKGLWGLINNAGVLGVLAPTDWLTVDDYREPIEVNLFGLINVTLNMLPLVKKARGRVINVSSIGGRLAFGGGGYTPSKYAVEGFNDSLRRDMKAFGVHVSCIEPGLFKTELADPIKTTEKKLAIWKHLSPDIKQQYGEGYIEKSLHRLKSNTSSVNLDLSLVVGCMDHALTSLFPKTRYIAGKDAKTFWIPLSHMPAVLQDFLLLKQKVELANPKAV

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	MALONATE ION
分子量 formula_weight	102.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	143

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	74.384 Å
晶胞边长 b length_b	103.045 Å
晶胞边长 c length_c	103.082 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	1.662 Å
最低分辨率 resolution_low	50.005 Å
R 因子 r_factor	—
R_work r_work	0.1661
R_free r_free	0.1931
