;Open state of kainate receptor GluK2 in complex with agonist glutamate and positive allosteric modulator BPAM344 bound to one concanavalin A dimer. Composite map. ;

Method: ELECTRON MICROSCOPY D_max: 199.9 Å Quality: GOOD

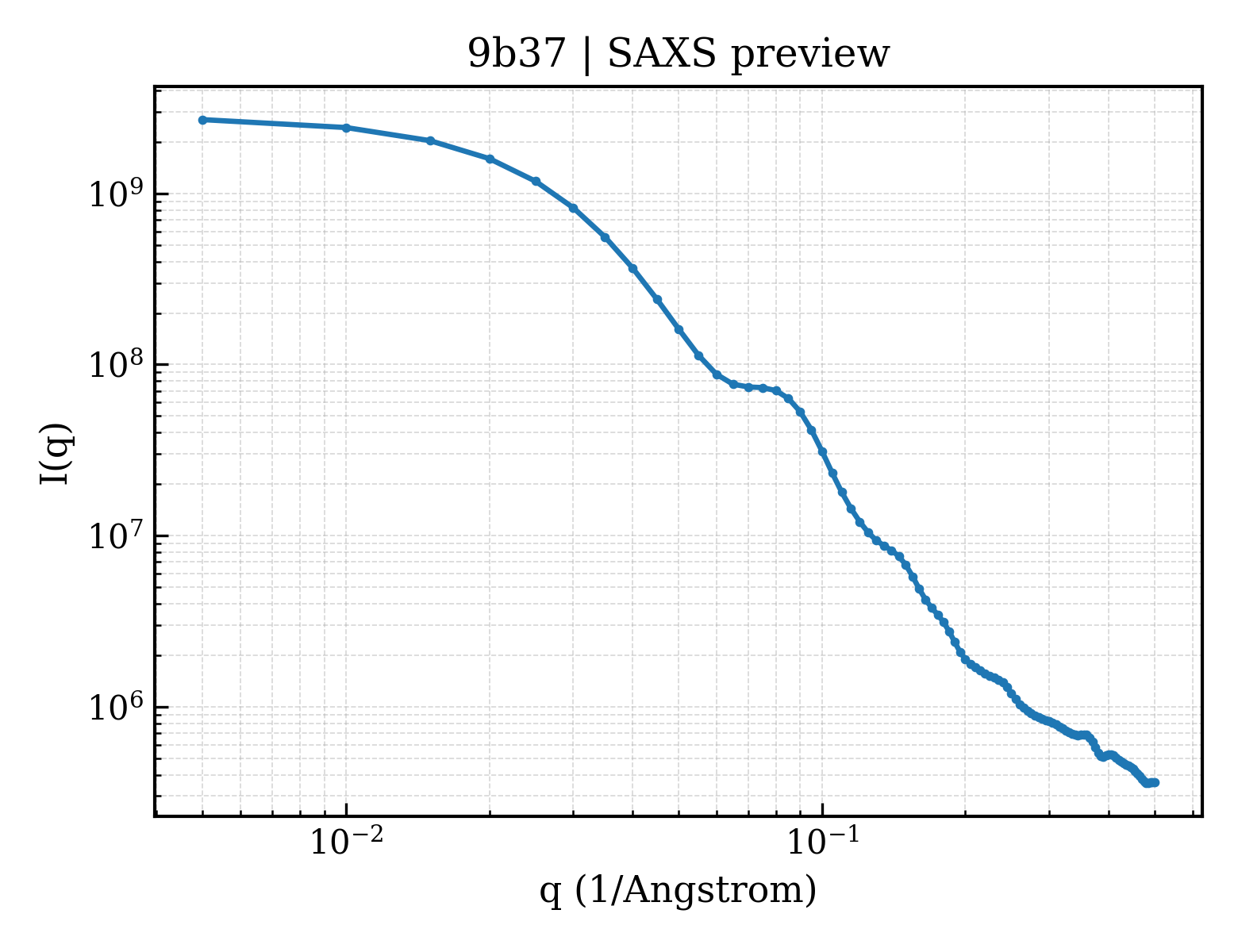

SAXS 散射曲线 SAXS Profile

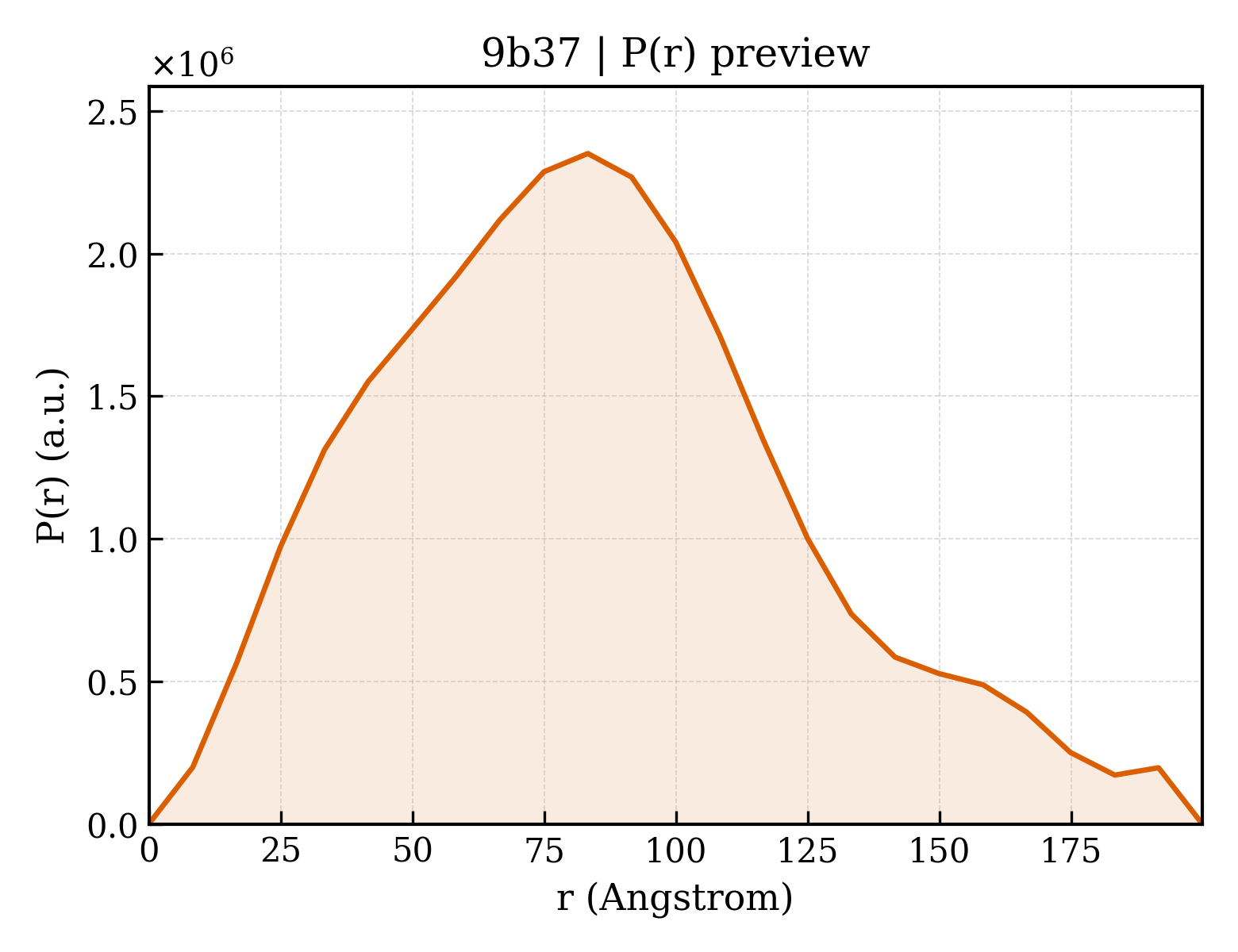

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b37
沉积日期 deposition_date	2024-03-18
结构标题 title	;Open state of kainate receptor GluK2 in complex with agonist glutamate and positive allosteric modulator BPAM344 bound to one concanavalin A dimer. Composite map. ;
关键词 keywords	kainate receptor, GluK2, positive allosteric modulator, BPAM344, open, concanavalin A, ConA, glutamate, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.09 Å
回转半径 Rg (电子) rg_electron	65.94 Å
零角强度 I(0) i0	2798670000.00
分子量 molecular_weight	464580.0 kDa
排除体积 excluded_volume	589220 Å³
包络体积 envelope_volume	923180 Å³
水化壳体积 shell_volume	122720 Å³
包络直径 envelope_diameter	219.1 Å
壳层 Rg shell_rg	62.92 Å
包络 Rg envelope_rg	63.43 Å
形状 Rg shape_rg	65.91 Å
总 Rg total_rg	66.00 Å
总原子数 total_atoms	32634
残基数 n_residues	3842
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	199.9 Å
Rg (实空间) rg_real	65.35 Å
Rg 误差 (实空间) rg_real_error	1.53 Å
I(0) (实空间) i0_real	2.7980e+09
I(0) 误差 (实空间) i0_real_error	6.0080e+07
Rg (倒空间) rg_reciprocal	64.83 Å
I(0) (倒空间) i0_reciprocal	2796000000.0000
解质量估计 total_estimate	0.8376
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	83.3 Å
偏度 Skewness skewness	0.433
峰度 Kurtosis kurtosis	-0.163
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	147900000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.155

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (17)

Entity 1 polymer

描述 description	Glutamate receptor ionotropic, kainate 2
分子量 formula_weight	102976.6 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	32654

MKIISPVLSNLVFSRSIKVLLCLLWIGYSQGTTHVLRFGGIFEYVESGPMGAEELAFRFAVNTINRNRTLLPNTTLTYDTQKINLYDSFEASKKACDQLSLGVAAIFGPSHSSSANAVQSICNALGVPHIQTRWKHQVSDNKDSFYVSLYPDFSSLSRAILDLVQFFKWKTVTVVYDDSTGLIRLQELIKAPSRYNLRLKIRQLPADTKDAKPLLKEMKRGKEFHVIFDCSHEMAAGILKQALAMGMMTEYYHYIFTTLDLFALDVEPYRYSGVNMTGFRILNTENTQVSSIIEKWSMERLQAPPKPDSGLLDGFMTTDAALMYDAVHVVSVAVQQFPQMTVSSLQCNRHKPWRFGTRFMSLIKEAHWEGLTGRITFNKTNGLRTDFDLDVISLKEEGLEKIGTWDPASGLNMTESQKGKPANITDSLSNRSLIVTTILEEPYVLFKKSDKPLYGNDRFEGYCIDLLRELSTILGFTYEIRLVEDGKYGAQDDVNGQWNGMVRELIDHKADLAVAPLAITYVREKVIDFSKPFMTLGISILYRKPNGTNPGVFSFLNPLSPDIWMYVLLACLGVSCVLFVIARFSPYEWYNPHPCNPDSDVVENNFTLLNSFWFGVGALMQQGSELMPKALSTRIVGGIWWFFTLIIISSYTANLAAFLTVERMESPIDSADDLAKQTKIEYGAVEDGATMTFFKKSKISTYDKMWAFMSSRRQSVLVKSNEEGIQRVLTSDYAFLMESTTIEFVTQRNCNLTQIGGLIDSKGYGVGTPMGSPYRDKITIAILQLQEEGKLHMMKEKWWRGNGCPEEESKEASALGVQNIGGIFIVLAAGLVLSVFVAVGEFLYKSKKNAQLEKRSFCSAMVEELRMSLKCQRRLKHKPQAPVIVKTEEVINMHTFNDRRLPGKETMALVPR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Concanavalin A
分子量 formula_weight	25622.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F

ADTIVAVELDTYPNTDIGDPSYPHIGIDIKSVRSKKTAKWNMQNGKVGTAHIIYNSVDKRLSAVVSYPNADSATVSYDVDLDNVLPEWVRVGLSASTGLYKETNTILSWSFTSKLKSNSTHETNALHFMFNQFSKDQKDLILQGDATTGTDGNLELTRVSSNGSPQGSSVGRALFYAPVHIWESSAVVASFEATFTFLIKSPDSHPADGIAFFISNIDSSIPSGSTGRLLGLFPDAN

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	15

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 5 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1479.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 6 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1276.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 branched

描述 description	;Cyclic 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)]alpha-D-mannopyranose ;
分子量 formula_weight	1114.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 9 branched

描述 description	;beta-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 10 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1317.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	4-cyclopropyl-7-fluoro-3,4-dihydro-2H-1,2,4-benzothiadiazine 1,1-dioxide
分子量 formula_weight	242.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 12 non-polymer

描述 description	GLUTAMIC ACID
分子量 formula_weight	147.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 13 non-polymer

描述 description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
分子量 formula_weight	760.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

Entity 14 non-polymer

描述 description	CHOLESTEROL
分子量 formula_weight	386.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 15 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 16 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 17 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	6.66 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	77567

fit	/app/data/saxs_computation/b3/9b37/9b37.fit
pddf	/app/data/pr_computation/b3/9b37/9b37.pr.out
profile	/app/data/saxs_computation/b3/9b37/9b37.dat
