Pseudomonas phage Pa193 5-fold vertex (capsid, decorating, and scaffolding proteins)

Method: ELECTRON MICROSCOPY D_max: 226.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b40
沉积日期 deposition_date	2024-03-20
最后修订 last_revision	2024-10-16
结构标题 title	Pseudomonas phage Pa193 5-fold vertex (capsid, decorating, and scaffolding proteins)
关键词 keywords	;phage, bacteriophage, gene product 24 (gp24), STRUCTURAL PROTEIN, VIRAL PROTEIN, gene product 25 (gp25), scaffolding protein, decorating protein, major capsid protein, gene product 26 (gp26) ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	73.05 Å
回转半径 Rg (电子) rg_electron	73.56 Å
零角强度 I(0) i0	3003690000.00
分子量 molecular_weight	466960.0 kDa
排除体积 excluded_volume	585520 Å³
包络体积 envelope_volume	898630 Å³
水化壳体积 shell_volume	103130 Å³
包络直径 envelope_diameter	290.6 Å
壳层 Rg shell_rg	67.46 Å
包络 Rg envelope_rg	74.86 Å
形状 Rg shape_rg	73.56 Å
总 Rg total_rg	73.46 Å
总原子数 total_atoms	32946
残基数 n_residues	4325
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

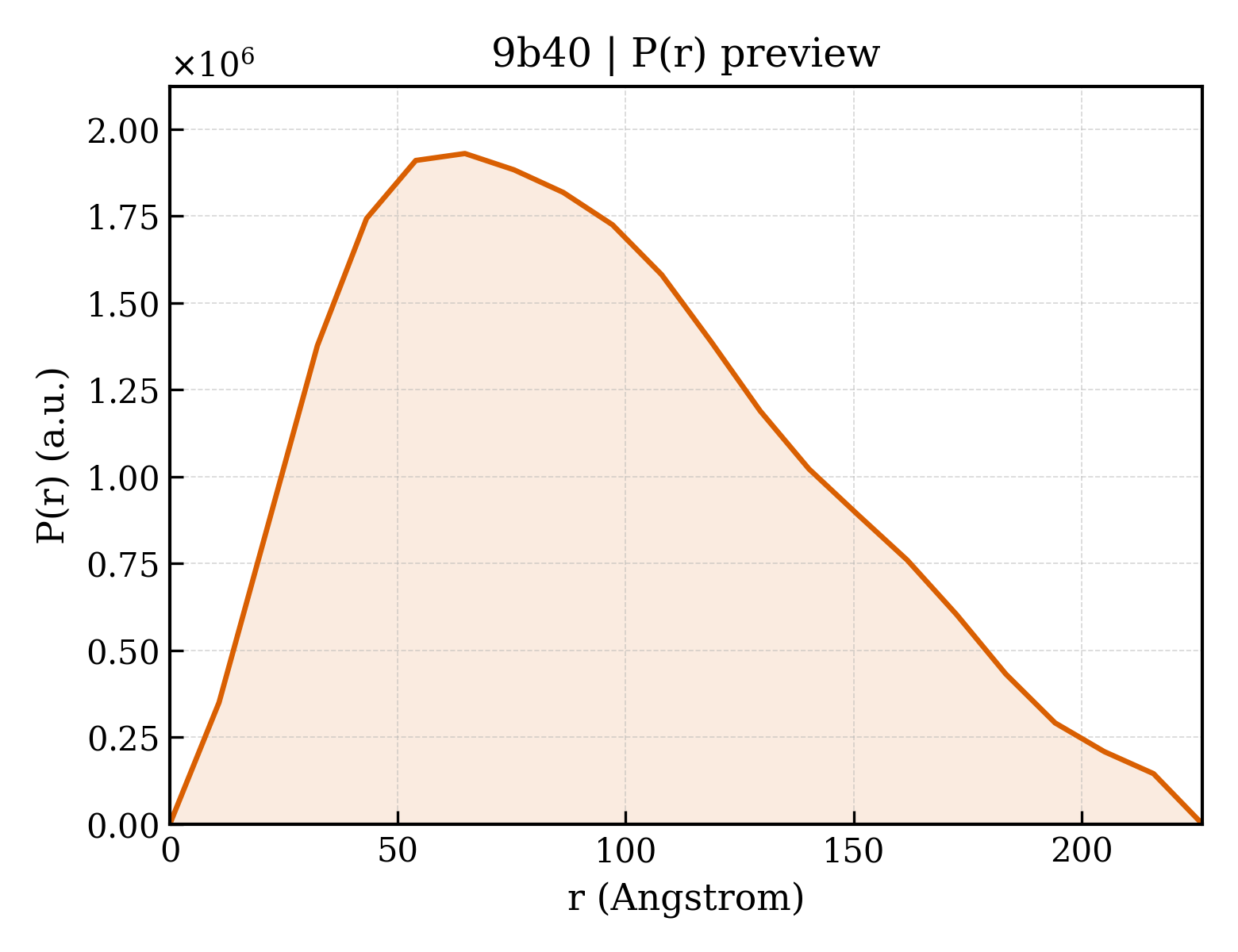

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	226.5 Å
Rg (实空间) rg_real	73.12 Å
Rg 误差 (实空间) rg_real_error	1.53 Å
I(0) (实空间) i0_real	2.9970e+09
I(0) 误差 (实空间) i0_real_error	5.9850e+07
Rg (倒空间) rg_reciprocal	71.31 Å
I(0) (倒空间) i0_reciprocal	2991000000.0000
解质量估计 total_estimate	0.8350
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	64.7 Å
偏度 Skewness skewness	0.447
峰度 Kurtosis kurtosis	-0.513
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0569
最高正则化参数 α highest_alpha	109900000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.950; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.014

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	gp26 Major capsid
分子量 formula_weight	41610.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	11

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,N,O,P,Q,R,S
原子数 atom_count	32946

MSQISKTHSRLAGRNAKPFDLKNITNDAVASLSRIGLVFDHAVVQDQIKALAKAGAFRSGSAMDSNFTAPVTTPSIPTPIQFLQTWLPGFVKVMTAARKIDEIIGIDTVGSWEDQEIVQGIVEPAGTAVEYGDHTNIPLTSWNANFERRTIVRGELGMMVGTLEEGRASAIRLNSAETKRQQAAIGLEIFRNAIGFYGWQSGLGNRTYGFLNDPNLPAFQTPPSQGWSTADWAGIIGDIREAVRQLRIQSQDQIDPKAEKITLALATSKVDYLSVTTPYGISVSDWIEQTYPKMRIVSAPELSGVQMKAQEPEDALVLFVEDVNAAVDGSTDGGSVFSQLVQSKFITLGVEKRAKSYVEDFSNGTAGALCKRPWAVVRYLGI

Entity 2 polymer

描述 description	gp25 Decorating protein
分子量 formula_weight	21677.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M

MFQKQVYRQYTPGFPGDLIEDGPKRARPGRIMSLSAVNPAATATGPNRISRAFGYAGDVSALGEGQPKTIAARASEVVIGGANFFGVLGHPKHYALFGSAGDSLAPSYDLPDGAEGEFFDMATGLVVEIFNGAATALDLDYGDLVAYVPNNLPTADNALGLPAGALVGFKAGSMPTGLVQIPNARIVNAISLPAQSAGNLVAGVTIVQLTQ

Entity 3 polymer

描述 description	gp24 Scaffolding protein
分子量 formula_weight	51908.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,F,H,I,J

MAKSKRKIDENGYMTIEGCPISSYGVFQYSAGQLGLPGDPMRIVNVYRPESAVSDPEYIESLKNLPLIDEHEMLSGFDDDDDSVAPEDKGVEGIITSNAYYEAPWARGDIRIYSRNMQNQLERGKEDLSLGYSCRYTEQPGIWNGTPYEVVQDKMRGNHIALVKEGRVPGARVLDGLCFDHLSFDFRPSDEGNEMSLKKAKQKPPVQRVGQAADSAVEELRALWPKLSASVQKFLGEEAQEPEHQEGAAAPAEPTDSEHMTEHPTLEGAQKDNEEHEEAPSVVDPAVAAAESERQESAASEMSGEGEVAELISQVKAILARLEGTAAEGADEEHGEGKDVVEGLEEQSSLSGSQTASDDGGEGKDNSEELPEMAQKNAQDAAIRGLYRDIAAKDRLYKRLSSVVGAFDHRAMDSAEVAVYGVKKLNINCAKGQEALALDMYLKGVEASRGAASRQSKAQDSAGSAPQCAELDSYLKGE

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	8278

fit	/app/data/saxs_computation/b4/9b40/9b40.fit
pddf	/app/data/pr_computation/b4/9b40/9b40.pr.out
profile	/app/data/saxs_computation/b4/9b40/9b40.dat
