9b41

Pseudomonas phage Pa193 Neck (portal and head-to-tail proteins)

Method: ELECTRON MICROSCOPY D_max: 189.2 Å Quality: GOOD

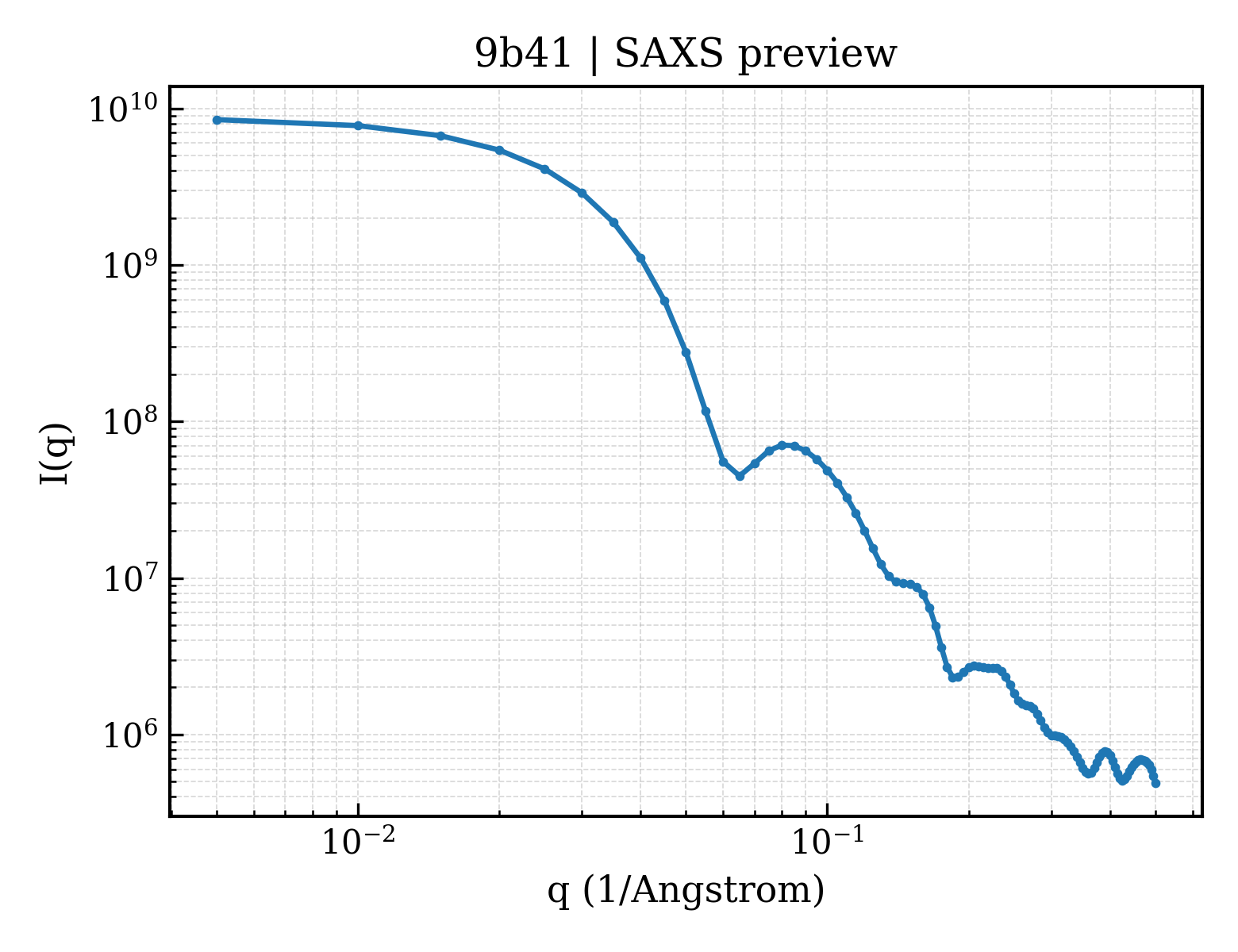

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b41
沉积日期 deposition_date	2024-03-20
最后修订 last_revision	2024-10-16
结构标题 title	Pseudomonas phage Pa193 Neck (portal and head-to-tail proteins)
关键词 keywords	;phage, bacteriophage, gene product (gp19), STRUCTURAL PROTEIN, VIRAL PROTEIN, gene product 28 (gp28), head-to-tail protein, portal protein ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.51 Å
回转半径 Rg (电子) rg_electron	58.86 Å
零角强度 I(0) i0	8725750000.00
分子量 molecular_weight	787320.0 kDa
排除体积 excluded_volume	982260 Å³
包络体积 envelope_volume	1352600 Å³
水化壳体积 shell_volume	177600 Å³
包络直径 envelope_diameter	190.8 Å
壳层 Rg shell_rg	69.93 Å
包络 Rg envelope_rg	58.03 Å
形状 Rg shape_rg	58.87 Å
总 Rg total_rg	59.01 Å
总原子数 total_atoms	55608
残基数 n_residues	7080
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	189.2 Å
Rg (实空间) rg_real	59.15 Å
Rg 误差 (实空间) rg_real_error	1.78 Å
I(0) (实空间) i0_real	8.7260e+09
I(0) 误差 (实空间) i0_real_error	1.9160e+08
Rg (倒空间) rg_reciprocal	59.80 Å
I(0) (倒空间) i0_reciprocal	8735000000.0000
解质量估计 total_estimate	0.8668
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	80.0 Å
偏度 Skewness skewness	0.156
峰度 Kurtosis kurtosis	-0.365
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	953000000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.854; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.776

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	gp19 Portal
分子量 formula_weight	84478.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,A,B,C,D,E,F,G,H,I,J,K
原子数 atom_count	55608

MFKLSWIFGRKKDNAACSESAPEKVAQIPQHDPLDPMIKLGRIRGWNVEPEKAPVIRSVKDFLEPGLSVAMDSAYGDGPTPAAKAAAGGQNPYVVPTMLQDWYNSQGFIGYQACAIISQHWLVDKACSMSGEDAARNGWELKSDGRKLSDEQSALIARRDMEFRVKDNLVELNRFKNVFGVRIALFVVESDDPDYYEKPFNPDGITPGSYKGISQIDPYWAMPQLTAGSTADPSSEHFYEPDFWIISGKKYHRSHLVVVRGPQPPDILKPTYIFGGIPLTQRIYERVYAAERTANEAPLLAMSKRTSTIHVDVEKAIANEDAFNARLAFWIANRDNHGVKVLGTDESMEQFDTNLADFDSIIMNQYQLVAAIAKTPATKLLGTSPKGFNATGEHETISYHEELESIQEHIFDPLLERHYLLLAKSEEIDVQLEIVWNPVDSTSSQQQAELNNKKAATDEIYINSGVVSPDEVRERLRDDPRSGYNRLTDDQAETEPGMSPENLAEFEKAGAQSAKAKGEAERAEAQAGAVEGAGDPVPAAPRGTKPLAKAAEEGASEAAEPPSRPDPKAELRNLLVDLLSKLQDLDDIKAPDGVDIEHNDAPGVKRTSKPGVSGMEPSVFSSNRIVGPRDHSELQRIKVNGITTLIENPRGSIRQGKDGSWRVQMKHHYGFIKGTKGADGDEVDCFVGPNLGSKRVFVVNQVNKEGQFDEHKCMLGFNNINDAKSGYLSCFRPGWDGLGSIHEVDLPAFRRWLANGDTTKPFGGE

Entity 2 polymer

描述 description	gp28 Head-to-tail protein
分子量 formula_weight	16885.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R,S,T,U,V,W,X

MVIFDEHKFRTLFPEFADPAAYPDVRLQMYFDIACEFISDRDSPYRILNGKALEACLYLLTAHLLSLSTMQVQGAAGGGVTAGGTQGGFITSATVGEVSVAKLAPPAKNGWQWWLSGTPYGQELWALLSVKAVGGFYIGGLPERRGFRKVGGTFW

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	9179

fit	/app/data/saxs_computation/b4/9b41/9b41.fit
pddf	/app/data/pr_computation/b4/9b41/9b41.pr.out
profile	/app/data/saxs_computation/b4/9b41/9b41.dat
