9b42

Pseudomonas phage Pa193 neck and extended tail (collar, gateway, tail tube, and sheath proteins)

Method: ELECTRON MICROSCOPY D_max: 171.6 Å Quality: GOOD

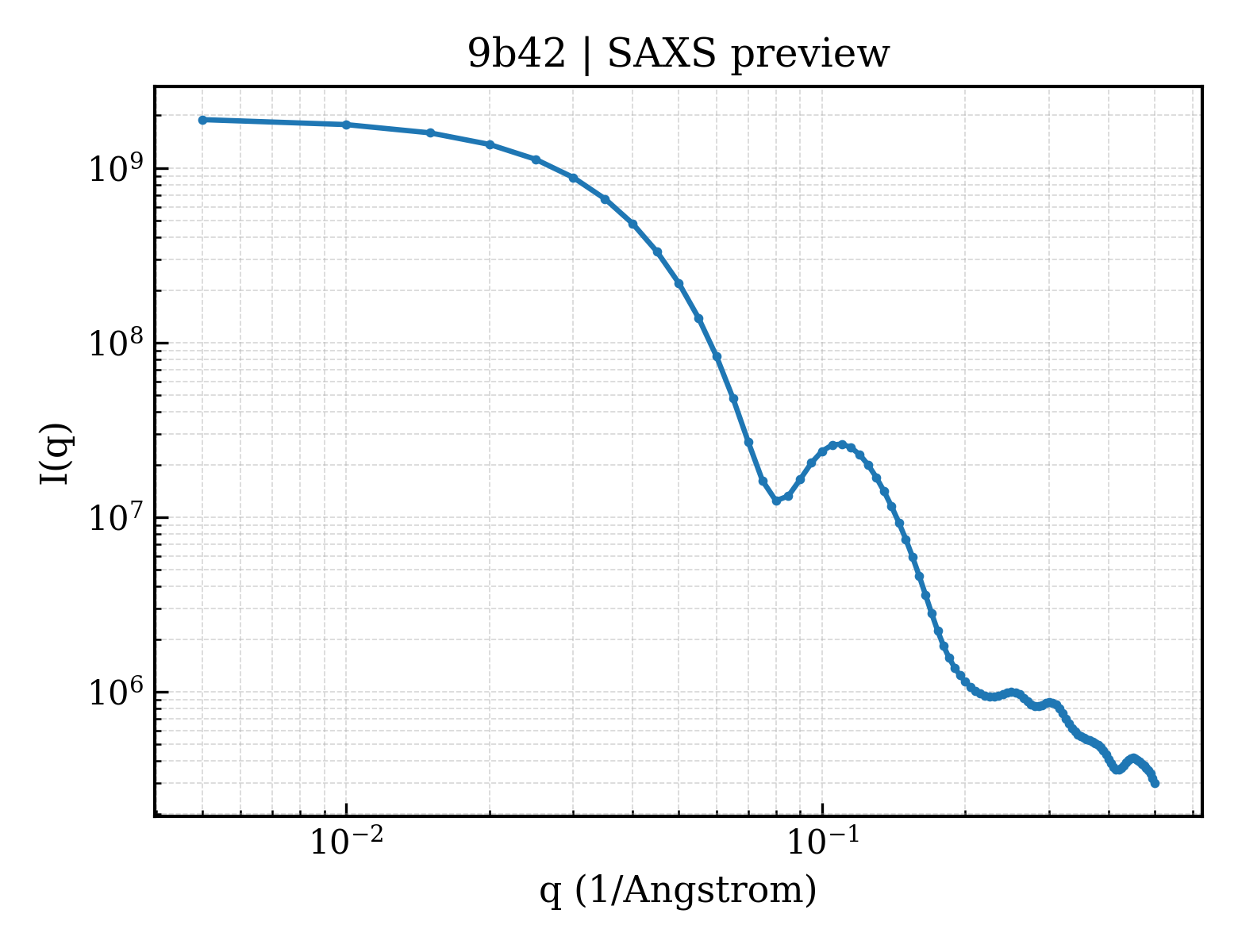

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b42
沉积日期 deposition_date	2024-03-20
最后修订 last_revision	2024-10-16
结构标题 title	Pseudomonas phage Pa193 neck and extended tail (collar, gateway, tail tube, and sheath proteins)
关键词 keywords	;phage, bacteriophage, gene product (gp29), STRUCTURAL PROTEIN, VIRAL PROTEIN, gene product 30 (gp30), collar protein, gateway protein, sheath protein, tail tube protein, gene product 32 (gp32), gene product 33 (gp33) ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.07 Å
回转半径 Rg (电子) rg_electron	50.77 Å
零角强度 I(0) i0	1932450000.00
分子量 molecular_weight	367720.0 kDa
排除体积 excluded_volume	460130 Å³
包络体积 envelope_volume	689450 Å³
水化壳体积 shell_volume	110230 Å³
包络直径 envelope_diameter	182.6 Å
壳层 Rg shell_rg	56.97 Å
包络 Rg envelope_rg	50.66 Å
形状 Rg shape_rg	50.73 Å
总 Rg total_rg	51.10 Å
总原子数 total_atoms	25948
残基数 n_residues	3294
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	171.6 Å
Rg (实空间) rg_real	51.05 Å
Rg 误差 (实空间) rg_real_error	1.38 Å
I(0) (实空间) i0_real	1.9320e+09
I(0) 误差 (实空间) i0_real_error	3.4520e+07
Rg (倒空间) rg_reciprocal	51.08 Å
I(0) (倒空间) i0_reciprocal	1933000000.0000
解质量估计 total_estimate	0.8289
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	60.9 Å
偏度 Skewness skewness	0.414
峰度 Kurtosis kurtosis	-0.017
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	122700000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.700; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.677

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	gp32 Sheath
分子量 formula_weight	53840.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S
原子数 atom_count	25948

MISQSRYIRIISGVGAGAPVAGRKLILRVMTTNNVIPPGIVIEFDNSNAVMSYFGAQSEEYQRAAAYFKFISKSVNSPSSISFARWVNTAIAPMVVGDNLPKTIADFAGFSAGVLTIMVGAAEKNITAIDTSAATSMDNVASIIQTEIRKNTDPQLAQATVTWNQNTNQFTLVGATIGTGVLAVAKSADPQDMSTALGWSTSNVVNVAGQAADLPDAAVAKSTNVSNNFGSFLFAGAPLDNDQIKAVSAWNAAQNNQFIYTVATSLANLGTLFDLVKGNAGTGLHVLSATAANDFVEQCPSEIFAATNYDEPGASQNYMYYQFPGRNITVSDDTVANTVDKSRGNYIGVTQANGQQLAFYQRGILCGGPTDAVDMNVYANEIWLKSAIAQALLDLFLNVNAVPASSTGEAMVLAVLQPVLDKATANGTFTYGKEISAVQQQYITQVTGDRRAWRQVQTLGYWINITFSSYTNNNTGLIEWKANYTLIYSKGDAIRFVEGSDVMI

Entity 2 polymer

描述 description	gp29 Collar
分子量 formula_weight	15325.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F

MIPGANLLRMAFGVIGTQIVKYRKFEQRVKNDQAQYVSMFEEPFDLAASVQRVRRDQYVQFNLEFQRNYVMIFANFEMVDLDRDVAGDQFLWTGRVFQLESQGSWFYQDGWGVCLAVDIGAAKLTDDGKPTF

Entity 3 polymer

描述 description	gp33 Tail tube
分子量 formula_weight	15905.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R

MINISAFGSICQFTASRTFPNGFTVTEFADDADPIDSPPFTAADTGVGLNGDMVVWNRANILEVVVNVIPNTEGERNLAVLLDANRTGKDKSGARDVVGLVVAMPDGSKITCTNGTPIDGVLINAVASVGRLKTKPYRFRFEKVIKAGTS

Entity 4 polymer

描述 description	gp30 Gateway
分子量 formula_weight	21204.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,G,H,I,K,L

MFDGELIAKMVVELNAAMTSAQEALQFPDFEVVQKAQPTQQGTSTRPTIFFQKLFDIPRGWPATDWHLDNTTRKYVEITRQHVETTFQISSLHWQNPEITHVVTASDIANYVRAYFQARSTIERVKELDFLILRVSQISNEAFENDNHQFEFHPSFDMVVTYNQYIRLYENAAYSADGVLIGV

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	9179

fit	/app/data/saxs_computation/b4/9b42/9b42.fit
pddf	/app/data/pr_computation/b4/9b42/9b42.pr.out
profile	/app/data/saxs_computation/b4/9b42/9b42.dat
