9b45

Pseudomonas phage Pa193 baseplate complex and tail fiber

Method: ELECTRON MICROSCOPY D_max: 240.9 Å Quality: EXCELLENT

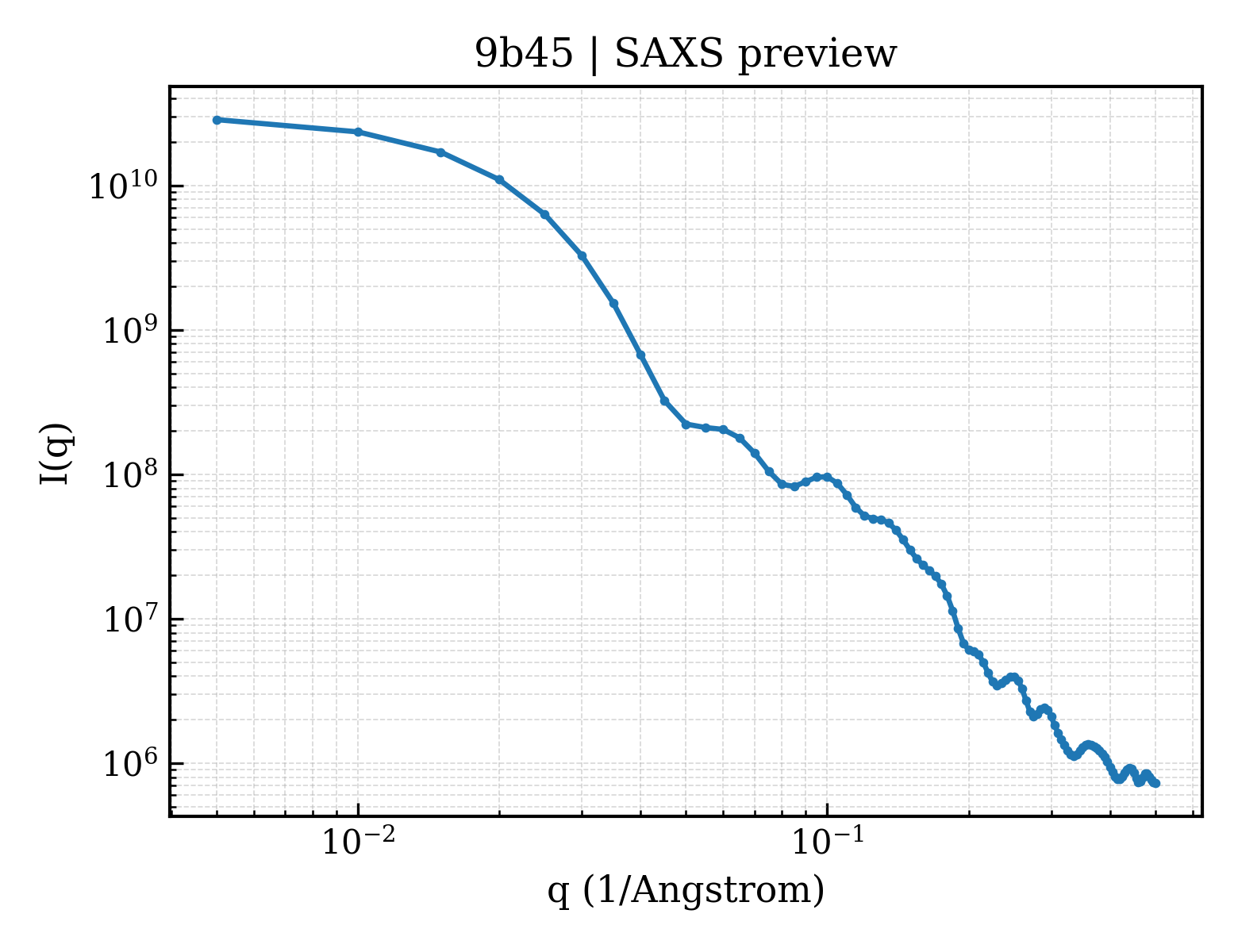

SAXS 散射曲线 SAXS Profile

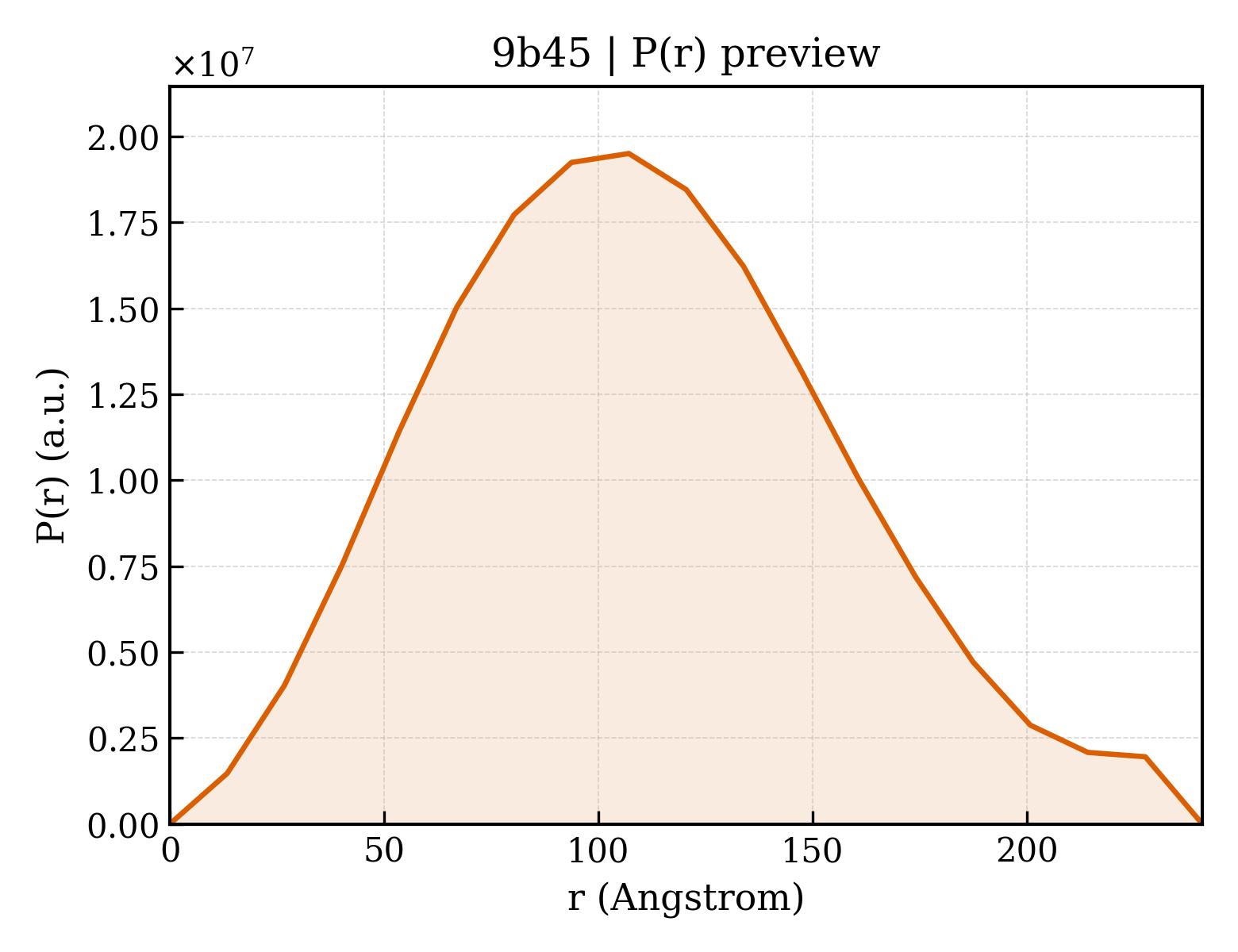

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b45
沉积日期 deposition_date	2024-03-20
最后修订 last_revision	2024-10-16
结构标题 title	Pseudomonas phage Pa193 baseplate complex and tail fiber
关键词 keywords	phage, bacteriophage, baseplate complex, STRUCTURAL PROTEIN, VIRAL PROTEIN, tail fiber; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	88.38 Å
回转半径 Rg (电子) rg_electron	88.58 Å
零角强度 I(0) i0	30450000000.00
分子量 molecular_weight	1481700.0 kDa
排除体积 excluded_volume	1851000 Å³
包络体积 envelope_volume	3090200 Å³
水化壳体积 shell_volume	290040 Å³
包络直径 envelope_diameter	349.4 Å
壳层 Rg shell_rg	88.98 Å
包络 Rg envelope_rg	87.07 Å
形状 Rg shape_rg	88.62 Å
总 Rg total_rg	88.44 Å
总原子数 total_atoms	104304
残基数 n_residues	13848
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	240.9 Å
Rg (实空间) rg_real	83.74 Å
Rg 误差 (实空间) rg_real_error	0.76 Å
I(0) (实空间) i0_real	2.9050e+10
I(0) 误差 (实空间) i0_real_error	5.8800e+08
Rg (倒空间) rg_reciprocal	87.56 Å
I(0) (倒空间) i0_reciprocal	30380000000.0000
解质量估计 total_estimate	0.9161
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	107.1 Å
偏度 Skewness skewness	0.282
峰度 Kurtosis kurtosis	-0.331
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.5959
最高正则化参数 α highest_alpha	3327000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.979; Stabil: 0.986; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.017

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	gp45-a Baseplate wedge 1
分子量 formula_weight	43189.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j,k,l,m,n,o,q,p,r,s,t,u
原子数 atom_count	104304

MANYNYIVDTGVIVADTADVLSDVEAEFRAALGANINLAASTPQGSLVAAEAIARSSVMRNEARIANTINPNVSFGTFLDAICALMGIERGSDLSTFGYGVQVTGRSQTRISTGSRVQTPAGAIFTVLSDVTIPAGGVATIDIKSQEYGNIPLPVGNLIIIDGTIGWSGAKVIASTRVDPGSRQMSDAELKNARVNRLAIQGRNSTMAIKAYVSAVPNVTSVNVIENNTGAVQVVNGVSFTLPYAVWVCVAGNPDKQAVADALWAAHNGGTPWDYGATNNGVPVDGPNGVPVRDPASGRKYVVKWTTPIMYDGYVNVTVQQGSSSVAPEAIQNAVVNYAQGKVEGEEGLVVGASLSAFEVAGAIAREIPGIYIKLCQVACVAAGSPAPAPGDFTSEYVMSAFGQATISVGNVRVTFV

Entity 2 polymer

描述 description	gp47 Tail fiber
分子量 formula_weight	103353.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,3,4

MITPELIPSPFAAQGDKDPIPQTSSTGFANLRDGYTPDYEISLASNNPQAKAVERKIQNQLFFIATQNAQAWQRQMAPPWFQGMPGGYEQNAEVVRVGNDGIMRRYRSMVNANASDPLSSTTWEEQPAWSAMRSNIPMPAGGPGLSSGGEVITTGRNFNDLLNGTWEFFSDSVVIASQNAPVYPASAGAAAGMLEAKSWISGSNTFCVQRYTDRVGNVAVRGLNAGAWTNWMYAVNVMALQQGRVTYGVAAGPANAYTLTLVPQLQGGLVDGMILRVKFNTMNTGASTINVSGLGAKAIVGAANFPLTGGELGQGLIAELVFDAAGDRWRILAGAPRIQVGNADQDYQAPSWKQVKDYVASQKLTEVDWADVVNKPNVAIQDTTPWFANLELSDARPFIDFHFNNNRAKDFDYRFISEADGSMAFYSRQGSAGPTQDILFSRSNVTFLQPRLDVAKNLAYIANSGPLWQNTTADQPGWKFTFAQGVDANNNAVIAVNTTNPDGSYRSQIMRWDWASTNVIFNNRPLFAGQYVPWDSGNFDPSTKLTVNATNQIAGPTGIRNTNGNTGNMNTWGSGSTTASYGNAAIQIFGKGGGEPAAIYFDNSQTGWYLGMDKDGQLKRAGWSLGNNSYVITDELNIRNHINGMAARPVWGGNEFWGPWNFNPNTKLTLGAFNDSQHTRMVNSAAKDVGIAAMTSYGDAAMSFFNYEASTPTGNRAAVISFVRNGARGVLFGLDTDNKLKWGGYSLGAVAFEIADSNNLMSLWSSHAAAPNWNGQTIWRSGNFNPDTKATLAARNTTSSPTIFSYGASGIASTGQVGALVVENNSVTNTAAAITFHSPQKYQVNFGLDADNVVKIGGGTMGGVAYPIIHSGNYNNYINQALVQVGLGGVGSYAILAVFDTSAPAASIAPGTIMDSSKLFYSSCDSTYRSSASPTGTWRCMGYVYNRDSTNGDSASLFQRVT

Entity 3 polymer

描述 description	gp34 helical bundle
分子量 formula_weight	12270.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F

MKKIPLTAVPNQAISFNAGSSYWKIRLYQNMDMMNADISRDGVIVCHGVRCFGGIPLLQYSRQYRPDYGNFVFDRDADWTLFGDGINLFYLDGAEFAEYQALATRKE

Entity 4 polymer

描述 description	gp38 Ripcord-1
分子量 formula_weight	20000.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,U

MMLGIFTSLLSSRSFSIVDQNTNQLVAADLRISRVNTRFSSVGQRHMLEDGKTKMDSRTIHPMEIIVEVFCPSIDVVDQINQLLLDRDTLYKVITRGMVFERMMCTSEALNQTPDMISATPARLTFSQVLVQNPKPIMFRNAGDSSMIDRGLALAEDVVGSAGDLFDYAVNGVQNAADLF

Entity 5 polymer

描述 description	gp41 Tape measure protein
分子量 formula_weight	94380.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c

MSSDLDEFILRYEADTARAERNLEHLQNQIRRVNSASTSGLQDLRHFADGAATELGRVVPQIDSVTSAIRGMNAQLAIGATGVALVAAGVKAFMNTRDQYNQQRIQAMDIGIAPARLEEYQRKFVRQSGGTISREQGAEMTKNLADTFRRAYRDIGRVGPEARILRMAGVDVGSFQKGMRPLNDIITDLATKMAKLKPDEISAYADALGVSRDYLSTLAKIGPAMGKVTEMTTAELQSRVQGESNIQKFNDALANLNQTFTTLENRVGEKLAPAFTKLIEIIDKIVQAIPNEVESFAKDTKSRWEDGVLGKATVGSDILSLLSPGALLGRLAAWGTRRGMEESGLIDKDKVPGAQTSEDLAKKQEDQDKATKSMKELEKLADQTTKSTNDFAVAINMFSGAVSSFANAVDERQAWAAWAGEIGRAVGMGSTAPTSRATGVYPHAIYDQSKSGAAGQVFGEPIGAQSLRNRMFSPQRKAEPVTVPSYINDIIKDASKMYNIPELDIKKLIYTESRFNARATSEAGAKGLMQLMPEIAKAYGITDVYDPRQNILGGTRLLRENLDRANGDMRLALTYYHGGLDPKNWGPRTRAYPGLVMSAPIELMEEAQRKQKAAAMTVANETFAPEGGDMDIRPYDGGRLETPDQGKKEDERREARRYDDRVVRPEIRIIDRMPDRSDGEILKMSRRQEADRADSGFRKFPNQVRGETKQNIQAQLTAGAIAQVIGVNPNQIMRREISRSDLLFGYNQAILGKQQEIKAAATEANNVFLSPAKLAEATAKVNAASREMDILRTYGEQLLKSAPERGQELTIGRIDMLVNVTGANSPEEAREIFSKQTADQLTTAIQDAQNDSATKILY

Entity 6 polymer

描述 description	gp42 Tail hub
分子量 formula_weight	32480.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,e,f

MKKRILRVTFNMPYGPEVIREDLDVRVRIMKAALRIQNRATMEIFGLTTQLRESLLSQFTAWKHRQRQVGREDELMIKVSVEAGYSDQGREQVSRVFVGEVAIVDIISPPPDIGIRIQCYTRQIDRTKTIRNMPPANTTFVKFVEWGANEMGLNFICDTSYNDQVLKNPGRSITVASAILASIQDMYMPDVAAFVDDDILIVKDRDKVIRPDEVTNVNSFVGIPSWSEWGVEFQCLFEPSIRVAGGVAVESLMNPSVNGNYVITALEYDLASRDRPFYIKVMGSPAA

Entity 7 polymer

描述 description	gp39 Ripcord-2
分子量 formula_weight	21667.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,X

MNSFLKSILNTPTLTIRDDVTKLPVWKSLQVKKVEIYSPASVVSKPLATKDQTEAQVYTEALDIDVKNGKIIQPVRLRINAICPDLSTVESIMNAFNDNTSTFAITSKSILADKMAIMTLDVDQSPDMLNAAEINMEFEQVEPPVLNEFDPAFPQDSPTYGVQIQSLSDANLLDLGAIGDSISSAAKSLYNRVTSYF

Entity 8 polymer

描述 description	gp46 Baseplate wedge 2
分子量 formula_weight	54629.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v,w,x,y,z,1

MTLPAYNSDIQQALKWLHNQAPGITGLIQRKAQWYDRFSRQFWANWERDVFHLKTANPFGLMVWCIILGTPSKGFGLYPKNSSWAFGRLRQNFIYSGTQVPPPADASPGGNFYGGGNAEILNLDEIRKVLQLRYVALISNGSIAYINRMLRYIFNDDEPWDEATGLYFYLMDSTGENGPVENLAIYRKDWEGMVLLSSSPRTNHVLTSTPASDADWPGVDPAASGIPVTVETASATAPDGSATVCKLTKPAGSTAYVSAPIDGPLGSGSTVTFSFFAKAGSTRFIAIQSAADFPSRADAVFDLDSGNVISDQMLDSSVVSARMIRLENGWWRCVLTTKTVSSSFRAAYVAPAETNFSWIDSNSSAAIDVLIWGAQIELGDTPTGYLETTGAPVTMTDYVLQNAQTGTVKFTQPLPTGVEAYWTGDWKGGTAAEPARFAVGNGTQDTFTLSDPAYIGLPTSGAFKLEYRVGPALNLSPQLINLMNDRAVGIMPTCAGCDVKVIQE

Entity 9 polymer

描述 description	gp37 Baseplate tube
分子量 formula_weight	17748.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R

MINVSGFGTGIVIVSASSFPMGFSLSKFADDESPISSKELEPFGYEMLYDGGLFAFDKAAPLEVSVSVIAGSEDDINLRILLNSKKGSFRFLPGIIPDMTTLVATLPDGGRTVLSNGTIIKGPAIDTIQNTGRRKGNTYTFVFGSYLGAQTARQAISNVIQSVLEVV

Entity 10 polymer

描述 description	gp35 Sheath initiator
分子量 formula_weight	12511.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L

MSTSTIRTGTNNDILLDDNGNMVILRDVEACAQDVRAAMLMRTGENIFDVNSGVGYFEYIFSPQKSYDDARKSIADAILSSPDVTGIEQLDIDITGEVFGVDAKVITIHGPVTTGV

Entity 11 polymer

描述 description	gp44 Tail tip
分子量 formula_weight	24201.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,h,i

MSNISLTSAKAPDRTRLIAALDARSRRDALDFEVMIPAQVVQYDRAENIATIQPLITWVDTEHNAVQRHQLVDIPVISMGAGGFHISFPIQQGDIGWIYAADRDTSQFLESLSMSKPNTGRIHKFEHGLFIPDVFRRYTINSEDSAAMVIQSTSGATRISIRGDNIKITAPSNVTVDTPQANFTGNVTIANTLVVNGINVNNHGHLENNPPDARTKGGMIA

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	17175

fit	/app/data/saxs_computation/b4/9b45/9b45.fit
pddf	/app/data/pr_computation/b4/9b45/9b45.pr.out
profile	/app/data/saxs_computation/b4/9b45/9b45.dat
