9b4h

Chlamydomonas reinhardtii mastigoneme filament

Method: ELECTRON MICROSCOPY D_max: 354.3 Å Quality: GOOD

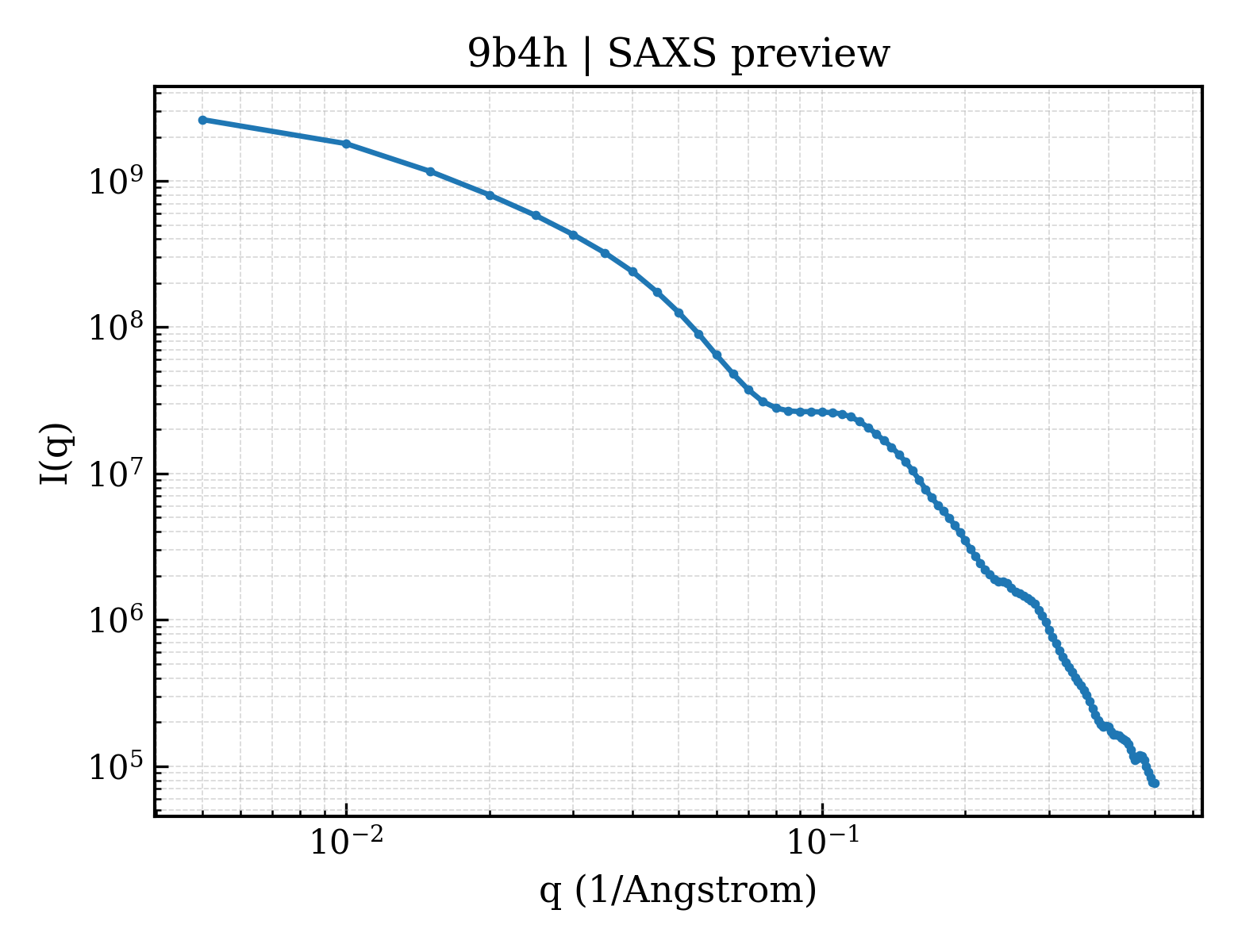

SAXS 散射曲线 SAXS Profile

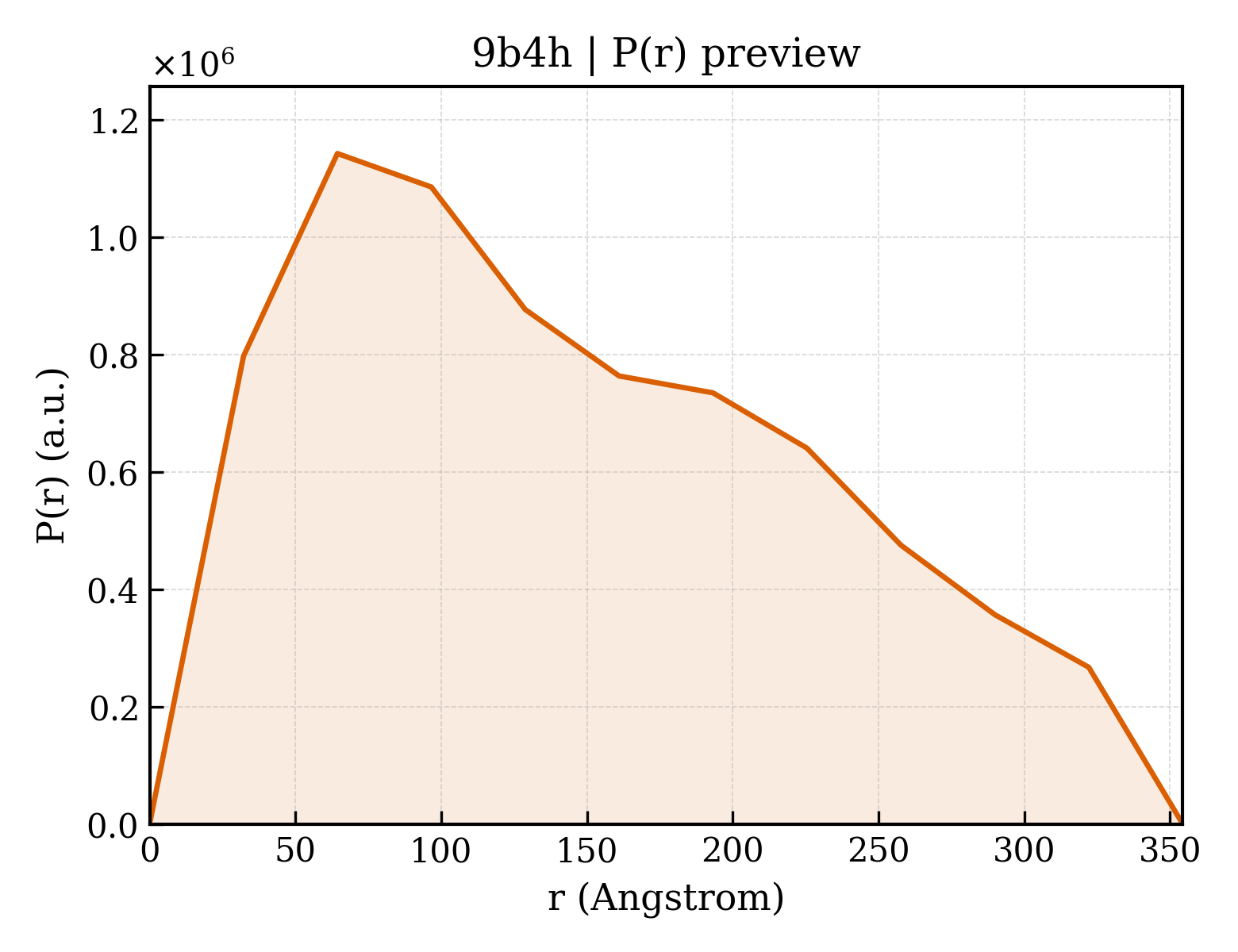

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b4h
沉积日期 deposition_date	2024-03-20
最后修订 last_revision	2024-04-10
结构标题 title	Chlamydomonas reinhardtii mastigoneme filament
关键词 keywords	Mastigoneme, Glycosylated hydroxyproline, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	138.20 Å
零角强度 I(0) i0	3043650000.00
分子量 molecular_weight	462560.0 kDa
排除体积 excluded_volume	575870 Å³
包络体积 envelope_volume	1372300 Å³
水化壳体积 shell_volume	105820 Å³
包络直径 envelope_diameter	562.8 Å
壳层 Rg shell_rg	76.44 Å
包络 Rg envelope_rg	138.90 Å
形状 Rg shape_rg	138.60 Å
总 Rg total_rg	136.20 Å
总原子数 total_atoms	32328
残基数 n_residues	3728
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	354.3 Å
Rg (实空间) rg_real	118.10 Å
Rg 误差 (实空间) rg_real_error	2.62 Å
I(0) (实空间) i0_real	2.8880e+09
I(0) 误差 (实空间) i0_real_error	7.7050e+07
Rg (倒空间) rg_reciprocal	99.67 Å
I(0) (倒空间) i0_reciprocal	2763000000.0000
解质量估计 total_estimate	0.8592
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	64.4 Å
偏度 Skewness skewness	0.437
峰度 Kurtosis kurtosis	-0.833
角度范围 angular_range	— – 0.0550 Å⁻¹
当前正则化参数 α current_alpha	0.5836
最高正则化参数 α highest_alpha	150000000.0000
实空间数据点数 n_real_points	12
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.053; Oscil: 0.768; Stabil: 0.972; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.019

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Tyrosine-protein kinase ephrin type A/B receptor-like domain-containing protein
分子量 formula_weight	206316.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	32328

MAMPRHGRRPARCSSNRASQWLLLVLGVALAASPRFLLLVEAATYTLTLDKLGPTVNPTTSDAVTFTATVASPDSTTAVFFTLDYGDGVTAETTRTTTGALSTTPTANLVSAGTYTVTYASIGTKFVTLRLYDSAVAPGVLLASKTVPIYVEDSTLTATLLQSGVPRLNLAFSGFKGRVSSSTANRADMWATIQLDTAPGVFESSRIFIGIAPTASTNYDFVIPDQVYNLEGAKTTVLRIYDAPVGGTLLRTFTPAAANAVYVVDPSKYVLTLTVGPTSVTTADQVTFTQTTTEVSYSASATSPILQWRFNWDDPSVVETPLAYPDALTAASNFPTTATAVSSAAASTFRYTSTGSKNARLRLYDGANNVIAEKIVVITVSNAGYTLALAKTTADPVTTDDTIAFSAGAKHLSSTSQVWWTIDYGAGESSPRTALTMTNVGAAAPNAIASLSNQYTSGGTKLATLRIYDRDGVGANTGLLLASTTVTFTVTPVLYALESAVEPFSPIATVAAKWSFRIQRSKATPAGVTESIKCAFFGADTGTAPADLAAWLTAANGAGGLTATILPSSIPSDIISFTRTYAAAAASLQGKLQCFIGSTPLWDPYYPTPVFQVLAAAPTYTLSASVTPAVVPVDTATLWTYNIIRSVPVPAGGPSLPILCSFWDGKTGAAPTTDAGWAALAGSANGKGTSMAPGSTTATCSFTPSYSTTGTATPTLQLIQNSFALDAATTVGFLSPVYTAPAFATVTAASYTISSYLNPVTPVAGGAAAVWRIVITRNAAVTASAKTLTCQMPDNGQGGSPADVTADIAVGGTTTVCVFSIAGYTTATPGPYFATVNVVDGAVTTSHITKNFTVLASGTTAPTYAVTSVVSPATPVKVSTPVTYTFTITRTTAVPAGGIPQPIICEFFNGEGTAPASAAAYWRVSTTIPDADTVVAVMAPGETTTTCTFTTYYTTVSAGGFTAKLMVFGESATAAPLLTSLSVTPSQLLAAVHSFATPMVVAAAVVAVESTTISPNYNPTTPYTNIPTYFTFTLLRDPPVPPSASSGVQFACALYTGQNVNPASAPSAITDAVYKTFTDVTTAVATDANYFADQQLRVVTMAPGTGRVSCTFPTLYAAAGPFSPKFFVFEYASSTVGANALAVADTVTSLTSFTTQAAPTFITGPTNVPQRVPLPKGFRTTCFDGYELIFSNDNYTNGVRVAVDAYPYPVGQCRKCPGGTATMDGYRCIPCPSGYWSNEGARECTACPAGTIAKPAALTARAKYSIDPTTYHFVTHLAMGPESCKKCPKGYFQPNIAGTVCLPCPSGFVSTSGATGCTACSEGTYHTDGVGTTTPGEATSLDTTDTFGSIYPIIPNTCRQCPANTYLPLRGQAAIASMNLAAVSSATPCRPCEDGTWSKAGAAGCQKCPPGTYRNTWFSGQLGSPFITADGVPVATTLTELGSGCSQCPPGTYAPTFGMSVCLPCPAGTFASAPGATACQQCKPGTNSLMGDRTQQMALVVTNAANDFPALRAYTISGMVAGPAYAKPIVTGPDTNFFMAGKSETCSTNLPGYYTDVDGLPIQLPCKPGTFMPFDTATANLLDTGLTVDGTQCYTCQTGTFNDEFSQPVCKACWSGSFASKRGLPTCEIAQPGTFTNVAAAANATFNTATLIPTGLVKGAQAPTPCGMGYFQSSAETTTCTACAVGTYADQAGLAACKPCQPGRYQNSIGQRVCKPCDMGTYSRYGGELCTKCPAGTVASKTGSSQCTPCAAGFYANAPDSATSCRACPRGYYGPYSGAYADNLGDEFEGPRGCYKCPYDFFADRPGVRQCTACPPLDLGGGNLVEQCTEDLGSQRCKPCSLLSKPKTARTEQSPPPPSPSPPPPPPPSPRPPSPNPPSPRPPSPAPPSPNPPPTSPPPSPPPSPPPPRPPPPPPPPPSPPPPNRSPPPPPPASSAINPGGGVNQNGDPVGHRRAILSLMEDEDAEAAQEEQAIVDVDAEMQPQDDE

Entity 2 polymer

描述 description	C-type lectin domain-containing protein
分子量 formula_weight	868021.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MLAILCIAQPAGGQPPSPEPPSPEPPSPAPPSPEPPSPAPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPPPSPEPPSPAPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPPPSPEPPSPAPPSPAPPSPAPPSPEPPSPAPPSPAPPSPAPPSPPPSPEPPSPAPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPPPSPEPPSPEPPSPEPPSPAPQSPEPPSPAPPSPAPPSPSPPSPPPSPEPPSPAPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPTPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPEPPSPAPPSPPPSPEPPSPAPPSPEPPSPAPPSPAPPSPAPPSPAPPSPSPPSPPPSPEPPSPEPPSPEPPSPAPPSPAPPSPVPPSPEPPSPEPPSPPPSPAPPSPLPPSPAPPAYSATGIYGDSPWFTTRNGFRWALFKDAATFSAAEEACRDLGGYLANPVSLAVYQDVLDAYSVPFTYLSDTRVWLGISDQDTEGWFYFTSGRGTATVEQVDLITWEDAWDSSHWTQDGSGLDCVAAQLGTATAALTTGAWLEMDCSTPLPFFCSGPTATLTNAPPPGAVAPAPPPPYAAVAYPATSVVVSYATYRLVSPTASTWLAAQQACVGLGGHLASFASAAELTAVRDALVAALAAYSPPYTTSWAPLWIGLYERSLSYGEDWRWSDRSPLTFSGFGQYELNAASNPPTTPNCGALHLDRAGQWSVQGCGTQLQYLCKLANVANAPPPSPPPAAPATARQLAFRFAVGDLTYTLVMQPRSYAAANRYCGSLDPGGTLAVPADAREYMDVMSQVYLYLSSDPAAAGGSALAPPPAASPPPWPPAQVVSALPSQAGEAPFWIGIRWVGAASALGDFTQVDGTSPPTFTQWAAGVYTGPRPVLACASVDPTAGFQYVPAGCGVQLPALCRAATADNAIAPPPSPPSPAPPPPAATAVQTRVGLYLYSLYNEAALTYPEAAAYCRAGGGYLASFHSLAEFNAVWSYMTTTATALAAGDASVWIGYDEIGRNETLLRWLDGGPAAWTHFGLPYTDTEGNDCAAVDQLWGGQWVMDDCLEPRPFICKRLLGISADPAPPPAAVAASPPPLASLPALRNVTVAGVLYQYVASPALSYEAADAACTQYYGVLAWFASASEFNAVMLALQADVAGLYDPSVWFGLYRSYANSADWFWYGNTTLNGTAMADPAQFLFNPTSAACAALGTSLNYQPDNWGGDQRCVAASVLDAGGGSYCYRWDDRACDQRLGFICRVDDRMPLAPSEPQQPPSPPGLPPLPPSPAPPGPDPDPPSPPAPSDPHAPPFPPAPFVPGEPAAPPQKPPTPPPAPPGSDFWSAPWEPPSRPATPDPFPPPPPPPPPPPALPPPGLPPPPPPPPPPPPPPPQHPDLPFAPGEPFYPDPPEAPPPPSFESGVPPPPPPPPPPPPPHAPPLPPSQPGEVSPPPPPPPPPPPGTPTQPSAPLAPAAPGTPTPPAIAESPAVPPPPPPPPPPPPPRTPPLPPKADEHAPPPPPPPPPPPGTPSTPDAPSQPAAPVTQSASPPPALPGAPPPPPPPPPPPPPGMPPTAGAPGAPPPPPPPPPPPGSPDQPSAPAAPSVPAAPQPSPPAEDSTGAVPPPPPPPPPPPPPQTPPAQPSGTTASPPPPPPPPPPPGSPDQPSAPAVPAAPGVPPPPVPAPDTYTAPPPPPPPPPPPPPGTPPSGQPTEPQAPPPPPPPPPPPGTPSAPAAPSQPGVPSVQPDAPPPGLPGAPPPPPPPPPPPPPGVPPTASAPGAPPPPPPPPPPPGAPDQPAAPLAPRPDTQSPGAPPPALPGAPPPPPPPPPPPPPGVPPTAGAPGAPPPPPPPPPPPGSPDQPSAPAAPSVPAAPQPSPPAEDSTGAVPPPPPPPPPPPPPQTPPAPPAGTAASPPPPPPPPPPPGSPDQPSAPATPAAPAVPSPPVPAPDTYTAPPPPPPPPPPPPPGTPPSGQPTEPQAPPPPPPPPPPPGTPSAPAAPSQPSTPAAKVDSPPPGLPDAPPPPPPPPPPPPPGVPPAASAPGAPPPPPPPPPPPGAPDQPATPLAPRPDTQTPGAPPPALPGAPPPPPPPPPPPPPGMPPTAGAPGAPPPPPPPPPPPGSPDQPSAPAAPSVPAAPQPSPPAEDSTGAVPPPPPPPPPPPPPQTPPAQPAGTAASPPPPPPPPPPPGSPDQPSAPATPAAPAVPSPPVPAPDTYTAPPPPPPPPPPPPPGTPPSGQPTEPQAPPPPPPPPPPPGTPSAPAAPSQPSTPAAKVDSPPPGLPDAPPPPPPPPPPPPPGVPPTATAPGAPPPPPPPPPPPGAPDQPAAPARPGPDAPAAPPPAQPGAPPPPPPPPPPPPPSVPPPTPDAAAAPPPPPPPPPPPGSPDQPAHPATPSVPAAPQPPPVDKEDAAPPPPPPPPPPPPPGVPDAPVTTQAPAAPPPPPPPPPPPGTPTMPGAPTKPGAPLAPEQPAEHAPPGAPPPPPPPPPPPPPDAPLPPPARAPDAPPPPPPPPPPPPPPPGAPDAPAAPAQPTASTQPDAPPPALPDAPPPPPPPPPPPPPGTPPAVVAPDAPPPPPPPPPPPGAPDQPAAPARPGPDAPAAPPPAQPGAPPPPPPPPPPPPPSVPPPTPDAAAAPPPPPPPPPPPGSPDQPAHPATPSVPAAPQPPPVDKVDAAPPPPPPPPPPPPPGAPDAPVTTQAPAAPPPPPPPPPPPGTPTMPGAPTKPGAPLAPEQPAEHAPPGAPPPPPPPPPPPPPDASLPPPARAPDAPPPPPPPPPPPGAPDAPAAPAQPTASTQPDAPPPALPDAPPPPPPPPPPPPPGVPPKPAAVDAPPPPPPPPPPPGSPDQPAAPMSPGAPGPTAPPPAHPDAPPPPPPPPPPPPPGVPPPAPGTTPPPPPPPPPPPPPQTPAMPDVPSEGQPAAPIAPSPPVQEDASAPPPPPPPPPPPPPGTPAAPPQVSAPQAPPPPPPPPPPPGTPDAPAMPRLPDAPLTPGAVQQPPAAPGLPPPPPPPPPPPPPQAPPVPGSPNAAPPPPPPPPPPPGAPDQPAAPARPGPDAPSAPPPHLPDAPPPPPPPPPPPPPGVPPPIPDAAAAPPPPPPPPPPPGSPDRPAAPASPDAPGPTAPPPAHPDTPPPPPPPPPPPPPDAPPSPRTHPGKKGDDDAFAPPPPPPPPPPPGMPDMPAVPSQPGAPMPPAAEQVPASPPRLPPPPPPPPPPPPPTTPPPEPDHTAPASPPPPPPPPPPPGTPEMPSVPATPEDVSVLRPDAPPPSLPGAPPPPPPPPPPPPPGAPPALPPQDASPPPPPPPPPPPGTPDAPADIKDWSQPDAPAAPPPALPDAPPPPPPPPPPPPPGVPPPTPVDAPPPPPPPPPPPPPSVPPPPLLDVGVPDLPPSPPPPDQPGAPPPPPPPPPPPPPGVPPPLESPPPDAPPPPPPPPPPPGAPAMPTVPTQPGAPQPPDAADAPAVPPDLPPPPPPPPPPPPPAIPPPTPDAALSPLPPPPPPPPPPPPGTPFTPDTPADWSQPDAPAAPPPGEPNAPPPPPPPPPPPPPGAPPAQPPQDASPPPPPPPPPPPGTPDAPADIKDWSQPDAPATPPPALPDAPPPPPPPPPPPPPGVPPPTPVDAPPPPPPPPPPPPPGAPPPPVLDVGVPDLPPSPPPPDQPGAPPPPPPPPPPPPPGAPPPPNTAPAPPPPPPPPPPPPGTPDMPMVPRAPNAPNVPSPPALPASPPDLPPPPPPPPPPPPPGSPASPIPLAVSPPPPPPPPPPPPPSTPDTPSLPNLPPSSPMPPEIIPPDAPPPPPPPPPPPPPDVPPPGSPPLESPPPPPPPPPPPPATPDAPADIKDWSQPDAPAAPPPAFPDAPPPPPPPPPPPPPGAPPPVPKDSPPPPPPPPPPPPPPGVPPTPEFDPGVPELPPSPPPPDQPSAPPPPPPPPPPPPPGSPPGVPGLPDTPPPPPPPPPPPGTPDMPTLPGAPGPPPPPPPPPPPGAPARDPPPPPPPPPPPPPGMPPGSPSSPLPPPPPPPPPPPPGAPPPPNMPQQPPPLEPDMPPPDFPSTAPPPPPPPPPPPPPGAPPPPSPPPDAPPPPPPPPPPPPEPPPPSLGVPLAPLAPGLPPPPPRPRPPPPKPRPPPPPPPDLPPYAPDPPIPQSPPPPPPPPPPPIPPPPPPPPPPPPPPLAPSPPPPPPPPPEPTAQVDQILGAQPPPPPPLNLTDVSLANITGGRTTTGDAVPDAVTSQPGNTFDVDAYRLVPVVFANVTVVVDAWMQPQLYEKLRRREFADVMRQVLPFSQYLIRVRVNKLTWRIGDYLTEQRNRTLTARGFPPPSPPAPPRAPGSRALSPPPPPPPPPPSNDTSYPRMTLFIQMYAEMTTEADVRAGFGSAALVSSFQFSRFPVYALSLGATSITSYTVYTRRLNVTDNQPPQLTLRGPPEVFVPLYGSYKELGAAAYDLLDGTINDDLVIINLKRWNESEYCCETTFPIDTSQVTEPDKPFIVTYDVFDFVWNSAPTVQRKVHVYDPCAQASNGVERTCPDTRLCSVLGGVCGSATLFSDIRDLATPLTEPDPNNPGITLGIHTLSSDPVYDTIIPNLQLLPLDGLFFVIPPNLDGTPGLQGTLTYLTVGDPWVEPGYIANDDRDDSVQQHVVRRYAELVDTTGPTPPNTPFAITYDVKDVSGNAAITQVRLVFVLCPATLPVLCPPDERVLARPVWYCAAEVCGVPDFFTNALGGAAAVPAVTRNTAPVVRLRDNKYLVTIFDNATYARCPDRGDPTGPCDSGVTATDAEDGDISYKVHAFCADVSTAGVDTMWEAVGLAACQFGNVLKAGRRVITYTVTDTAGATSQISRTLLVMQRCEDGEVQCPDGTCTDFNCFDPSTVITLTLFGNGTDDTTGSGLNVTDGSSFVDSSNFTTSTVNDITGGGSSILTAFASGAPVVSINEPPVIALRNSTLLSQTVQVPQNFVWRNCRASEGPNPATLCELGAQAFDPEEGNLTNTIYVCPPVACLATCSHLNCAGHEFTSKGVRGCVDTGADPGNIFNVIFLVCDNGVPRQSAQVTRTVLIARKCAAGLYECDGVCETVPCAAKAKVARDQVVNNTLPALRLLPPGSSAENAPVSAAGVPLSLTQILTYGVPAPISFSPCASYDANAACAAIAMDVEDGDLTSFINVVDATDCSGKTPNTCLRCRPEQLSLGKCLPGTYRLRYFVEDNSGGISEAFWNFIVESVAVNRVWFLMPPSFNISAPASNSTNATRRFMDQIQVNATRSRGFLVGQLQRFGVDLKDVRSANVSSLALVNTNTDEGQYAINADFCICMINVTLEFTTGLQVNYTVPEVFEIFEPDNFPPPPGRLRPPPVPPSPPPSPAPRPPSPPAPPPPSPGPSPPPAPPDPPSPPPTPPSPPQPPSPPPPPSPAPTPPSPPAPPPVPPSPAPPRPPAPPTPPSPPAPPSPPLPPPSPGPPPGNGNAGRRLIDGTPAVAPAIAPANRVWSWGDDYEMGAVWSPPPPLQRLFNQLRRSMSEPGAAAGAGADVSDYDDDGDGEADWAPVPPADYEEEDPEQDVMVVSAAGTHGPGDSDDNPLPWGLSAAAWGGPAVAGVARKASGAAGGGSGGAQSAPAPAPSVPVPSYLHTALMHASAPSEATGPIDPLLSGAGGPGSAGAGASAAGAPLANTLAAVLGAGEITAASSLSIGARIWQLHVKPALQKQQAAAALAAQAGPHQGLLPVATALYEPFGGFGGGADTGASGLLGAAAAHPAAGSNGAGGGLVGQVVRGDAAKLRASVGVLGKVFTREGEQWDLPGSGALRRAALEEASRAETAAAASDPAASAAASVAAAAIGPRKGQGKGSVGHAATVEAAVAMFSPAALSLVTADSHLDPRTIKGGPVGGLADDFNLHELMGSAKPQPAAKTDDADAGADEPSRRTVVRTLLSEQLVPALAEISRRLEQSQRELDAIRLSPTALGVVEQVGRHGRSRRRLLQTTSGSVANQTASCAPAINATNLATNCTAPPPTTTDMYLAVTLSLIADIDNVNRALSANMTNSTDTISVLDEKFTATDVKYESQYVAYKNLATTYLSALENRTNTVILNLAALAAADATNSMLLSALAGLLKGAVTSAAEEADRLGITTAMLVDGLGLSEENWFFESYQQCLIQRSGSGTTYNFTINREQQAALRYDLETGRVAAPPPPPPARAGFTLLQATQMGRGRSLLGWGSELLSAAAAGAGLGWAGLGPADPQDDSAASAATGSGYHAVRDRRLQTGTVPSTVSAELPQGLTPRLQYGGYELEVAAGRPPAGLTVTYDSRGIPERRRTAGARGNRVVGGLMLHQVRRRLDQVVLGRDSEACQSKFGPLRAECVRSKYSTKNLQDLGGIGEDPVFDRSSSIYSPDVAGRAWAYYNFSEGNSEISTLKLPFGFTHYPVPGLPDGYPVFFDTRLGADRARKLLTYLEDGRYLSPIFSSELRLRLLVYNPDAHVFGYLRAAWDWGGDGVVRLRQWIAAIPATDYGKFISEHQYYMFIPDWIMVLFILLHLASTLLDCVRALQHQRLLQRATEGEPLAGLTADELFRRKRRVKKRYTWRMTPFWVAWEVASCLIQIAALVVLYWFVFVASPGIPTATTYDVYDADVNAPARFFMINKDERGWNPYLASVLQAFQTRSDLKPTNDTIDLAATAAAMAPPSMPPRGGDYRWLLPDDVSGLHALGDMYSYLDNMEYLWNLYFVLQSLVLLMLMVRLMHYVSFQPHLAVIGGAIARAIPMLLYWAVIAGMVVVMLLMLNIIAFGDRLEQLSTISGSAYAVARWLLIKHSDRGNRATITEMLNDNTVILNGGESLVAALVRGLGAIFILFVLYAFVFAILLRQQRMLRRWRHAAPTVGEDLRHMFRWWVQRSWRDAPSNKRLDLTIDWVTRPEVRYTWAYSVLYSAVVRGVAAVAGGTALAKRHPTQHQAVTERAVLLPGGPPGFNSPDEPDPRYCPRYNLRAMMMVFEELLLVNKELRRELFFFMQTNNEDGRTKRMKAMGAPRRAAAAAAVNDASARAMADSLASLLLERFGKRVPRRAARSFDEMMHQLRKRLGTPAGGSGSADGSEFSGSLDGGSARGGDSENSDDDMLPTGVRVGSLKHRGYGVHNQQTVHDLQLQAAVQTAMRNIHTIRENMGRELGDDPQLLATLFVAQFAGQIPEPERRPPGVRPSLYRQRVQQAGSGNSLVNVGAGSAPAPAAPGGPPRPGRSRLGGAAMMGQSPQAAPAPTQGPVAAVLDTNTPEGMLTKALQAMLAPPSTTANAAVSADGTVPAEAEASSASVTDGAPRARPRPKGAKSRARFAADLEIPGNTTSTAGEEAPASPGVASPGAVGSPSGRHNSVSGQLGGSRTARSMLPRHLQPEPRAASFAHPAPATLGSLGQLGSPSSVRSSRSMVMPAGSGSAYFTPSASMGGAAGAATAPGGPTASTGGTDSGAAPQPEPLTIRRPQIHKMRSLGAAAAVAGRMRSFVSGAPGEITPASPTGATSMSAAAAAASLITSPGSYGRSGGSTSMARSGVATPRGDLVSAQISALPLDGTIIFATSAAVVQRLTSHVLQLLRELRGVQADADAMLRSTLVLIERLSAGSVPFPRRAARMVPGVMGSPASSPPVSPQNEKPPGWEDAAVARVAAANAAAAAQRAAVGTASPRLGSSLRVRVEDGAGGAAHGHGAAGANVDDGEDMLPLPPPPALRGVDSYTASPRSLAALQAARGAAGPLSGLLTPPTPTPEASPEKALPPAAAKSAEPAQAEEAPAGESRVVSRAASQAGMKPVDEMREVEPEPELVTFMVQSGMKSRAAGDAAALAAAALAAEEDERREREALAASEGLDSLAPPPGTSSSSGQVHVPAPYGPVEYGAAPHIARLEMAGMRPSSGASQSSDPAIKVLSPASEAHRRASTPKSSHGSRVGSPLLPTEAIRRLSPETSNLSRPGSAAVVDAAPAREAPEEASARRNLPLPSPQGGSRPASVQRDEQGVEVLALPDTVPEGQEAEAGGPMDEPVQGEGEEGEHGALEASRSLGRQPSRIAFSESSMRVRAEDQEEDDELDEPPSATAAAGAGPAQASEPQAPPRAGYIPPPSREPAMQSEPLEGTRPMRPSRSVRLVGVPPPPPPGGVPAPVRRRALASQASLAGTTSQASLGAEASTGEGLVAPPQVLTPEEALSVISQALGTSAPRPIGKPATRHVQLPPDVERRQSQLAKQQELLAAAQAAVAMRRMASNANSRVGSRATSFSAAAAPGAAGLGLQSMDSTGSGAATDAPGGGAGPSTSSAIPPPPGRAAASPLRPGRRALLASAQSGAGFGLDAAPGEEPSNAVQMAAAALERKQAEEAASKAYVDELMNRMRSGMSATGERLALSGRLGSAAGPSGAASPALGAAGGGSRQDSLAGEVSRGSAGLLQQDSLSGTMQLRPSGSIVAPRGAPPMAAFGSLRKPGTGRSSLNLPPMSPLGATPAATGSGEGAGSGLGPIVPPPPLFTNAPGRPQRVSQLMGQGSQGSFGAGSPSAARSAAAQAQLSAFTGDLDVEDFDLDSFGSMRRAPAGPTPKRRQAGDDE

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	6

Entity 4 branched

描述 description	beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	282.2 kDa
来源方法 src_method	man
拷贝数 entity_count	86

Entity 5 branched

描述 description	beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	546.5 kDa
来源方法 src_method	man
拷贝数 entity_count	10

Entity 6 branched

描述 description	;beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose ;
分子量 formula_weight	1074.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 branched

描述 description	beta-L-arabinofuranose-(1-4)-beta-L-ribulofuranose
分子量 formula_weight	282.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	;beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(5-5)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose ;
分子量 formula_weight	810.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	beta-L-glucofuranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	114

Entity 10 non-polymer

描述 description	alpha-D-galactopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	26

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	687452

fit	/app/data/saxs_computation/b4/9b4h/9b4h.fit
pddf	/app/data/pr_computation/b4/9b4h/9b4h.pr.out
profile	/app/data/saxs_computation/b4/9b4h/9b4h.dat
