SAXSdb — 9b8v

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b8v
沉积日期 deposition_date	2024-04-01
结构标题 title	AlphaFold2 informed cryo-EM model of the E. coli cellulose synthase BcsAG3B6 complex
关键词 keywords	phosphoethanolamine (pEtN), catalytic BcsA-B, c-di-GMP binding protein, membrane proteins, TRANSFERASE; TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.97 Å
回转半径 Rg (电子) rg_electron	68.83 Å
零角强度 I(0) i0	4369830000.00
分子量 molecular_weight	577180.0 kDa
排除体积 excluded_volume	728960 Å³
包络体积 envelope_volume	1175100 Å³
水化壳体积 shell_volume	140090 Å³
包络直径 envelope_diameter	215.5 Å
壳层 Rg shell_rg	72.69 Å
包络 Rg envelope_rg	65.66 Å
形状 Rg shape_rg	68.83 Å
总 Rg total_rg	68.89 Å
总原子数 total_atoms	70366
残基数 n_residues	5179
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	222.5 Å
Rg (实空间) rg_real	68.84 Å
Rg 误差 (实空间) rg_real_error	2.29 Å
I(0) (实空间) i0_real	4.3700e+09
I(0) 误差 (实空间) i0_real_error	9.1540e+07
Rg (倒空间) rg_reciprocal	69.26 Å
I(0) (倒空间) i0_reciprocal	4373000000.0000
解质量估计 total_estimate	0.6444
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	96.7 Å
偏度 Skewness skewness	0.090
峰度 Kurtosis kurtosis	-0.768
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	387000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 0.038; Positv: 1.000; Valcen: 0.999; Smooth: 0.440

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Cellulose synthase operon protein B
分子量 formula_weight	84376.0 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,A,F,H,I,J
原子数 atom_count	70366

AWSHPQFEKTPATQPLINAEPAVAAQTEQNPQVGQVMPGVQGADAPVVAQNGPSRDVKLTFAQIAPPPGSMVLRGINPNGSIEFGMRSDEVVTKAMLNLEYTPSPSLLPVQSQLKVYLNDELMGVLPVTKEQLGKKTLAQMPINPLFISDFNRVRLEFVGHYQDVCEKPASTTLWLDVGRSSGLDLTYQTLNVKNDLSHFPVPFFDPSDNRTNTLPMVFAGAPDVGLQQASAIVASWFGSRSGWRGQNFPVLYNQLPDRNAIVFATNDKRPDFLRDHPAVKAPVIEMINHPQNPYVKLLVVFGRDDKDLLQAAKGIAQGNILFRGESVVVNEVKPLLPRKPYDAPNWVRTDRPVTFGELKTYEEQLQSSGLEPAAINVSLNLPPDLYLMRSTGIDMDINYRYTMPPVKDSSRMDISLNNQFLQSFNLSSKQEANRLLLRIPVLQGLLDGKTDVSIPALKLGATNQLRFDFEYMNPMPGGSVDNCITFQPVQNHVVIGDDSTIDFSKYYHFIPMPDLRAFANAGFPFSRMADLSQTITVMPKAPNEAQMETLLNTVGFIGAQTGFPAINLTVTDDGSTIQGKDADIMIIGGIPDKLKDDKQIDLLVQATESWVKTPMRQTPFPGIVPDESDRAAETRSTLTSSGAMAAVIGFQSPYNDQRSVIALLADSPRGYEMLNDAVNDSGKRATMFGSVAVIRESGINSLRVGDVYYVGHLPWFERVWYALANHPILLAVLAAISVILLAWVLWRLLRIISRRRLNPDNE

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Cellulose biosynthesis protein BcsG
分子量 formula_weight	63079.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D

MTQFTQNTAMPSSLWQYWRGLSGWNFYFLVKFGLLWAGYLNFHPLLNLVFAAFLLMPLPRYSLHRLRHWIALPIGFALFWHDTWLPGPESIMSQGSQVAGFSTDYLIDLVTRFINWQMIGAIFVLLVAWLFLSQWIRITVFVVAILLWLNVLTLAGPSFSLWPAGQPTTTVTTTGGNAAATVAATGGAPVVGDMPAQTAPPTTANLNAWLNNFYNAEAKRKSTFPSSLPADAQPFELLVINICSLSWSDIEAAGLMSHPLWSHFDIEFKNFNSATSYSGPAAIRLLRASCGQTSHTNLYQPANNDCYLFDNLSKLGFTQHLMMGHNGQFGGFLKEVRENGGMQSELMDQTNLPVILLGFDGSPVYDDTAVLNRWLDVTEKDKNSRSATFYNTLPLHDGNHYPGVSKTADYKARAQKFFDELDAFFTELEKSGRKVMVVVVPEHGGALKGDRMQVSGLRDIPSPSITDVPVGVKFFGMKAPHQGAPIVIEQPSSFLAISDLVVRVLDGKIFTEDNVDWKKLTSGLPQTAPVSENSNAVVIQYQDKPYVRLNGGDWVPYPQDYKDDDDK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Cellulose synthase catalytic subunit [UDP-forming]
分子量 formula_weight	101862.5 kDa
EC 编号 ec_number	2.4.1.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MGSILTRWLLIPPVNARLIGRYRDYRRHGASAFSATLGCFWMILAWIFIPLEHPRWQRIRAEHKNLYPHINASRPRPLDPVRYLIQTCWLLIGASRKETPKPRRRAFSGLQNIRGRYHQWMNELPERVSHKTQHLDEKKELGHLSAGARRLILGIIVTFSLILALICVTQPFNPLAQFIFLMLLWGVALIVRRMPGRFSALMLIVLSLTVSCRYIWWRYTSTLNWDDPVSLVCGLILLFAETYAWIVLVLGYFQVVWPLNRQPVPLPKDMSLWPSVDIFVPTYNEDLNVVKNTIYASLGIDWPKDKLNIWILDDGGREEFRQFAQNVGVKYIARTTHEHAKAGNINNALKYAKGEFVSIFDCDHVPTRSFLQMTMGWFLKEKQLAMMQTPHHFFSPDPFERNLGRFRKTPNEGTLFYGLVQDGNDMWDATFFCGSCAVIRRKPLDEIGGIAVETVTEDAHTSLRLHRRGYTSAYMRIPQAAGLATESLSAHIGQRIRWARGMVQIFRLDNPLTGKGLKFAQRLCYVNAMFHFLSGIPRLIFLTAPLAFLLLHAYIIYAPALMIALFVLPHMIHASLTNSKIQGKYRHSFWSEIYETVLAWYIAPPTLVALINPHKGKFNVTAKGGLVEEEYVDWVISRPYIFLVLLNLVGVAVGIWRYFYGPPTEMLTVVVSMVWVFYNLIVLGGAVAVSVESKQVRRSHRVEMTMPAAIAREDGHLFSCTVQDFSDGGLGIKINGQAQILEGQKVNLLLKRGQQEYVFPTQVARVMGNEVGLKLMPLTTQQHIDFVQCTFARADTWALWQDSYPEDKPLESLLDILKLGFRGYRHLAEFAPSSVKGIFRVLTSLVSWVVSFIPRRPERSETAQPSDQALAQQHHHHHHLEHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	39522

fit	/app/data/saxs_computation/b8/9b8v/9b8v.fit
pddf	/app/data/pr_computation/b8/9b8v/9b8v.pr.out
profile	/app/data/saxs_computation/b8/9b8v/9b8v.dat

AlphaFold2 informed cryo-EM model of the E. coli cellulose synthase BcsAG3B6 complex

SAXS 散射曲线 SAXS Profile

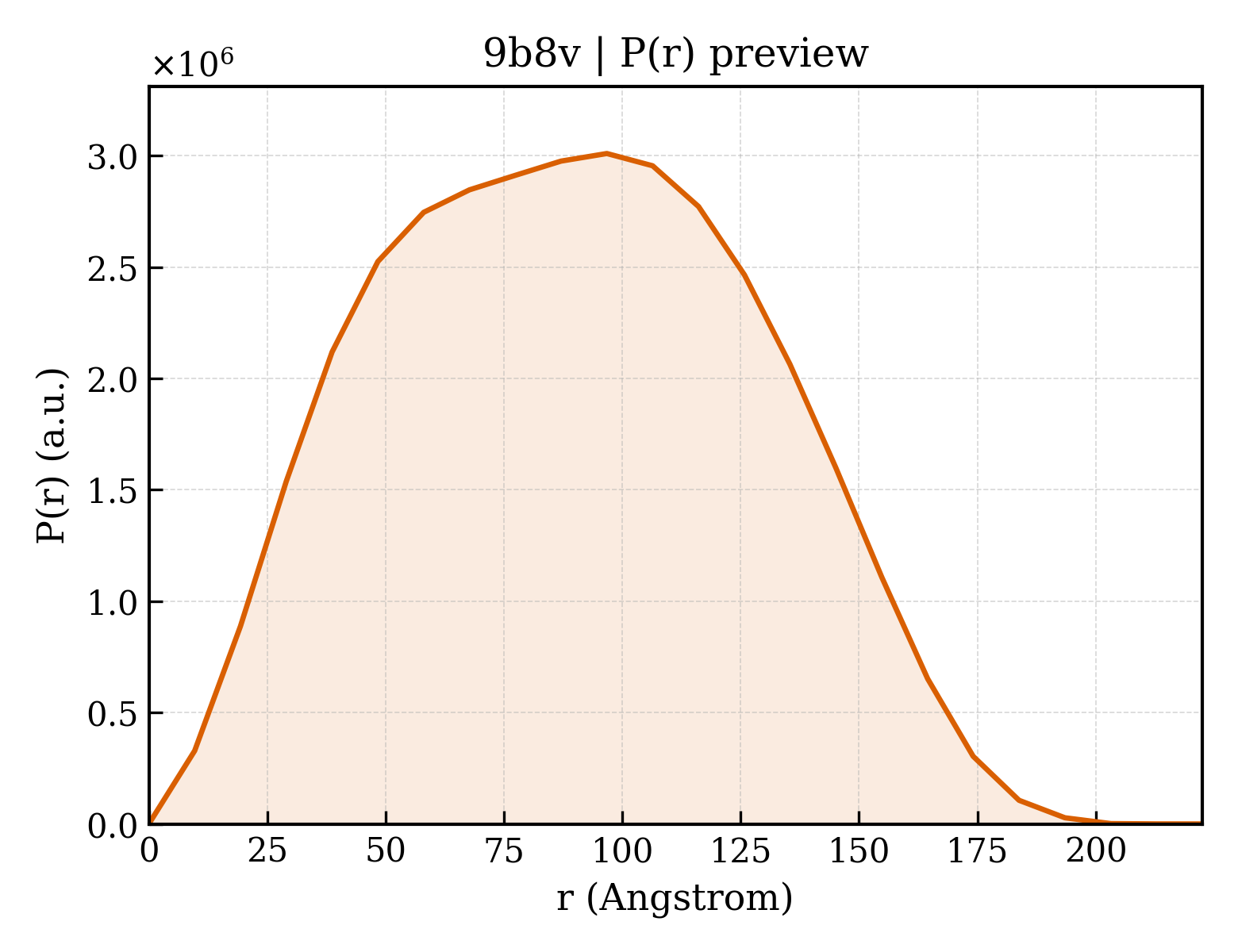

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (3)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
