1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bfd
沉积日期 deposition_date	2024-04-17
结构标题 title	Tyrocidine synthetase modules 1 and 2 crosslinked in the condensation state, complex A
关键词 keywords	Complex, Crosslinked, NRPS, ISOMERASE; ISOMERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.76 Å
回转半径 Rg (电子) rg_electron	46.88 Å
零角强度 I(0) i0	469868000.00
分子量 molecular_weight	181920.0 kDa
排除体积 excluded_volume	229220 Å³
包络体积 envelope_volume	311260 Å³
水化壳体积 shell_volume	59458 Å³
包络直径 envelope_diameter	170.8 Å
壳层 Rg shell_rg	46.48 Å
包络 Rg envelope_rg	46.03 Å
形状 Rg shape_rg	46.88 Å
总 Rg total_rg	46.84 Å
总原子数 total_atoms	12898
残基数 n_residues	1590
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	168.4 Å
Rg (实空间) rg_real	47.23 Å
Rg 误差 (实空间) rg_real_error	1.77 Å
I(0) (实空间) i0_real	4.6990e+08
I(0) 误差 (实空间) i0_real_error	9.1360e+06
Rg (倒空间) rg_reciprocal	46.77 Å
I(0) (倒空间) i0_reciprocal	469600000.0000
解质量估计 total_estimate	0.8305
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.523
峰度 Kurtosis kurtosis	-0.317
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	78220000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.865; Smooth: 0.803

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Tyrocidine synthase 1
分子量 formula_weight	124062.9 kDa
EC 编号 ec_number	5.1.1.11
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	12898

MVANQANLIDNKRELEQHALVPYAQGKSIHQLFEEQAEAFPDRVAIVFENRRLSYQELNRKANQLARALLEKGVQTDSIVGVMMEKSIENVIAILAVLKAGGAYVPIDIEYPRDRIQYILQDSQTKIVLTQKSVSQLVHDVGYSGEVVVLDEEQLDARETANLHQPSKPTDLAYVIYTSGTTGKPKGTMLEHKGIANLQSFFQNSFGVTEQDRIGLFASMSFDASVWEMFMALLSGASLYILSKQTIHDFAAFEHYLSENELTIITLPPTYLTHLTPERITSLRIMITAGSASSAPLVNKWKDKLRYINAYGPTETSICATIWEAPSNQLSVQSVPIGKPIQNTHIYIVNEDLQLLPTGSEGELCIGGVGLARGYWNRPDLTAEKFVDNPFVPGEKMYRTGDLAKWLTDGTIEFLGRIDHQVKIRGHRIELGEIESVLLAHEHITEAVVIAREDQHAGQYLCAYYISQQEATPAQLRDYAAQKLPAYMLPSYFVKLDKMPLTPNDKIDRKALPEPDLTANQSQAAYHPPRTETESILVSIWQNVLGIEKIGIRDNFYSLGGDSIQAIQVVARLHSYQLKLETKDLLNYPTIEQVALFVKSTTRKSDQGIIAGNVPLTPIQKWFFGKNFTNTGHWNQSSVLYRPEGFDPKVIQSVMDKIIEHHDALRMVYQHENGNVVQHNRGLGGQLYDFFSYNLTAQPDVQQAIEAETQRLHSSMNLQEGPLVKVALFQTLHGDHLFLAIHHLVVDGISWRILFEDLATGYAQALAGQAISLPEKTDSFQSWSQWLQEYANEADLLSEIPYWESLESQAKNVSLPKDYEVTDCKQKSVRNMRIRLHPEETEQLLKHANQAYQTEINDLLLAALGLAFAEWSKLAQIVIHLEGHGREDIIEQANVARTVGWFTSQYPVLLDLKQTAPLSDYIKLTKENMRKIPRKGIGYDILKHVTLPENRGSLSFRVQPEVTFNYLGQFDADMRTELFTRSPYSGGNTLGADGKNNLSPESEVYTALNITGLIEGGELVLTFSYSSEQYREESIQQLSQSYQKHLLAIIAHCTEKKEVERTPSDFSVKGLQMEEMDDIFELLANRLRGSRSHHHHHH

来源 Source

来源生物 organism	Brevibacillus parabrevis
NCBI 分类编号 ncbi_taxonomy_id	54914
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Tyrocidine synthase 2
分子量 formula_weight	119776.0 kDa
EC 编号 ec_number	5.1.1.11
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGVFSKEQVQDMYALTPMQEGMLFHALLDQEHNSHLVQMSISLQGDLDVGLFTDSLHVLVERYDVFRTLFLYEKLKQPLQVVLKQRPIPIEFYDLSACDESEKQLRYTQYKRADQERTFHLAKDPLMRVALFQMSQHDYQVIWSFHHILMDGWCFSIIFDDLLAIYLSLQNKTALSLEPVQPYSRFINWLEKQNKQAALNYWSDYLEAYEQKTTLPKKEAAFAKAFQPTQYRFSLNRTLTKQLGTIASQNQVTLSTVIQTIWGVLLQKYNAAHDVLFGSVVSGRPTDIVGIDKMVGLFINTIPFRVQAKAGQTFSELLQAVHKRTLQSQPYEHVPLYDIQTQSVLKQELIDHLLVIENYPLVEALQKKALNQQIGFTITAVEMFEPTNYDLTVMVMPKEELAFRFDYNAALFDEQVVQKLAGHLQQIADCVANNSGVELCQIPLLTEAETSQLLAKRTETAADYPAATMHELFSRQAEKTPEQVAVVFADQHLTYRELDEKSNQLARFLRKKGIGTGSLVGTLLDRSLDMIVGILGVLKAGGAFVPIDPELPAERIAYMLTHSRVPLVVTQNHLRAKVTTPTETIDINTAVIGEESRAPIESLNQPHDLFYIIYTSGTTGQPKGVMLEHRNMANLMHFTFDQTNIAFHEKVLQYTTCSFDVCYQEIFSTLLSGGQLYLITNELRRHVEKLFAFIQEKQISILSLPVSFLKFIFNEQDYAQSFPRCVKHIITAGEQLVVTHELQKYLRQHRVFLHNHYGPSETHVVTTCTMDPGQAIPELPPIGKPISNTGIYILDEGLQLKPEGIVGELYISGANVGRGYLHQPELTAEKFLDNPYQPGERMYRTGDLARWLPDGQLEFLGRIDHQVKIRGHRIELGEIESRLLNHPAIKEAVVIDRADETGGKFLCAYVVLQKALSDEEMRAYLAQALPEYMIPSFFVTLERIPVTPNGKTDRRALPKPEGSAKTKADYVAPTTELEQKLVAIWEQILGVSPIGIQDHFFTLGGHSLKAIQLISRIQKECQADVPLRVLFEQPTIQALAAYVELEHHHHHH

来源 Source

来源生物 organism	Brevibacillus parabrevis
NCBI 分类编号 ncbi_taxonomy_id	54914
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	;(7S,10aR)-1-methyl-4-{4-[(5R)-1,1,5-trihydroxy-4,4-dimethyl-1,6,11-trioxo-2-oxa-7,10-diaza-1lambda~5~-phosphadodecan-12-yl]phenyl}-3,5,6,7,8,9,10,10a-octahydrocycloocta[d]pyridazin-7-yl [2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl]carbamate ;
分子量 formula_weight	947.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	5'-O-[(R)-hydroxy{[(2S)-pyrrolidin-2-ylcarbonyl]oxy}phosphoryl]adenosine
分子量 formula_weight	444.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.97 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	329779

fit	/app/data/saxs_computation/bf/9bfd/9bfd.fit
pddf	/app/data/pr_computation/bf/9bfd/9bfd.pr.out
profile	/app/data/saxs_computation/bf/9bfd/9bfd.dat

Tyrocidine synthetase modules 1 and 2 crosslinked in the condensation state, complex A

SAXS 散射曲线 SAXS Profile

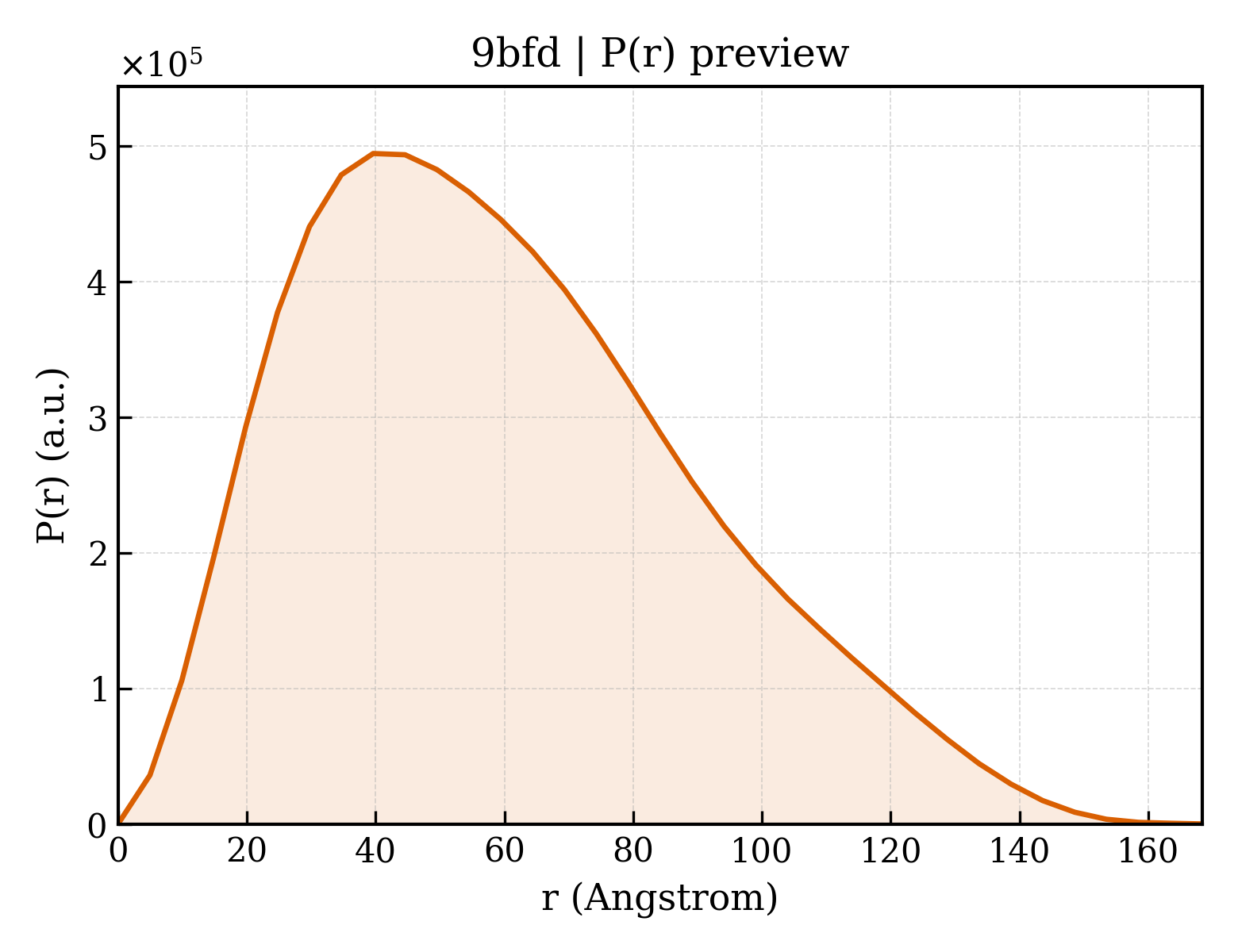

P(r) 距离分布 P(r) Distribution
