1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bff
沉积日期 deposition_date	2024-04-17
结构标题 title	Tyrocidine synthetase modules 1 and 2 crosslinked in the condensation state, complex C
关键词 keywords	Complex, Crosslinked, NRPS, ISOMERASE; ISOMERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.45 Å
回转半径 Rg (电子) rg_electron	47.60 Å
零角强度 I(0) i0	466634000.00
分子量 molecular_weight	181550.0 kDa
排除体积 excluded_volume	228860 Å³
包络体积 envelope_volume	318070 Å³
水化壳体积 shell_volume	60151 Å³
包络直径 envelope_diameter	175.3 Å
壳层 Rg shell_rg	46.84 Å
包络 Rg envelope_rg	46.40 Å
形状 Rg shape_rg	47.60 Å
总 Rg total_rg	47.55 Å
总原子数 total_atoms	12814
残基数 n_residues	1590
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	170.3 Å
Rg (实空间) rg_real	47.94 Å
Rg 误差 (实空间) rg_real_error	1.92 Å
I(0) (实空间) i0_real	4.6660e+08
I(0) 误差 (实空间) i0_real_error	8.9080e+06
Rg (倒空间) rg_reciprocal	47.45 Å
I(0) (倒空间) i0_reciprocal	466300000.0000
解质量估计 total_estimate	0.8276
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.3 Å
偏度 Skewness skewness	0.524
峰度 Kurtosis kurtosis	-0.312
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	69430000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.721; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.832; Smooth: 0.758

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Tyrocidine synthase 1
分子量 formula_weight	124062.9 kDa
EC 编号 ec_number	5.1.1.11
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	12814

MVANQANLIDNKRELEQHALVPYAQGKSIHQLFEEQAEAFPDRVAIVFENRRLSYQELNRKANQLARALLEKGVQTDSIVGVMMEKSIENVIAILAVLKAGGAYVPIDIEYPRDRIQYILQDSQTKIVLTQKSVSQLVHDVGYSGEVVVLDEEQLDARETANLHQPSKPTDLAYVIYTSGTTGKPKGTMLEHKGIANLQSFFQNSFGVTEQDRIGLFASMSFDASVWEMFMALLSGASLYILSKQTIHDFAAFEHYLSENELTIITLPPTYLTHLTPERITSLRIMITAGSASSAPLVNKWKDKLRYINAYGPTETSICATIWEAPSNQLSVQSVPIGKPIQNTHIYIVNEDLQLLPTGSEGELCIGGVGLARGYWNRPDLTAEKFVDNPFVPGEKMYRTGDLAKWLTDGTIEFLGRIDHQVKIRGHRIELGEIESVLLAHEHITEAVVIAREDQHAGQYLCAYYISQQEATPAQLRDYAAQKLPAYMLPSYFVKLDKMPLTPNDKIDRKALPEPDLTANQSQAAYHPPRTETESILVSIWQNVLGIEKIGIRDNFYSLGGDSIQAIQVVARLHSYQLKLETKDLLNYPTIEQVALFVKSTTRKSDQGIIAGNVPLTPIQKWFFGKNFTNTGHWNQSSVLYRPEGFDPKVIQSVMDKIIEHHDALRMVYQHENGNVVQHNRGLGGQLYDFFSYNLTAQPDVQQAIEAETQRLHSSMNLQEGPLVKVALFQTLHGDHLFLAIHHLVVDGISWRILFEDLATGYAQALAGQAISLPEKTDSFQSWSQWLQEYANEADLLSEIPYWESLESQAKNVSLPKDYEVTDCKQKSVRNMRIRLHPEETEQLLKHANQAYQTEINDLLLAALGLAFAEWSKLAQIVIHLEGHGREDIIEQANVARTVGWFTSQYPVLLDLKQTAPLSDYIKLTKENMRKIPRKGIGYDILKHVTLPENRGSLSFRVQPEVTFNYLGQFDADMRTELFTRSPYSGGNTLGADGKNNLSPESEVYTALNITGLIEGGELVLTFSYSSEQYREESIQQLSQSYQKHLLAIIAHCTEKKEVERTPSDFSVKGLQMEEMDDIFELLANRLRGSRSHHHHHH

来源 Source

来源生物 organism	Brevibacillus parabrevis
NCBI 分类编号 ncbi_taxonomy_id	54914
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Tyrocidine synthase 2
分子量 formula_weight	119776.0 kDa
EC 编号 ec_number	5.1.1.11
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGVFSKEQVQDMYALTPMQEGMLFHALLDQEHNSHLVQMSISLQGDLDVGLFTDSLHVLVERYDVFRTLFLYEKLKQPLQVVLKQRPIPIEFYDLSACDESEKQLRYTQYKRADQERTFHLAKDPLMRVALFQMSQHDYQVIWSFHHILMDGWCFSIIFDDLLAIYLSLQNKTALSLEPVQPYSRFINWLEKQNKQAALNYWSDYLEAYEQKTTLPKKEAAFAKAFQPTQYRFSLNRTLTKQLGTIASQNQVTLSTVIQTIWGVLLQKYNAAHDVLFGSVVSGRPTDIVGIDKMVGLFINTIPFRVQAKAGQTFSELLQAVHKRTLQSQPYEHVPLYDIQTQSVLKQELIDHLLVIENYPLVEALQKKALNQQIGFTITAVEMFEPTNYDLTVMVMPKEELAFRFDYNAALFDEQVVQKLAGHLQQIADCVANNSGVELCQIPLLTEAETSQLLAKRTETAADYPAATMHELFSRQAEKTPEQVAVVFADQHLTYRELDEKSNQLARFLRKKGIGTGSLVGTLLDRSLDMIVGILGVLKAGGAFVPIDPELPAERIAYMLTHSRVPLVVTQNHLRAKVTTPTETIDINTAVIGEESRAPIESLNQPHDLFYIIYTSGTTGQPKGVMLEHRNMANLMHFTFDQTNIAFHEKVLQYTTCSFDVCYQEIFSTLLSGGQLYLITNELRRHVEKLFAFIQEKQISILSLPVSFLKFIFNEQDYAQSFPRCVKHIITAGEQLVVTHELQKYLRQHRVFLHNHYGPSETHVVTTCTMDPGQAIPELPPIGKPISNTGIYILDEGLQLKPEGIVGELYISGANVGRGYLHQPELTAEKFLDNPYQPGERMYRTGDLARWLPDGQLEFLGRIDHQVKIRGHRIELGEIESRLLNHPAIKEAVVIDRADETGGKFLCAYVVLQKALSDEEMRAYLAQALPEYMIPSFFVTLERIPVTPNGKTDRRALPKPEGSAKTKADYVAPTTELEQKLVAIWEQILGVSPIGIQDHFFTLGGHSLKAIQLISRIQKECQADVPLRVLFEQPTIQALAAYVELEHHHHHH

来源 Source

来源生物 organism	Brevibacillus parabrevis
NCBI 分类编号 ncbi_taxonomy_id	54914
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	;(7S,10aR)-1-methyl-4-{4-[(5R)-1,1,5-trihydroxy-4,4-dimethyl-1,6,10,15-tetraoxo-2-oxa-7,11,14-triaza-1lambda~5~-phosphahexadecan-16-yl]phenyl}-3,5,6,7,8,9,10,10a-octahydrocycloocta[d]pyridazin-7-yl [(5R)-1,1,5-trihydroxy-4,4-dimethyl-1,6,10-trioxo-2-oxa-7,11-diaza-1lambda~5~-phosphatridecan-13-yl]carbamate (non-preferred name) ;
分子量 formula_weight	1019.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.31 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	148367

fit	/app/data/saxs_computation/bf/9bff/9bff.fit
pddf	/app/data/pr_computation/bf/9bff/9bff.pr.out
profile	/app/data/saxs_computation/bf/9bff/9bff.dat

Tyrocidine synthetase modules 1 and 2 crosslinked in the condensation state, complex C

SAXS 散射曲线 SAXS Profile

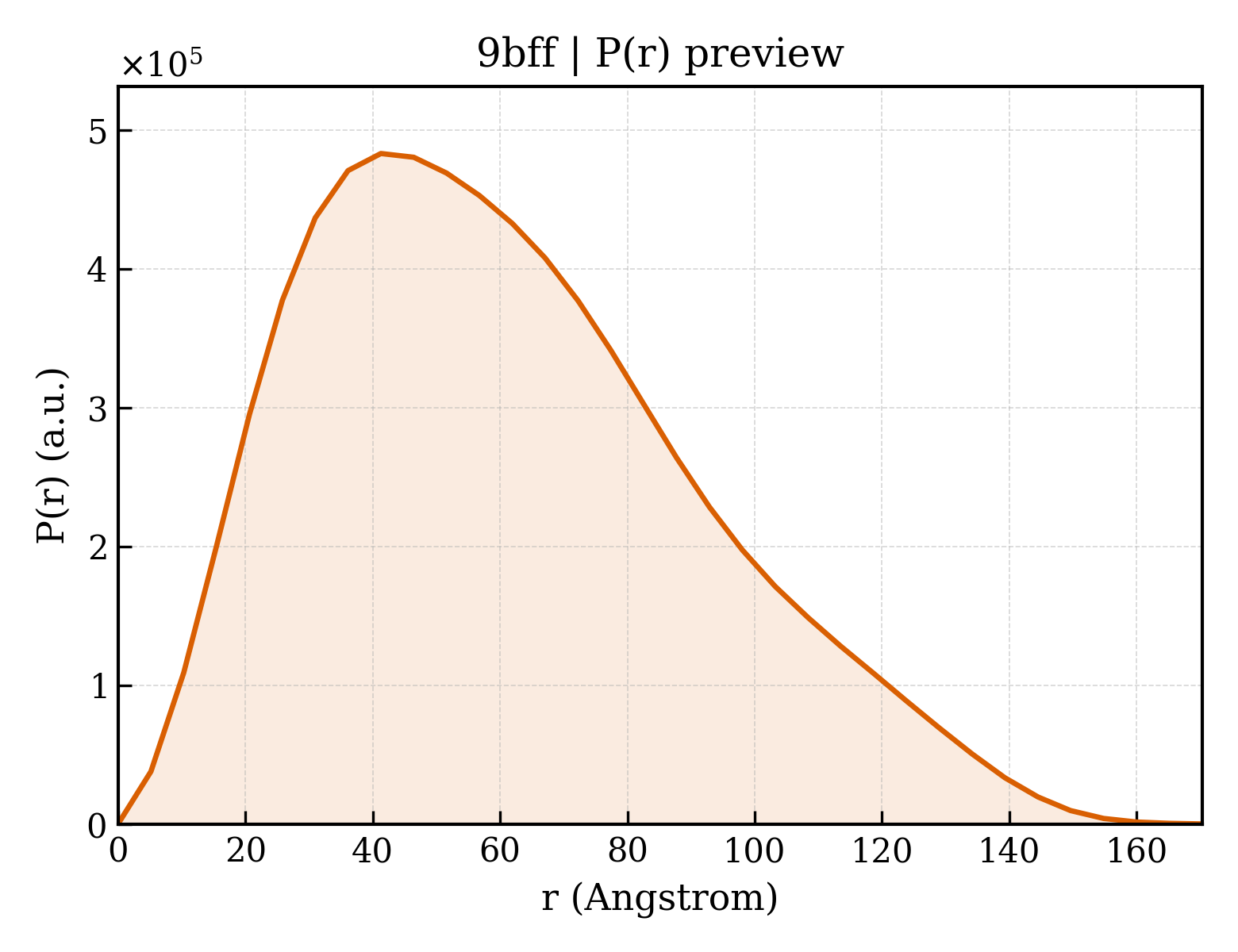

P(r) 距离分布 P(r) Distribution
