1. Protein Identity and Related Structures Protein Identity & Related Structures

E1 glycoprotein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 24	Light chain of IM-CKV063 × 4 Heavy Chain of IM-CKV063 × 4 E3 glycoprotein × 4 （D2KBQ2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q88628_CHIKV
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–438； UniProt 810–1247 Author chain B； PDBConstruct 1–438； UniProt 810–1247 Author chain C； PDBConstruct 1–438； UniProt 810–1247 Author chain D； PDBConstruct 1–438； UniProt 810–1247 Author chain E； PDBConstruct 1–418； UniProt 330–747 Author chain F； PDBConstruct 1–418； UniProt 330–747 Author chain G； PDBConstruct 1–418； UniProt 330–747 Author chain H； PDBConstruct 1–418； UniProt 330–747 Author chain I； PDBConstruct 1–151； UniProt 111–261 Author chain J； PDBConstruct 1–151； UniProt 111–261 Author chain K； PDBConstruct 1–151； UniProt 111–261 Author chain L； PDBConstruct 1–151； UniProt 111–261

E3 glycoprotein

OrganismNot specified

UniProt D2KBQ2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 24	E1 glycoprotein × 4 （Q88628） E2 glycoprotein × 4 （Q88628） Capsid protein × 4 （Q88628） Light chain of IM-CKV063 × 4 Heavy Chain of IM-CKV063 × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D2KBQ2_CHIKV
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain U； PDBConstruct 1–60； UniProt 266–325 Author chain V； PDBConstruct 1–60； UniProt 266–325 Author chain W； PDBConstruct 1–60； UniProt 266–325 Author chain X； PDBConstruct 1–60； UniProt 266–325

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bhh
Deposition date deposition_date	2024-04-20
Structure title title	Cryo-EM structure of Chikungunya virus asymmetric unit with Fab IM-CKV063
Keywords keywords	CHIKV, Fab IM-CKV063, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9bhh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

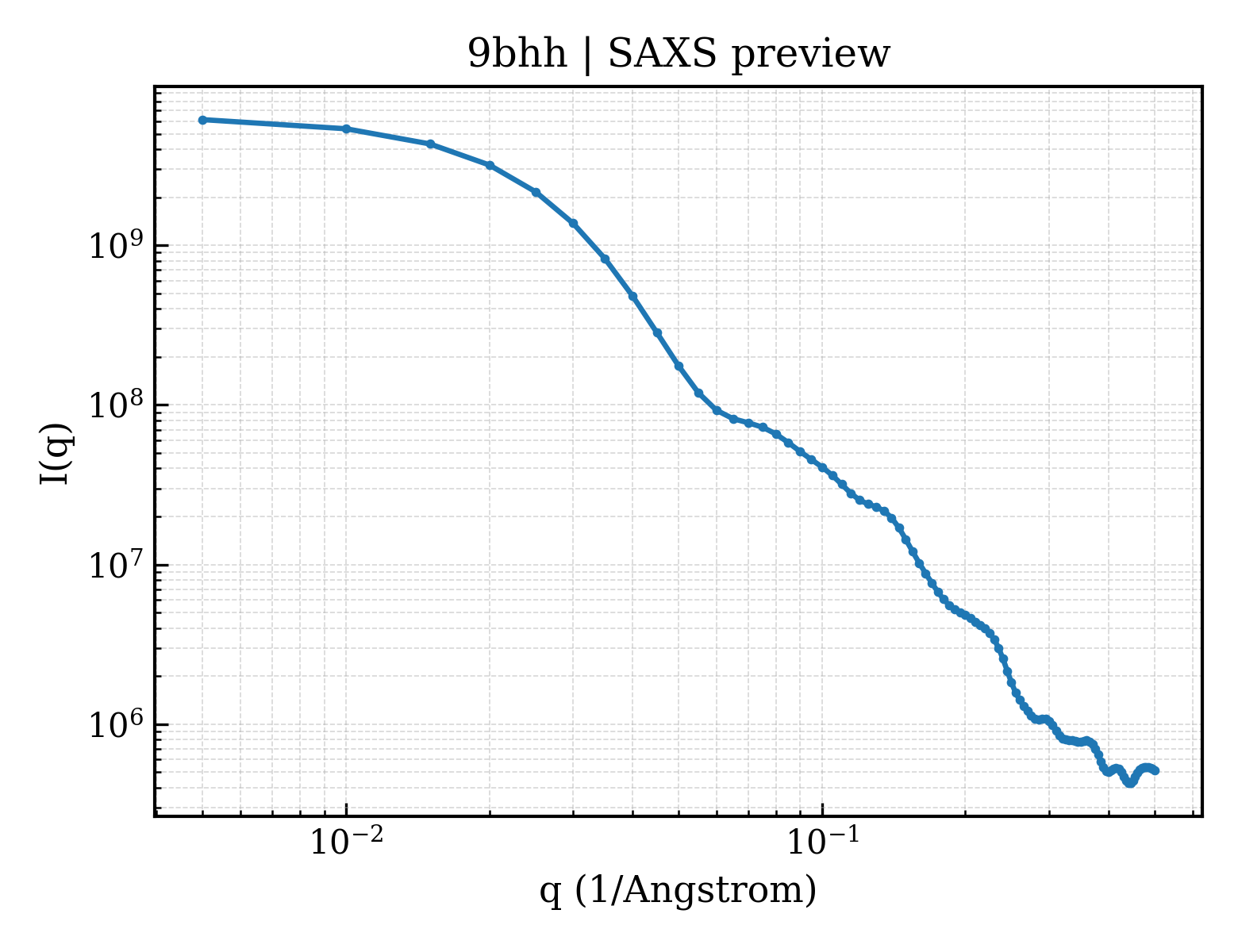

9bhh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

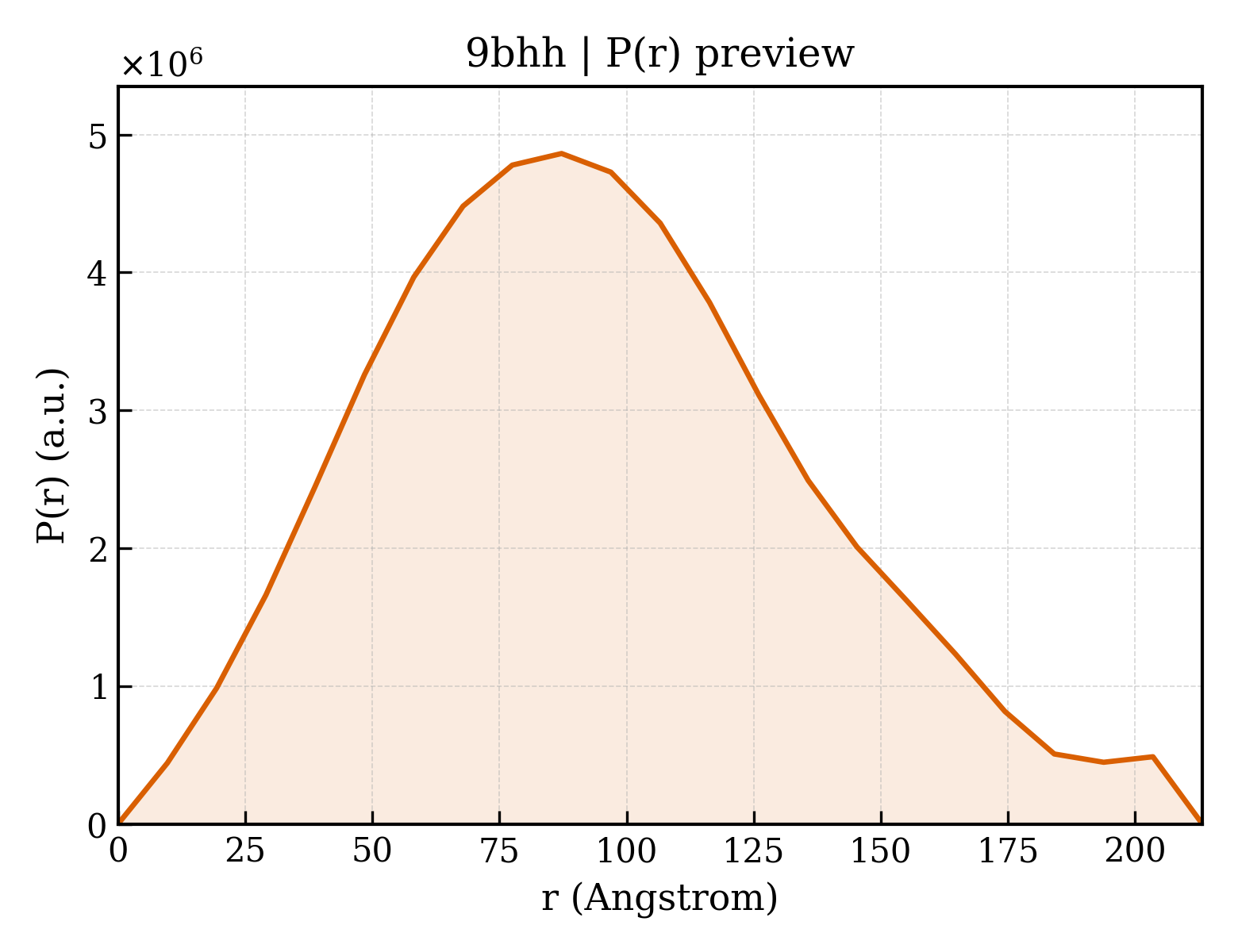

9bhh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	72.54 Å
Rg (electron density)	72.66 Å
Total Rg	72.73 Å
Atom count	92756
Residues	6088
Excluded volume	830040 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9bhh__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	E1 glycoprotein
Molecular weight formula_weight	47359.8 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	92756

YEHVTVIPNTVGVPYKTLVNRPGYSPMVLEMELLSVTLEPTLSLDYITCEYKTVIPSPYVKCCGTAECKDKSLPDYSCKVFTGVYPFMWGGAYCFCDTENTQLSEAHVEKSESCKTEFASAYRAHTASASAKLRVLYQGNNVTVSAYANGDHAVTVKDAKFIVGPMSSAWTPFDNKIVVYKGDVYNMDYPPFGAGRPGQFGDIQSRTPESEDVYANTQLVLQRPSAGTVHVPYSQAPSGFKYWLKERGASLQHTAPFGCQIATNPVRAMNCAVGNMPISIDIPDAAFTRVVDAPSLTDMSCEVPACTHSSDFGGVAIIKYAASKKGKCAVHSMTNAVTIREAEIEVEGNSQLQISFSTALASAEFRVQVCSTQVHCAAECHPPKDHIVNYPASHTTLGVQDISVTAMSWVQKITGGVGLVVAVAALILIVVLCVSFSR

Entity 2 Entity 2 polymer

Description description	E2 glycoprotein
Molecular weight formula_weight	47006.6 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

NFNVYKAIRPYLAHCPDCGEGHSCHSPVALERIRNEATDGTLKIQVSLQIGIKTDDSHDWTKLRYMDNHMPADAERARLFVRTSAPCTITGTMGHFILARCPKGETLTVGFTDGRKISHSCTHPFHHDPPVIGREKFHSRPQHGRELPCSTYAQSTAATAEEIEVHMPPDTPDRTLMSQQSGNVKITVNSQTVRYKCNCGDSNEGLTTTDKVINNCKVDQCHAAVTNHKKWQYNSPLVPRNAELGDRKGKVHIPFPLANVTCRVPKARNPTVTYGKNQVIMLLYPDHPTLLSYRNMGEEPNYQEEWVTHKKEIRLTVPTEGLEVTWGNNEPYKYWPQLSTNGTAHGHPHEIILYYYELYPTMTVVVVSVASFVLLSMVGVAVGMCMCARRRCITPYELTPGATVPFLLSLICCIRTAK

Entity 3 Entity 3 polymer

Description description	Capsid protein
Molecular weight formula_weight	16428.6 kDa
EC 编号 ec_number	3.4.21.90
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,I,K,L

NDCIFEVKHEGKVTGYACLVGDKVMKPAHVKGTIDNADLAKLAFKRSSKYDLECAQIPVHMKSDASKFTHEKPEGYYNWHHGAVQYSGGRFTIPTGAGKPGDSGRPIFDNKGRVVAIVLGGANEGARTALSVVTWNKDIVTKITPEGAEEW

Entity 4 Entity 4 polymer

Description description	Light chain of IM-CKV063
Molecular weight formula_weight	23446.0 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,O,Q,S

EIVMTQSPATLSLSPGERATLSCRASQSVSSYLAWYQQKPGQAPRLLIYDASNRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQYANSRRTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Heavy Chain of IM-CKV063
Molecular weight formula_weight	25712.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,P,R,T

QVQLVQSGAEVKKPGSAVKVSCKASGGTLRKYAISWLRQAPGQGLEWMGGIIPIFGTANYAQKFQGRVTITADESTTTPYTTTPYTSTAYIELTSLRSEDTAVYYCARDLGPLTGYSYSYFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	E3 glycoprotein
Molecular weight formula_weight	6955.1 kDa
EC 编号 ec_number	3.4.21.90
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,V,W,X

PVMCLLANTTFPCSQPPCTPCCYEKEPEETLRMLEDNVMRPGYYQLLQASLTCSPHRQRR

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	401348
