SAXS 散射曲线 SAXS Profile

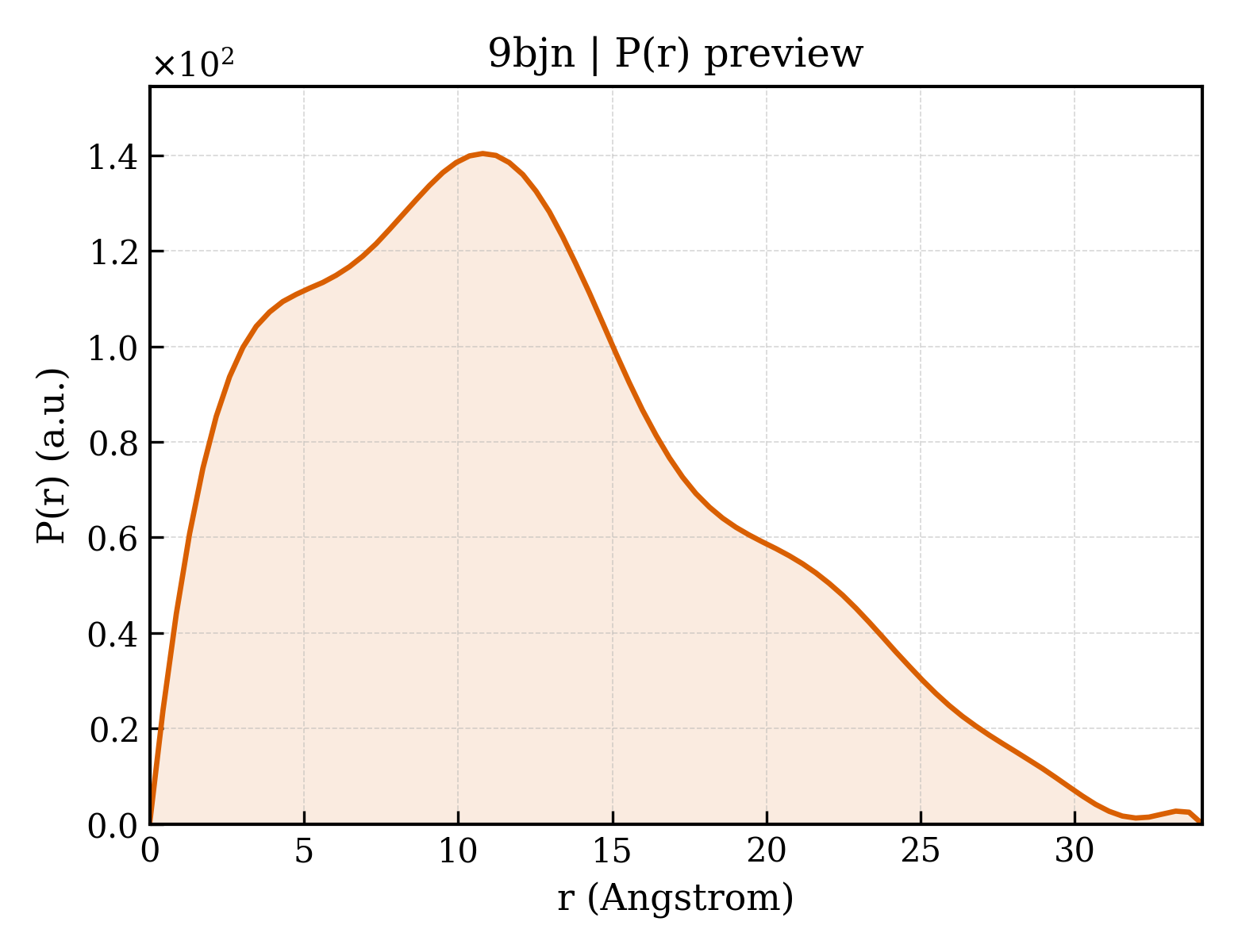

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9bjn |
| 沉积日期 deposition_date | 2024-04-25 |
| 结构标题 title | Cryo-EM of Azo-ffspy fiber |
| 关键词 keywords | D-peptide, peptide-fiber, helical, PROTEIN FIBRIL; PROTEIN FIBRIL |
| 实验方法 method | ELECTRON MICROSCOPY |
| 回转半径 Rg (Guinier) rg_guinier | 9.48 Å |
| 回转半径 Rg (电子) rg_electron | 8.28 Å |
| 零角强度 I(0) i0 | 29650.90 |
| 分子量 molecular_weight | 837.8 kDa |
| 排除体积 excluded_volume | 1059 ų |
| 包络体积 envelope_volume | 1322 ų |
| 水化壳体积 shell_volume | 2039 ų |
| 包络直径 envelope_diameter | 29.6 Å |
| 壳层 Rg shell_rg | 10.87 Å |
| 包络 Rg envelope_rg | 8.77 Å |
| 形状 Rg shape_rg | 8.12 Å |
| 总 Rg total_rg | 9.91 Å |
| 总原子数 total_atoms | 60 |
| 残基数 n_residues | — |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 34.1 Å |
| Rg (实空间) rg_real | 9.69 Å |
| Rg 误差 (实空间) rg_real_error | 0.40 Å |
| I(0) (实空间) i0_real | 2.9650e+04 |
| I(0) 误差 (实空间) i0_real_error | 3.2340e+02 |
| Rg (倒空间) rg_reciprocal | 9.68 Å |
| I(0) (倒空间) i0_reciprocal | 29650.0000 |
| 解质量估计 total_estimate | 0.7360 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 10.8 Å |
| 偏度 Skewness skewness | 0.514 |
| 峰度 Kurtosis kurtosis | -0.344 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2420.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.464;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.286;
Smooth: 0.886
|
冷冻电镜 EM 3D
| 分辨率 resolution | 3.00 Å |
| 分辨率测定方法 resolution_method | — |
| 颗粒数 num_particles | 887952 |
Entity 1
polymer
| 描述 description | D-peptide ffspy |
| 分子量 formula_weight | 850.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(D) |
| 链编号 strand_id | A |
| 原子数 atom_count | 60 |
XFFSW
Cell-Free Nonequilibrium Assembly for Hierarchical Protein/Peptide Nanopillars.
J.Am.Chem.Soc. (2024)
Files (7)
- pr_distribution /app/data/pr_computation/bj/9bjn/pr_distribution.json
- pr_output /app/data/pr_computation/bj/9bjn/9bjn.pr.out
- pr_plot /app/data/visualization/pr_computation/bj/9bjn/9bjn_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/bj/9bjn/9bjn.dat
- saxs_fit /app/data/saxs_computation/bj/9bjn/9bjn.fit
- saxs_log /app/data/saxs_computation/bj/9bjn/9bjn.log
- saxs_plot /app/data/visualization/saxs_computation/bj/9bjn/9bjn_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/bj/9bjn/9bjn.fit |
| pddf |
/app/data/pr_computation/bj/9bjn/9bjn.pr.out |
| profile |
/app/data/saxs_computation/bj/9bjn/9bjn.dat |
