SAXSdb — 9bmf

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bmf
沉积日期 deposition_date	2024-05-02
结构标题 title	State-1(phi motor) of full-length human dynein-1 in 5mM ATPVi
关键词 keywords	dynein-1, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.74 Å
回转半径 Rg (电子) rg_electron	48.57 Å
零角强度 I(0) i0	1610300000.00
分子量 molecular_weight	337110.0 kDa
排除体积 excluded_volume	423270 Å³
包络体积 envelope_volume	585520 Å³
水化壳体积 shell_volume	98669 Å³
包络直径 envelope_diameter	205.9 Å
壳层 Rg shell_rg	54.72 Å
包络 Rg envelope_rg	48.40 Å
形状 Rg shape_rg	48.57 Å
总 Rg total_rg	48.81 Å
总原子数 total_atoms	23712
残基数 n_residues	2937
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	122.1 Å
Rg (实空间) rg_real	46.00 Å
Rg 误差 (实空间) rg_real_error	0.20 Å
I(0) (实空间) i0_real	1.5450e+09
I(0) 误差 (实空间) i0_real_error	1.8560e+07
Rg (倒空间) rg_reciprocal	48.74 Å
I(0) (倒空间) i0_reciprocal	1610000000.0000
解质量估计 total_estimate	0.7336
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.2 Å
偏度 Skewness skewness	0.111
峰度 Kurtosis kurtosis	-0.547
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0945
最高正则化参数 α highest_alpha	161400000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.006; Oscil: 0.975; Stabil: 0.977; Sysdev: 0.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.818

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Cytoplasmic dynein 1 heavy chain 1
分子量 formula_weight	533083.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	23712

MSEPGGGGGEDGSAGLEVSAVQNVADVSVLQKHLRKLVPLLLEDGGEAPAALEAALEEKSALEQMRKFLSDPQVHTVLVERSTLKEDVGDEGEEEKEFISYNINIDIHYGVKSNSLAFIKRTPVIDADKPVSSQLRVLTLSEDSPYETLHSFISNAVAPFFKSYIRESGKADRDGDKMAPSVEKKIAELEMGLLHLQQNIEIPEISLPIHPMITNVAKQCYERGEKPKVTDFGDKVEDPTFLNQLQSGVNRWIREIQKVTKLDRDPASGTALQEISFWLNLERALYRIQEKRESPEVLLTLDILKHGKRFHATVSFDTDTGLKQALETVNDYNPLMKDFPLNDLLSATELDKIRQALVAIFTHLRKIRNTKYPIQRALRLVEAISRDLSSQLLKVLGTRKLMHVAYEEFEKVMVACFEVFQTWDDEYEKLQVLLRDIVKRKREENLKMVWRINPAHRKLQARLDQMRKFRRQHEQLRAVIVRVLRPQVTAVAQQNQGEVPEPQDMKVAEVLFDAADANAIEEVNLAYENVKEVDGLDVSKEGTEAWEAAMKRYDERIDRVETRITARLRDQLGTAKNANEMFRIFSRFNALFVRPHIRGAIREYQTQLIQRVKDDIESLHDKFKVQYPQSQACKMSHVRDLPPVSGSIIWAKQIDRQLTAYMKRVEDVLGKGWENHVEGQKLKQDGDSFRMKLNTQEIFDDWARKVQQRNLGVSGRIFTIESTRVRGRTGNVLKLKVNFLPEIITLSKEVRNLKWLGFRVPLAIVNKAHQANQLYPFAISLIESVRTYERTCEKVEERNTISLLVAGLKKEVQALIAEGIALVWESYKLDPYVQRLAETVFNFQEKVDDLLIIEEKIDLEVRSLETCMYDHKTFSEILNRVQKAVDDLNLHSYSNLPIWVNKLDMEIERILGVRLQAGLRAWTQVLLGQAEDKAEVDMDTDAPQVSHKPGGEPKIKNVVHELRITNQVIYLNPPIEECRYKLYQEMFAWKMVVLSLPRIQSQRYQVGVHYELTEEEKFYRNALTRMPDGPVALEESYSAVMGIVSEVEQYVKVWLQYQCLWDMQAENIYNRLGEDLNKWQALLVQIRKARGTFDNAETKKEFGPVVIDYGKVQSKVNLKYDSWHKEVLSKFGQMLGSNMTEFHSQISKSRQELEQHSVDTASTSDAVTFITYVQSLKRKIKQFEKQVELYRNGQRLLEKQRFQFPPSWLYIDNIEGEWGAFNDIMRRKDSAIQQQVANLQMKIVQEDRAVESRTTDLLTDWEKTKPVTGNLRPEEALQALTIYEGKFGRLKDDREKCAKAKEALELTDTGLLSGSEERVQVALEELQDLKGVWSELSKVWEQIDQMKEQPWVSVQPRKLRQNLDALLNQLKSFPARLRQYASYEFVQRLLKGYMKINMLVIELKSEALKDRHWKQLMKRLHVNWVVSELTLGQIWDVDLQKNEAIVKDVLLVAQGEMALEEFLKQIREVWNTYELDLVNYQNKCRLIRGWDDLFNKVKEHINSVSAMKLSPYYKVFEEDALSWEDKLNRIMALFDVWIDVQRRWVYLEGIFTGSADIKHLLPVETQRFQSISTEFLALMKKVSKSPLVMDVLNIQGVQRSLERLADLLGKIQKALGEYLERERSSFPRFYFVGDEDLLEIIGNSKNVAKLQKHFKKMFAGVSSIILNEDNSVVLGISSREGEEVMFKTPVSITEHPKINEWLTLVEKEMRVTLAKLLAESVTEVEIFGKATSIDPNTYITWIDKYQAQLVVLSAQIAWSENVETALSSMGGGGDAAPLHSVLSNVEVTLNVLADSVLMEQPPLRRRKLEHLITELVHQRDVTRSLIKSKIDNAKSFEWLSQMRFYFDPKQTDVLQQLSIQMANAKFNYGFEYLGVQDKLVQTPLTDRCYLTMTQALEARLGGSPFGPAGTGKTESVKALGHQLGRFVLVFNCDETFDFQAMGRIFVGLCQVGAWGCFDEFNRLEERMLSAVSQQVQCIQEALREHSNPNYDKTSAPITCELLNKQVKVSPDMAIFITMNPGYAGRSNLPDNLKKLFRSLAMTKPDRQLIAQVMLYSQGFRTAEVLANKIVPFFKLCDEQLSSQSHYDFGLRALKSVLVSAGNVKRERIQKIKREKEERGEAVDEGEIAENLPEQEILIQSVCETMVPKLVAEDIPLLFSLLSDVFPGVQYHRGEMTALREELKKVCQEMYLTYGDGEEVGGMWVEKVLQLYQITQINHGLMMVGPSGSGKSMAWRVLLKALERLEGVEGVAHIIDPKAISKDHLYGTLDPNTREWTDGLFTHVLRKIIDSVRGELQKRQWIVFDGDVDPEWVENLNSVLDDNKLLTLPNGERLSLPPNVRIMFEVQDLKYATLATVSRCGMVWFSEDVLSTDMIFNNFLARLRSIPLDEGEDEAQRRRKGKEDEGEEAASPMLQIQRDAATIMQPYFTSNGLVTKALEHAFQLEHIMDLTRLRCLGSLFSMLHQACRNVAQYNANHPDFPMQIEQLERYIQRYLVYAILWSLSGDSRLKMRAELGEYIRRITTVPLPTAPNIPIIDYEVSISGEWSPWQAKVPQIEVETHKVAAPDVVVPTLDTVRHEALLYTWLAEHKPLVLCGPPGSGKTMTLFSALRALPDMEVVGLNFSSATTPELLLKTFDHYCEYRRTPNGVVLAPVQLGKWLVLFCDEINLPDMDKYGTQRVISFIRQMVEHGGFYRTSDQTWVKLERIQFVGACNPPTDPGRKPLSHRFLRHVPVVYVDYPGPASLTQIYGTFNRAMLRLIPSLRTYAEPLTAAMVEFYTMSQERFTQDTQPHYIYSPREMTRWVRGIFEALRPLETLPVEGLIRIWAHEALRLFQDRLVEDEERRWTDENIDTVALKHFPNIDREKAMSRPILYSNWLSKDYIPVDQEELRDYVKARLKVFYEEELDVPLVLFNEVLDHVLRIDRIFRQPQGHLLLIGVSGAGKTTLSRFVAWMNGLSVYQIKVHRKYTGEDFDEDLRTVLRRSGCKNEKIAFIMDESNVLDSGFLERMNTLLANGEVPGLFEGDEYATLMTQCKEGAQKEGLMLDSHEELYKWFTSQVIRNLHVVFTMNPSSEGLKDRAATSPALFNRCVLNWFGDWSTEALYQVGKEFTSKMDLEKPNYIVPDYMPVVYDKLPQPPSHREAIVNSCVFVHQTLHQANARLAKRGGRTMAITPRHYLDFINHYANLFHEKRSELEEQQMHLNVGLRKIKETVDQVEELRRDLRIKSQELEVKNAAANDKLKKMVKDQQEAEKKKVMSQEIQEQLHKQQEVIADKQMSVKEDLDKVEPAVIEAQNAVKSIKKQHLVEVRSMANPPAAVKLALESICLLLGESTTDWKQIRSIIMRENFIPTIVNFSAEEISDAIREKMKKNYMSNPSYNYEIVNRASLACGPMVKWAIAQLNYADMLKRVEPLRNELQKLEDDAKDNQQKANEVEQMIRDLEASIARYKEEYAVLISEAQAIKADLAAVEAKVNRSTALLKSLSAERERWEKTSETFKNQMSTIAGDCLLSAAFIAYAGYFDQQMRQNLFTTWSHHLQQANIQFRTDIARTEYLSNADERLRWQASSLPADDLCTENAIMLKRFNRYPLIIDPSGQATEFIMNEYKDRKITRTSFLDDAFRKNLESALRFGNPLLVQDVESYDPVLNPVLNREVRRTGGRVLITLGDQDIDLSPSFVIFLSTRDPTVEFPPDLCSRVTFVNFTVTRSSLQSQCLNEVLKAERPDVDEKRSDLLKLQGEFQLRLRQLEKSLLQALNEVKGRILDDDTIITTLENLKREAAEVTRKVEETDIVMQEVETVSQQYLPLSTACSSIYFTMESLKQIHFLYQYSLQFFLDIYHNVLYENPNLKGVTDHTQRLSIITKDLFQVAFNRVARGMLHQDHITFAMLLARIKLKGTVGEPTYDAEFQHFLRGNEIVLSAGSTPRIQGLTVEQAEAVVRLSCLPAFKDLIAKVQADEQFGIWLDSSSPEQTVPYLWSEETPATPIGQAIHRLLLIQAFRPDRLLAMAHMFVSTNLGESFMSIMEQPLDLTHIVGTEVKPNTPVLMCSVPGYDASGHVEDLAAEQNTQITSIAIGSAEGFNQADKAINTAVKSGRWVMLKNVHLAPGWLMQLEKKLHSLQPHACFRLFLTMEINPKVPVNLLRAGRIFVFEPPPGVKANMLRTFSSIPVSRICKSPNERARLYFLLAWFHAIIQERLRYAPLGWSKKYEFGESDLRSACDTVDTWLDDTAKGRQNISPDKIPWSALKTLMAQSIYGGRVDNEFDQRLLNTFLERLFTTRSFDSEFKLACKVDGHKDIQMPDGIRREEFVQWVELLPDTQTPSWLGLPNNAERVLLTTQGVDMISKMLKMQMLEDEDDLAYAETEKKTRTDSTSDGRPAWMRTLHTTASNWLHLIPQTLSHLKRTVENIKDPLFRFFEREVKMGAKLLQDVRQDLADVVQVCEGKKKQTNYLRTLINELVKGILPRSWSHYTVPAGMTVIQWVSDFSERIKQLQNISLAAASGGAKELKNIHVCLGGLFVPEAYITATRQYVAQANSWSLEELCLEVNVTTSQGATLDACSFGVTGLKLQGATCNNNKLSLSNAISTALPLTQLRWVKQTNTEKKASVVTLPVYLNFTRADLIFTVDFEIATKEDPRSFYERGVAVLCTE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	ADP ORTHOVANADATE
分子量 formula_weight	544.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	266214

fit	/app/data/saxs_computation/bm/9bmf/9bmf.fit
pddf	/app/data/pr_computation/bm/9bmf/9bmf.pr.out
profile	/app/data/saxs_computation/bm/9bmf/9bmf.dat

State-1(phi motor) of full-length human dynein-1 in 5mM ATPVi

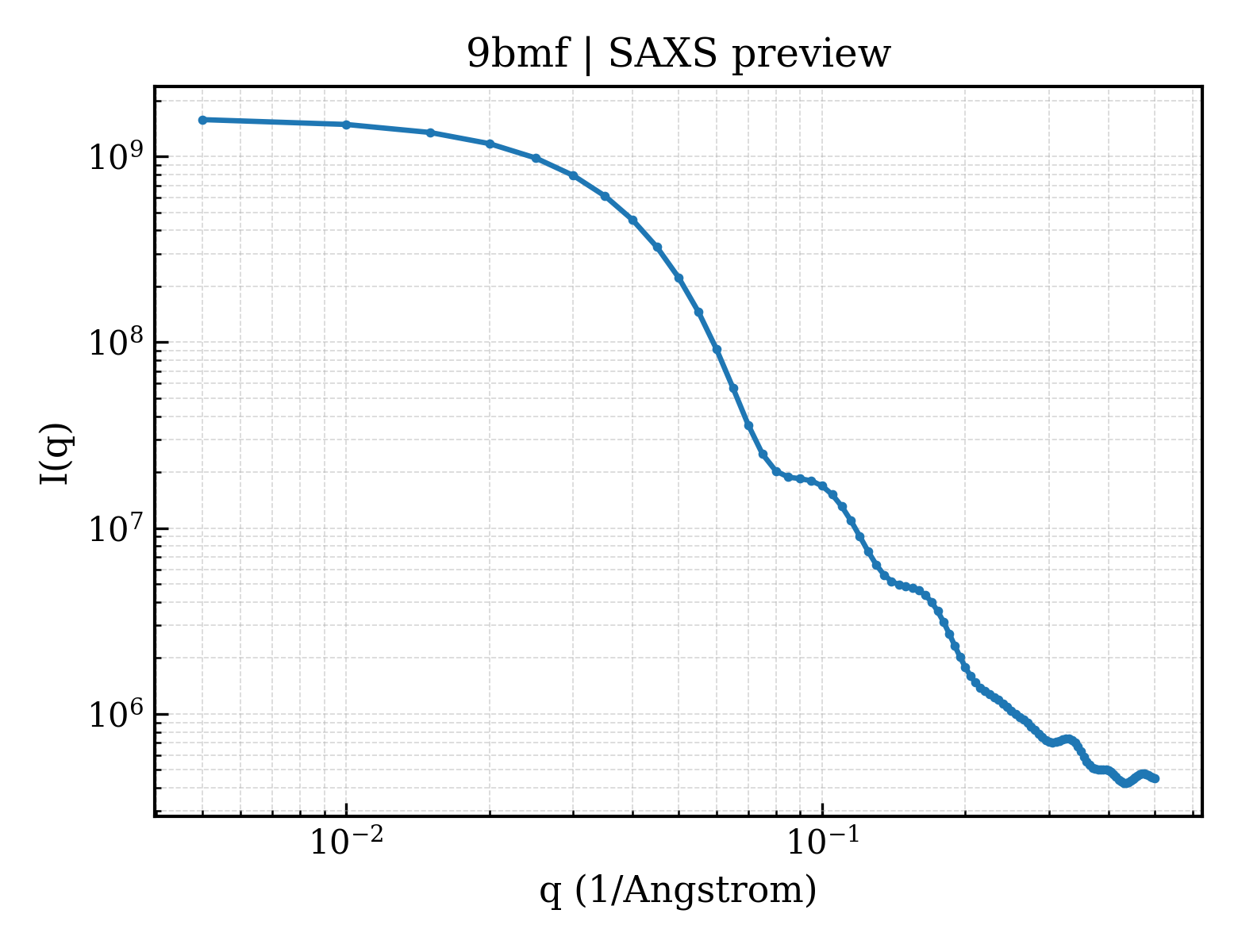

SAXS 散射曲线 SAXS Profile

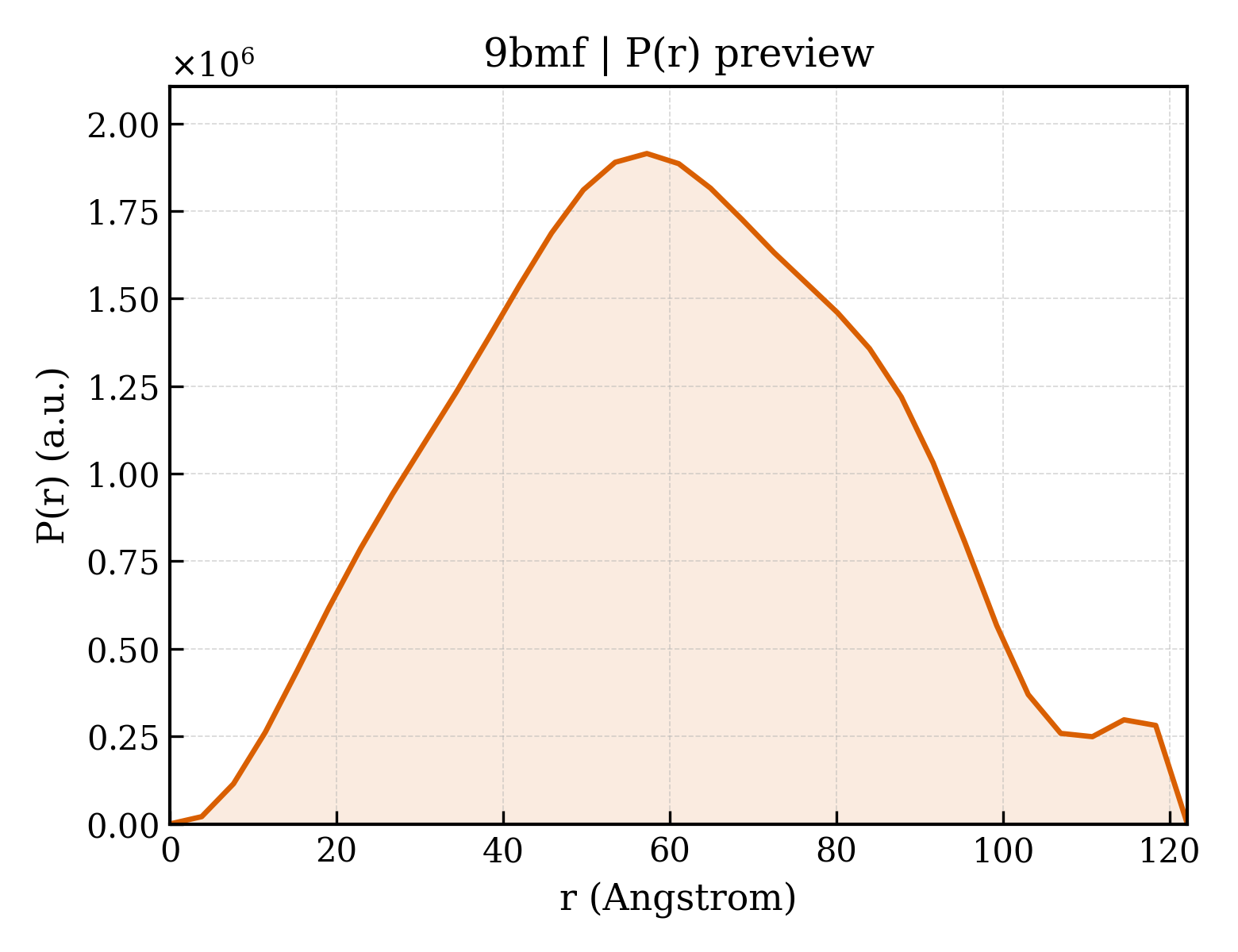

P(r) 距离分布 P(r) Distribution
