9bov

Structure of electron bifurcating Nfn-ABC complexed with NAD from Caldicellulosiruptor saccharolyticus

Method: ELECTRON MICROSCOPY D_max: 216.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

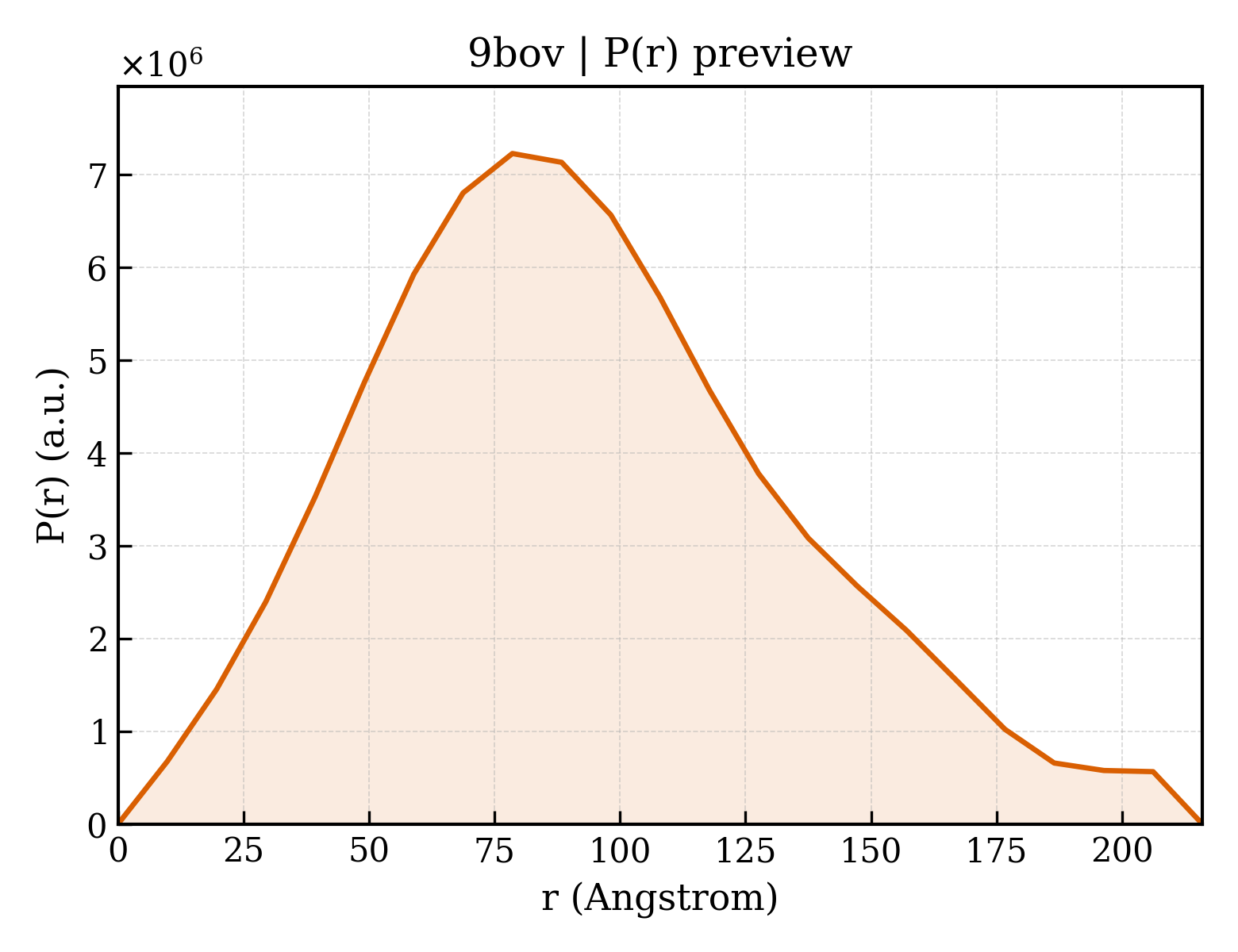

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bov
沉积日期 deposition_date	2024-05-06
结构标题 title	Structure of electron bifurcating Nfn-ABC complexed with NAD from Caldicellulosiruptor saccharolyticus
关键词 keywords	Electron bifurcating enzyme, Nfn-type BfuABC complex, FMN/B1/C1 bifurcation site, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.00 Å
回转半径 Rg (电子) rg_electron	72.37 Å
零角强度 I(0) i0	9042010000.00
分子量 molecular_weight	797690.0 kDa
排除体积 excluded_volume	995050 Å³
包络体积 envelope_volume	1497200 Å³
水化壳体积 shell_volume	175870 Å³
包络直径 envelope_diameter	268.3 Å
壳层 Rg shell_rg	72.22 Å
包络 Rg envelope_rg	70.19 Å
形状 Rg shape_rg	72.47 Å
总 Rg total_rg	72.02 Å
总原子数 total_atoms	55356
残基数 n_residues	7088
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	216.0 Å
Rg (实空间) rg_real	71.24 Å
Rg 误差 (实空间) rg_real_error	1.01 Å
I(0) (实空间) i0_real	8.9730e+09
I(0) 误差 (实空间) i0_real_error	1.5710e+08
Rg (倒空间) rg_reciprocal	71.47 Å
I(0) (倒空间) i0_reciprocal	9030000000.0000
解质量估计 total_estimate	0.8457
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	78.5 Å
偏度 Skewness skewness	0.431
峰度 Kurtosis kurtosis	-0.170
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.1039
最高正则化参数 α highest_alpha	332200000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.220

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Molybdopterin oxidoreductase
分子量 formula_weight	130025.9 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,J,G
原子数 atom_count	55356

MRLVRVNIDNKEIFAEEGKTILEVAHENNIEIPHLCYDKRLKPYGACGLCVVEIEGSPKLARACSTYVTDKMVIKTDSPRVRNARKMALELLLSEHRGDCRPPCVLACPAHTDCQGYVGLIANGQFREAVALIKEQLPFPASIGRVCPHPCEEACRRNMVDQPIAIAELKRFVGDIDLLDDGYIPPIKPKTGKKVAIVGGGPAGLTCAFFLAKEGHDIVVYEAMPKAGGMLRYGIPEYRLPKGILDKEIELIEKMGVQIKTNMRLGVDISLEYLRKNYDAVFLAVGAWKSSTLGCPGDSAEGVIGGIEFLRKVSMNQPVNLGQRVLVVGGGNTAMDAARTAIRLGAKEVTVLYRRTREEMPAEDIEVNEAEEEGVKFQFLVAPIEVITDGGRVRALKCQRMRLGDMDESGRRRPVPIEGAEVIFEADTIISAIGQKVRVEDVEGLELTRHGTIKVDEGTYQTSLEGVFAGGDAVTGPKIAIEAIAQGKNAARVIDSYLRGKLEPIKEPYYVKQEDLTPEDFKDRERKPRVPLKVANAEERKNNFREITSTMTEKEAIAEASRCLECGCMDYFECQLYKYVNQYDVDPQRLSGYKHKRYEPQKHPFIERNPDKCILCGLCIRVCEEVVGVCALGFVNRGFETIVKPEFGLPLEETSCISCGQCADICPTGACIGKQPVAKQVPVNTVATKTVCTFCGMGCEMLVETKGNLIFDVSPVQSNEGMLCAFGRFGIKYVNDKDRILAPLIKVNGELSKTTFDQALIETAKKLQAIRASYGKDSIAIIASQRLTNEEALLLTKLAQKLDTTVIGSFDLRESVLDRIFGLNASTNSFDEIYSTDLIVAVGKVAENHAVMGAKLKKAVELGAKLVTINNGETRADERAIATYKIDNTAFFKATIKALFEMKAVDEDYVSKIAVNLDELKDDVKNVEVTDEASEFAKIIAGAKTAMVIVDEESVSDTTIGQLANILTLTQKIGRPRCGIIKVTGLGNTQGAWDMGIRMSKEGIVKLINEGKVKAAFIVSEDPQAADKNLGEVLDKLECLIVADVFLTETGKRADVVLPLVSHVESTGTVTRADGKIQNLNLVLKPKNGLSNLDLLLKLAELFGLQYNLEKLNREMVELLQNENKYNQQILYTEGFATPDKTVHLFVSKDAPAFVEKAVFDTVKNRFEKYLQDKHLKY

来源 Source

来源生物 organism	Caldicellulosiruptor saccharolyticus
NCBI 分类编号 ncbi_taxonomy_id	44001
宿主生物 host_organism	Caldicellulosiruptor

Entity 2 polymer

描述 description	NADH dehydrogenase (Quinone)
分子量 formula_weight	63533.5 kDa
EC 编号 ec_number	1.6.99.5
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E,K,H

MKIRVGLGSCGMAAGGNKVMECIQQELRSRNLDIPVEPTGCIGLCFFEPLVDVIDGDDVYTYGNVTPEMIPKIIESHVIGKKPLDEFIVSTSFEPYPMLKSQVRIALKNCGRINPEDIDDYIKNGGYEALKKVLTSMTPEEVIEEIKISGLRGRGGAGFPTWFKWDAARKASGDIKYVVCNADEGDPGAFMDRSILEGDPHAVLEGMTIAAYAIGAKEGYIYVRAEYPLAIKRLEIAIEQARNRNLLGNNILNTNFSFDIKLKKGAGAFVCGEETALIASIEGERGMPRLKPPFPAQSGLWGRPTNINNVETYANVPWIITNGGKAFASLGTEKSKGTKVFALAGKIKRGGLVEVPMGMSLREVIYNIGGGIKDDKAFKAVQMGGPSGGCIPADLIDTPVDYESITKTGAIMGSGGMIVMDETTCMVDIARFFLEFTCKESCGKCTYCRVGTRRMLEILDRICNGEGRDGDLELLEELAVSVKDGSLCGLGQTAPNPVLTTLRYFKDEYIAHIRDKKCPAKQCKALITYSILPEKCTGCGLCARKCPTKAITGERLKPHVIDQSKCTKCGTCMNVCRFGAVNVE

来源 Source

来源生物 organism	Caldicellulosiruptor saccharolyticus
NCBI 分类编号 ncbi_taxonomy_id	44001
宿主生物 host_organism	Caldicellulosiruptor

Entity 3 polymer

描述 description	NADH dehydrogenase (Ubiquinone), 24 kDa subunit
分子量 formula_weight	19914.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F,L,I

MYMSCPECENRLASNFKNQKVDLSLLDPVLDEYKGEKSNIIAILQKTQEIYRFLPLDALNYISEKTGVKKAKIYGIATFYAQFRLKPVGKYVILQCQGTACHVNGSEEIKNALCDELNIKPGDTTEDGMFTLEEVACLGCCSLAPVMMINGETYGKLTPDKAREIIRRIYEREKNV

来源 Source

来源生物 organism	Caldicellulosiruptor saccharolyticus
NCBI 分类编号 ncbi_taxonomy_id	44001
宿主生物 host_organism	Caldicellulosiruptor

Entity 4 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	28

Entity 6 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 7 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 8 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 9 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	78470

fit	/app/data/saxs_computation/bo/9bov/9bov.fit
pddf	/app/data/pr_computation/bo/9bov/9bov.pr.out
profile	/app/data/saxs_computation/bo/9bov/9bov.dat
