9bpx

;Estrogen Receptor Alpha Ligand Binding Domain Y537S Mutant in Complex with (1'-(4-((1-butylpyrrolidin-3-yl)methoxy)phenyl)-6'-hydroxy-1',4'-dihydro-2'H-spiro[cyclopropane-1,3'-isoquinolin]-2'-yl)(phenyl)methanone ;

Method: X-RAY DIFFRACTION D_max: 75.4 Å Quality: GOOD

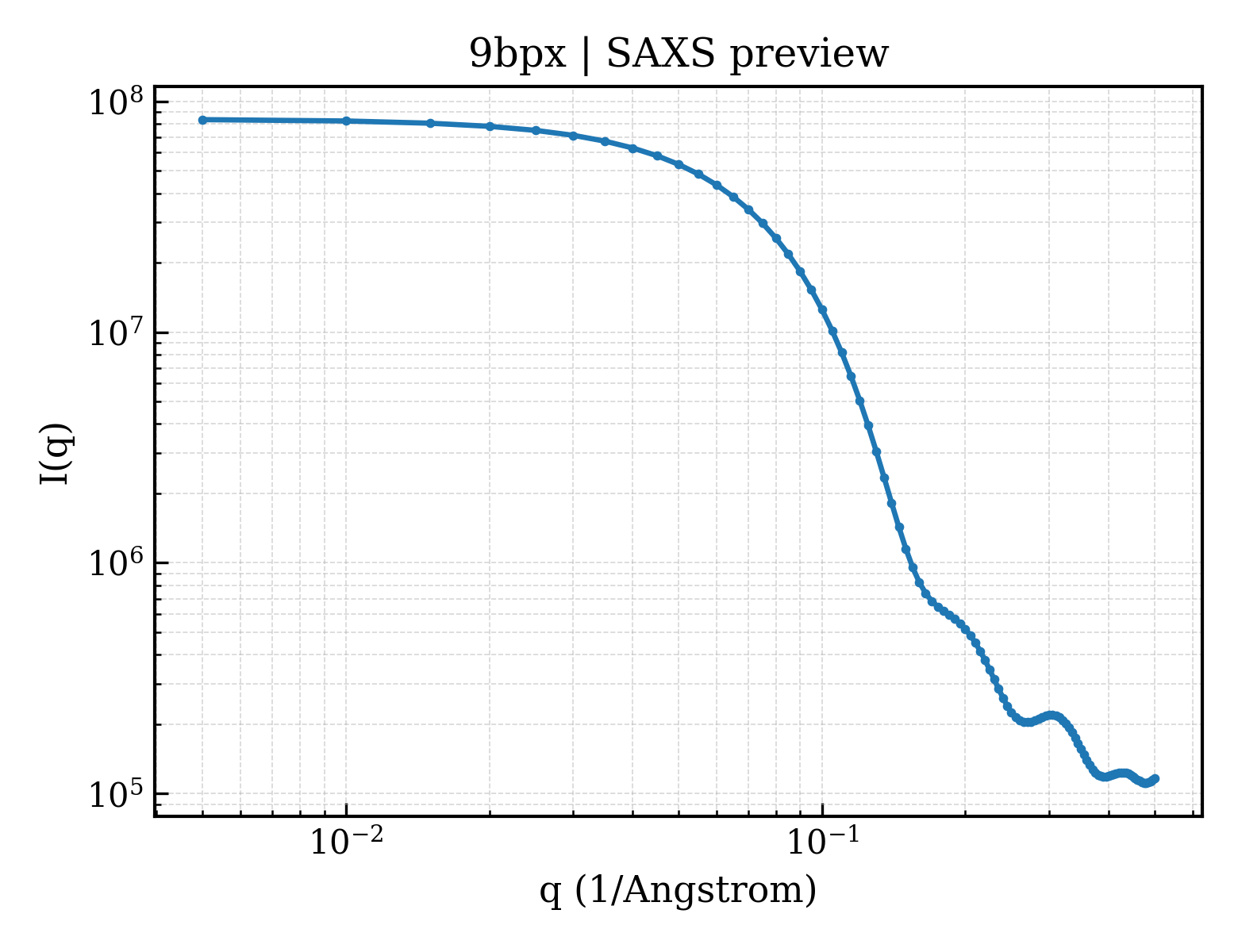

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bpx
沉积日期 deposition_date	2024-05-08
最后修订 last_revision	2025-02-12
结构标题 title	;Estrogen Receptor Alpha Ligand Binding Domain Y537S Mutant in Complex with (1'-(4-((1-butylpyrrolidin-3-yl)methoxy)phenyl)-6'-hydroxy-1',4'-dihydro-2'H-spiro[cyclopropane-1,3'-isoquinolin]-2'-yl)(phenyl)methanone ;
关键词 keywords	Estrogen, Alpha Helical Bundle, Breast Cancer, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.21 Å
回转半径 Rg (电子) rg_electron	22.40 Å
零角强度 I(0) i0	83752700.00
分子量 molecular_weight	48850.0 kDa
排除体积 excluded_volume	47674 Å³
包络体积 envelope_volume	77397 Å³
水化壳体积 shell_volume	28061 Å³
包络直径 envelope_diameter	80.3 Å
壳层 Rg shell_rg	29.90 Å
包络 Rg envelope_rg	22.73 Å
形状 Rg shape_rg	22.40 Å
总 Rg total_rg	23.03 Å
总原子数 total_atoms	3697
残基数 n_residues	462
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	75.4 Å
Rg (实空间) rg_real	23.08 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	8.3750e+07
I(0) 误差 (实空间) i0_real_error	1.0130e+06
Rg (倒空间) rg_reciprocal	23.11 Å
I(0) (倒空间) i0_reciprocal	83750000.0000
解质量估计 total_estimate	0.8874
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.0 Å
偏度 Skewness skewness	0.209
峰度 Kurtosis kurtosis	-0.371
角度范围 angular_range	— – 0.3400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14560000.0000
实空间数据点数 n_real_points	66
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.987

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Estrogen receptor
分子量 formula_weight	30016.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	3917

HHHHHHENLYFQSLALSLTADQMVSALLDAEPPILYSEYDPTRPFSEASMMGLLTNLADRELVHMINWAKRVPGFVDLTLHDQVHLLESAWLEILMIGLVWRSMEHPGKLLFAPNLLLDRNQGKSVEGMVEIFDMLLATSSRFRMMNLQGEEFVCLKSIILLNSGVYTFLSSTLKSLEEKDHIHRVLDKITDTLIHLMAKAGLTLQQQHQRLAQLLLILSHIRHMSNKGMEHLYSMKSKNVVPLSDLLLEMLDAHRLHAPTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	HISTIDINE
分子量 formula_weight	156.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	;[(1'R)-1'-(4-{[(3R)-1-(3-fluoropropyl)pyrrolidin-3-yl]methoxy}phenyl)-6'-hydroxy-1',4'-dihydro-2'H-spiro[cyclopropane-1,3'-isoquinolin]-2'-yl](phenyl)methanone ;
分子量 formula_weight	514.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	;[(1'R)-1'-(4-{[(3S)-1-(3-fluoropropyl)-2,3-dihydro-1H-pyrrol-3-yl]methoxy}phenyl)-6'-hydroxy-1',4'-dihydro-2'H-spiro[cyclopropane-1,3'-isoquinolin]-2'-yl](phenyl)methanone ;
分子量 formula_weight	512.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	186

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	101.731 Å
晶胞边长 b length_b	58.294 Å
晶胞边长 c length_c	87.011 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.52 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	45.630 Å
R 因子 r_factor	0.1875
R_work r_work	0.1858
R_free r_free	0.2211
