9brj

Crystal Structure of Human G Protein-Coupled Receptor Kinase 5 in Complex with GRL093-22

Method: X-RAY DIFFRACTION D_max: 84.4 Å Quality: EXCELLENT

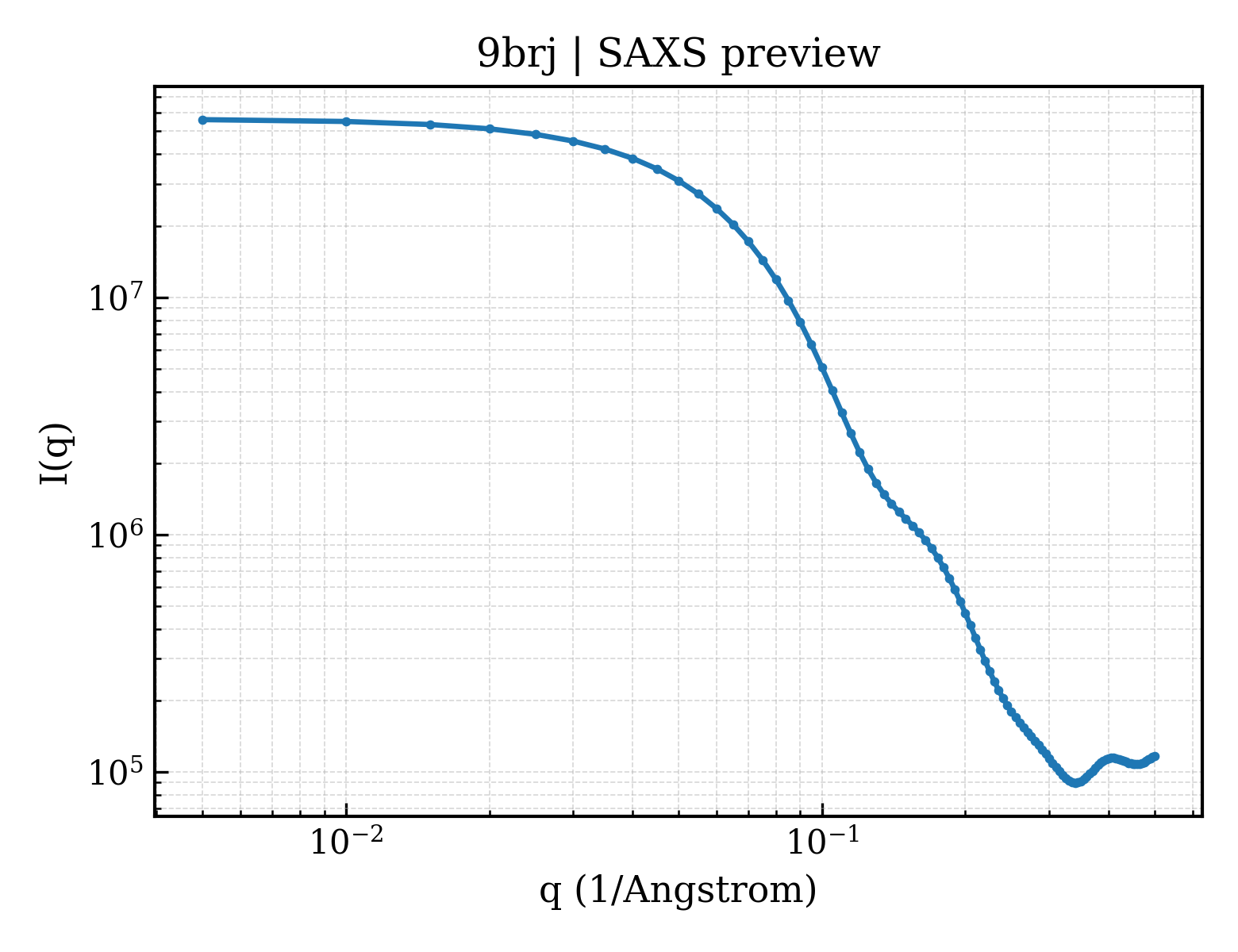

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9brj
沉积日期 deposition_date	2024-05-11
最后修订 last_revision	2025-02-19
结构标题 title	Crystal Structure of Human G Protein-Coupled Receptor Kinase 5 in Complex with GRL093-22
关键词 keywords	G protein-coupled receptor, GPCR G protein-coupled receptor kinase, GRK kinase, SIGNALING PROTEIN-INHIBITOR complex; SIGNALING PROTEIN/INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.71 Å
回转半径 Rg (电子) rg_electron	25.61 Å
零角强度 I(0) i0	56312700.00
分子量 molecular_weight	58820.0 kDa
排除体积 excluded_volume	73805 Å³
包络体积 envelope_volume	91836 Å³
水化壳体积 shell_volume	29716 Å³
包络直径 envelope_diameter	87.3 Å
壳层 Rg shell_rg	33.07 Å
包络 Rg envelope_rg	25.61 Å
形状 Rg shape_rg	25.65 Å
总 Rg total_rg	26.34 Å
总原子数 total_atoms	8222
残基数 n_residues	503
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.4 Å
Rg (实空间) rg_real	26.60 Å
Rg 误差 (实空间) rg_real_error	0.47 Å
I(0) (实空间) i0_real	5.6310e+07
I(0) 误差 (实空间) i0_real_error	7.6040e+05
Rg (倒空间) rg_reciprocal	26.64 Å
I(0) (倒空间) i0_reciprocal	56310000.0000
解质量估计 total_estimate	0.9080
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.6 Å
偏度 Skewness skewness	0.190
峰度 Kurtosis kurtosis	-0.490
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12980000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.997

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	G protein-coupled receptor kinase 5
分子量 formula_weight	68931.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8235

MELENIVANTVLLKAREGGGGKRKGKSKKWKEILKFPHISQCEDLRRTIDRDYCSLCDKQPIGRLLFRQFCETRPGLECYIQFLDSVAEYEVTPDEKLGEKGKEIMTKYLTPKSPVFIAQVGQDLVSQTEEKLLQKPCKELFSACAQSVHEYLRGEPFHEYLDSMFFDRFLQWKWLERQPVTKNTFRQYRVLGKGGFGEVCACQVRATGKMYACKRLEKKRIKKRKGESMALNEKQILEKVNSQFVVNLAYAYETKDALCLVLTIMNGGDLKFHIYNMGNPGFEEERALFYAAEILCGLEDLHRENTVYRNLKPENILLDDYGHIRISDLGLAVKIPEGDLIRGRVGTVGYMAPEVLNNQRYGLSPDYWGLGCLIYEMIEGQSPFRGRKEKVKREEVDRRVLETEEVYSHKFSEEAKSICKMLLTKDAKQRLGCQEEGAAEVKRHPFFRNMNFKRLEAGMLDPPFVPDPRAVYCKDVLDIEQFSTVKGVNLDHTDDDFYSKFSTGSVSIPWQNEMIETECFKELNVFGPNGTLPPDLNRNHPPEPPKKGLLQRLFKRQHQNNSKSSPSSKTSFNHHINSNHVSSNSTGSSVDHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	;(4S)-N-{5-[(Z)-(5-{[(1R)-1-(4-fluorophenyl)ethyl]carbamoyl}-2-oxo-2,7-dihydro-3H-indol-3-ylidene)methyl]-2,4-dimethyl-1H-pyrrol-3-yl}-2-methylimidazo[1,2-a]pyridine-3-carboxamide ;
分子量 formula_weight	576.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	13

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	137.475 Å
晶胞边长 b length_b	137.475 Å
晶胞边长 c length_c	70.766 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	tetragonal

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	24.650 Å
R 因子 r_factor	0.2393
R_work r_work	0.2358
R_free r_free	0.2731
