9bru

Intact V-ATPase State 1 in synaptophysin knock-out isolated synaptic vesicles

Method: ELECTRON MICROSCOPY D_max: 218.4 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

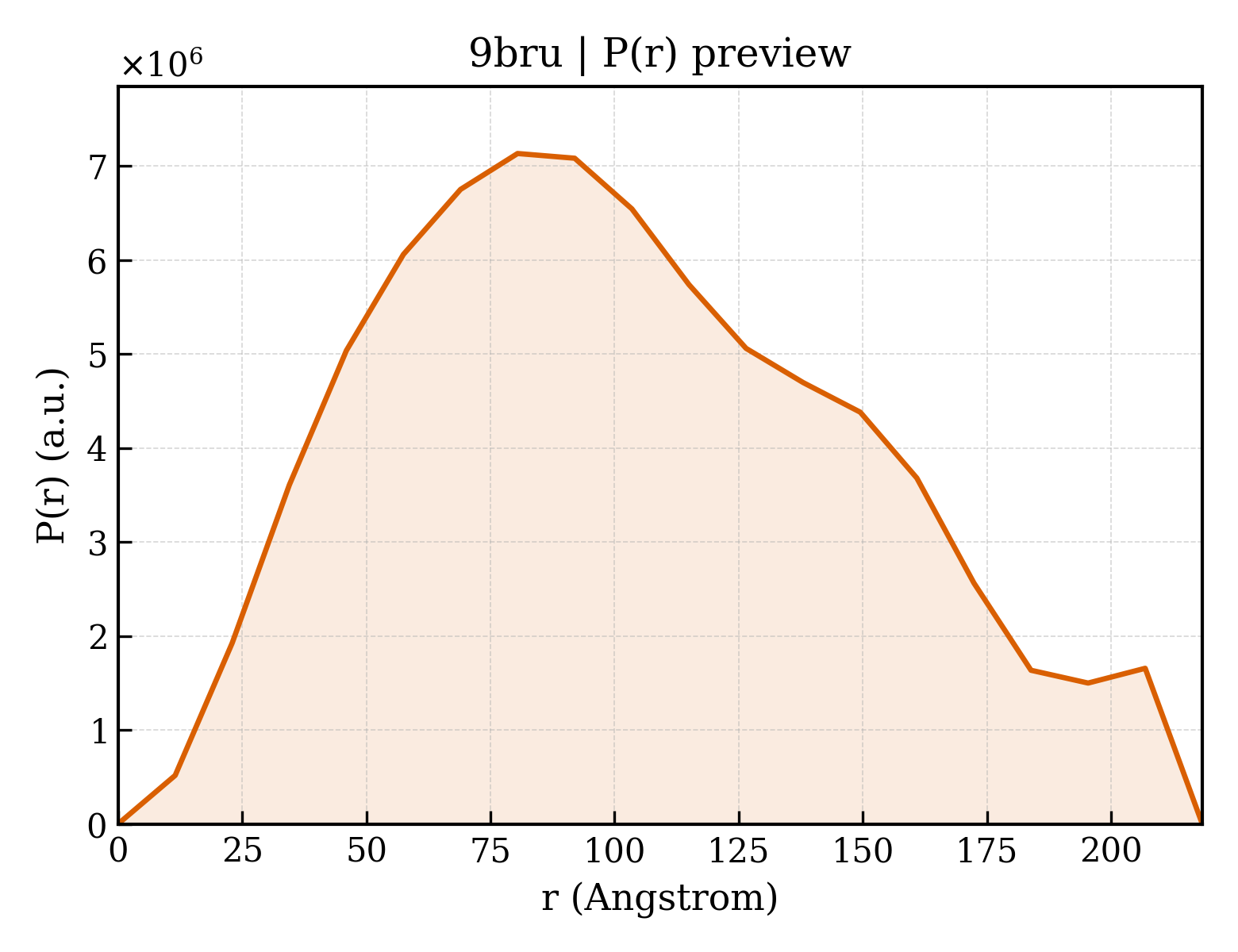

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bru
沉积日期 deposition_date	2024-05-11
结构标题 title	Intact V-ATPase State 1 in synaptophysin knock-out isolated synaptic vesicles
关键词 keywords	V-ATPase, synaptic vesicle, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	82.46 Å
回转半径 Rg (电子) rg_electron	83.24 Å
零角强度 I(0) i0	11305200000.00
分子量 molecular_weight	932600.0 kDa
排除体积 excluded_volume	1179000 Å³
包络体积 envelope_volume	1974200 Å³
水化壳体积 shell_volume	200340 Å³
包络直径 envelope_diameter	288.3 Å
壳层 Rg shell_rg	81.13 Å
包络 Rg envelope_rg	79.63 Å
形状 Rg shape_rg	83.27 Å
总 Rg total_rg	83.10 Å
总原子数 total_atoms	65548
残基数 n_residues	8388
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	218.4 Å
Rg (实空间) rg_real	79.01 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	1.0920e+10
I(0) 误差 (实空间) i0_real_error	2.0770e+08
Rg (倒空间) rg_reciprocal	81.06 Å
I(0) (倒空间) i0_reciprocal	11260000000.0000
解质量估计 total_estimate	0.9075
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	80.5 Å
偏度 Skewness skewness	0.320
峰度 Kurtosis kurtosis	-0.635
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.2125
最高正则化参数 α highest_alpha	1695000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.968; Stabil: 0.979; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.006

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (16)

Entity 1 polymer

描述 description	V-type proton ATPase subunit D
分子量 formula_weight	28419.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7
原子数 atom_count	65548

MSGKDRIEIFPSRMAQTIMKARLKGAQTGRNLLKKKSDALTLRFRQILKKIIETKMLMGEVMREAAFSLAEAKFTAGDFSTTVIQNVNKAQVKIRAKKDNVAGVTLPVFEHYHEGTDSYELTGLARGGEQLAKLKRNYAKAVELLVELASLQTSFVTLDEAIKITNRRVNAIEHVIIPRIERTLAYIITELDEREREEFYRLKKIQEKKKIIKEKFEKDLERRRAAGEVMEPANLLAEEKDEDLLFE

Entity 2 polymer

描述 description	V-type proton ATPase subunit E 1
分子量 formula_weight	26196.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8,9,Q

MALSDADVQKQIKHMMAFIEQEANEKAEEIDAKAEEEFNIEKGRLVQTQRLKIMEYYEKKEKQIEQQKKIQMSNLMNQARLKVLRARDDLITDLLNEAKQRLSKVVKDTTRYQVLLDGLVLQGLYQLLEPRMIVRCRKQDFPLVKAAVQKAIPMYKIATKKDVDVQIDQEAYLPEEIAGGVEIYNGDRKIKVSNTLESRLDLIAQQMMPEVRGALFGANANRKFLD

Entity 3 polymer

描述 description	V-type proton ATPase subunit G 2
分子量 formula_weight	13674.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,T,V

MASQTQGIQQLLQAEKRAAEKVADARKRKARRLKQAKEEAQMEVEQYRREREQEFQSKQQAAMGSQGNLSAEVEQATRRQVQGMQSSQQRNRERVLAQLLGMVCEVRPQVHPNYRVTV

Entity 4 polymer

描述 description	V-type proton ATPase subunit C 1
分子量 formula_weight	43945.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MTEFWLISAPGEKTCQQTWEKLHAATTKNNNLAVSSKFNIPDLKVGTLDVLVGLSDELAKLDAFVEGVVKKVAQYMADVLEDSKDKVQENLLASGVDLVTYITRFQWDMAKYPIKQSLKNISEIIAKGVTQIDNDLKSRASAYNNLKGNLQNLERKNAGSLLTRSLAEIVKKDDFVLDSEYLVTLLVVVPKLNHNDWIKQYETLAEMVVPRSSNVLSEDQDSYLCNVTLFRKAVDDFRHKARENKFIVRDFQYNEEEMKADKEEMTRLSTDKKKQFGPLVRWLKVNFSEAFIAWIHIKALRVFVESVLRYGLPVNFQAMLLQPNKKSVKKLREVLHELYKHLDSSAAAIIDAPMDIPGLNLSQQEYYPYVYYKIDCNLLEFK

Entity 5 polymer

描述 description	V-type proton ATPase subunit H
分子量 formula_weight	55922.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MTKMDIRGAVDAAVPTNIIAAKAAEVRANKVNWQSYLQGQMISAEDCEFIQRFEMKRSSEDKQEMLQTEGSQCAKTFINLMTHISKEQTVQYILTMVDDMLQENHQRVSIFFDYAKRSKSTAWPYFLPMLNRQDPFTVHMAARIIAKLAAWGKELMEGSDLNYYFNWIKTQLSSQKLRGSGVAVETGTISSSDSSQYVQCVAGCLQLMLRVNEYRFAWVEADGVNCIMGVLSNKCGFQLQYQMIFSIWLLAFSPQMCEHLRRYNIIPVLSDILQESVKEKVTRIILAAFRNFLEKSTERETRQEYALAMIQCKVLKQLENLEQQKYDDEDISEDIKFLLEKLGESVQDLSSFDEYSSELKSGRLEWSPVHKSEKFWRENAVRLNEKNYELLKILTKLLEVSDDPQVLAVAAHDVGEYVRHYPRGKRVIEQLGGKQLVMNHMHHEDQQVRYNALLAVQKLMVHNWEYLGKQLQSEQPQTAAARS

Entity 6 polymer

描述 description	V-type proton ATPase 116 kDa subunit a 1
分子量 formula_weight	96442.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MGELFRSEEMTLAQLFLQSEAAYCCVSELGELGKVQFRDLNPDVNVFQRKFVNEVRRCEEMDRKLRFVEKEIRKANIPIMDTGENPEVPFPRDMIDLEANFEKIENELKEINTNQEALKRNFLELTELKFILRKTQQFFDEAELHHQQMADPDLLEESSSLLEPNEMGRGAPLRLGFVAGVINRERIPTFERMLWRVCRGNVFLRQAEIENPLEDPVTGDYVHKSVFIIFFQGDQLKNRVKKICEGFRASLYPCPETPQERKEMASGVNTRIDDLQMVLNQTEDHRQRVLQAAAKNIRVWFIKVRKMKAIYHTLNLCNIDVTQKCLIAEVWCPVTDLDSIQFALRRGTEHSGSTVPSILNRMQTNQTPPTYNKTNKFTHGFQNIVDAYGIGTYREINPAPYTVITFPFLFAVMFGDFGHGILMTLFAVWMVLRESRILSQKHENEMFSMVFSGRYIILLMGLFSIYTGLIYNDCFSKSLNIFGSSWSVRPMFTQGNWTEETLLGSSVLQLNPAIPGVFGGPYPFGIDPIWNIATNKLTFLNSFKMKMSVILGIIHMLFGVSLSLFNHIYFKKPLNIYFGFIPEIIFMSSLFGYLVILIFYKWTAYDAHSSRNAPSLLIHFINMFLFSYPESGNAMLYSGQKGIQCFLIVVAMLCVPWMLLFKPLILRHQYLRKKHLGTLNFGGIRVGNGPTEEDAEIIQHDQLSTHSEDAEEFDFGDTMVHQAIHTIEYCLGCISNTASYLRLWALSLAHAQLSEVLWTMVIHIGLHVRSLAGGLGLFFIFAAFATLTVAILLIMEGLSAFLHALRLHWVEFQNKFYTGTGFKFLPFSFEHIREGKFD

Entity 7 polymer

描述 description	V-type proton ATPase subunit e 2
分子量 formula_weight	9203.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MTAHSFALPVIIFTTFWGLIGIAGPWFVPKGPNRGVIITMLVATAVCCYLFWLIAILAQLNPLFGPQLKNETIWYVRFLWE

Entity 8 polymer

描述 description	Ribonuclease kappa
分子量 formula_weight	11000.0 kDa
EC 编号 ec_number	3.1.-.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MASLLCCGPKLAACGIVLSAWGVIMLIMLGIFFNVHSAVLIEDVPFTEKDFENGPQNIYNLYEQVSYNCFIAAGLYLLLGGFSFCQVRLNKRKEYMVR

Entity 9 polymer

描述 description	;V-type proton ATPase 21 kDa proteolipid subunit c'' ;
分子量 formula_weight	21618.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MTGLELLYLGIFVAFWACMVVVGICYTIFDLGFRFDVAWFLTETSPFMWSNLGIGLAISLSVVGAAWGIYITGSSIIGGGVKAPRIKTKNLVSIIFCEAVAIYGIIMAIVISNMAEPFSATEPKAIGHRNYHAGYSMFGAGLTVGLSNLFCGVCVGIVGSGAALADAQNPSLFVKILIVEIFGSAIGLFGVIVAILQTSRVKMGD

Entity 10 polymer

描述 description	V-type proton ATPase 16 kDa proteolipid subunit c
分子量 formula_weight	15815.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	9

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,h,i,j,k,l,m,n,o

MADIKNNPEYSSFFGVMGASSAMVFSAMGAAYGTAKSGTGIAAMSVMRPELIMKSIIPVVMAGIIAIYGLVVAVLIANSLTDGITLYRSFLQLGAGLSVGLSGLAAGFAIGIVGDAGVRGTAQQPRLFVGMILILIFAEVLGLYGLIVALILSTK

Entity 11 polymer

描述 description	V-type proton ATPase subunit F
分子量 formula_weight	13389.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MAGRGKLIAVIGDEDTVTGFLLGGIGELNKNRHPNFLVVEKDTTINEIEDTFRQFLNRDDIGIILINQYIAEMVRHALDAHQRSIPAVLEIPSKEHPYDAAKDSILRRAKGMFTAEDLR

Entity 12 polymer

描述 description	V-type proton ATPase subunit d 1
分子量 formula_weight	40341.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MSFFPELYFNVDNGYLEGLVRGLKAGVLSQADYLNLVQCETLEDLKLHLQSTDYGNFLANEASPLTVSVIDDKLKEKMVVEFRHMRNHAYEPLASFLDFITYSYMIDNVILLITGTLHQRSIAELVPKCHPLGSFEQMEAVNIAQTPAELYNAILVDTPLAAFFQDCISEQDLDEMNIEIIRNTLYKAYLESFYKFCTLLGGTTADAMCPILEFEADRRAFIITINSFGTELSKEDRAKLFPHCGRLYPEGLAQLARADDYEQVKNVADYYPEYKLLFEGAGSNPGDKTLEDRFFEHEVKLNKLAFLNQFHFGVFYAFVKLKEQECRNIVWIAECIAQRHRAKIDNYIPIF

Entity 13 polymer

描述 description	V-type proton ATPase subunit S1
分子量 formula_weight	51046.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MMAATVVSRIRTGTGRAPVMWLSLSLVAVAAAVATEQQVPLVLWSSDRNLWAPVADTHEGHITSDMQLSTYLDPALELGPRNVLLFLQDKLSIEDFTAYGGVFGNKQDSAFSNLENALDLAPSSLVLPAVDWYAISTLTTYLQEKLGASPLHVDLATLKELKLNASLPALLLIRLPYTASSGLMAPREVLTGNDEVIGQVLSTLKSEDVPYTAALTAVRPSRVARDITMVAGGLGRQLLQTQVASPAIHPPVSYNDTAPRILFWAQNFSVAYKDEWKDLTSLTFGVENLNLTGSFWNDSFAMLSLTYEPLFGATVTFKFILASRFYPVSARYWFAMERLEIHSNGSVAHFNVSQVTGPSIYSFHCEYVSSVSKKGNLLVTNVPSVWQMTLHNFQIQAFNVTGEQFSYASDCAGFFSPGIWMGLLTTLFMLFIFTYGLHMILSLKTMDRFDDHKGPTITLTQIV

Entity 14 polymer

描述 description	Renin receptor cytoplasmic fragment
分子量 formula_weight	39128.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MAVLVVLLFFLVAGALGNEFSILRSPGSVVFRNGNWPIPGDRIPDVAALSMGFSVKEDLSWPGLAVGNLFHRPRATIMVMVKGVDKLALPAGSVISYPLENAVPFSLDSVANSIHSLFSEETPVVLQLAPSEERVYMVGKANSVFEDLSVTLRQLRNRLFQENSLLNSLPLNSLSRNNEVDLLFLSELQVLHDISSLLSRHKHLAKDHSPDLYSLELAGLDELGKRYGEDSEQFRDASKILVDALQKFADDMYSLYGGNAVVELVTVKSFDTSLVRKSRTILEAKQENTQSPYNLAYKYNLEYSVVFNLVLWIMIGLALAVIITSYNIWNMDPGYDSIIYRMTNQKIRID

Entity 15 polymer

描述 description	V-type proton ATPase catalytic subunit A
分子量 formula_weight	68402.9 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,0,2

MDFSKLPKIRDEDKESTFGYVHGVSGPVVTACDMAGAAMYELVRVGHSELVGEIIRLEGDMATIQVYEETSGVSVGDPVLRTGKPLSVELGPGIMGAIFDGIQRPLSDISSQTQSIYIPRGVNVSALSRDIKWEFIPSKNLRVGSHITGGDIYGIVNENSLIKHKIMLPPRNRGSVTYIAPPGNYDASDVVLELEFEGVKEKFSMVQVWPVRQVRPVTEKLPANHPLLTGQRVLDALFPCVQGGTTAIPGAFGCGKTVISQSLSKYSNSDVIIYVGCGERGNEMSEVLRDFPELTMEVDGKVESIMKRTALVANTSNMPVAAREASIYTGITLSEYFRDMGYHVSMMADSTSRWAEALREISGRLAEMPADSGYPAYLGARLASFYERAGRVKCLGNPEREGSVSIVGAVSPPGGDFSDPVTSATLGIVQVFWGLDKKLAQRKHFPSVNWLISYSKYMRALDEYYDKHFTEFVPLRTKAKEILQEEEDLAEIVQLVGKASLAETDKITLEVAKLIKDDFLQQNGYTPYDRFCPFYKTVGMLSNMISFYDMARRAVETTAQSDNKITWSIIREHMGEILYKLSSMKFKDPVKDGEAKIKADYAQLLEDMQNAFRSLED

Entity 16 polymer

描述 description	V-type proton ATPase subunit B, brain isoform
分子量 formula_weight	56611.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,4,5

MALRAMRGIVNGAAPELPVPTGGPMAGAREQALAVSRNYLSQPRLTYKTVSGVNGPLVILDHVKFPRYAEIVHLTLPDGTKRSGQVLEVSGSKAVVQVFEGTSGIDAKKTSCEFTGDILRTPVSEDMLGRVFNGSGKPIDRGPVVLAEDFLDIMGQPINPQCRIYPEEMIQTGISAIDGMNSIARGQKIPIFSAAGLPHNEIAAQICRQAGLVKKSKDVVDYSEENFAIVFAAMGVNMETARFFKSDFEENGSMDNVCLFLNLANDPTIERIITPRLALTTAEFLAYQCEKHVLVILTDMSSYAEALREVSAAREEVPGRRGFPGYMYTDLATIYERAGRVEGRNGSITQIPILTMPNDDITHPIPDLTGYITEGQIYVDRQLHNRQIYPPINVLPSLSRLMKSAIGEGMTRKDHADVSNQLYACYAIGKDVQAMKAVVGEEALTSDDLLYLEFLQKFEKNFITQGPYENRTVYETLDIGWQLLRIFPKEMLKRIPQSTLSEFYPRDSAKH

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	32181
