9c0q

Carbon monoxide dehydrogenase (CODH) from Methanosarcina thermophila, specimen prepared on blot plunger

Method: ELECTRON MICROSCOPY D_max: 125.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

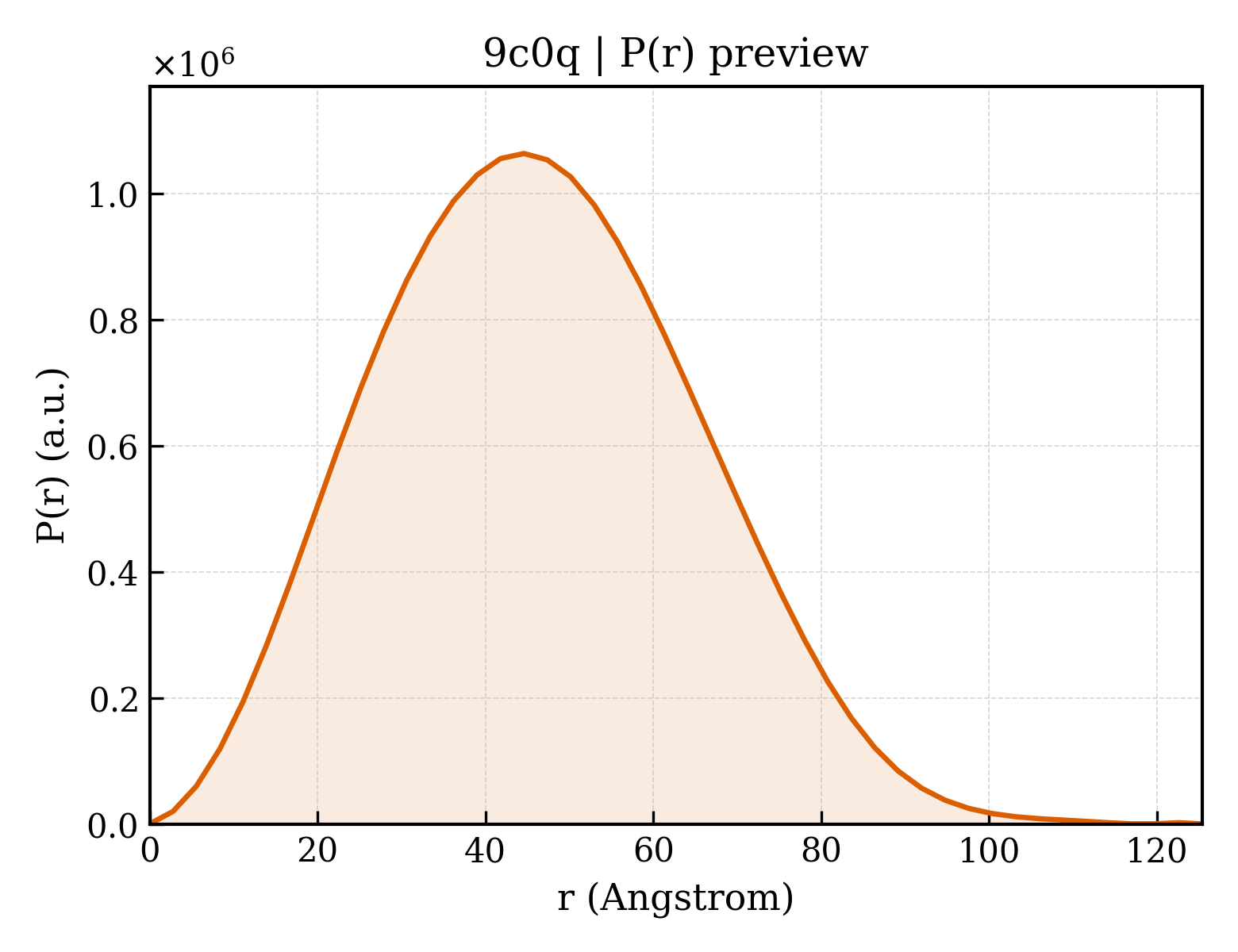

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9c0q
沉积日期 deposition_date	2024-05-27
最后修订 last_revision	2024-10-16
结构标题 title	Carbon monoxide dehydrogenase (CODH) from Methanosarcina thermophila, specimen prepared on blot plunger
关键词 keywords	CO-dehydrogenase, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.46 Å
回转半径 Rg (电子) rg_electron	35.07 Å
零角强度 I(0) i0	659965000.00
分子量 molecular_weight	205770.0 kDa
排除体积 excluded_volume	255760 Å³
包络体积 envelope_volume	303760 Å³
水化壳体积 shell_volume	67265 Å³
包络直径 envelope_diameter	142.9 Å
壳层 Rg shell_rg	44.79 Å
包络 Rg envelope_rg	35.49 Å
形状 Rg shape_rg	35.18 Å
总 Rg total_rg	35.24 Å
总原子数 total_atoms	14262
残基数 n_residues	1852
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	125.4 Å
Rg (实空间) rg_real	35.29 Å
Rg 误差 (实空间) rg_real_error	0.95 Å
I(0) (实空间) i0_real	6.6000e+08
I(0) 误差 (实空间) i0_real_error	1.1660e+07
Rg (倒空间) rg_reciprocal	35.40 Å
I(0) (倒空间) i0_reciprocal	660000000.0000
解质量估计 total_estimate	0.6346
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.6 Å
偏度 Skewness skewness	0.222
峰度 Kurtosis kurtosis	-0.321
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	239400000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.692; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.999; Smooth: 0.984

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Acetyl-CoA decarbonylase/synthase complex subunit alpha 2
分子量 formula_weight	87855.9 kDa
EC 编号 ec_number	1.2.7.4
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	14262

MSKLTTGSFSIEDLESVQITINNIVGAAKEAAEKAEEELGPMGPTPFPTAATVRDWSFTLFDRYEPVYTPMCDQCCYCTFGPCNLEGNRRGACGLDMKGQAAREFFLRCITGCACHSAHGRHLLDHIISIFGEDMPINMGASNVIAPNIQLITGRQPKTLGDLKPIMEYVEEELGQLLATVHAGQEGAAIDYDNKAMLAGILDHVGMEVSDIAQVTALGFPKSDPEAPLVEVGMGTLDASKPVIIAIGHNVAGVTYIMDYMEDNNLTDKMEIGGLCCTAFDMTRYKREDRKPPYAKIVGTISKELKVVRSGIPDVIVIDEQCVRADLVEEGKKLKIPVIASNEKVMYGLPDRTNDDVDAIIEDIKTGKIPGCVMLDYEKLGELVPRLAMEMAPLREGISAIPSDEEMASLVAKCVACGECALACPEELDIPDAIQAAKEGDFTALDFLHDLCVGCRRCEQVCNKEIPILSVIDKAAQKAIAEEKGLVRAGRGQVSDAEIRAEGLNLVMGTTPGVIAIIGCANYPAGSKDVYRIAEEFLNRNYIVAVSGCSAMDIGMYKDADGKTLYERFPGRFERGNILNTGSCVSNSHISGTCHKVAAIFAGRNLSGNLAEIADYTLNRVGAVGLAWGAYSQKAAAIGTGCNMYGIPAVLGPHSGKYRRALIAKTYDENKWKVYDSRNGSELDIPPSPEFLITTAETWQEACVLLAKNCIRPSDNNMGRSIKLTHWIELSEKYLGVLPEDWWKFVRHEADLPLSRREELLKKLETEHGWEIDWKKKKIISGPKIKFDVSSQPTNLKRLCKEA

Entity 2 polymer

描述 description	Acetyl-CoA decarbonylase/synthase complex subunit epsilon 2
分子量 formula_weight	18587.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MVDTTKNTKLFTSYGVKTSKAITTEVAAKLISKAKRPLFVVGTGVLDPELLDRAVKIAKAKNIPIAATGSSMPGFVDKDVNAKYINLHQLGFYLTDPDWPGLDGNGNYDTIILLGHKKYYINQVLSAVKNFSDVKSISIDRNYIQNATMSFGNLSKADHIAALDEVIDLL

Entity 3 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 4 non-polymer

描述 description	Fe(3)-Ni(1)-S(4) cluster
分子量 formula_weight	410.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	99894
