9c3c

Cryo-EM structure of native dystrophin-glycoprotein complex (DGC)

Method: ELECTRON MICROSCOPY D_max: 237.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

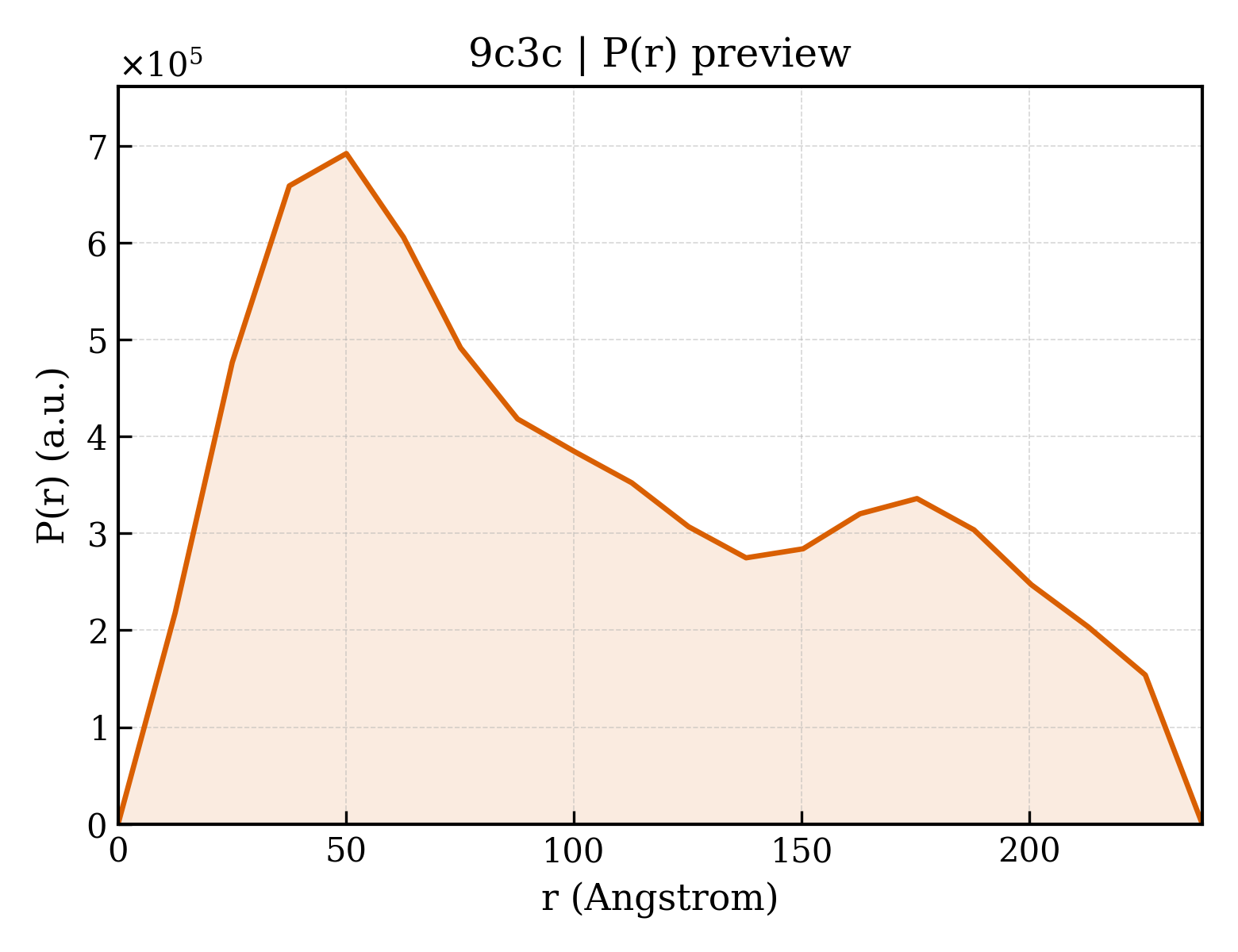

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9c3c
沉积日期 deposition_date	2024-05-31
结构标题 title	Cryo-EM structure of native dystrophin-glycoprotein complex (DGC)
关键词 keywords	beta-helix, sarcolemma, glycosylation, muscular dystrophy, membrane protein; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	83.47 Å
回转半径 Rg (电子) rg_electron	84.60 Å
零角强度 I(0) i0	1069370000.00
分子量 molecular_weight	277520.0 kDa
排除体积 excluded_volume	348540 Å³
包络体积 envelope_volume	637120 Å³
水化壳体积 shell_volume	72258 Å³
包络直径 envelope_diameter	280.4 Å
壳层 Rg shell_rg	58.99 Å
包络 Rg envelope_rg	82.41 Å
形状 Rg shape_rg	84.58 Å
总 Rg total_rg	84.15 Å
总原子数 total_atoms	19475
残基数 n_residues	2458
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	237.9 Å
Rg (实空间) rg_real	82.97 Å
Rg 误差 (实空间) rg_real_error	1.64 Å
I(0) (实空间) i0_real	1.0590e+09
I(0) 误差 (实空间) i0_real_error	2.2530e+07
Rg (倒空间) rg_reciprocal	77.62 Å
I(0) (倒空间) i0_reciprocal	1052000000.0000
解质量估计 total_estimate	0.6712
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	50.1 Å
偏度 Skewness skewness	0.439
峰度 Kurtosis kurtosis	-1.007
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.0516
最高正则化参数 α highest_alpha	32490000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.452; Stabil: 0.984; Sysdev: 1.000; Positv: 1.000; Valcen: 0.348; Smooth: 0.006

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	Alpha-dystroglycan
分子量 formula_weight	67623.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	19475

HWPSEPSEAVRDWENQLEASMHSVLSDLHEALPTVVGIPDGTAVVGRSFRVTIPTDLIGSSGEVIKVSTAGKEVLPSWLHWDPQSHTLEGLPLDTDKGVHYISVSAAQLDANGSHIPQTSSVFSIEVYPEDHSEPQSVRAASPDLGEAAASACAAEEPVTVLTVILDADLTKMTPKQRIDLLHRMQSFSEVELHNMKLVPVVNNRLFDMSAFMAGPGNAKKVVENGALLSWKLGCSLNQNSVPDIRGVEAPAREGTMSAQLGYPVVGWHIANKKPPLPKRIRRQIHATPTPVTAIGPPTTAIQEPPSRIVPTPTSPAIAPPTETMAPPVRDPVPGKPTVTTRTRGAIIQTPTLGPIQPTRVSDAGTVVSGQIRATVTIPGYVEPTAVATPPTTTTKKPRVSTPKPATPSTDSSATTTRRPTKKPRTPRPVPRVTTKAPITRLETASPPTRIRTTTSGVPRGGEPNQRPELKNHIDRVDAWVGTYFEVKIPSDTFYDKEDTTTDKLKLTLKLREQQLVGEKSWVQFNSNSQLMYGLPDSSHVGKHEYFMHATDKGGLSAVDAFEIHVHKRPQGDKAPARFKAKFVGDPAPVVNDIHKKIALVKKLAFAFGDRNCSTVTLQNITRG

Entity 2 polymer

描述 description	Beta-dystroglycan
分子量 formula_weight	15714.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

SIVVEWTNNTLPLEPCPKEQITGLSRRIAEDNGQPRPAFTNALEPDFKATSIAITGSGSCRHLQFIPVAPPGIPSSVTPPTEVPDRDPEKSSEDDVYLHTVIPAVVVAAILLIAGIIAMICYRKKRKGKLTLEDQATFIKKGVPI

Entity 3 polymer

描述 description	Dystrophin
分子量 formula_weight	427942.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MLWWEEVEDCYEREDVQKKTFTKWINAQFSKFGKQHIENLFSDLQDGRRLLDLLEGLTGQQLPKEKGSTRVHALNNVNKALRVLQKNNVDLVNIGSTDIVDGNHKLTLGLIWNIILHWQVKNVMKNIMAGLQQTNSEKILLSWVRQSTRNYSQVNVINFTTSWSDGLALNALIHSHRPDLFDWNSVVCQQSATQRLEHAFNIAKCQLGIEKLLDPEDVATTYPDKKSILMYITSLFQVLPQQVSIEAIQEVELLPRPSKVTREEHFQLHHQMHYSQQITVSLAQGYERTSSPKPRFKSYAYTQAAYVSTSDPTRSPFPSQHLEAPGDKSFGSSLMETEVSLDSYQTALEEVLSWLLSAEDTLQAQKEISSDVEEVKEQFHTHEGYMMDLTSHQGRVGNVLQLGSQLIRTGKLSEEEETEVQEQMNLLNSRWECLRVASMEKQSNLHKVLMDLQNQKLKELNDWLTKTEERTRKMEEEPLGPDLEDLKRQVQQHKVLQEDLEQEQVRVNSLTHMVVVVDESSGEHATAALEEQLKVLGDRWANICRWTEDRWVLLQDILLKWQRFTEEQCLFSTWLSEKEDAVNKIHTTGFKDQNEMLSSLHKLTVLKTDLEKKKQSMDKLSSLNQALLSTLKNKSVTQKMEAWLENFALRWDNLVQKLEKSSAQISQAVTTTQPSLTQTTVMETVTMVTTREQILVKHAQEELPPPPPQKKRQIIVDSEIRKRLDVDITELHSWITRSEAVLQSPEFAIYRKEGNFSDLKEKVNAIEREKAEKFRKLQDASRSAQALVEQMVNEGVNADSIKQALEQLNSRWIEFCQLLSERLHWLEYQNSIITFYNQLQQLEQMITTAENWLKTQPTTASEPTAIKSQLKMCKDEVNRLSALQPQIERLKIQSTALKEKGQGPMFLDADFVAFTNHFNQVFADAQAREKELQTIFDTLPPTRYQETISTIRTWIQQSEPKLSIPQLSVTEYEIMEQRLGELQALQSSLQEQQSGLTYLSTTVKEMAKKAPSEISRKYQSEFEEIEGHWKKLSYQLVDHCQKLEEQMNKLRKIQNHIKTLKKWMAEVDVFLKEEWPALGDSEILKKQLKQCRLLVNDIQTIQPSLNSVNESGQKIKNEAEPEFASRLETELRELNSQWDHMCRQVYTRKDALKAGLDKTLSLQKDLSEMHEWMTQAEEEYLERDFEYKTPDELQTAVEEMKRAKEEAQQKESKVKLLTESVNSVIAQAPPAAQEALKKELDTLTTNYQWLCTRLNGKCKTLEEVWACWHELLSYLEKANKWLNEVEVKLKTTETLPGGAEEISEVLDSLENLMQHSEDNPNQIRILAQTLTDGGVMDELINEELETFNSRWRELHEEAVRRQKLLEQSIQSAQEIEKSLHLIQESLAFIDKQLAAYIADKVDAAQMPQEAQKIQSDLTSHEISLEEMKKHNQGKEAAQRVLSQIDVAQKKLQDVSMKFRLFQKPANFEQRLEESKMILDEVKMHLPALETKSVEQEVVQSQLNHCVNLYKSLSEVKSEVEMVIKTGRQIVQKKQTENPKELDERVTALKLHYNELGAKVTERKQQLEKCLKLSRKMRKEMNALTEWLAATDMELTKRSAVEGMPSNLDAEIAWGKATQKEVEKQKAHLKSVIELGEALKTVLGKKETLVEDKLSLLNSNWVAVTSRAEEWLNLLLEYQKHMETFDQNVDHITKWIIQADTLLDESEKKKPQQKEDVLKRLKAEMNDIRPKVDSIRDQAANLMANRGDHCRKVVEPKISELNHRFAAISHRIKTGKASIPLKELEQFNSDIQKLLEPLEAEIQQGVNLKEEDFNKDMSEDNEGTVKELLQRGDNLHERITDERKREEIKIKQQLLQTKHNALKDLRSQRRKKALEISHQWYQYKRQADDLLKCLDDIEKKLASLPDPKDERKIKEIDRELQKKKEELNAVHRQAEGLSEDGAAMAVEPIQIQLSKRWREIESKFAQFRRLNFAQIHTVREETMVVMTEDMPLEISYVPSTYLTEITHVSQALSEVDQLLNAPDLSAKDFEDLFKQEESLKNIKECMQQISGRIDVIHNKKAAALQSATAAERVKLQEALAQLDSQWEKVNKMYKDRQGRFDRSVEKWRRFHYDMKIFNQWLTEAEQFLKKTQIPENWEHAKYKWYLKELQDGIGQRQTVVRTLNTTGEEIIQQSSKTDANILQEKLGNLNLRWQEVCKQLAERRKRLEEQKNILSEFQRDLNEFVLWLEEADNITSIPLEPGNEQQLKEKLEQVKLLAEELPLRQGILKQLNEAGGTALVSAPISPEEQDKLENKLKQTNLQWIKVSKALPEKQEEIVAHVKELGQLEEQLNHLLLWLTPIRNQLEIYNQPNQTGPFDIKETEVAVQAKQPDVERILSKGQHLYKEKPATQPVKRKLEDLSSEWKVVNYLLQELRAKRPDLPPGPATIGASPSQTVTLVTQTVVTKEISLSELEMPSSLLLEVPALADFNRAWTELTDWLSLLDRVLKSQQVIVGDLEDINEMIIKQKATLQELEQRRPQLEELITAAQNLKNKTSNQEARTIITDRIERIQNQWDEVQEHLQNRRQQLNEMLKDSTQWLEAKEEAEQVLGQARAKLESWKEGPYTMDALQKKIEETKQLAKDLRQWQINVDVANDLALKLLRDYSADDTRKVHMITENINASWGSIHKRVNEREATLEEAYRLLQQFPLDLEKFLAWLTEAETTANVLQDATHKERLPEDSKGVRELMKQWQDLQGEIEAHTDIYHNLDENGQKILRSLEGSDEAVLLQRRLDNMNFKWSELRKKSLNIRSHLEASSDQWKRLHLSLQELLVWLQLKDDELNRQAPVGGDFPAVQKQNDVHRAFKRELKTKEPVIMSTLETVRIFLTEQPLGGLEKLYQEPRELPPDERAQNVTRLLRKQAEEVNAEWEKLNLHSTDWQRKLDEALERLQELQEATDELDLKLRQAEVIKGSWQPVGDLLIDSLQDHLEKVKALRGEIAPLKENVSHVNDLGRQLTTLGIQLSPYNLSTLEDLNTRWKLLQVAVEDRIRQLHEAHRDFGPASQHFLSTSVQGPWERAISPNKVPYYINHETQTTCWDHPKMTELYQSLADLNNVRFSAYRTAMKLRRLQKALCLDLLTLSAACDALDQHNLKQNDQPMDILQIINCLTTVYDRLEQEHNNLVNVPLCVDMCLNWLLNVYDTGRTGRIRVLSFKTGIISLCKAHLEDKYRYLFKQVASSTGFCDQRRLGLLLHDSIQIPRQLGEVASFGGSNIEPSVRSCFQFANNKPEIEAALFLDWMRLEPQSMVWLPVLHRVAAAETAKHQAKCNICKECPIIGFRYRSLKHFNYDICQSCFFSGRVAKGHKMHYPMVEYCTPTTSGEDVRDFAKVLKNKFRTKRYFAKHPRMGYLPVQTVLEGDNMETPVTLINFWPVDSAPASSPQLSHDDTHSRIEHYASRLAEMENSNGSYLNDSISPNESIDDEHLLIQHYCQSLNQDSPLSQPRSPAQILISLESEERGELERILADLEEENRNLQAEYDRLKQQHEHKGLSPLPSPPEMMPTSPQSPRDAELIAEAKLLRQHKGRLEARMQILEDHNKQLESQLHRLRQLLEQPQAEAKVNGTTVSSPSTSLQRSDSSQPMLLRVVGSQTSESMGEEDLPSPPQDTSTGLEEVMEQLNNSFPSSRGHNVGSLFHMADDLGRAMESLVSVMTDEEGAE

Entity 4 polymer

描述 description	Alpha-sarcoglycan
分子量 formula_weight	35969.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

QQTTLYPLVGRVFVHTLEPASFLHLPEHAAPATIPVTYHAHLQGHPDLPRWLRYTQRSPHHPGFLYGAATPEDRGRQVIEVTAYNRDSFDTAGQSLVLLIRDPEGSPLPYQTEFLVRSHDVEEVLPPTPASHFLTALAGLWEPGELKLLNITSALDRGGRVPLPIGGQKEGVYIKVGSASPFSTCLKMVASPDSHARCARGQPPLLSCYDTLAPHFRVDWCNVSLVDTSVPEPVDEVPTPGDGILEHDPFFCPPTEATARDFLADALVTLLVPLLVALLLALLLAYIMCCRREGRLKRDLATSDIQMVHHCTIHENTEELRQMAAS

Entity 5 polymer

描述 description	Beta-sarcoglycan
分子量 formula_weight	34768.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MAAAAAAAAEQQSSNGPVKKSMREKAVERRNVNKEHNSNFKAGYIPIDEDRLHKTGLRGRKGNLAICVIVLLFLLAVINLIITLVIWAVIRIGPNGCDSMEFHESGLLRFKQVSDMGVIHPLYKSTVGGRRNENLVITGNNQPIVFQQGTTKLSVEKNKTSITSDIGMQFFDPRTQNILFSTDYETHEFHLPSGVKSLNVQKASTERITSNATSDLNIKVDGRAIVRGNEGVFIMGKTIEFHMGGNMELKAENSIILNGTVMVSTTRLPSSSSADQLGGGDWVRYKLCMCADGTLFKVQVTGQNVGCQVSDNPCGNTH

Entity 6 polymer

描述 description	Sarcoglycan delta
分子量 formula_weight	32142.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MPQEQYTHHRSTMPSAEGPQVYKVGIYGWRKRCLYFFVLLLMILILVNLAMTIWILKVMNFTIDGMGNLRITEKGLKLEGDSEFLQPLYAKEIQSRPGNALYFKSARNVTVNILNDQTKVLTQLITGPKAVEAYGKKFEVKTVSGKLLFSADDNEVVVGAERLRVLGAEGTVFPKSIETPNVRADPFKELRLESPTRALVMEAPKGVEINAEAGNMEATCRTELRLESKDGEIKLDAAKIKLPRLPHGSYTPTGTRQKVFEICVCANGRLFLSQAGTGSTCQINTSVCL

Entity 7 polymer

描述 description	Gamma-sarcoglycan
分子量 formula_weight	32005.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MAGEQYLTATEGTHIERPENQCVYKIGIYGWRKRCLYLLVLLLLIILVVNLALTIWILKVMWFSPTGMGHLHVTKDGLRLEGESEFLFPLYAKEIHSRVDSSLLLQSTQNVTVNARNSDGEVTGRLKVGPQMVEVQSQQFQINSREGKSLFTVDEEEVVVGTDRLRVTGPEGALFEHSVETPLVTADPFQDLRLESPTRSLSMDAPRGVHIEAHAGEVEALSQMDIVLHSSDGTLVLDAETVCLPKLLQGTQAASGSSQGLYEICVCPDGKLYLSVAGAGTTCQEHSHICL

Entity 8 polymer

描述 description	Sarcospan
分子量 formula_weight	26058.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MGKDRQPRGQQRQGDAAGPDDPGPKKGAGTREQRGEEEAQTCCGCRFPLLLALLQLALGVAVTVVGFLMASVSSSLLVRATPYWAGIIVCVVAYLGLFMLCVSYQVDERTCIQFSMKLLYFVLSALGLVVCVLAVAFAAHHYSLLTHLTCENAPDSCQCKLPSSEPLSRTFVYRDVTDCTSITGTFQVFLLVQMVLNLVCGLVCLVACFVMWKHRYQVFYVGVRMCPLSASEGQQQKV

Entity 9 polymer

描述 description	Dystrobrevin
分子量 formula_weight	92647.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MIEDSGKRGNTMAERRQLFAEMRAQDLDRIRLSTYRTACKLRFVQKKCNLHLVDIWNVIEALRENALNNLDPNTELNVARLEAVLSTIFYQLNKRMPTTHQIHVEQSISLLLNFLLAAFDPEGHGKISVFAVKMALATLCGGKIMDKLRYIFSMISDSSGVMVYGRYDQFLREVLKLPTAVFEGPSFGYTEQSARSCFSQQKKVTLNGFLDTLMSDPPPQCLVWLPLLHRLANVENVFHPVECSYCHSESMMGFRYRCQQCHNYQLCQDCFWRGHAGGSHSNQHQMKEYTSWKSPAKKLTNALSKSLSCASSREPLHPMFPDQPEKPLNLAHIVPPRPVTSMNDTLFSHSVPSSGSPFITRRLPEGISAASPVAEEHSLIKLYVNQLDHGARSPPKDSEVEQNKMLARAAPAFLKGKGIQYSLNVADRLADEHVLIGLYVNMLRNNPSCMLESSNRLDEEHRLIARYAARLAAESSSSQPTQQRSAPDISFTIDANKQQRQLIAELENKNREILQEIQRLRLEHEQASQPAPEKAQQNPTLLAELRLLRQRKDELEQRMSALQESRRELMVQLEGLMKLLKEEELKQGTQGASSPRSSPSHTISRPIPMPIRSASACSTPTHTPQDSLTGVGGDVQEAFAQSSRRNLRNDLLVAADSITNTMSSLVKELNSEVGSETESNVDSEFTRTQFEDLVPSPTSEKAFLAQIQARKPGYIHSGATTSTVRSDMVTEDGDSYVRPEDENYDSDSVRQLENELKMEEYLKQKLQDEAYQLHVSTETRLKHPCPVTETKWHVLFWVFVFFGGLLSLALQIYFWGLF

Entity 10 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 11 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 12 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	134481
