1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9c4k
沉积日期 deposition_date	2024-06-04
结构标题 title	Yersinia entomophaga holotoxin complex in prepore conformation
关键词 keywords	Toxin, pore-forming, insecticidal, chitinases; TOXIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	106.50 Å
零角强度 I(0) i0	49034500000.00
分子量 molecular_weight	1898100.0 kDa
排除体积 excluded_volume	2374600 Å³
包络体积 envelope_volume	3892100 Å³
水化壳体积 shell_volume	327870 Å³
包络直径 envelope_diameter	408.5 Å
壳层 Rg shell_rg	94.08 Å
包络 Rg envelope_rg	105.40 Å
形状 Rg shape_rg	106.50 Å
总 Rg total_rg	106.20 Å
总原子数 total_atoms	133938
残基数 n_residues	16909
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	316.1 Å
Rg (实空间) rg_real	100.90 Å
Rg 误差 (实空间) rg_real_error	1.37 Å
I(0) (实空间) i0_real	4.7310e+10
I(0) 误差 (实空间) i0_real_error	1.0250e+09
Rg (倒空间) rg_reciprocal	97.70 Å
I(0) (倒空间) i0_reciprocal	47840000000.0000
解质量估计 total_estimate	0.8975
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	105.4 Å
偏度 Skewness skewness	0.635
峰度 Kurtosis kurtosis	0.020
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.6626
最高正则化参数 α highest_alpha	3620000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.839; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.283

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Toxin subunit YenA1
分子量 formula_weight	129912.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,G,J,M
原子数 atom_count	133938

MDKYNNYSNVIKNKSSISPLLAAAAKIEPEITVLSSASKSNRSQYSQSLADTLLGLGYRSIFDIAKVSRQRFIKRHDESLLGNGAVIFDKAVSMANQVLQKYRKNRLEKSNSPLVPQTSSSTDASSESQTNKLPEYNQLFPEPWDNFCRPGAIEALDSPASYLLDLYKFIQSVELDGSNQARKLETRRADIPKLSLDNDALYKEVTALSIVNDVLSGSAREYIDQSGQADKAVNQILGDTHFPFTLPYSLPTQQINKGLGASNIELGTVIQRVDPQFSWNTTQEKYNQVLLAYTQLSSEQIALLSLPDVFTQNFLTQTELSAGYLSASTTEILAEKDLSRHGYIVKAADNIKGPTQLVEHSDASYDVIELTCTNQAKETITVKLRGENIITYQRTKARMVPFDNSSPFSRQLKLTFVAEDNPSLGNLDKGPYFANMDIYAAEWVRENVSSETMVSRPFLTMTYRIAIAKAGASLEELQPEADAFFINNFGLSAEDSSQLVKLVAFGDQTGSKAEEIESLLSCGENLPIVSPNVIFANPIFGSYFNDEPFPAPYHFGGVYINAHQRNAMTIIRAEGGREIQSLSNFRLERLNRFIRLQRWLDLPSHQLDLLLTSVMQADADNSQQEITEPVLKSLGLFRHLNLQYKITPEIFSSWLYQLTPFAVSGEIAFFDRIFNREQLFDQPFILDGGSFTYLDAKGSDAKSVKQLCAGLNISAVTFQFIAPLVQSALGLEAGTLVRSFEVVSSLYRLVSIPQTFGLSTEDGLILMNILTDEMGYLAKQPAFDDKQTQDKDFLSIILKMEALSAWLTKNNLTPASLALLLGVTRLAVVPTNNMVTFFKGIANGLSENVCLTTDDFQRQELEGADWWTLLSTNQVIDDMGLVLDIHPVWGKSDEEMLMEKIQSIGVSNDNNTLSIIVQILIQAKNAQENLLSQTISAEYGVERSVVPLQLRWLGSNVYSVLNQVLNNTPTDISSIVPKLSELTYSLLIYTQLINSLKLNKEFIFLRLTQPNWLGLTQPKLSTQLSLPEIYLITCYQDWVVNANKNEDSIHEYLEFANIKKTEAEKTLVDNSEKCAELLAEILAWDAGEILKAASLLGLNPPQATNVFEIDWIRRLQTLSEKTMISTEYLWQMGDLTENSEFSLKEGVGEAVMAALKAQGDSDNV

Entity 2 polymer

描述 description	Toxin subunit YenA2
分子量 formula_weight	156324.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E,H,K,N

MSNSIEAKLQEDLRDALVDYYLGQIVPNSKDFTNLRSTIKNVDDLYDHLLLDTQVSAKVITSRLSLVTQSVQQYINRIALNLEPGLSINQQEATDWEEFANRYGYWAANQQLRMFPEIYVDPTLRLTKTEFFFQLESALNQGKLTDDVAQKAVLGYLNNFEEVSNLEIIAGYQDGIDIENDKTYFVARTRMQPYRYFWRSLDASQRNANSQELYPTAWSEWKAISVPLENVANGIVRPIMMDNRLYISWFEVAEEKETDSDGNIIVSGRYRTKIRLAHLGFDGVWSSGTTLREEVLADQMEEMIAVVDRMEDEPRLALVAFKEMSESWDVVFSYICDSMLIESSNLPTTTHPPKPGDGDKGLSDLDDYGANLVWFYLHETANGGKAEYKQLILYPVIINRDWPIELDKTHQGDFGTVDDFTLNSNYTGDELSLYLQSSSTYKYDFSKSKNIIYGIWKEDANNNRCWLNYKLLTPEDYEPQINATLVMCDKGDVNIITGFSLPNGGVDAGGKIKVTLRVGKKLRDKFQIKQFSQTQYLQFPEASSADVWYIGKQIRLNTLFAKELIGKASRSLDLVLSWETQNSRLEEAILGGAAELIDLDGANGIYFWELFFHMPFMVSWRFNVEQRYEDANRWVKYLFNPFECEDEPALLLGKPPYWNSRPLVDEPFKGYSLTQPSDPDAIAASDPIHYRKAVFNFLTKNIIDQGDMEYRKLQPSARTLARLSYSTASSLLGRRPDVQLTSFWQPLTLEDASYKTDSEIRAIEMQSQPLTFEPVVHDQTMSAVDNDIFMYPMNNELRGLWDRIENRIYNLRHNLTLDGKEINMDLYDSSISPRGLMKQRYQRVVTARNASKMNFKVPNYRFEPMLNRSKSGVETLIQFGSTLLSLLERKDSLSFDAYQMIQSGDLYRFSIDLQQQDIDINKASLEALQVSKQSAQDRYDHFKELYDENISSTEQKVIELQSQAANSLLMAQGMRTAAAALDVIPNIYGLAVGGSHWGAPLNAAAEIIMIKYQADSSKSESLSVSESYRRRRQEWELQYKQAEWEVNSVEQQINLQNMQIKAANKRLEQVEAQQQQAMALLDYFSERFTNESLYTWLISQLSSLYLQAYDAVLSLCLSAEASLLYELNLGEQSFVGGGGWNDLYQGLMAGETLKLALMRMERVYVEQNSRRQEITKTISLKALLGESWPAELNKLKQKTPINFNLEEQIFVEDYQELYQRRIKSVSVSLPMLVGPYEDVCAQLTQTSSSYSTRADLKTVENMLTKRTFADTPHLVRSIQPNQQISLSTGVNDSGLFMLNFDDERFLPFEGSGVDSSWRLQFTNLKQNLDSLNDVILHVKYTAAIGSSTFSQGVRKILANINNDE

Entity 3 polymer

描述 description	Chitinase 2
分子量 formula_weight	69740.6 kDa
EC 编号 ec_number	3.2.1.14
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F,I,L,O

MVNKYTYTSSKAMSDISDVIGEPLAAWDSQVGGRVFNVIFDGKVYTNTYWVERWQVPGIGSSDGNPHNAWKFVRAATADEINKIGNPTTADVKPTENIPSPILVEDKYTEETYSRPDVNFKEDGSQGNLSYTATRVCAPMYNHYVGDKTKPKLSAYITDWCQYDARLDGGGSKEEERGRGFDLATLMQNPATYDRLIFSFLGICGDIGNKSKKVQEVWDGWNAQAPSLGLPQIGKGHIVPLDPYGDLGTARNVGLPPESADTSIESGTFLPYYQQNRAAGLLGGLRELQKKAHAMGHKLDLAFSIGGWSLSSYFSALAENPDERRVFVASVVDFFVRFPMFSCVDIDWEYPGGGGDEGNISSDKDGENYVLLIKELRSALDSRFGYSNRKEISIACSGVKAKLKKSNIDQLVANGLDNIYLMSYDFFGTIWADYIGHHTNLYSPKDPGEQELFDLSAEAAIDYLHNELGIPMEKIHLGYANYGRSAVGGDLTTRQYTKNGPALGTMENGAPEFFDIVKNYMDAEHSLSMGKNGFVLMTDTNADADFLFSEAKGHFISLDTPRTVKQKGEYAAKNKLGGVFSWSGDQDCGLLANAAREGLGYVADSNQETIDMGPLYNPGKEIYLKSISEIKSK

Entity 4 polymer

描述 description	Toxin subunit YenB
分子量 formula_weight	167148.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MQNSQEMAITTLSLPKGGGAINGMGESVGQAGPDGMVTFSIPLPFSAGRGVAPALSLSYSSGAGNGPFGMGWQCSAMSISRRTQKGVPQYNEDDEFLSPSGEVMAIALNDSGFEDVRTANRLQGIPLPFSYKVTRYQPRLIQDFIKIEYWQPVKQTDGTPFWIIYSPDGQTHILGKNSHSRVANAENPSQIASWLLEETVTPTGEHIYYQYSGENQVNCTDAEIALHPQDSAQRYLARIDYGNISPQASLFVLDEELPNLTQWLFHLVFDYGERDISINKIPTFEGGTTGWLARPDMFSRYDFGIEIRNRRLCHQVLGFHRLEALNDRDVTDEIPVLVNRLTLDYDLNNSVSTLVAVRQVAYETDGSPITQPPLEFDYQRFDTGSIPGWQEMPQLEAFNGYQPYQMIDLYGEGTPGILYQETPGAWWYKSPQRQIGGDSNAVTYGAMKALPKIPRLQEGATLMDINGDGRLDWVITSAGVRGFHSIHSTGEWTHFTPLNTLPTEYFHPKAQLADLVGAGLSDLVLIGPKSVRLYANQQGNWAPAQDVTQAENVSLPVIGIDSRQLVAFADMLGSGQQHLVEITADSVKCWPNMGHGRFGQPLTLEGFSQPQTSFNPDRVFLADIDGSGTNDIIYAHSECLEIYLNESGNRFSKPISLLLPDGVNFDNTCQLQAADIQGLGIASLVMTVPHMSPTHWRCDLALNKPWLLNVMNNNRGAETCLFYRSSAQFWLDEKQLVEAAGQQPECHLPFPMHLHWRSEIFDEITGNRLTQEQEYAHGSWDGQEREFRGFGRLIQRDTDGFAQGTVDIPTHPSRTVSWFATGIPEIDTTLSAEFWRGDDQAFSPFSPRFTRWENDSEAGSDVAFIPSEHDAFWLNRAMKGQLLRSELYGDDGTPEAEIPYSVTEMRHQVRALPTTDATVPSAWCSTIETRSYQYQRVAADPQCSQQVVIKADRYGSPLLSVAINYPRRKKPEKSPYPDDLPETLFDSSYDTQQQQLHLTKQQQNYFHLTNDDNWLLGLPKEQRNDGYQYDQERAPANGFTLETLIASNSLIGSNQPFTYLGQSRVAYQGGVDEQPSLQALVAYGETAILDEKTLQAFVGVLDSKTRDELLFSAGYQLAPRLFRVESEPDVWVARQGYSEFGDYSQFWRPLSQRSTLLTGKTTLKWDKHYCVVIETQDAAQLVTQARYDYRFLTPYSLTDANDNQHYVVLNPFGEVIASRFWGTEAGKDAGYSTPQAKPFVVPATIEAALALSPGIPVAHCAIFEPESWMQKLTQHDVSERMADNGTLWNALLQARFVTEDGYVCALGRRRWMARHGLSVLMLTLLAEIPRTPPHSLTITTDRYDSDDQQQLRQRILFSDGFGRLLQSAQRVEAGESWQRSEDSSLVVNVSGTPALVVTDNRWAVSGRTEYDGKGQGIRVYQPYFLDDWRYLSDDSARTDLFADTHIYDPLGREYQVITAKGYRRERQYTPWFVVNQDENDTAANLAI

Entity 5 polymer

描述 description	Toxin subunit YenC2
分子量 formula_weight	107563.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MDIQLFSKTPSVTVFDNRGLSVRDIAYRRHPDTPKVTEECITYHQFDFRGFLAQSLDPRLNHKEVTNFSYLTDLNGNIIYTQSVDAGNTLVLNDTEGRSVIAMTNISRGENGKDDLSLAVTRTFQYENAPLPGRPLSVTEQVNGENARITEHFVYAGNTPQEKNLNLAGQCVSYYDAAGLIQTDSVSLTGKPLSVSRKLLKNLDDTNILADWQGNDTSAWNSLLATEIYTTVTRTDAAGAVLTTIDAVGNQQRVAFDIAGQLSASWLTLKGGQEQVIIKVLTYSAAGQKLREEGGNGVVTTYTYEAETQRLIGIKTERPNGHAAGAKVLQDLRYEYDPVGNVLSITNDAEETRFWRNQKVVPENAYRYDSLYQLVSASGREVAGAGQQGSDLPSPLVPLPSDSSVYTNYTRTYTYDSAGNLMRIRHSAPATNNNYTLNITVSERSNRGVMSSLTENPADVDALFTASGSQKCLQQGQSLIWTPRGELRTVLLVARGETADDSESYRYDGSSQRILKISSQQTNHSARVQRALYLPGLEWRTMTGGVAEAENLQVICIGEAGRAQVRVLHWESGKPDGIINDQIRWSYDNLTCSSGLEVDGDGLVISMEEYYPYGGTAVWAARSHIETAYKTVRYSGKERDATGLYYYGFRYYQPWAGRWLSADPAGTVDGLNLYRMVRNNPLRLTDPDGMAPLDWLDLDTTNASRDIVKAIYQLNQIDGPHRGVRDTYQRMTESTGMILQETLNNEAVLKGIKQKDKEKKSRGMKFTNSKLKTYAAHAGVLNTLQPDPVYKDGFLNLPGSLGNKNTFPGVELIEDKVKPSLSQYHPDKLGKSQRWKPESSLGYYRVADTEAFITGIRSQYKSSGTDLHAVVEGRIRDHLLANNNVLPKMAGIAGLHAEVQALNYIISNPDIEGGNAERLNGSYIFTQRLVGDVNQDFPACYNCSGIISGLENVMTGRVNNDVRLKRRKSF

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	4.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	60315

fit	/app/data/saxs_computation/c4/9c4k/9c4k.fit
pddf	/app/data/pr_computation/c4/9c4k/9c4k.pr.out
profile	/app/data/saxs_computation/c4/9c4k/9c4k.dat

Yersinia entomophaga holotoxin complex in prepore conformation

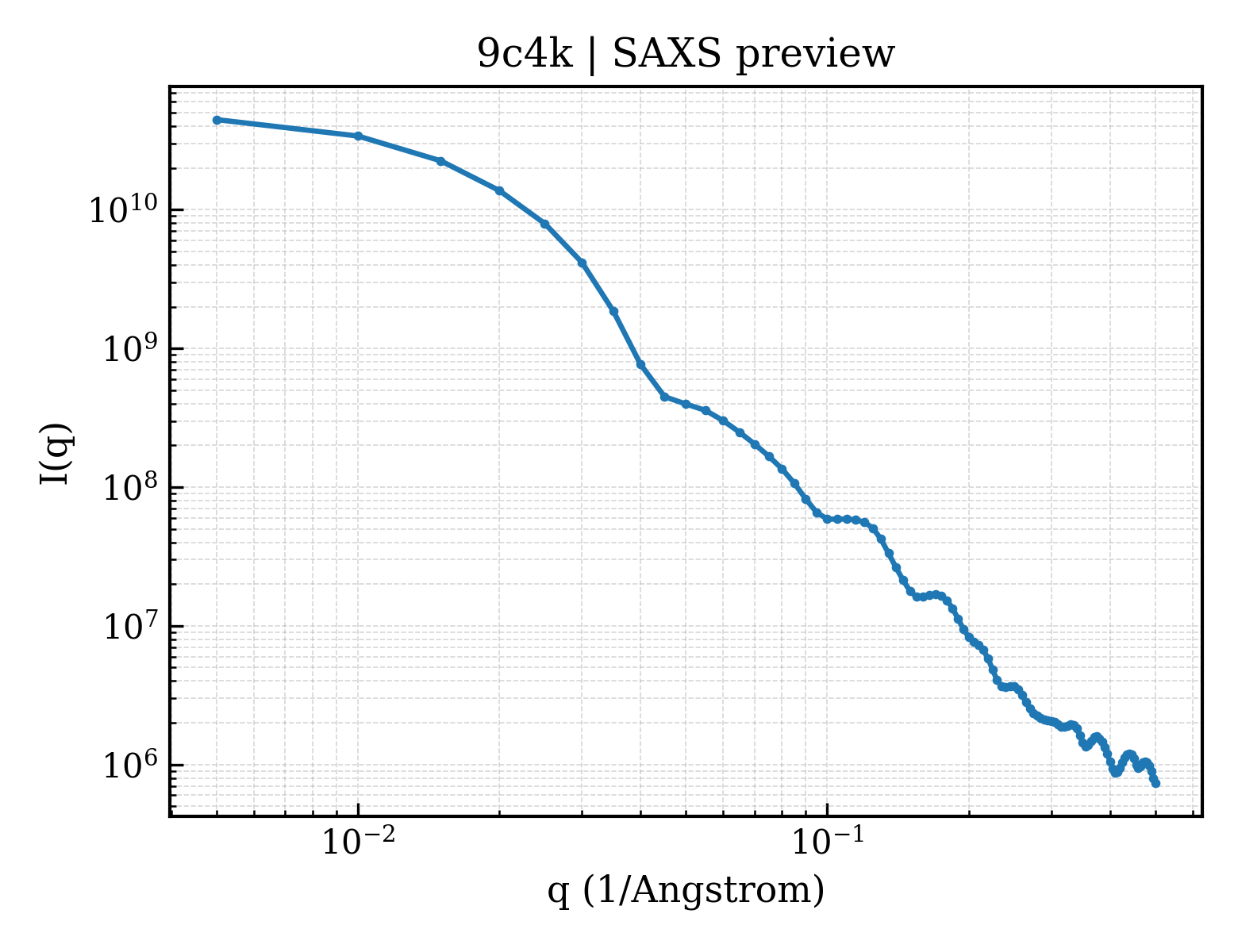

SAXS 散射曲线 SAXS Profile

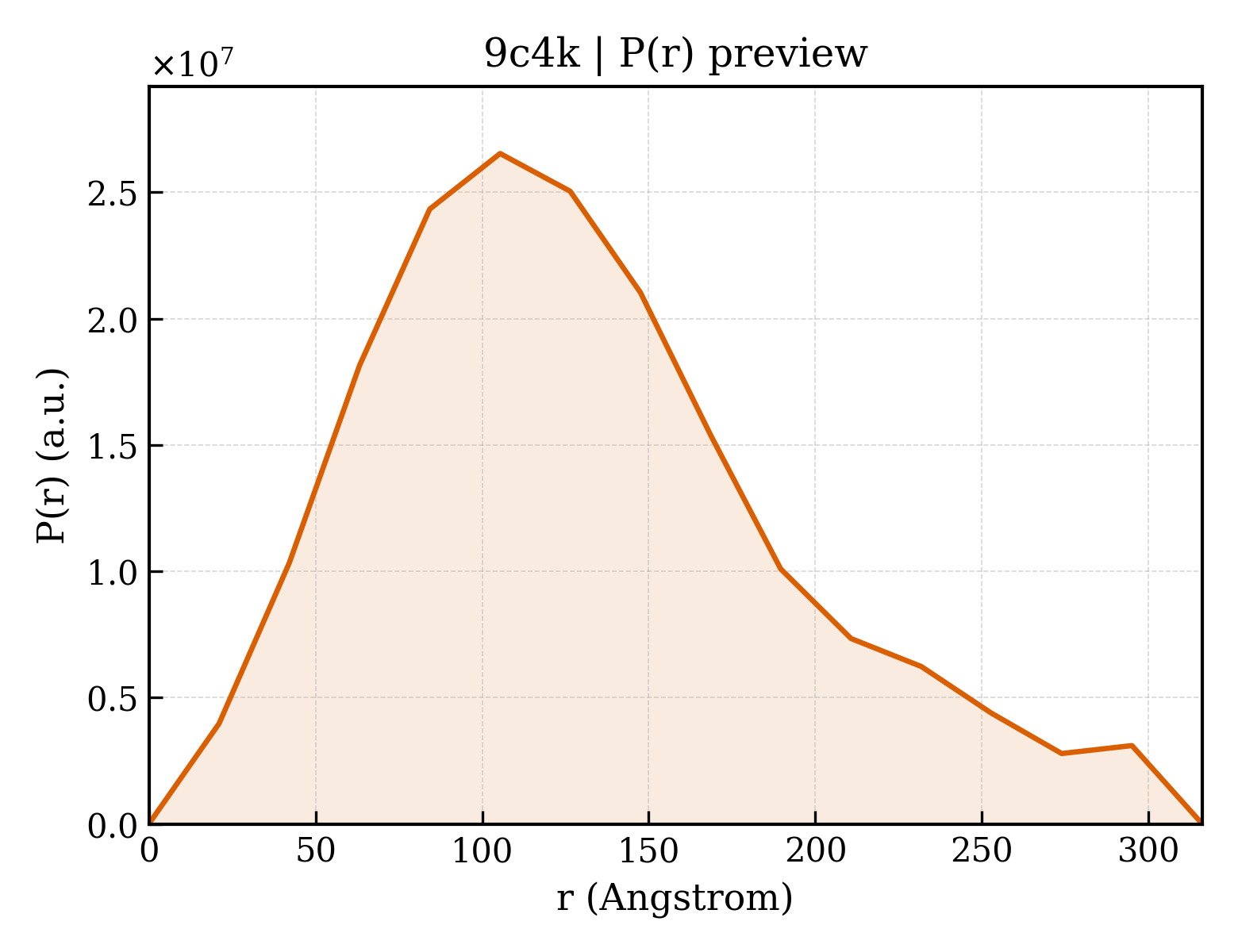

P(r) 距离分布 P(r) Distribution
