Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure)

Method: ELECTRON MICROSCOPY D_max: 264.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

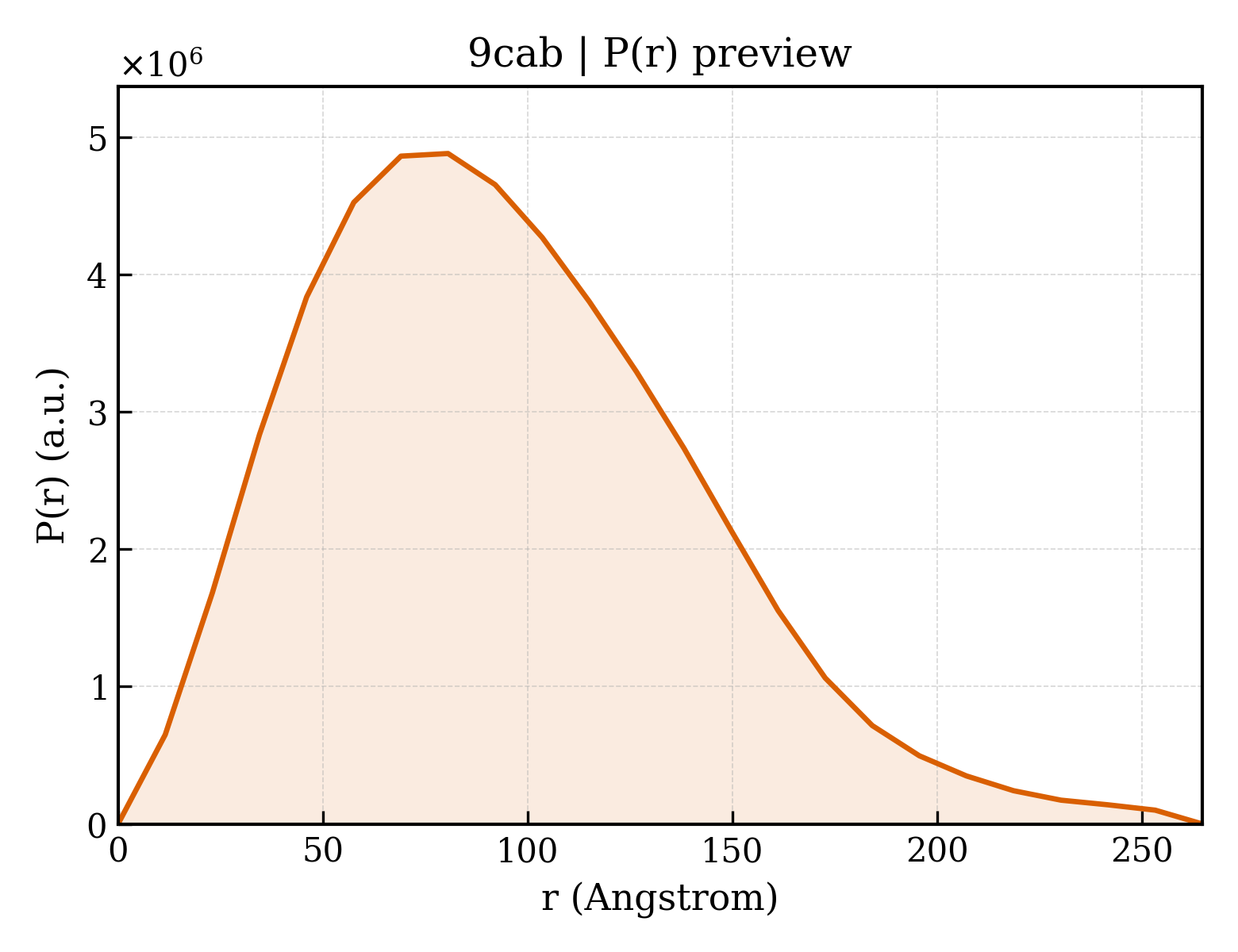

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cab
沉积日期 deposition_date	2024-06-17
结构标题 title	Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure)
关键词 keywords	Chromatin Remodeler, Snf2 family ATPase, H2A.Z, GENE REGULATION; GENE REGULATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.43 Å
回转半径 Rg (电子) rg_electron	68.07 Å
零角强度 I(0) i0	7012560000.00
分子量 molecular_weight	636090.0 kDa
排除体积 excluded_volume	766930 Å³
包络体积 envelope_volume	1219800 Å³
水化壳体积 shell_volume	148440 Å³
包络直径 envelope_diameter	229.7 Å
壳层 Rg shell_rg	70.88 Å
包络 Rg envelope_rg	65.33 Å
形状 Rg shape_rg	67.99 Å
总 Rg total_rg	68.32 Å
总原子数 total_atoms	44206
残基数 n_residues	5028
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	264.8 Å
Rg (实空间) rg_real	74.00 Å
Rg 误差 (实空间) rg_real_error	1.80 Å
I(0) (实空间) i0_real	7.0900e+09
I(0) 误差 (实空间) i0_real_error	1.5760e+08
Rg (倒空间) rg_reciprocal	69.29 Å
I(0) (倒空间) i0_reciprocal	7010000000.0000
解质量估计 total_estimate	0.6494
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.6 Å
偏度 Skewness skewness	0.585
峰度 Kurtosis kurtosis	0.133
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.8949
最高正则化参数 α highest_alpha	366900000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.761; Stabil: 0.835; Sysdev: 0.002; Positv: 1.000; Valcen: 0.948; Smooth: 0.800

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (16)

Entity 1 polymer

描述 description	Helicase SRCAP
分子量 formula_weight	343915.2 kDa
EC 编号 ec_number	3.6.4.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	44206

MQSSPSPAHPQLPVLQTQMVSDGMTGSNPVSPASSSSPASSGAGGISPQHIAQDSSLDGPPGPPDGATVPLEGFSLSQAADLANKGPKWEKSHAEIAEQAKHEAEIETRIAELRKEGFWSLKRLPKVPEPPRPKGHWDYLCEEMQWLSADFAQERRWKRGVARKVVRMVIRHHEEQRQKEERARREEQAKLRRIASTMAKDVRQFWSNVEKVVQFKQQSRLEEKRKKALDLHLDFIVGQTEKYSDLLSQSLNQPLTSSKAGSSPCLGSSSAASSPPPPASRLDDEDGDFQPQEDEEEDDEETIEVEEQQEGNDAEAQRREIELLRREGELPLEELLRSLPPQLLEGPSSPSQTPSSHDSDTRDGPEEGAEEEPPQVLEIKPPPSAVTQRNKQPWHPDEDDEEFTANEEEAEDEEDTIAAEEQLEGEVDHAMELSELAREGELSMEELLQQYAGAYAPGSGSSEDEDEDEVDANSSDCEPEGPVEAEEPPQEDSSSQSDSVEDRSEDEEDEHSEEEETSGSSASEESESEESEDAQSQSQADEEEEDDDFGVEYLLARDEEQSEADAGSGPPTPGPTTLGPKKEITDIAAAAESLQPKGYTLATTQVKTPIPLLLRGQLREYQHIGLDWLVTMYEKKLNGILADEMGLGKTIQTISLLAHLACEKGNWGPHLIIVPTSVMLNWEMELKRWCPSFKILTYYGAQKERKLKRQGWTKPNAFHVCITSYKLVLQDHQAFRRKNWRYLILDEAQNIKNFKSQRWQSLLNFNSQRRLLLTGTPLQNSLMELWSLMHFLMPHVFQSHREFKEWFSNPLTGMIEGSQEYNEGLVKRLHKVLRPFLLRRVKVDVEKQMPKKYEHVIRCRLSKRQRCLYDDFMAQTTTKETLATGHFMSVINILMQLRKVCNHPNLFDPRPVTSPFITPGICFSTASLVLRATDVHPLQRIDMGRFDLIGLEGRVSRYEADTFLPRHRLSRRVLLEVATAPDPPPRPKPVKMKVNRMLQPVPKQEGRTVVVVNNPRAPLGPVPVRPPPGPELSAQPTPGPVPQVLPASLMVSASPAGPPLIPASRPPGPVLLPPLQPNSGSLPQVLPSPLGVLSGTSRPPTPTLSLKPTPPAPVRLSPAPPPGSSSLLKPLTVPPGYTFPPAAATTTSTTTATATTTAVPAPTPAPQRLILSPDMQARLPSGEVVSIGQLASLAQRPVANAGGSKPLTFQIQGNKLTLTGAQVRQLAVGQPRPLQRNVVHLVSAGGQHHLISQPAHVALIQAVAPTPGPTPVSVLPSSTPSTTPAPTGLSLPLAANQVPPTMVNNTGVVKIVVRQAPRDGLTPVPPLAPAPRPPSSGLPAVLNPRPTLTPGRLPTPTLGTARAPMPTPTLVRPLLKLVHSPSPEVSASAPGAAPLTISSPLHVPSSLPGPASSPMPIPNSSPLASPVSSTVSVPLSSSLPISVPTTLPAPASAPLTIPISAPLTVSASGPALLTSVTPPLAPVVPAAPGPPSLAPSGASPSASALTLGLATAPSLSSSQTPGHPLLLAPTSSHVPGLNSTVAPACSPVLVPASALASPFPSAPNPAPAQASLLAPASSASQALATPLAPMAAPQTAILAPSPAPPLAPLPVLAPSPGAAPVLASSQTPVPVMAPSSTPGTSLASASPVPAPTPVLAPSSTQTMLPAPVPSPLPSPASTQTLALAPALAPTLGGSSPSQTLSLGTGNPQGPFPTQTLSLTPASSLVPTPAQTLSLAPGPPLGPTQTLSLAPAPPLAPASPVGPAPAHTLTLAPASSSASLLAPASVQTLTLSPAPVPTLGPAAAQTLALAPASTQSPASQASSLVVSASGAAPLPVTMVSRLPVSKDEPDTLTLRSGPPSPPSTATSFGGPRPRRQPPPPPRSPFYLDSLEEKRKRQRSERLERIFQLSEAHGALAPVYGTEVLDFCTLPQPVASPIGPRSPGPSHPTFWTYTEAAHRAVLFPQQRLDQLSEIIERFIFVMPPVEAPPPSLHACHPPPWLAPRQAAFQEQLASELWPRARPLHRIVCNMRTQFPDLRLIQYDCGKLQTLAVLLRQLKAEGHRVLIFTQMTRMLDVLEQFLTYHGHLYLRLDGSTRVEQRQALMERFNADKRIFCFILSTRSGGVGVNLTGADTVVFYDSDWNPTMDAQAQDRCHRIGQTRDVHIYRLISERTVEENILKKANQKRMLGDMAIEGGNFTTAYFKQQTIRELFDMPLEEPSSSSVPSAPEEEEETVASKQTHILEQALCRAEDEEDIRAATQAKAEQVAELAEFNENDGFPAGEGEEAGRPGAEDEEMSRAEQEIAALVEQLTPIERYAMKFLEASLEEVSREELKQAEEQVEAARKDLDQAKEEVFRLPQEEEEGPGAGDESSCGTGGGTHRRSKKAKAPERPGTRVSERLRGARAETQGANHTPVISAHQTRSTTTPPRCSPARERVPRPAPRPRPTPASAPAAIPALVPVPVSAPVPISAPNPITILPVHILPSPPPPSQIPPCSSPACTPPPACTPPPAHTPPPAQTCLVTPSSPLLLGPPSVPISASVTNLPLGLRPEAELCAQALASPESLELASVASSETSSLSLVPPKDLLPVAVEILPVSEKNLSLTPSAPSLTLEAGSIPNGQEQEAPDSAEGTTLTVLPEGEELPLCVSESNGLELPPSAASDEPLQEPLEADRTSEELTEAKTPTSSPEKPQELVTAEVAAPSTSSSATSSPEGPSPARPPRRRTSADVEIRGQGTGRPGQPPGPKVLRKLPGRLVTVVEEKELVRRRRQQRGAASTLVPGVSETSASPGSPSVRSMSGPESSPPIGGPCEAAPSSSLPTPPQQPFIARRHIELGVTGGGSPENGDGALLAITPPAVKRRRGRPPKKNRSPADAGRGVDEAPSSTLKGKTNGADPVPGPETLIVADPVLEPQLIPGPQPLGPQPVHRPNPLLSPVEKRRRGRPPKARDLPIPGTISSAGDGNSESRTQPPPHPSPLTPLPPLLVCPTATVANTVTTVTISTSPPKRKRGRPPKNPPSPRPSQLPVLDRDSTSVLESCGLGRRRQPQGQGESEGSSSDEDGSRPLTRLARLRLEAEGMRGRKSGGSMVVAVIQDDLDLADSGPGGLELTPPVVSLTPKLRSTRLRPGSLVPPLETEKLPRKRAGAPVGGSPGLAKRGRLQPPSPLGPEGSVEESEAEASGEEEEGDGTPRRRPGPRRLVGTTNQGDQRILRSSAPPSLAGPAVSHRGRKAKT

Entity 2 polymer

描述 description	Vacuolar protein sorting-associated protein 72 homolog
分子量 formula_weight	40658.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSLAGGRAPRKTAGNRLSGLLEAEEEDEFYQTTYGGFTEESGDDEYQGDQSDTEDEVDSDFDIDEGDEPSSDGEAEEPRRKRRVVTKAYKEPLKSLRPRKVNTPAGSSQKAREEKALLPLELQDDGSDSRKSMRQSTAEHTRQTFLRVQERQGQSRRRKGPHCERPLTQEELLREAKITEELNLRSLETYERLEADKKKQVHKKRKCPGPIITYHSVTVPLVGEPGPKEENVDIEGLDPAPSVSALTPHAGTGPVNPPARCSRTFITFSDDATFEEWFPQGRPPKVPVREVCPVTHRPALYRDPVTDIPYATARAFKIIREAYKKYITAHGLPPTASALGPGPPPPEPLPGSGPRALRQKIVIK

Entity 3 polymer

描述 description	Actin-related protein 6
分子量 formula_weight	45857.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MTTLVLDNGAYNAKIGYSHENVSVIPNCQFRSKTARLKTFTANQIDEIKDPSGLFYILPFQKGYLVNWDVQRQVWDYLFGKEMYQVDFLDTNIIITEPYFNFTSIQESMNEILFEEYQFQAVLRVNAGALSAHRYFRDNPSELCCIIVDSGYSFTHIVPYCRSKKKKEAIIRINVGGKLLTNHLKEIISYRQLHVMDETHVINQVKEDVCYVSQDFYRDMDIAKLKGEENTVMIDYVLPDFSTIKKGFCKPREEMVLSGKYKSGEQILRLANERFAVPEILFNPSDIGIQEMGIPEAIVYSIQNLPEEMQPHFFKNIVLTGGNSLFPGFRDRVYSEVRCLTPTDYDVSVVLPENPITYAWEGGKLISENDDFEDMVVTREDYEENGHSVCEEKFDI

Entity 4 polymer

描述 description	Zinc finger HIT domain-containing protein 1
分子量 formula_weight	17567.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MVEKKTSVRSQDPGQRRVLDRAARQRRINRQLEALENDNFQDDPHAGLPQLGKRLPQFDDDADTGKKKKKTRGDHFKLRFRKNFQALLEEQNLSVAEGPNYLTACAGPPSRPQRPFCAVCGFPSPYTCVSCGARYCTVRCLGTHQETRCLKWTV

Entity 5 polymer

描述 description	RuvB-like 1
分子量 formula_weight	50296.9 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,G,I

MKIEEVKSTTKTQRIASHSHVKGLGLDESGLAKQAASGLVGQENAREACGVIVELIKSKKMAGRAVLLAGPPGTGKTALALAIAQELGSKVPFCPMVGSEVYSTEIKKTEVLMENFRRAIGLRIKETKEVYEGEVTELTPCETENPMGGYGKTISHVIIGLKTAKGTKQLKLDPSIFESLQKERVEAGDVIYIEANSGAVKRQGRCDTYATEFDLEAEEYVPLPKGDVHKKKEIIQDVTLHDLDVANARPQGGQDILSMMGQLMKPKKTEITDKLRGEINKVVNKYIDQGIAELVPGVLFVDEVHMLDIECFTYLHRALESSIAPIVIFASNRGNCVIRGTEDITSPHGIPLDLLDRVMIIRTMLYTPQEMKQIIKIRAQTEGINISEEALNHLGEIGTKTTLRYSVQLLTPANLLAKINGKDSIEKEHVEEISELFYDAKSSAKILADQQDKYMK

Entity 6 polymer

描述 description	RuvB-like 2
分子量 formula_weight	51222.5 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,H,J

MATVTATTKVPEIRDVTRIERIGAHSHIRGLGLDDALEPRQASQGMVGQLAARRAAGVVLEMIREGKIAGRAVLIAGQPGTGKTAIAMGMAQALGPDTPFTAIAGSEIFSLEMSKTEALTQAFRRSIGVRIKEETEIIEGEVVEIQIDRPATGTGSKVGKLTLKTTEMETIYDLGTKMIESLTKDKVQAGDVITIDKATGKISKLGRSFTRARDYDAMGSQTKFVQCPDGELQKRKEVVHTVSLHEIDVINSRTQGFLALFSGDTGEIKSEVREQINAKVAEWREEGKAEIIPGVLFIDEVHMLDIESFSFLNRALESDMAPVLIMATNRGITRIRGTSYQSPHGIPIDLLDRLLIVSTTPYSEKDTKQILRIRCEEEDVEMSEDAYTVLTRIGLETSLRYAIQLITAASLVCRKRKGTEVQVDDIKRVYSLFLDESRSTQYMKEYQDAFLFNELKGETMDTS

Entity 7 polymer

描述 description	Histone H2A type 1
分子量 formula_weight	13907.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,S

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 8 polymer

描述 description	Histone H2B 1.1
分子量 formula_weight	13848.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,T

PEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 9 polymer

描述 description	Histone H3.2
分子量 formula_weight	15303.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,W

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 10 polymer

描述 description	Histone H4
分子量 formula_weight	11263.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,X

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 11 polymer

描述 description	DNA (285-MER)
分子量 formula_weight	87851.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	Y

ATCGAAGGGCGCCTATATAAGGGGGTGGGGGCGCGTTCGTCCTCCCTCTCCTCGCGGCGCGAGTTTCAGGCAGCGCTGCGTCCTGCTGCGCACGTGGGAAGCCCTGCTGGAGAATCCCGGTGCGCAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCAGCTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCAGCTGTCAGATATGTACATCCTGTGATCCCCGGGTACCGAGCTCGAATTCACTGGC

Entity 12 polymer

描述 description	DNA (285-MER)
分子量 formula_weight	88190.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	Z

GCCAGTGAATTCGAGCTCGGTACCCGGGGATCACAGGATGTACATATCTGACAGCTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTAGCTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTGCGCACCGGGATTCTCCAGCAGGGCTTCCCACGTGCGCAGCAGGACGCAGCGCTGCCTGAAACTCGCGCCGCGAGGAGAGGGAGGACGAACGCGCCCCCACCCCCTTATATAGGCGCCCTTCGAT

Entity 13 non-polymer

描述 description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 14 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 15 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 16 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.94 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	12372

fit	/app/data/saxs_computation/ca/9cab/9cab.fit
pddf	/app/data/pr_computation/ca/9cab/9cab.pr.out
profile	/app/data/saxs_computation/ca/9cab/9cab.dat
