9ce2

Respiratory supercomplex I+III2+IV open state

Method: ELECTRON MICROSCOPY D_max: 246.8 Å Quality: EXCELLENT

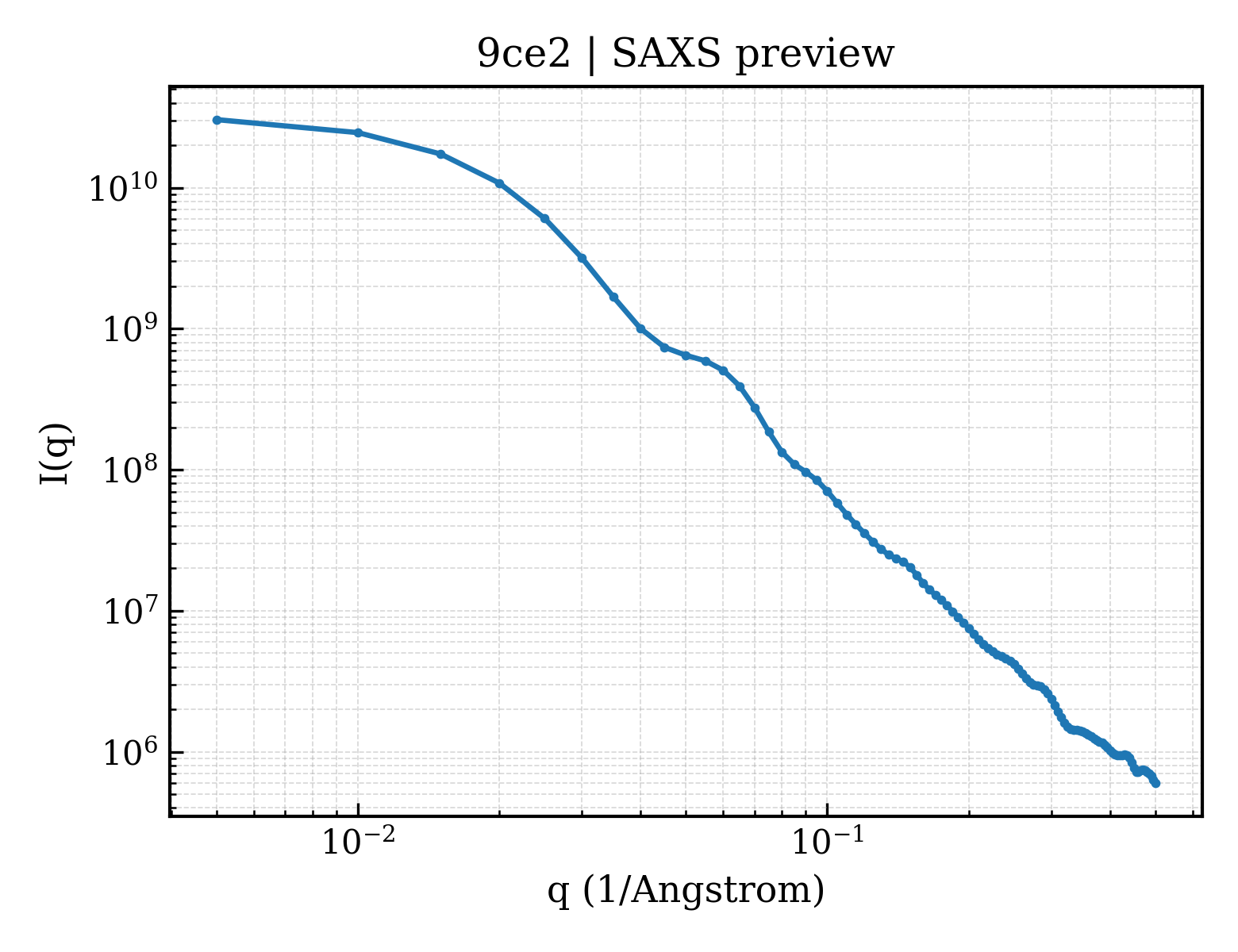

SAXS 散射曲线 SAXS Profile

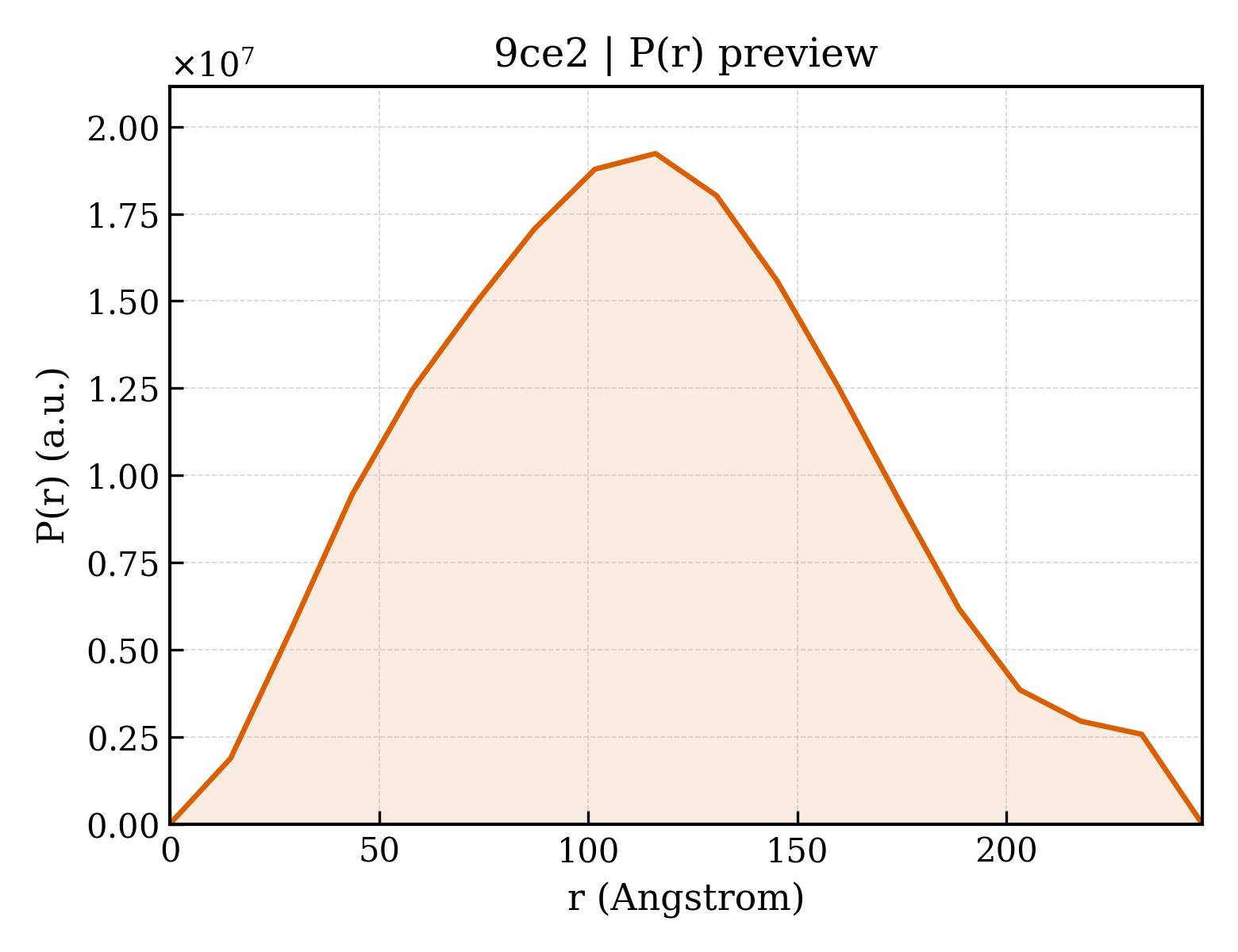

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ce2
沉积日期 deposition_date	2024-06-25
结构标题 title	Respiratory supercomplex I+III2+IV open state
关键词 keywords	electron transporter, heart, respiratory supercomplex, ELECTRON TRANSPORT; ELECTRON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	92.14 Å
回转半径 Rg (电子) rg_electron	92.03 Å
零角强度 I(0) i0	32590100000.00
分子量 molecular_weight	1592200.0 kDa
排除体积 excluded_volume	2010600 Å³
包络体积 envelope_volume	3015300 Å³
水化壳体积 shell_volume	273540 Å³
包络直径 envelope_diameter	343.0 Å
壳层 Rg shell_rg	91.96 Å
包络 Rg envelope_rg	88.85 Å
形状 Rg shape_rg	92.02 Å
总 Rg total_rg	92.06 Å
总原子数 total_atoms	111989
残基数 n_residues	13982
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	246.8 Å
Rg (实空间) rg_real	87.73 Å
Rg 误差 (实空间) rg_real_error	0.66 Å
I(0) (实空间) i0_real	3.1070e+10
I(0) 误差 (实空间) i0_real_error	5.9140e+08
Rg (倒空间) rg_reciprocal	91.11 Å
I(0) (倒空间) i0_reciprocal	32480000000.0000
解质量估计 total_estimate	0.9149
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	116.1 Å
偏度 Skewness skewness	0.215
峰度 Kurtosis kurtosis	-0.476
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.8896
最高正则化参数 α highest_alpha	1230000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.997; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (75)

Entity 1 polymer

描述 description	Cytochrome b-c1 complex subunit 6, mitochondrial
分子量 formula_weight	10685.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0,Ab
原子数 atom_count	111989

MGLEDEQRMLTGSGDPKEEEEEEEELVDPLTTVREQCEQIEKCIKARERLELCDQRVSSRSQTEEDCTEELFDFLHARDHCVAHKLFNSLK

Entity 2 polymer

描述 description	Ubiquinol-cytochrome c reductase complex 7.2 kDa protein
分子量 formula_weight	7412.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,Ac

MAAPTLTARLYSLLFRRTSTFALTIAVGALFFERAFDQGADAIYEHINQGKLWKHIKHKYENKE

Entity 3 polymer

描述 description	Ubiquinol-cytochrome c reductase, Rieske iron-sulfur polypeptide 1
分子量 formula_weight	32174.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,4,Ae,Af

SSAGALTSRIPRLSPLYAPAPLAEGRPGDPPGFQSCCRHVVCRFPLGPFCAGVVGHAALPATSESPVLDAKRSFLCRESLSGQAAGRPLVASVGLNVPASVRYSHTDIRVPDFSDYRRAEVLDSTKSSKESSDARKGFSYLITATTTVGVAYAAKNAVSQFVSSMSASADVLAMSKIEIKLSDIPEGKNMAFKWRGKPLFVRHRTKKEIDQEAAVEVSQLRDPQHDLERVKKPEWVILIGVCTHLGCVPIANAGDFGGYYCPCHGSHYDASGRIRKGPAPLNLEVPTYEFTSDDLVIVG

Entity 4 polymer

描述 description	Cytochrome b-c1 complex subunit 10
分子量 formula_weight	6560.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,Ad

MLSRFLGPRYRELARNWIPTASMWGAVGAVGLVWATDWRLILDWVPYINGKFKKED

Entity 5 polymer

描述 description	Cytochrome b-c1 complex subunit 2, mitochondrial
分子量 formula_weight	48262.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6,v

MKLITRAGSFSRFYSLKVAPKALASAAPAGVPLQPQDLEFTRLPNGLVIASLENYAPASRIGLFIKAGSRYEDSNNLGTSHLLRLASSLTTKGASSFKITRGIEAVGGKLSVTSTRESMAYTVECLRDDIEILMEFLLNVTAAPEFRRWEVAALQSQLRIDKAVAFQNPQAQVLENLHAAAYRNALANSLYCPDYRIGKVTPDQLHYYVQNHFTSARMALIGLGVSHPVLKQVAERFLNMRGGLGLSGAKAKYRGGEIRDQNGDSLVHAALVAESAATGSAEANAFSVLQHVLGAGPHVKRGSNATSSLYQAVAKGVHQPFDVSAFNASYSDSGLFGIYTISQAASAGDVIKSAYDQVKTIAQGNLSNTDVQAAKNKLKAGYLMSVESSEGFLDEVGSQALVAGSYVQPSTVLQQIDSVADADVINAAKKFVSGRKSMAASGNLGHTPFVDEL

Entity 6 polymer

描述 description	Cytochrome b
分子量 formula_weight	42840.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7,w

MTNIRKSHPLMKIINNAFIDLPAPSNISSWWNFGSLLGICLILQILTGLFLAMHYTSDTTTAFSSVTHICRDVNYGWVIRYLHANGASMFFICLFIHVGRGLYYGSYMFLETWNIGVVLLFTVMATAFMGYVLPWGQMSFWGATVITNLLSAIPYIGTDLVEWIWGGFSVDKATLTRFFAFHFILPFIITALAAVHLLFLHETGSNNPTGISSDMDKIPFHPYYTIKDILGALFMMLILLILVLFSPDLLGDPDNYTPANPLNTPPHIKPEWYFLFAYAILRSIPNKLGGVLALVASILILILMPMLHTSKQRSMMFRPLSQCLFWMLVADLITLTWIGGQPVEHPFIIIGQLASILYFLIILVLMPITSIIENNLLKW

Entity 7 polymer

描述 description	Cytochrome c1
分子量 formula_weight	35488.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8,x

MSAAAAASLRGAVLGPRGAGLPGARARGLLCGPRPGQLPLRTPQALSLSSKSGLSRGRKVILSALGMLAAGGAGLAVALHSAVSATDLELHAPSYPWSHRGLLSSLDHTSIRRGFQVYKQVCSSCHSMDYVAYRHLVGVCYTEEEAKALAEEVEVQDGPNEDGEMFMRPGKLSDYFPKPYPNPEAARAANNGALPPDLSYIVRARHGGEDYVFSLLTGYCEPPTGVSLREGLYFNPYFPGQAIAMAPPIYNEVLEFDDGTPATMSQVAKDVCTFLRWASEPEHDHRKRMGLKMLMMMGLLLPLVYAMKRHKWSVLKSRKLAYRPPK

Entity 8 polymer

描述 description	Cytochrome b-c1 complex subunit 7
分子量 formula_weight	13587.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9,y

MASRPAVAASSKWLEGIRKWYYNAAGFNKLGLMRDDTIYEDDDVKEAIRRLPENLYNDRVFRIKRALDLTMRQQILPKEQWTKYEEDKFYLEPYLKEVIRERKEREEWAKK

Entity 9 polymer

描述 description	Cytochrome c oxidase subunit 6C
分子量 formula_weight	8617.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MATSSLTKPQMRGLLAKRLRFHIVGAFIVSLGVATFYKFAVAEPRKKAYADFYRNYDSMKDFEEMRKAGIFQSAK

Entity 10 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 5, mitochondrial
分子量 formula_weight	21587.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MAAMSLLQRASVTAVATLSRSRLGTRFGFGGFLTHGFPKTGAPVRHSGDHGKRLFIIKPSGFYDRRFLKLMRFYILLTGIPVAIGITLVNVFIGEAELADIPEGYVPEHWEYFKHPISRWIARTFYDGPEKNYEKTMAILQIEAEKAELRLKELEVRRLMRARGDGPWYQYPTIDKALIDHSPKTTPDN

Entity 11 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 6
分子量 formula_weight	15603.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MSGYTPDEKLRLQQLRELRRRWLKDQELSPREPVLPPRRVWPMEQFWNKFLQDGAPWKNVIYKTYRHSIFAVTHVLIPVWIIHYYLKYHVTAKPYTVVERKPRIFPGDTILETGEVIPLMKEFPDQHH

Entity 12 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 8, mitochondrial
分子量 formula_weight	21702.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MAAAKAGVLGVRWLQRAARKVVPLGARTASHVTKDMFPGPYPKTPEERAAAAKKYNMRVEDYEPYPDDGMGYGDYPKLPDRSQQERDPWYDWDHPDLRLNWGEPIHWDLDMYIRNRVDTSPTPVSWNTMCKHLFGFVAFMLFMFWVGEIYPSYQPVGPKQYPYNDLYLERGGDPTKEPEPVVHYEI

Entity 13 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 10
分子量 formula_weight	20944.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MPDSWDKDVYPEPPRRTPAPAPQTSLPNPVTYLTKIFDLLVDRPVTLAREFIEQQHAKNRYYYYHREFRRVPDITECEEKDILCMFEAEMQWRRDYKVDQEIVNIIQERLKACQQREGESYRQNCAKELEQFTQVSKAFQDRYSDLGAHYSARKCLAKQKQRMLAERKAAKEAAAA

Entity 14 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 11, mitochondrial
分子量 formula_weight	17384.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MAAGVLGLCARRLLAAAATRGLPAARVRWESGSSRAVIAPSALVGKRPPEPTIRLQEDPDPEDENLYEKNPDSHGYDKDPIVDLWNMRVVFFFGFSIVLVLGSTFVAYLPDYRMQEWARREAERLVKYREANGLPLMESNCFDPNKIQLPEDED

Entity 15 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 subunit C1, mitochondrial
分子量 formula_weight	8664.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAASALFRPFSKLLSSARLPSGSSARSKFYIREPPHGSPDWLKVGLTLGTSVFLWIYLIKQHKEDVLEYKRRNGLE

Entity 16 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 subunit C2
分子量 formula_weight	14327.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MTMMSGRPGRVPLQFLPNEARSLPPPKLTDPRLVYMGFLGYCSGLIDNAIRRRPVVSAGLHRQLLYVTSFVFFGYYLLKRQDYMYALRDHDMFAYVKSHPEDFPEKDKKTYGEILEEFHPVR

Entity 17 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 5
分子量 formula_weight	12506.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MPFFDVQKRLGLDLDRWMTIQSAEQPHKIPGRCHAFEKEWIECAHGIGGIRAEKECKIEFDDFVECLLRQKTMKRLSAIKRQRDKLIKEGKYTPPPHHLGKEDPRP

Entity 18 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 2
分子量 formula_weight	39077.5 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MNPIIYTTLIMTVMSGTMLVMISSHWLLIWIGFEMNLLAMIPVLMKNFNPRATEAATKYFLTQATASMMLMMAIIINLLYSGQWTITKMFNPVAMTMMTMALAMKLGLSPFHFWVPEVTQGISLQAGLLLLTWQKLAPLSVLCQISQSINPNLMLTMAMLSILIGGWGGLNQTQLRKIMAYSSIAHMGWMTAVLPYNTTMTILNLLIYITMTLAMFMLLIHSSATTTLSLSHTWNKMPVITSLMMVTLLSMGGLPPLSGFMPKWMIIQEMTKNESIIMPTLMAMTALLNLYFYMRLAYSSSLTMFPSTNNMKMKWQFEHTKQMKLLPTMIVLSTLVLPMTPALSSLN

Entity 19 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 3
分子量 formula_weight	12998.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MNIMLTLLTNVTLASLLVLIAFWLPQLNAYSEKTSPYECGFDPMGSARLPFSMKFFLVAITFLLFDLEIALLLPLPWASQTNNLKTMLTMALFLLILLAASLAYEWTQKGLEWAE

Entity 20 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 4L
分子量 formula_weight	10827.3 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MPLVYMNIIMAFAIALAGLLMYRSHLMSSLLCLEGMMLSLFIMSTLIILNTHFTLANMMPIILLVFAACEAALGLSLLVMVSNTYGTDYVQNLNLLQC

Entity 21 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 6
分子量 formula_weight	19021.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MTMYIAFILSTIFVIGFVGFSSKPSPIYGGLGLIVSGGVGCGIVLNFGGSFLGLMVFLIYLGGMLVVFGYTTAMATEMYPEVWVSNKTVFGAFVSGLMMEFCMVYYALKEEEVEIIFKFNGLGDWVIYDTGDSGFFSEEAMGIAALYSYGTWLVIVTGWSLLIGVVVIMEITRGN

Entity 22 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 1
分子量 formula_weight	7044.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MMNVLQIVRDHWVHILVPVGFVFGCYLDRRSDEKLTAFRNKSLLFKRELRPNEEVTWK

Entity 23 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 4
分子量 formula_weight	15117.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MSFPKYKPSRLATLPATLDPAEYDISPETRKAQAERLAIRSRLKREYLLQYNDPNRLGVIEDPALIRWTYARSANIYPNFRPTPKTSLLGALFGIGPLFFWYYVFKTDRDKKEKLIQEGKLDQTFNISY

Entity 24 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 9
分子量 formula_weight	26347.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MTAALAPPRRKRKWPPLAPPFRGSPTPRFPAAPAAAEGERAVMAFSAPAAYLTHQQKVLRLYKRALRHLESWCVHRDKYRYFACLMRARFDEHKNEKDMVKATQLLRQAEEEFWYGQHPQPYIFPESPGGTSYERYECYKVPEWCLDDWHPSEKAMYPDYFAKREQWKRLRRESWEREVKQLQEETPPGGPRTEALPPARKEGDLPPLWWHIVTRPRERPM

Entity 25 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 4
分子量 formula_weight	51859.4 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MLKIIIPTTMLLPMTWMSKHNMIWINATVHSLLISLISLSLLNQLGENSLNFSLTFFSDSLSAPLLVLTTWLLPLMLMASQSHLSKETTTRKKLYITMLILLQLFLIMTFTATELILFYILFEATLVPTLIIITRWGNQTERLNAGLYFLFYTLAGSLPLLVALVYIQNTTGSLNFLIIHYWSHPLSNSWSNIFMWLACIMAFMVKMPLYGLHLWLPKAHVEAPIAGSMVLAAVLLKLGGYGMMRITTILNPLTNYMAYPFLMLSMWGMIMTSSICLRQTDLKSLIAYSSVSHMALVIVAIMIQTPWSFMGATALMIAHGLTSSMLFCLANTNYERVHSRTMILARGLQTLLPLMATWWLMASLTNLALPPSINLIGELFIITASFSWSNITIILMGMNMMITALYSLYMLITTQRGKYTHHINNIKASFTRENALMALHILPLLLLTLNPKMILGPLY

Entity 26 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 1
分子量 formula_weight	35667.5 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MFMINILSLIIPILLAVAFLTLVERKVLGYMQLRKGPNVVGPYGLLQPIADALKLFTKEPLRPATSSISMFIIAPILALSLALTMWVPLPMPYPLINMNLGVLFMLAMSSLAVYSILWSGWASNSKYALIGALRAVAQTISYEVTLAIILLSVLLMNGSYTLSTLITTQEHIWMIFTSWPLAMMWFISTLAETNRAPFDLTEGESELVSGFNVEYAAGPFAMFFMAEYANIIMMNAFTAILFLGASHDPHTPELYTINFVLKTLALTITFLWIRASYPRFRYDQLMHLLWKSFLPLTLALCMWHISLPIMTASIPPQS

Entity 27 polymer

描述 description	NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial
分子量 formula_weight	50637.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MLAARRLLGGSLPARVSVRFSGDTTAPKKTSFGSLKDEDRIFTNLYGRHDWRLKGAQSRGDWYKTKEILLKGPDWILGEVKTSGLRGRGGAGFPTGLKWSFMNKPSDGRPKYLVVNADEGEPGTCKDREIIRHDPHKLVEGCLVGGRAMGARAAYIYIRGEFYNEASNLQVAIREAYEAGLIGKNACGSGYDFDVFVVRGAGAYICGEETALIESIEGKQGKPRLKPPFPADVGVFGCPTTVANVETVAVSPTICRRGGAWFASFGRERNSGTKLFNISGHVNHPCTVEEEMSVPLKELIEKHAGGVIGGWDNLLAVIPGGSSTPLIPKSVCETVLMDFDALVQAQTGLGTAAVIVMDRSTDIVKAIARLIEFYKHESCGQCTPCREGVDWMNKVMARFVKGDARPAEIDSLWEISKQIEGHTICALGDGAAWPVQGLIRHFRPELEERMQQFALQHQARQAAS

Entity 28 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 2, mitochondrial
分子量 formula_weight	53282.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

SLWRGKMAALRALCSLRGVAAQVLRPGAGARLPIQPSRGARQWQPDVEWAEQFGGAVMYPTKETAHWKPPPWNDVDPPKDTLVSNLTLNFGPQHPAAHGVLRLVMELSGEMVRKCDPHIGLLHRGTEKLIEYKTYLQALPYFDRLDYVSMMCNEQAYSLAVEKLLNIQPPPRAQWIRVLFGEITRLLNHIMAVTTHALDIGAMTPFFWMFEEREKMFEFYERVSGARMHAAYIRPGGVHQDLPLGLLDDIYEFSKNFSFRIDELEEMLTNNRIWRNRTVDIGVVTAEDALNYGFSGVMLRGSGIQWDLRKTQPYDVYDQVEFDVPIGSRGDCYDRYLCRVEEMRQSLRIISQCLNKMPPGEIKVDDAKVSPPKRAEMKTSMESLIHHFKLYTEGYQVPPGATYTAIEAPKGEFGVYLVSDGSSRPYRCKIKAPGFAHLAGLDKMSKGHMLADVVAIIGTQDIVFGEVDR

Entity 29 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 3, mitochondrial
分子量 formula_weight	30241.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MAAAAAARGCWRGLVGPAAVARVSGRPSVLLLPVRKESAAADTRPTIRPRNDVVHKQLSAFGQYVAEILPKYVQQVQVSCFNELEIFIHPDGVIPVLTFLRDHTNAQFKSLADLTAVDVPTRQNRFEIVYNLLSLRFNSRIRVKTYTDELTPIESSVTVYKAANWYEREIWDMFGVFFANHPDLRRILTDYGFEGHPFRKDFPLSGYVELRYDDEVKRVVAEPVELAQEFRKFDLNSPWEAFPAYRQPPEDLKLEAGDKKPETK

Entity 30 polymer

描述 description	NADH dehydrogenase [ubiquinone] flavoprotein 2, mitochondrial
分子量 formula_weight	27439.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MFLTAALRARATGFTAQWGRHVRNLHKTAVQNGAGGALFVHRDTPENNPDTPFDFTPENYKRIEAIVKNYPEGHKAAAVLPVLDLAQRQNGWLPISAMNKVAEILQVPPMRVYEVATFYTMYNRKPVGKYHIQVCTTTPCMLRNSDSILEAIQKKLGIKVGETTPDKLFTLIEVECLGACVNAPMVQINDNYYEDLTPKDIEEIIDELKAGKIPKPGPRSGRFSCEPAGGLTSLTEPPKGPGFGVQAGL

Entity 31 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 6, mitochondrial
分子量 formula_weight	13349.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAAVTFLRLLGRSGAGARNLLGGSRCFGVRTSPTGEKVTHTGQAYDDGDYRRVRFSDRQKEVNENFAIDLIAEQPVSEVGSRVISCDGGGGALGHPRVYINLDKETKTGTCGYCGLQFRQPHH

Entity 32 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 8, mitochondrial
分子量 formula_weight	23893.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MRCLSTPMLLRALAQAQAAHAGHPSARTLHSSAVAATYKFVNMREPSMDMKSVTDRAAQTLLWTELVRGLGMTLSYLFREPATINYPFEKGPLSPRFRGEHALRRYPSGEERCIACKLCEAVCPAQAITIEAEPRADGSRRTTRYDIDMTKCIYCGFCQEACPVDAIVEGPNFEFSTETHEELLYNKEKLLNNGDKWEAEIAANIQADYLYR

Entity 33 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 7, mitochondrial
分子量 formula_weight	29235.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MFVKWNLYRWRVRGRVYQAGGLMGKPWEAGPSGQSRLLELPATHCCHPVVLSAASGLLRPILALRSSMGAAVQVRFVHPSAATDSPSSQPAVSQAGAVVSKPTTLPSSRGEYVVAKLDDLVNWARRSSLWPMTFGLACCAVEMMHMAAPRYDMDRFGVVFRASPRQSDVMIVAGTLTNKMAPALRKVYDQMPEPRYVVSMGSCANGGGYYHYSYSVVRGCDRIVPVDIYVPGCPPTAEALLYGILQLQRKIKREKRLRIWYRR

Entity 34 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 4, mitochondrial
分子量 formula_weight	19718.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAAVSMSVALKQALWGRRAAAVGAVSVSKVPTRLLSTSTWKLAQDQTQDTQLIAVDEKLDITTLTGVPEEHIKTRKVRIFVPARNNMQSGVNNTKKWKMEFDTRERWENPLMGWSSTADPLSNLVLTFSTKEDAVAFAEKNGWSFDVEERKVPKPKSKSYGANFSWNKRTRVSTK

Entity 35 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 12
分子量 formula_weight	17162.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MELVQVLRRGLQQVSGHGGLRGYLRVLFRANDVRVGTLVGEDKYGNKYYEDNKQFFGRHRWVIYTTEMNGRDTFWDVDGSMVPPEWHRWLHCMTDDPPTTKPPTARKYIWTNHKFNVSGTPQQYVPYSTTRKKIQEWVPPSTPYK

Entity 36 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 5 isoform X1
分子量 formula_weight	13321.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAGLLKKTTGLVGLAVCETPHERLKILYTKILDVLGQIPKNAAYRKYTEQITNEKLGMVKAEPDVKKLEEQLQGGQIEEVILQAENELSLARKMLRWKPWEPLVEEPPANQWKWPI

Entity 37 polymer

描述 description	Acyl carrier protein
分子量 formula_weight	17308.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,X

MAARVLCACVRRLPAAFAPLPRIPTVVAARPLSTTLFPTGAQARSRALQPALVLAQAPGGVTQLCRRYSDAPPLTLEAIKDRVLYVLKLYDKIDPEKLSVNSHFMKDLGLDSLDQVEIIMAMEDEFGFEIPDIDAEKLMCPQEIVDYIADKKDVYE

Entity 38 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 2
分子量 formula_weight	11099.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MAAAAASRGIRAKLGLREIRIHLCQRSPGSQGVRDFIEKRYVELKKANPDLPILIRECSDVQPKLWARYAFGQEKNVSLNNFSADQVTRTLENVLSGKA

Entity 39 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 6
分子量 formula_weight	17890.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MRKKRRPQAALKSRKGVVLSCGLFSKMAASGLPRAAAAAGTSVKPIFSRDMNEAKRRVRELYRAWYREVPNTVHLFQLDISVKQGRDKVREMFMKNAHVTDPRVVDLLVIKGKMELEETINVWKQRTHIMRFFHETEAPRPTDFLSKFYVGHDP

Entity 40 polymer

描述 description	NADH dehydrogenase [ubiquinone] flavoprotein 3, mitochondrial
分子量 formula_weight	12172.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MAASLLLRQGRARALKTVLLEGGVFRGLAPAVSLSAESGRNEKERPPNPKKQSPPKKPTPAAAAAEPFDNSTYRNLQHHEYSTYTFLDLNVELSKFRMPQPSSGRQSPRH

Entity 41 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 1
分子量 formula_weight	8034.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MWFEILPGIAVMAACLFIPGMATAHIHKFTNGGKEKRVAHFSYQWNLMERDRCISGVNRYHVTKGLENID

Entity 42 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 3
分子量 formula_weight	18319.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

KQGQVCQGRSARKPASPPPSTQCARADSARGSRARTPVPRVLCALATFLEGWSAALRTRGLGRQRQCARTTTPRAPRVHAAAETKMAGRIASFLKNAWAKEPVLVASFAIGGLAIILPSLSPYTNYAIRINRATPYNYPVPLRDDGNMPDVPSHPQDPQGPSLEWLKNL

Entity 43 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 10, mitochondrial
分子量 formula_weight	40476.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MALRLLRLAPASASAVPRGLGAVAQRVGGIHTGAPCRLQYGPLAFVLGERTTRKLTETSKVITVDGNICSGKGRLAREIAEKLGLRHFPEAGIHYADSTTGDGKPLDVQLSGNCSLEKFYDDPKSNDGNSYRLQSWLYASRLLQYADALEHLLSTGQGVVLERSIYSDFVFLEAMYRQGFIRKQCVEHYNEVKKVTACEYLPPHVVVYVDVPVPEIQSRIQKKGNPHEMKITAAYLQDIENAYKKTFLPEMSEKCEVLQYSAREAEDAEKVVEDIEYLKCDKGPWPDQDDRTFHRLRMLVQNKLEVLNYTTIPVYLPEITIGAHQSDRVFQKFTELPGRKYSPGYNEDVGDKWIWLK

Entity 44 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 11
分子量 formula_weight	14686.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MAKTLLHKYSDIPEGTECHRKAYASTSIGGATGLIVSAYSIALKPPASFLEGVARTGRYTFTSAAIGAIFGLTSCISAQVREKPDDPLNYFIGGCAGGLTLGARTRSYGIGAAACAYMGLTAALVKMGQLEGWQVFAEPKV

Entity 45 polymer

描述 description	NADH:ubiquinone oxidoreductase subunit A13
分子量 formula_weight	16911.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAASKVKQDMPPPGGYGPIDYKRNLPRRGLSGYSMFAVGIGTLLFGYWSMMKWNRERRRLQIEDFEARIALMPLFQAEKDRRVLQMLRENLEEEAIIMKDVPDWKVGESVFHTTRWVTPMMGELYGLRTNEEILSATYGFIWYT

Entity 46 polymer

描述 description	NADH:ubiquinone oxidoreductase subunit B2
分子量 formula_weight	11939.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MSPLQRLAPFTRVGGRFLRGRGAGVAGGGGVRHAGGGVHIEPRYRQFPQLTRSQLIQAEFFSATMWFWILWRFWHDSDAVLGHFPYPDPSQWTDEELGILPDDED

Entity 47 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 3
分子量 formula_weight	12857.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MLSVLRGQIAVSFPIDMAHGHGHEHGHSKMELPDYKQWKIEGTPLETVQEKLAARGLRDPWGRNEAWRYSGGFANNVSFVGALLKGFKWGFAAFVVAVGAEYYLESQNKDKKHH

Entity 48 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 5
分子量 formula_weight	68695.5 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MNPFASLTLTTLIILTIPIMMSNSNIYKTNLYPNYVKTTVSYAFTLSLVPLLMFMHTGQEMIISNWHWMTLQTVELSLSFKMDYFSVMFIPVALFVTWSIMEFSMWYMHSDPFINRFFKYLVLFLITMMILVTANNLFQLFIGWEGVGIMSFLLIGWWHGRTDANTAALQAILYNRIGDIGFVLSMAWFLTHSNAWDLQQIFMLNNECPNMPLIGLLLAAAGKSAQFGLHPWLPSAMEGPTPVSALLHSSTMVVAGVFLLIRFYPLMETNKLVQTMTLCLGAITTLFTALCAITQNDIKKIVAFSTSSQLGLMMVTIGINQPHLAFLHICMHAFFKAMLFMCSGSIIHSLNDEQDIRKMGGLYKAMPFTTTALIIGSLALTGMPYLTGFYSKDLIIEAVNMSYTNAWALLMTLIATSLTAAYSTRIIFFAFLGKPRFPPLVLINENNPLLINSIKRLLIGSIFAGFIISNNIPPMTVPNTTMPLYMKMTALIVTIMGFMLALELNNTTYYLKFKYPSQTYKFSNMLGYYPSIMHRLPTYHNLSMSQKSASSLLDLIWLETILPKTTSFIQMKMSIMVSNQKGLIKLYFLSFLITIMISMTLFNYHE

Entity 49 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 8
分子量 formula_weight	27760.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MTTGGMGGAEAKSRPQTPRNFLALRTLCVSRLDGARRLRAAAAHAQTLGGPSAVGRGVQGDPGDATSGISSVRATAIMPGIVELPTLEDLKVQEVKVSSSVLKAAAHHYGAQCDKPNKEFMLCRWEEKDPRRCLEEGKLVNQCALDFFRQIKRHCAEPFTEYWTCIDYSGLQLFRHCRKQQAKFDECVLDKLGWVRPDLGELSKVTKVKTDRPLPENPYHSRARPEPNPEAEGDLKPAKHGSRLFFWTM

Entity 50 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 7
分子量 formula_weight	16487.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MGAHLARRYLGDASKEPDPLRMPTFPPDYGFPERKEREMVATQQEMNDAQLMLQQRDYCAHYLIQLLKCKRDSFPNFLACKHEQHDWDYCEHLDYVKRMKEFERERRLLQRKKRREQREAEMARGQGPGEVAPEMAL

Entity 51 polymer

描述 description	Cytochrome b-c1 complex subunit 1, mitochondrial
分子量 formula_weight	52756.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u,5

MAASAVCRVAGTGSRVLLRTCRSPALLRSPALRGTATYAQALQSVPETQVSQLDNGLRVASEQSSQPTCTVGVWIDAGSRYENEKNNGAGYFVEHLAFKGTKNRPGSALEKEVESMGAHLNAYSTREHTAYYIKALSKDLPKAVELLADIVQNCSLEDSQIEKERDVILQELQENDSSMRDVVFDYLHATAFQGTPLAQSVEGPSENVRKLSRADLTEYVSQHYKAPRMVLAAAGGVEHRQLLDLAQKHFSSLSGTYVEDAVPAFTPCRFTGSEIRHRDDALPLAHVAIAVEGPGWANPDNVPLQVANAIIGHYDSTYGGGTHMSSTLASVAATRKLCQSFQTFNICYAETGLLGAHFVCDNMSIDDMMFFLQGQWMRLCTSATESEVVRGKNILRNALVSHLDGTTPVCEDIGRSLLTYGRRIPLAEWESRIAEVDASVVREVCSKYFYDQCPAVAGLGPIEQLPDYNRIRSGMFWLRF

Entity 52 polymer

描述 description	Cytochrome b-c1 complex subunit 8
分子量 formula_weight	9784.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z,Aa

MGREFGHLTRMRHVITYSLSPFEQRAFPHYFTKGIPNVLRRTRACILRVAPPFVVFYLVYTWGTQEFEKSKRKNPAAYENDK

Entity 53 polymer

描述 description	Cytochrome c oxidase subunit 8
分子量 formula_weight	7615.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ag

MLRLAPTVRLLQAPLGGWVVPKAHIYAKPARTPTSPTEQAIGLSVTFLSFLIPAGWVLSHLDHYKRSSAA

Entity 54 polymer

描述 description	Cytochrome c oxidase subunit 7A1, mitochondrial
分子量 formula_weight	9028.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ah

MRALRVSQALVRSFSSTARNRLENRVAEKQKIFQADNDLPVHLKGGATDNILYRVTMTLCLGGTVYSLYCLGWASFPHKK

Entity 55 polymer

描述 description	Cytochrome c oxidase subunit 7B
分子量 formula_weight	9169.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ai

MFPLAKNALSRLRVRNIQQTMARQNHQKRAPDFHDKYGNAILASGATFCVAVWAYTATQIGIEWNLSPVGRVTPKEWREE

Entity 56 polymer

描述 description	Cytochrome c oxidase subunit 7C, mitochondrial
分子量 formula_weight	7358.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Aj

MLGQSIRRFTTSVVRRSHYEEGPGKNLPFSVENKWRLLAMMTLYFGSGFAAPFFIVRHQLLKK

Entity 57 polymer

描述 description	Cytochrome c oxidase subunit 1
分子量 formula_weight	56992.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ak

MFVNRWLYSTNHKDIGTLYLLFGAWAGMVGTALSLLIRAELGQPGTLLGDDQIYNVIVTAHAFVMIFFMVMPIMIGGFGNWLVPLMIGAPDMAFPRMNNMSFWLLPPSFLLLLASSMVEAGAGTGWTVYPPLAGNLAHAGASVDLTIFSLHLAGVSSILGAINFITTIINMKPPAMSQYQTPLFVWSVLITAVLLLLSLPVLAAGITMLLTDRNLNTTFFDPAGGGDPILYQHLFWFFGHPEVYILILPGFGMISHIVTYYSGKKEPFGYMGMVWAMMSIGFLGFIVWAHHMFTVGMDVDTRAYFTSATMIIAIPTGVKVFSWLATLHGGNIKWSPAMLWALGFIFLFTVGGLTGIVLANSSLDIVLHDTYYVVAHFHYVLSMGAVFAIMGGFVHWFPLFSGYTLNQAWAKIHFVIMFVGVNMTFFPQHFLGLSGMPRRYSDYPDAYTAWNTISSMGSFISLTAVMLMIFIIWEAFASKREVSAVELTSTNLEWLHGCPPPYHTFEEPTYINLK

Entity 58 polymer

描述 description	Cytochrome c oxidase subunit 2
分子量 formula_weight	26203.6 kDa
EC 编号 ec_number	7.1.1.9
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Al

MAYPFQLGFQDATSPIMEELLHFHDHTLMIVFLISSLVLYIISLMLTTKLTHTSTMDAQEVETIWTILPAIILILIALPSLRILYMMDEINNPALTVKTMGHQWYWSYEYTDYEDLTFDSYMIPTSDLKPGEMRLLEVDNRVVLPMEMTIRMLVSSEDVLHSWAVPSLGLKTDAIPGRLNQTTLMSTRPGLYYGQCSEICGSNHSFMPIVLELVPLKYFEKWSTSMLT

Entity 59 polymer

描述 description	Cytochrome c oxidase subunit 3
分子量 formula_weight	29753.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Am

MTHQTHAYHMVNPSPWPLTGALSALLMTSGLTMWFHFNSMLLLSLGLLTNTLTMYQWWRDIIRESTFQGHHTSVVQKGLRYGMILFIISEVLFFTGFFWAFYHSSLAPTPELGGCWPPTGIHPLNPLEVPLLNTSILLASGVSITWAHHSLMEGDRKHMIQALSITIALGVYFTLLQASEYYEAPFTISDGVYGSTFFVATGFHGLHVIIGSTFLAVCLLRQLKFHFTSNHHFGFEAAAWYWHFVDVVWLFLYVSIYWWGS

Entity 60 polymer

描述 description	Cytochrome c oxidase subunit 4
分子量 formula_weight	19670.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	An

MLATRVFNLIGRRAISTSVCVRAHGSVVKSEDYALPVYVDRRDYPLPDVAHVKNLSASQKALKEKEKASWSSLSMDEKVELYRLKFNESFAEMNRSTNEWKTIVGTALFFIGFTALLLIWEKHYVYGPIPHTFEEEWVAKQTKRMLDMKVAPIQGFSAKWDYDKNEWKK

Entity 61 polymer

描述 description	Cytochrome c oxidase subunit 5A, mitochondrial
分子量 formula_weight	16771.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ao

MLGAAVRRCSVAAAAVARASPRGLLHPTPTPGPAAAIQSIRCYSHGSHETDEEFDARWVTYFNKPDIDAWELRKGMNTLVGYDLVPEPKIIDAALRACRRLNDFASAVRILEVVKDKAGPHKEIYPYVIQELRPTLNELGISTPEELGLDKV

Entity 62 polymer

描述 description	Cytochrome c oxidase subunit 5B, mitochondrial
分子量 formula_weight	13801.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ap

MASRLLRGAGALAAQTLRARGPNGVAVVRSMASGGGVPTDEEQATGLEREVMMAARKGLDPYNILAPKAASGTKEDPNLVPSITNKRIVGCICEEDNSTVIWFWVHKGETQRCPSCGTHYKLVSHQLAH

Entity 63 polymer

描述 description	Cytochrome c oxidase subunit 6A2
分子量 formula_weight	10876.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Aq

MALPLRSLSRGLASAAKGDHGGTGARTWRFLTFGLALPSVALCTLNSWLHSGHHHRPEFIPYHHLRIRTKPYSWGDGNHTLFHNPRVNPLPTGYEQP

Entity 64 polymer

描述 description	Cytochrome c oxidase subunit
分子量 formula_weight	10170.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ar

MAEDIQTKIKNYQTAPFDSRFPNQNQTRNCWQNYLDFHRCEKAMTAKGGDVSVCEWYRRVYKSLCPISWVSAWDDRRAEGTFPGKI

Entity 65 polymer

描述 description	NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial
分子量 formula_weight	79627.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MLRIPVTRALIGLSKSPKGCVRTTATAASNLIEVFVDGQSVMVEPGTTVLQACEKVGMQIPRFCYHERLSVAGNCRMCLVEIEKAPKVVAACAMPVMKGWNILTNSEKSKKAREGVMEFLLANHPLDCPICDQGGECDLQDQSMMFGSDRSRFLEGKRAVEDKNIGPLVKTIMTRCIQCTRCIRFASEIAGVDDLGTTGRGNDMQVGTYIEKMFMSELSGNIIDICPVGALTSKPYAFTARPWETRKTESIDVMDAVGSNIVVSTRTGEVMRILPRMHEDINEEWISDKTRFAYDGLKRQRLTQPMIRNEKGLLTYTTWEDALSRVAGMLQSFQGNDVAAIAGGLVDAEALVALKDLLNRVDSDSLCTEEVFPTAGAGTDLRSNYLLNTTIAGVEEADVILLVGTNPRFEAPLFNARIRKSWLHNDLKVALIGSPVDLTYRYDHLGDSPKILQDIASGNHPFSQILKEAKKPMVVLGSSALQRSDGTAILAAVSNIAQNIRLSSGVTGDWKVMNILHRIASQVAALDLGYKPGVEAIRKNPPKVLFLLGADGGCITRQDLPKDCFIIYQGHHGDVGAPMADVILPGAAYTEKSATYVNTEGRAQQTKVAVTPPGLAREDWKIIRALSEIAGMTLPYDTLDQVRSRLEEVSPNLVRYDDVEGANYFQQANELSKLVNQQLLADPLVPPQLTIKDFYMTDSISRASQTMAKCVKAVTEGIQAVEEPSIC

Entity 66 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 9, mitochondrial
分子量 formula_weight	42066.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MVLLCMWGCLSGSCLAAVATSVSYGPPQRQLHHALIPHGKGGRSSVSGIVATVFGATGFLGRYVVNHLGRMGSQVIVPYRCEPYDTMHLRPMGDLGQIIFMEWNGKDKDSIRKVVEHSNVVINLVGREWETKNFDFEDVFVKIPHAIAQVSKEAGVEKLIHISHLNADIKSPSRYLRSKAVGEKEVRAAFPEATIIKPSDIFGREDRFLNYFASMRWFGGVPLISLGKETVKQPVYIVDVSKGIINAIKDPDAKGKTFAFVGPNRYLLFDLVQYIFAVAYRPFLPYPLPHFAYRWVGRLFEVSPFEPWTTRDKVERVHMSDMTLPHLPGLEDLGIQATPLELKAIEVLRRHRTYRWLTSEMEDVKPAKTVNI

Entity 67 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 7
分子量 formula_weight	12648.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MASATRVIQLLRNWASGRDLQAKLQLRYQEISKRTQPPPKLPVGPSHKLSNNYYCTRDGRREAMPPSIVMSSQKVLASGKPAESSAVAETEKKAVTPAPPIKRWELSKDQPYL

Entity 68 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 69 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 70 non-polymer

描述 description	HEME C
分子量 formula_weight	618.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 71 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 72 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 73 non-polymer

描述 description	S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate
分子量 formula_weight	568.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 74 non-polymer

描述 description	HEME-A
分子量 formula_weight	852.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 75 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.41 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	6754

fit	/app/data/saxs_computation/ce/9ce2/9ce2.fit
pddf	/app/data/pr_computation/ce/9ce2/9ce2.pr.out
profile	/app/data/saxs_computation/ce/9ce2/9ce2.dat

Respiratory supercomplex I+III2+IV open state

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (75)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
