SAXSdb — 9ce3

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ce3
沉积日期 deposition_date	2024-06-26
最后修订 last_revision	2024-12-04
结构标题 title	Structure of the TSC:WIPI3 lysosomal recruitment complex
关键词 keywords	Tuberous sclerosis complex, tumour suppressor, GTPase-activating proteins (GAP), TSC-mTORC pathway, ONCOPROTEIN; ONCOPROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	127.20 Å
零角强度 I(0) i0	3302520000.00
分子量 molecular_weight	499170.0 kDa
排除体积 excluded_volume	629100 Å³
包络体积 envelope_volume	1338100 Å³
水化壳体积 shell_volume	101720 Å³
包络直径 envelope_diameter	401.4 Å
壳层 Rg shell_rg	82.95 Å
包络 Rg envelope_rg	123.10 Å
形状 Rg shape_rg	127.20 Å
总 Rg total_rg	126.90 Å
总原子数 total_atoms	35086
残基数 n_residues	4379
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	265.5 Å
Rg (实空间) rg_real	96.31 Å
Rg 误差 (实空间) rg_real_error	1.26 Å
I(0) (实空间) i0_real	2.8070e+09
I(0) 误差 (实空间) i0_real_error	6.5640e+07
Rg (倒空间) rg_reciprocal	97.56 Å
I(0) (倒空间) i0_reciprocal	3033000000.0000
解质量估计 total_estimate	0.7475
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.2 Å
偏度 Skewness skewness	0.211
峰度 Kurtosis kurtosis	-1.115
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	1.5910
最高正则化参数 α highest_alpha	49850000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.051; Oscil: 0.808; Stabil: 0.856; Sysdev: 1.000; Positv: 1.000; Valcen: 0.726; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Isoform 4 of Tuberin
分子量 formula_weight	199339.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	35086

MDYKDDDDKAKPTSKDSGLKEKFKILLGLGTPRPNPRSAEGKQTEFIITAEILRELSMECGLNNRIRMIGQICEVAKTKKFEEHAVEALWKAVADLLQPERPLEARHAVLALLKAIVQGQGERLGVLRALFFKVIKDYPSNEDLHERLEVFKALTDNGRHITYLEEELADFVLQWMDVGLSSEFLLVLVNLVKFNSCYLDEYIARMVQMICLLCVRTASSVDIEVSLQVLDAVVCYNCLPAESLPLFIVTLCRTINVKELCEPCWKLMRNLLGTHLGHSAIYNMCHLMEDRAYMEDAPLLRGAVFFVGMALWGAHRLYSLRNSPTSVLPSFYQAMACPNEVVSYEIVLSITRLIKKYRKELQVVAWDILLNIIERLLQQLQTLDSPELRTIVHDLLTTVEELCDQNEFHGSQERYFELVERCADQRPESSLLNLISYRAQSIHPAKDGWIQNLQALMERFFRSESRGAVRIKVLDVLSFVLLINRQFYEEELINSVVISQLSHIPEDKDHQVRKLATQLLVDLAEGCHTHHFNSLLDIIEKVMARSLSPPPELEERDVAAYSASLEDVKTAVLGLLVILQTKLYTLPASHATRVYEMLVSHIQLHYKHSYTLPIASSIRLQAFDFLLLLRADSLHRLGLPNKDGVVRFSPYCVCDYMEPERGSEKKTSGPLSPPTGPPGPAPAGPAVRLGSVPYSLLFRVLLQCLKQESDWKVLKLVLGRLPESLRYKVLIFTSPCSVDQLCSALCSMLSGPKTLERLRGAPEGFSRTDLHLAVVPVLTALISYHNYLDKTKQREMVYCLEQGLIHRCASQCVVALSICSVEMPDIIIKALPVLVVKLTHISATASMAVPLLEFLSTLARLPHLYRNFAAEQYASVFAISLPYTNPSKFNQYIVCLAHHVIAMWFIRCRLPFRKDFVPFITKGLRSNVLLSFDDTPEKDSFRARSTSLNERPKSLRIARPPKQGLNNSPPVKEFKESSAAEAFRCRSISVSEHVVRSRIQTSLTSASLGSADENSVAQADDSLKNLHLELTETCLDMMARYVFSNFTAVPKRSPVGEFLLAGGRTKTWLVGNKLVTVTTSVGTGTRSLLGLDSGELQSGPESSSSPGVHVRQTKEAPAKLESQAGQQVSRGARDRVRSMSGGHGLRVGALDVPASQFLGSATSPGPRTAPAAKPEKASAGTRVPVQEKTNLAAYVPLLTQGWAEILVRRPTGNTSWLMSLENPLSPFSSDINNMPLQELSNALMAAERFKEHRDTALYKSLSVPAASTAKPPPLPRSNTDSAVVMEEGSPGEVPVLVEPPGLEDVEAALGMDRRTDAYSRSSSVSSQEEKSLHAEELVGRGIPIERVVSSEGGRPSVDLSFQPSQPLSKSSSSPELQTLQDILGDPGDKADVGRLSPEVKARSQSGTLDGESAAWSASGEDSRGQPEGPLPSSSPRSPSGLRPRGYTISDSAPSRRGKRVERDALKSRATASNAEKVPGINPSFVFLQLYHSPFFGDESNKPILLPNESQSFERSVQLLDQIPSYDTHKIAVLYVGEGQSNSELAILSNEHGSYRYTEFLTGLGRLIELKDCQPDKVYLGGLDVCGEDGQFTYCWHDDIMQAVFHIATLMPTKDVDKHRCDKKRHLGNDFVSIVYNDSGEDFKLGTIKGQFNFVHVIVTPLDYECNLVSLQCRKDMEGLVDTSVAKIVSDRNLPFVARQMALHANMASQVHHSRSNPTDIYPSKWIARLRHIKRLRQRICEEAAYSNPSLPLVHPPSHSKAPAQTPAEPTPGYEVGQRKRLISSVEDFTEFV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Hamartin
分子量 formula_weight	133001.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MAQQANVGELLAMLDSPMLGVRDDVTAVFKENLNSDRGPMLVNTLVDYYLETSSQPALHILTTLQEPHDKHLLDRINEYVGKAATRLSILSLLGHVIRLQPSWKHKLSQAPLLPSLLKCLKMDTDVVVLTTGVLVLITMLPMIPQSGKQHLLDFFDIFGRLSSWCLKKPGHVAEVYLVHLHASVYALFHRLYGMYPCNFVSFLRSHYSMKENLETFEEVVKPMMEHVRIHPELVTGSKDHELDPRRWKRLETHDVVIECAKISLDPTEASYEDGYSVSHQISARFPHRSADVTTSPYADTQNSYGCATSTPYSTSRLMLLNMPGQLPQTLSSPSTRLITEPPQATLWSPSMVCGMTTPPTSPGNVPPDLSHPYSKVFGTTAGGKGTPLGTPATSPPPAPLCHSDDYVHISLPQATVTPPRKEERMDSARPCLHRQHHLLNDRGSEEPPGSKGSVTLSDLPGFLGDLASEEDSIEKDKEEAAISRELSEITTAEAEPVVPRGGFDSPFYRDSLPGSQRKTHSAASSSQGASVNPEPLHSSLDKLGPDTPKQAFTPIDLPCGSADESPAGDRECQTSLETSIFTPSPCKIPPPTRVGFGSGQPPPYDHLFEVALPKTAHHFVIRKTEELLKKAKGNTEEDGVPSTSPMEVLDRLIQQGADAHSKELNKLPLPSKSVDWTHFGGSPPSDEIRTLRDQLLLLHNQLLYERFKRQQHALRNRRLLRKVIKAAALEEHNAAMKDQLKLQEKDIQMWKVSLQKEQARYNQLQEQRDTMVTKLHSQIRQLQHDREEFYNQSQELQTKLEDCRNMIAELRIELKKANNKVCHTELLLSQVSQKLSNSESVQQQMEFLNRQLLVLGEVNELYLEQLQNKHSDTTKEVEMMKAAYRKELEKNRSHVLQQTQRLDTSQKRILELESHLAKKDHLLLEQKKYLEDVKLQARGQLQAAESRYEAQKRITQVFELEILDLYGRLEKDGLLKKLEEEKAEAAEAAEERLDCCNDGCSDSMVGHNEEASGHNGETKTPRPSSARGSSGSRGGGGSSSSSSELSTPEKPPHQRAGPFSSRWETTMGEASASIPTTVGSLPSSKSFLGMKARELFRNKSESQCDEDGMTSSLSESLKTELGKDLGVEAKIPLNLDGPHPSPPTPDSVGQLHIMDYNETHHEHSGTKLGPEQKLISEEDLNSAVDHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	TBC1 domain family member 7
分子量 formula_weight	35016.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MTEDSQRNFRSVYYEKVGFRGVEEKKSLEILLKDDRLDTEKLCTFSQRFPLPSMYRALVWKVLLGILPPHHESHAKVMMYRKEQYLDVLHALKVVRFVSDATPQAEVYLRMYQLESGKLPRSPSFPLEPDDEVFLAIAKAMEEMVEDSVDCYWITRRFVNQLNTKYRDSLPQLPKAFEQYLNLEDGRLLTHLRMCSAAPKLPYDLWFKRCFAGCLPESSLQRVWDKVVSGSCKILVFVAVEILLTFKIKVMALNSAEKITKFLENIPQDSSDAIVSKAIDLWHKHCGTPVHSSDYKDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	WD repeat domain phosphoinositide-interacting protein 3
分子量 formula_weight	35222.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MHHHHHHGLLYAGFNQDHGCFACGMENGFRVYNTDPLKEKEKQEFLEGGVGHVEMLFRCNYLALVGGGKKKVMIWDDLKKKTVIEIEFSTEVKAVKLRRDRIVVVLDSMIKVFTFTHNPHQLHVFETCYNPKGLCVLCPNSNNSLLAFPGTHTGHVQLVDLASTEKPPVDIPAHEGVLSCIALNLQGTRIATASEKGTLIRIFDTSSGHLIQELRRGSQAANIYCINFNQDASLICVSSDHGTVHIFAAEDPKSKWSFSKFQVPSGSPCICAFGTEPNAVIAICADGSYYKFLFNPKGECIRDVYAQFLEMTDDKL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	Unknown fragment
分子量 formula_weight	1039.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H

XXXXXXXXXXXX

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	200000

fit	/app/data/saxs_computation/ce/9ce3/9ce3.fit
pddf	/app/data/pr_computation/ce/9ce3/9ce3.pr.out
profile	/app/data/saxs_computation/ce/9ce3/9ce3.dat

Structure of the TSC:WIPI3 lysosomal recruitment complex

SAXS 散射曲线 SAXS Profile

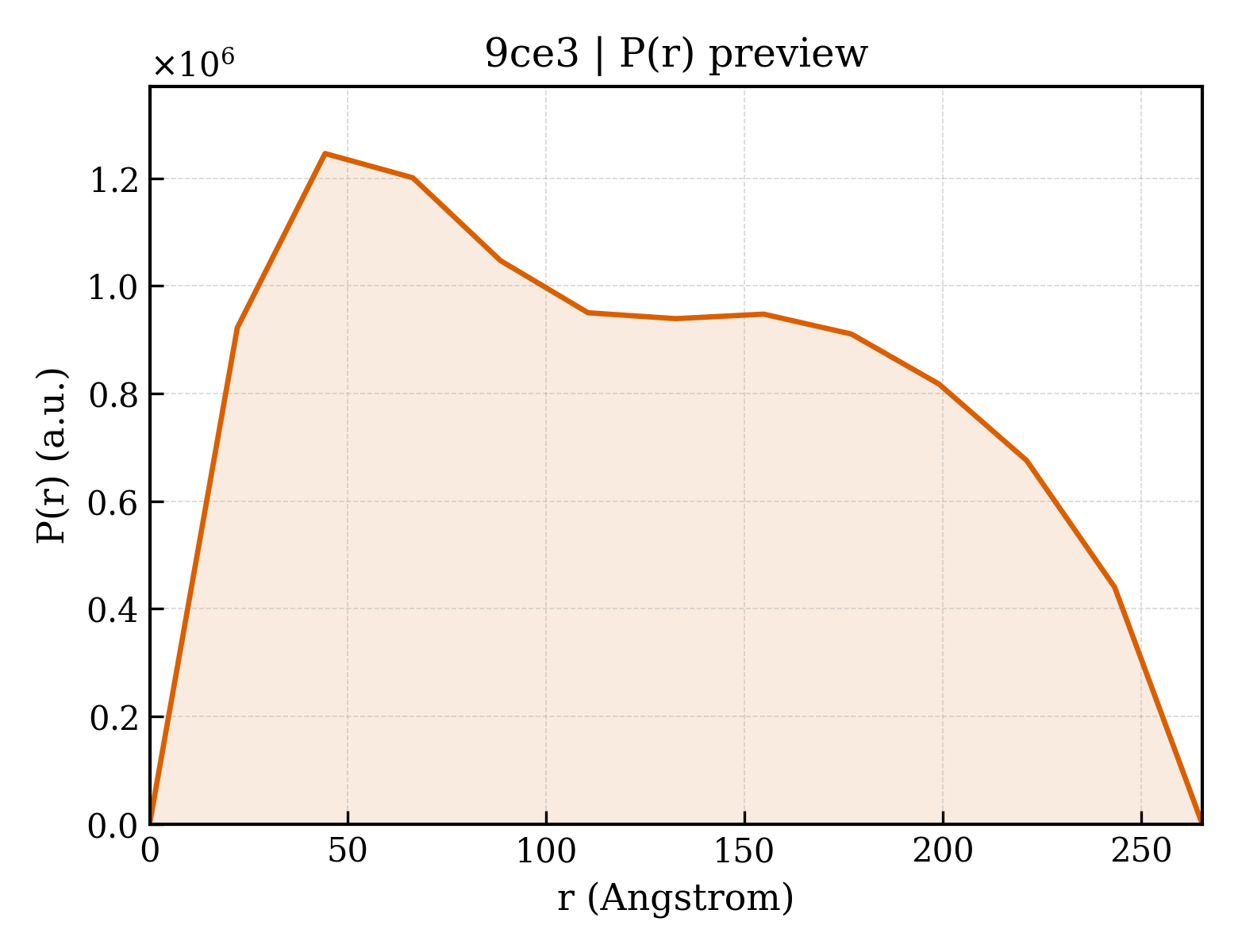

P(r) 距离分布 P(r) Distribution
