SAXSdb — 9cgp

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cgp
沉积日期 deposition_date	2024-06-30
结构标题 title	RyR1 disease mutant Y523S with FKBP12.6, nanodisc and inhibitor dantrolene in the absence of calcium with refined P1 domain
关键词 keywords	Ryanodine receptor, Calcium channel, Mutation, Y523S, RyR1, dantrolene, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	106.40 Å
零角强度 I(0) i0	97355500000.00
分子量 molecular_weight	1756600.0 kDa
排除体积 excluded_volume	1697100 Å³
包络体积 envelope_volume	4857900 Å³
水化壳体积 shell_volume	373440 Å³
包络直径 envelope_diameter	372.8 Å
壳层 Rg shell_rg	105.40 Å
包络 Rg envelope_rg	103.10 Å
形状 Rg shape_rg	106.40 Å
总 Rg total_rg	106.30 Å
总原子数 total_atoms	132860
残基数 n_residues	17460
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	276.5 Å
Rg (实空间) rg_real	102.30 Å
Rg 误差 (实空间) rg_real_error	0.76 Å
I(0) (实空间) i0_real	9.3060e+10
I(0) 误差 (实空间) i0_real_error	1.7480e+09
Rg (倒空间) rg_reciprocal	106.60 Å
I(0) (倒空间) i0_reciprocal	97320000000.0000
解质量估计 total_estimate	0.9114
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	129.0 Å
偏度 Skewness skewness	0.127
峰度 Kurtosis kurtosis	-0.666
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.7014
最高正则化参数 α highest_alpha	5444000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 1.000; Stabil: 0.967; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Ryanodine receptor 1
分子量 formula_weight	565832.6 kDa
突变 mutation	Y523S
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	132860

MGDGGEGEDEVQFLRTDDEVVLQCSATVLKEQLKLCLAAEGFGNRLCFLEPTSNAQNVPPDLAICCFTLEQSLSVRALQEMLANTVEAGVESSQGGGHRTLLYGHAILLRHAHSRMYLSCLTTSRSMTDKLAFDVGLQEDATGEACWWTMHPASKQRSEGEKVRVGDDLILVSVSSERYLHLSTASGELQVDASFMQTLWNMNPICSCCEEGYVTGGHVLRLFHGHMDECLTISAADSDDQRRLVYYEGGAVCTHARSLWRLEPLRISWSGSHLRWGQPLRIRHVTTGRYLALTEDQGLVVVDACKAHTKATSFCFRVSKEKLDTAPKRDVEGMGPPEIKYGESLCFVQHVASGLWLTYAAPDPKALRLGVLKKKAILHQEGHMDDALFLTRCQQEESQAARMIHSTAGLYNQFIKGLDSFSGKPRGSGPPAGPALPIEAVILSLQDLIGYFEPPSEELQHEEKQSKLRSLRNRQSLFQEEGMLSLVLNCIDRLNVYTTAAHFAEYAGEEAAESWKEIVNLLSELLASLIRGNRANCALFSTNLDWVVSKLDRLEASSGILEVLYCVLIESPEVLNIIQENHIKSIISLLDKHGRNHKVLDVLCSLCVCNGVAVRSNQDLITENLLPGRELLLQTNLINYVTSIRPNIFVGRAEGSTQYGKWYFEVMVDEVVPFLTAQATHLRVGWALTEGYSPYPGGGEGWGGNGVGDDLYSYGFDGLHLWTGHVARPVTSPGQHLLAPEDVVSCCLDLSVPSISFRINGCPVQGVFEAFNLDGLFFPVVSFSAGVKVRFLLGGRHGEFKFLPPPGYAPCHEAVLPRERLRLEPIKEYRREGPRGPHLVGPSRCLSHTDFVPCPVDTVQIVLPPHLERIREKLAENIHELWALTRIEQGWTYGPVRDDNKRLHPCLVNFHSLPEPERNYNLQMSGETLKTLLALGCHVGMADEKAEDNLKKTKLPKTYMMSNGYKPAPLDLSHVRLTPAQTTLVDRLAENGHNVWARDRVAQGWSYSAVQDIPARRNPRLVPYRLLDEATKRSNRDSLCQAVRTLLGYGYNIEPPDQEPSQVENQSRWDRVRIFRAEKSYTVQSGRWYFEFEAVTTGEMRVGWARPELRPDVELGADELAYVFNGHRGQRWHLGSEPFGRPWQSGDVVGCMIDLTENTIIFTLNGEVLMSDSGSETAFREIEIGDGFLPVCSLGPGQVGHLNLGQDVSSLRFFAICGLQEGFEPFAINMQRPVTTWFSKSLPQFEPVPPEHPHYEVARMDGTVDTPPCLRLAHRTWGSQNSLVEMLFLRLSLPVQFHQHFRCTAGATPLAPPGLQPPAEDEARAAEPDPDYENLRRSAGGWGEAEGGKEGTAKEGTPGGTPQPGVEAQPVRAENEKDATTEKNKKRGFLFKAKKAAMMTQPPATPALPRLPHDVVPADNRDDPEIILNTTTYYYSVRVFAGQEPSCVWVGWVTPDYHQHDMNFDLSKVRAVTVTMGDEQGNVHSSLKCSNCYMVWGGDFVSPGQQGRISHTDLVIGCLVDLATGLMTFTANGKESNTFFQVEPNTKLFPAVFVLPTHQNVIQFELGKQKNIMPLSAAMFLSERKNPAPQCPPRLEVQMLMPVSWSRMPNHFLQVETRRAGERLGWAVQCQDPLTMMALHIPEENRCMDILELSERLDLQRFHSHTLRLYRAVCALGNNRVAHALCSHVDQAQLLHALEDAHLPGPLRAGYYDLLISIHLESACRSRRSMLSEYIVPLTPETRAITLFPPGRKGGNARRHGLPGVGVTTSLRPPHHFSPPCFVAALPAAGVAEAPARLSPAIPLEALRDKALRMLGEAVRDGGQHARDPVGGSVEFQFVPVLKLVSTLLVMGIFGDEDVKQILKMIEPEVFTEEEEEEEEEEEEEEEEEEDEEEKEEDEEEEEKEDAEKEEEEAPEGEKEDLEEGLLQMKLPESVKLQMCNLLEYFCDQELQHRVESLAAFAERYVDKLQANQRSRYALLMRAFTMSAAETARRTREFRSPPQEQINMLLHFKDEADEEDCPLPEDIRQDLQDFHQDLLAHCGIQLEGEEEEPEEETSLSSRLRSLLETVRLVKKKEEKPEEELPAEEKKPQSLQELVSHMVVRWAQEDYVQSPELVRAMFSLLHRQYDGLGELLRALPRAYTISPSSVEDTMSLLECLGQIRSLLIVQMGPQEENLMIQSIGNIMNNKVFYQHPNLMRALGMHETVMEVMVNVLGGGETKEIRFPKMVTSCCRFLCYFCRISRQNQRSMFDHLSYLLENSGIGLGMQGSTPLDVAAASVIDNNELALALQEQDLEKVVSYLAGCGLQSCPMLLAKGYPDIGWNPCGGERYLDFLRFAVFVNGESVEENANVVVRLLIRKPECFGPALRGEGGSGLLAAIEEAIRISEDPARDGPGVRRDRRREHFGEEPPEENRVHLGHAIMSFYAALIDLLGRCAPEMHLIQAGKGEALRIRAILRSLVPLDDLVGIISLPLQIPTLGKDGALVQPKMSASFVPDHKASMVLFLDRVYGIENQDFLLHVLDVGFLPDMRAAASLDTATFSTTEMALALNRYLCLAVLPLITKCAPLFAGTEHRAIMVDSMLHTVYRLSRGRSLTKAQRDVIEDCLMALCRYIRPSMLQHLLRRLVFDVPILNEFAKMPLKLLTNHYERCWKYYCLPTGWANFGVTSEEELHLTRKLFWGIFDSLAHKKYDQELYRMAMPCLCAIAGALPPDYVDASYSSKAEKKATVDAEGNFDPRPVETLNVIIPEKLDSFINKFAEYTHEKWAFDKIQNNWSYGENVDEELKTHPMLRPYKTFSEKDKEIYRWPIKESLKAMIAWEWTIEKAREGEEERTEKKKTRKISQTAQTYDPREGYNPQPPDLSGVTLSRELQAMAEQLAENYHNTWGRKKKQELEAKGGGTHPLLVPYDTLTAKEKARDREKAQELLKFLQMNGYAVTRGLKDMELDTSSIEKRFAFGFLQQLLRWMDISQEFIAHLEAVVSSGRVEKSPHEQEIKFFAKILLPLINQYFTNHCLYFLSTPAKVLGSGGHASNKEKEMITSLFCKLAALVRHRVSLFGTDAPAVVNCLHILARSLDARTVMKSGPEIVKAGLRSFFESASEDIEKMVENLRLGKVSQARTQVKGVGQNLTYTTVALLPVLTTLFQHIAQHQFGDDVILDDVQVSCYRTLCSIYSLGTTKNTYVEKLRPALGECLARLAAAMPVAFLEPQLNEYNACSVYTTKSPRERAILGLPNSVEEMCPDIPVLDRLMADIGGLAESGARYTEMPHVIEITLPMLCSYLPRWWERGPEAPPPALPAGAPPPCTAVTSDHLNSLLGNILRIIVNNLGIDEATWMKRLAVFAQPIVSRARPELLHSHFIPTIGRLRKRAGKVVAEEEQLRLEAKAEAEEGELLVRDEFSVLCRDLYALYPLLIRYVDNNRAHWLTEPNANAEELFRMVGEIFIYWSKSHNFKREEQNFVVQNEINNMSFLTADSKSKMAKAGDAQSGGSDQERTKKKRRGDRYSVQTSLIVATLKKMLPIGLNMCAPTDQDLIMLAKTRYALKDTDEEVREFLQNNLHLQGKVEGSPSLRWQMALYRGLPGREEDADDPEKIVRRVQEVSAVLYHLEQTEHPYKSKKAVWHKLLSKQRRRAVVACFRMTPLYNLPTHRACNMFLESYKAAWILTEDHSFEDRMIDDLSKAGEQEEEEEEVEEKKPDPLHQLVLHFSRTALTEKSKLDEDYLYMAYADIMAKSCHLEEGGENGEAEEEEVEVSFEEKEMEKQRLLYQQSRLHTRGAAEMVLQMISACKGETGAMVSSTLKLGISILNGGNAEVQQKMLDYLKDKKEVGFFQSIQALMQTCSVLDLNAFERQNKAEGLGMVNEDGTVINRQNGEKVMADDEFTQDLFRFLQLLCEGHNNDFQNYLRTQTGNTTTINIIICTVDYLLRLQESISDFYWYYSGKDVIEEQGKRNFSKAMSVAKQVFNSLTEYIQGPCTGNQQSLAHSRLWDAVVGFLHVFAHMMMKLAQDSSQIELLKELLDLQKDMVVMLLSLLEGNVVNGMIARQMVDMLVESSSNVEMILKFFDMFLKLKDIVGSEAFQDYVTDPRGLISKKDFQKAMDSQKQFTGPEIQFLLSCSEADENEMINFEEFANRFQEPARDIGFNVAVLLTNLSEHVPHDPRLRNFLELAESILEYFRPYLGRIEIMGASRRIERIYFEISETNRAQWEMPQVKESKRQFIFDVVNEGGEAEKMELFVSFCEDTIFEMQIAAQISEPEGEPEADEDEGMGEAAAEGAEEGAAGAEGAAGTVAAGATARLAAAAARALRGLSYRSLRRRVRRLRRLTAREAATALAALLWAVVARAGAAGAGAAAGALRLLWGSLFGGGLVEGAKKVTVTELLAGMPDPTSDEVHGEQPAGPGGDADGAGEGEGEGDAAEGDGDEEVAGHEAGPGGAEGVVAVADGGPFRPEGAGGLGDMGDTTPAEPPTPEGSPILKRKLGVDGEEEELVPEPEPEPEPEPEKADEENGEKEEVPEAPPEPPKKAPPSPPAKKEEAGGAGMEFWGELEVQRVKFLNYLSRNFYTLRFLALFLAFAINFILLFYKVSDSPPGEDDMEGSAAGDLAGAGSGGGSGWGSGAGEEAEGDEDENMVYYFLEESTGYMEPALWCLSLLHTLVAFLCIIGYNCLKVPLVIFKREKELARKLEFDGLYITEQPGDDDVKGQWDRLVLNTPSFPSNYWDKFVKRKVLDKHGDIFGRERIAELLGMDLASLEITAHNERKPDPPPGLLTWLMSIDVKYQIWKFGVIFTDNSFLYLGWYMVMSLLGHYNNFFFAAHLLDIAMGVKTLRTILSSVTHNGKQLVMTVGLLAVVVYLYTVVAFNFFRKFYNKSEDEDEPDMKCDDMMTCYLFHMYVGVRAGGGIGDEIEDPAGDEYELYRVVFDITFFFFVIVILLAIIQGLIIDAFGELRDQQEQVKEDMETKCFICGIGSDYFDTTPHGFETHTLEEHNLANYMFFLMYLINKDETEHTGQESYVWKMYQERCWDFFPAGDCFRKQYEDQLS

来源 Source

来源生物 organism	Oryctolagus cuniculus
通用名 common_name	rabbit
NCBI 分类编号 ncbi_taxonomy_id	9986
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Peptidyl-prolyl cis-trans isomerase FKBP1B
分子量 formula_weight	11667.3 kDa
EC 编号 ec_number	5.2.1.8
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

GVEIETISPGDGRTFPKKGQTCVVHYTGMLQNGKKFDSSRDRNKPFKFRIGKQEVIKGFEEGAAQMSLGQRAKLTCTPDVAYGATGHPGVIPPNATLIFDVELLNLE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	Dantrolene
分子量 formula_weight	314.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.34 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	249034

fit	/app/data/saxs_computation/cg/9cgp/9cgp.fit
pddf	/app/data/pr_computation/cg/9cgp/9cgp.pr.out
profile	/app/data/saxs_computation/cg/9cgp/9cgp.dat

RyR1 disease mutant Y523S with FKBP12.6, nanodisc and inhibitor dantrolene in the absence of calcium with refined P1 domain

SAXS 散射曲线 SAXS Profile

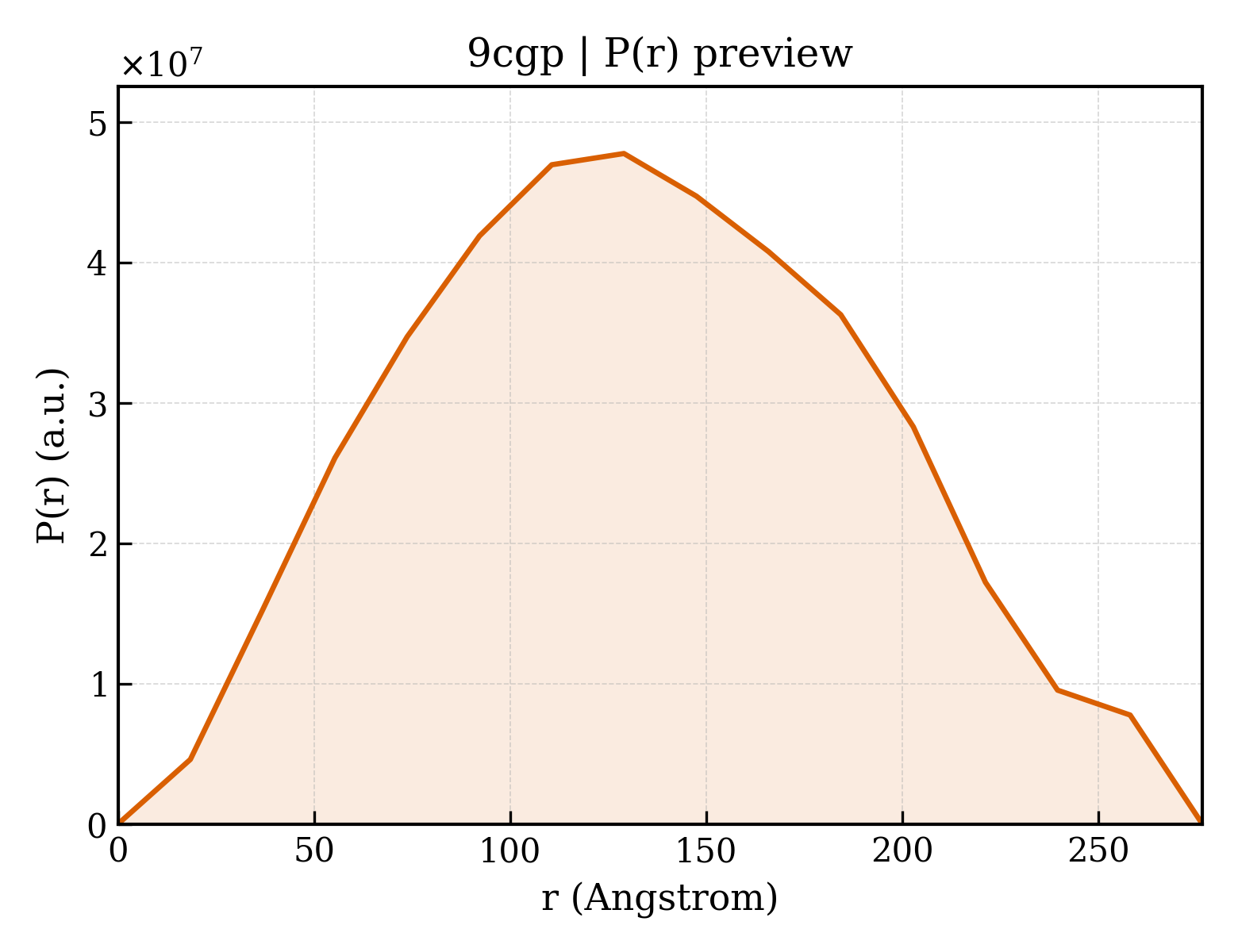

P(r) 距离分布 P(r) Distribution
