9cuy

Bacteriophage PhiTE extended baseplate

Method: ELECTRON MICROSCOPY D_max: 203.0 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

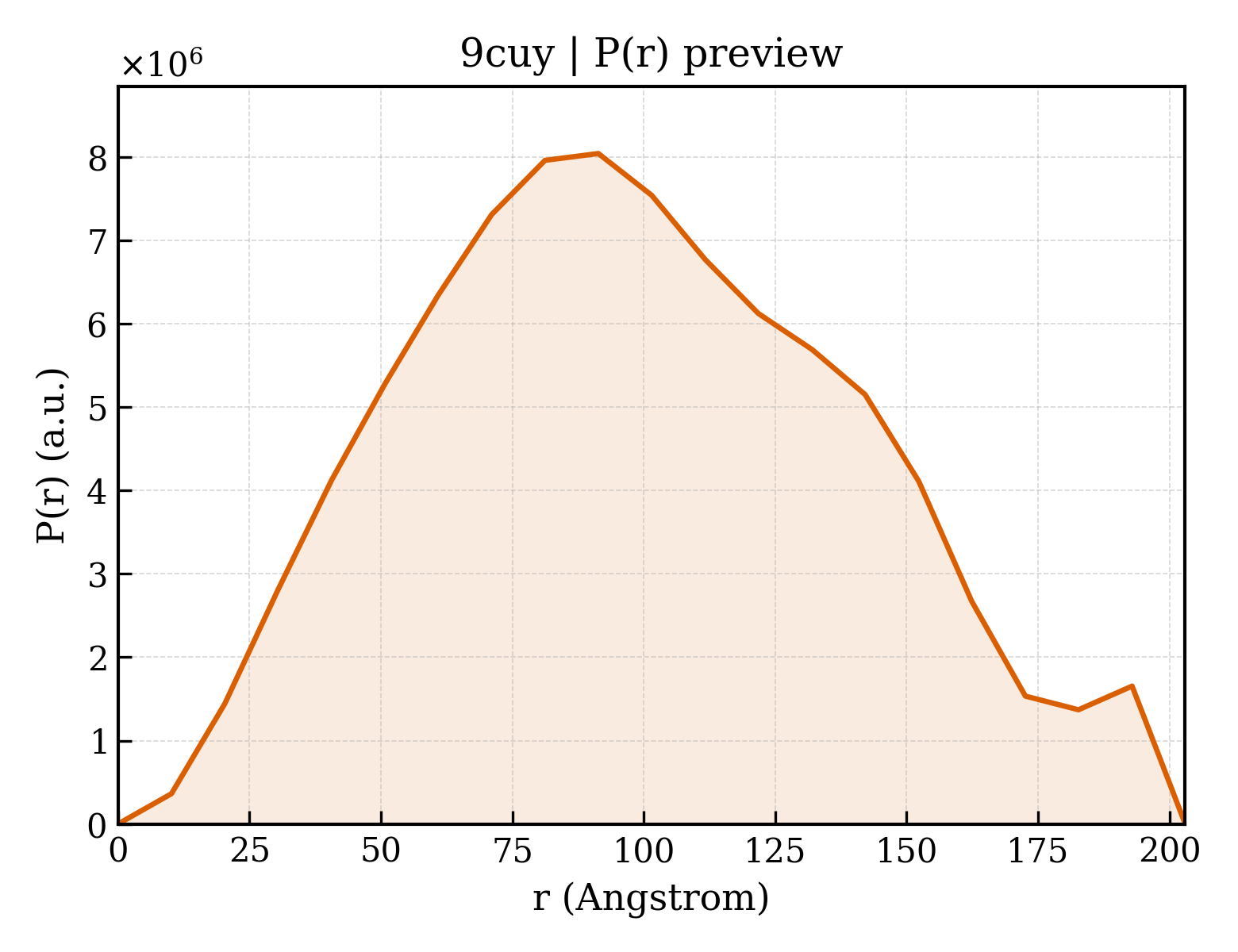

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cuy
沉积日期 deposition_date	2024-07-26
最后修订 last_revision	2025-04-16
结构标题 title	Bacteriophage PhiTE extended baseplate
关键词 keywords	;baseplate, Sheath, Tube, PhiTE, Virus, Phage, VIRAL PROTEIN, sheath initiator, tube initiator, hub, puncture apparatus, fibers, wedge, tape measure protein ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	78.95 Å
回转半径 Rg (电子) rg_electron	79.02 Å
零角强度 I(0) i0	11462900000.00
分子量 molecular_weight	906410.0 kDa
排除体积 excluded_volume	1132800 Å³
包络体积 envelope_volume	2046400 Å³
水化壳体积 shell_volume	215370 Å³
包络直径 envelope_diameter	317.4 Å
壳层 Rg shell_rg	78.17 Å
包络 Rg envelope_rg	77.69 Å
形状 Rg shape_rg	78.97 Å
总 Rg total_rg	79.15 Å
总原子数 total_atoms	63911
残基数 n_residues	8324
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	203.0 Å
Rg (实空间) rg_real	75.30 Å
Rg 误差 (实空间) rg_real_error	0.51 Å
I(0) (实空间) i0_real	1.1010e+10
I(0) 误差 (实空间) i0_real_error	2.0050e+08
Rg (倒空间) rg_reciprocal	78.69 Å
I(0) (倒空间) i0_reciprocal	11450000000.0000
解质量估计 total_estimate	0.9110
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	91.4 Å
偏度 Skewness skewness	0.211
峰度 Kurtosis kurtosis	-0.586
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.1797
最高正则化参数 α highest_alpha	1859000000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.977; Stabil: 0.977; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	Wedge 2 protein
分子量 formula_weight	54432.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T,S,R,U
原子数 atom_count	63911

MAENYGLTGSGFNLPPMDDLVQETKKTFKSAFGEDFNTESNSVADKLIQIFNEREYQLWLLMGSVYYAQTMQGAEGIYLDDLLGKRGIYRLGKTRSTGTVVMTIDSSVPYNMIYSAATYTIDTDYELSSDVQVAGNIVAQLIKGTDLSVGTYRLQIQNTTDQSVKTLSLNLTATSGQPLITFFGQIKDFIVNNTILSNQDRIWIDSTEGALYIGYDTNKIMIGLSSRVDFRTNPMAGTRSISMDVRSIEPGYISRDVHSVRSINPTPGGFVDIDNLSAFIDGSDVESDNEYRIRAATSISEGKATRPAILAALLNKVEGIEKVRIFNNNTDKTNSLGIPPYRFMVVCYGGGTAEISQVLYDTIATSNNTYGDTFYDITTEDDQVERIWHTKAAARQLAIRVRYRGRPLSLTEETAIANGLATAVNGTMIAGTLYNVRLVGTVMSSTSPDRFTQVYVDIKNKGQPDSAYVNTDVTASTTQVLSLELEDVIFSQIV

Entity 2 polymer

描述 description	Tail sheath protein
分子量 formula_weight	50647.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,B,D,F

MAEYQDKVVDVEVSLGTQPIDTVGFETPMFLAMHGNFPERIRFYVSTAGMVADGFAVGSPAYQFATNAFAGNFAPQRVAIGRMSIDSSKVDFTGTTNTEQVVVNITLNKVVKAVKINVLPGNTPAQIATALADAVTADADLTGKATAVATGTYVTVTAVSPNVVSVGKGAGVYKIVNESSETVATVLPSVIAENHNWYFLATEARSDADIVAAAEFAKANYKLHIYNSTDVDAYAPENSAASVFDTLKSLSYDSLGTSDAGADVDFTEGSVIGAMAANDPSYGDSLHLKTMPGMVPFAGSDTQRSNAWSRNANIYRGLYGGGSYIEGKTSSGQYVDVIRFSHWVKFRMEESVFAYMKRRSDMGLSMKMSDEDLPVLKSVLMNNPINIGIRNGGILTGYDTENKVSYDPTIIIPKRANIPTNDLAARILRDVKVELVYNNSLHYVKIRASVVLDRPAGQSTNAQTPMSSSAVGV

Entity 3 polymer

描述 description	Tail tube protein
分子量 formula_weight	16792.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,H,I,G

NQSKILTLQAYDPAKVLVFIGGQRVSGFAADTKIVITRNNDNISVHAGVDGEISNALSRDNTGVMTLSLQNTAKWNGYLAQWQRQANVTGLIYLPVQVEGSQGLSLNTIGWIQKQPDLSYGTEVGQMDWEIGVLDAWLSPDQIQGIAAGITGLLGL

Entity 4 polymer

描述 description	Tube initiator protein
分子量 formula_weight	31720.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L

MAVNNNSISPAQQAQADKRARDAAAAKRKQDTEVSNAKSREDIQYTMFVSGLRRGRLNEFERKNRTDDLAILFDSVTTHTYTKDYNKSSYAVESKAKASDHVTTQDGKFTFSGTVTDSPYLIDPRNMIDRDTDKENPMLARRPAKAIEILELIADSHQLVTLVTEDNILSNYVITSFQVDRSSEAGSSINVQVTLEEFRFKMVNKTVMARTSDPKKAKNANTGTKQTAEDGAVDDSAKQKRQTPYIGKNAETKERWENAAIGTTDFSGKPGAKLPFDPSDLMRK

Entity 5 polymer

描述 description	Hub protein
分子量 formula_weight	36545.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MRAMERTYTLVIGRPVVIGEKPVNIEKFANTSKGDAYEIKDLHIEFNVKKDNSKEPNKGYVTVYNLSDEVVNYLSVNQRESLAVMLHAGYNGDEKLIFSGTVEYVEDDFPEETRTTKFILGDGTLNLTTATTARSYRKGTPVNSVLNDLIADLKLPKGRVIDFGNQTLQTSMAFTGNASQNLANLAKNTGSTFSVQDGAVYWTKEGSRFNNVMFEISEEGGMVGTPTPKQPSSSKKLIKAKAKAKSDEAEGKKPKAPSKKKKEHDIKEDVGMTVSTLLNGAILPESTVYLNTRYHKGFYKVAELTHRGGYETGDWITELGLVETRGELIK

Entity 6 polymer

描述 description	Putative baseplate assembly protein
分子量 formula_weight	26474.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MAYADRYDAAFGIYISRFLRNNVHTNIRGKVVGVNYSGPSVDVQPMAYTEFPSGTTDRYPVIYDVPVLLPSGAGGKARLTMPIKPGDVVGLSFSERNEGDNNDQNTHQLFAGWAVTQIFTDGNSKAIHPDNVVLENDKAIITLKPDGDTSLQNPKVTVEALADGNVKISNGTGEFTMSPSGEIKGGNRGGSFTLQPSGQLMCNGARITTSGRIITANGVDMDDFYQKYMSHTHGGVSRGGDNTNPPN

Entity 7 polymer

描述 description	Wedge 1 protein
分子量 formula_weight	18869.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P

LKDVNHIHPLPDFVRGGFDYVPSDIFSGKENFEQTLRILLERLEFIDQKMVELAELRTTLNAEDAILDEIGRQLGIYRNGLNDPEYRAVIMILTGNNSKSGTRADIIATLKQLFGEDGVTTYKGYNYRLDINIFNTCMEVTDILPEIIDMLPLVTHLRVVENQGY

Entity 8 polymer

描述 description	Spacer protein
分子量 formula_weight	13055.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,M

RTVVRTFDFELSGYPDETFRVVLDSVTYELRFMWNERDESWFMSLGDIGAQRPTITSKLTCYSDILAPYRYLDNVPDGNLYLWPLGDIRTRAGRFNIGPLKGIQMTYSSLIE

Entity 9 polymer

描述 description	Sheath initiator protein
分子量 formula_weight	18823.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n,m

QFKDLLLDPLTGDLDFGTPGDRGMRLALTNQLSLRQRLYLRFAIWAGDWYFDETFGFPYRTFVGKKTVKAVLDGRIKSEVRQEPDVLQITDFQSTMDVVSRSYKCFFTVVTAEGEEISLAFVGEDEYQYPTPPESNVQLCGDEGVIINFKNKLYYLINFRLPK

Entity 10 polymer

描述 description	Putative tail fiber protein
分子量 formula_weight	81935.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g,i,h,j,k,l

MSSNTDIIALLSSDADKAVDQIIEDSKRLHIVVNGTGTEQAVAEDGSLLPSVRKALIDNLYFKTPPLPWRNGGSVNEFNQLYSFTDVSGNTTWWYAPGATVSNPVVMRDSPINDGKFKVFLDKTNIADIYAPLNSPNFVGNPRVPTPAPGDNSQSIPTTGWVQSEMEGLEDLIISSMRGEFENITVRNDAILQDTYINGEFIVTSDKLAAANTEATFRRIRMVGTGTTGTAATEIAFEQNTTPPPGVSTKTNIKPFAVSTGILTVDQINGKAAQVGDVAVSTDSLNVDGYMRGDYLHLEGNNRNTAGRPQLIVDGIAEIETLRVTGTIEGVKADVDGLDIHPRSVIVDEGLTVAKDTTMTGKLTVGGTTKVGNLEVTGTLSGVAISVDGKDIKPRSVNTGNLVATGDVQISGTTTATGKITTQDLEVLGTLTANLDLSGSDLSVDNINVAQTATITDLVVTGTTTGVKGDVEGEAIAPASVAATGTVSAASMSTTGNMAVGGNLTITGDFRPASVAGQDTPRLVVQGDSDLQGDLNVSGTITGVVDLTAQDINMNSLGLAQGLTAGGGITSFSTVKGVNGVFGEGSTAPGAIGLQSMTNAKVATDLLVGEDLRVEGDTNLFGNLSVTGTITGNMNFSGKTIAPATVNATTVTATNLTVTGTIDLTDSPIVAQEITATNVEATGKMVAGKYSTTPKTANATTATFTPDGTTSIYNVNVQADTEVQAPAGLLSSGKGESIFIYFEQDTTGHAVTFSSAFVVHNAATVSNAANSITIANLVYRGTGPLIDVFLTGR

Entity 11 polymer

描述 description	Short tail fiber
分子量 formula_weight	59236.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,a,b,f,d,e

MAKPKDPIYVWAAADVNLPGTGRPNKSKPIDDLLAKGYDKGQKPAAEEFNYILNMSSAWVNWIVNEKFPELEAEIARLLAELENRINQQLAVIRQDIAQLRQDVADLRRYVDQKVQELKQEIQGVRNDLNKLRQDFDAAITQVNGRIDDLEPRLVPIGAVIPWPGATVPDGWLECSGQVFNTGQNPKLYSVLGRNVVPDYRGLFLRGWAHGSDANDPDAGRALGSVQGDAIRNITGYFPADIGNSNFIGRYVGGAFRDDGSLTSGDDGTRSNEVRKYSFDASREVPVAAENRPKNIAVMYIIKTDQAQSSGGNSPTAIVVSPDTITNRIGYAVKATASVLPASISGQYPISWSTQNAAVATVDGSGNISLVGPGETNIIASISTGMNVVIRVTSYSVLTSISIADPGQITVTESKMLVVTKSPSSANEPLQFLSNNSGVAAVNDAGYVIGVSAGSATITVRGTLSGVSSTRAVTIIPEQVEESVQDNRLGAVGSYIPPSPSSNVMSWTFQAPQGCALTGIIVQENESNSGDNIGGVYYKPIQKKVNGVWVTITG

Entity 12 polymer

描述 description	Putative tape measure protein
分子量 formula_weight	87898.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAASGNVVVTRTTNRVTFETDKASYARAVKQIRQVGKEWEKASDAISKPKKDPAKAYDKSAQQMRLVNKRLAETRAREEKRASERSIALARREAKAKEAIARVSAARIKQQVQQMTSPRAGMSEMKKFYQQQEREAKKANRKATIGMNAASRPMNVTRINSAPLSPRGGQGTGMVGDPNKVYNPELIAAQNRAMAGRIRSQSQAQDRKAKAEARQRAAAAARAARIDDVMAQQRIRLSSKYGRSYEGRLGRDGAGQGIQDLNRQFRAGTLSAGQYRQSIQALERQFRSAQANAGGFGAALGDIRSQLLNAGAAYGVFASGASVLKQGQFFQGMEATMSMVSDSSEEAGQRIKFVKDQAYRLGLDLKIASQGYTQMAVNSAGILSKAQNDDLFKGFSEFATASQVDPVKFQRGITAIGQMMGKGQVMAEELKGQLAEGIPGSLQVFVKAAQEAFGDTTIDVEKLMDMMQKGELKAAKILPFVGKYFAEAARKGGALPKALESNRVAMQRLSLTWIDFQNQIFQGGFGEQMTRVFRDLATILDSNGELATNLGAFFGNVIEGFWDMVTEIHDDFVLLDRIVSYYTEKLGYQGDLLKEVFDWAGYAIGIGIFVGGLNKIFKILTKIAGLRTALVGVRQAMGGAITRGGVTNGAGLGGGAGAAGTPGASRTASFLSKWKGLSKISKVGILGTLYSAGSMLNEQFIKRGDDKLADAGLDQETFQKEYGFMPKPVGLLDVFDKWFNKPRDLDAPTITAPGPGSGMAAQTGIPFPAPQKVEGDITIKIEAGELRNMVRAVVDENNQFNFNMLIQGGPN

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.24 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	16480

fit	/app/data/saxs_computation/cu/9cuy/9cuy.fit
pddf	/app/data/pr_computation/cu/9cuy/9cuy.pr.out
profile	/app/data/saxs_computation/cu/9cuy/9cuy.dat
