HPK1 kinase domain T165E,S171E phosphomimetic mutant in complex with compound 53

Method: X-RAY DIFFRACTION D_max: 123.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9d00
沉积日期 deposition_date	2024-08-05
结构标题 title	HPK1 kinase domain T165E,S171E phosphomimetic mutant in complex with compound 53
关键词 keywords	Kinase, 3D domain swap, inactive state, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.16 Å
回转半径 Rg (电子) rg_electron	38.61 Å
零角强度 I(0) i0	473447000.00
分子量 molecular_weight	119780.0 kDa
排除体积 excluded_volume	116660 Å³
包络体积 envelope_volume	222470 Å³
水化壳体积 shell_volume	47521 Å³
包络直径 envelope_diameter	129.7 Å
壳层 Rg shell_rg	45.51 Å
包络 Rg envelope_rg	37.20 Å
形状 Rg shape_rg	38.60 Å
总 Rg total_rg	38.92 Å
总原子数 total_atoms	9105
残基数 n_residues	1137
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

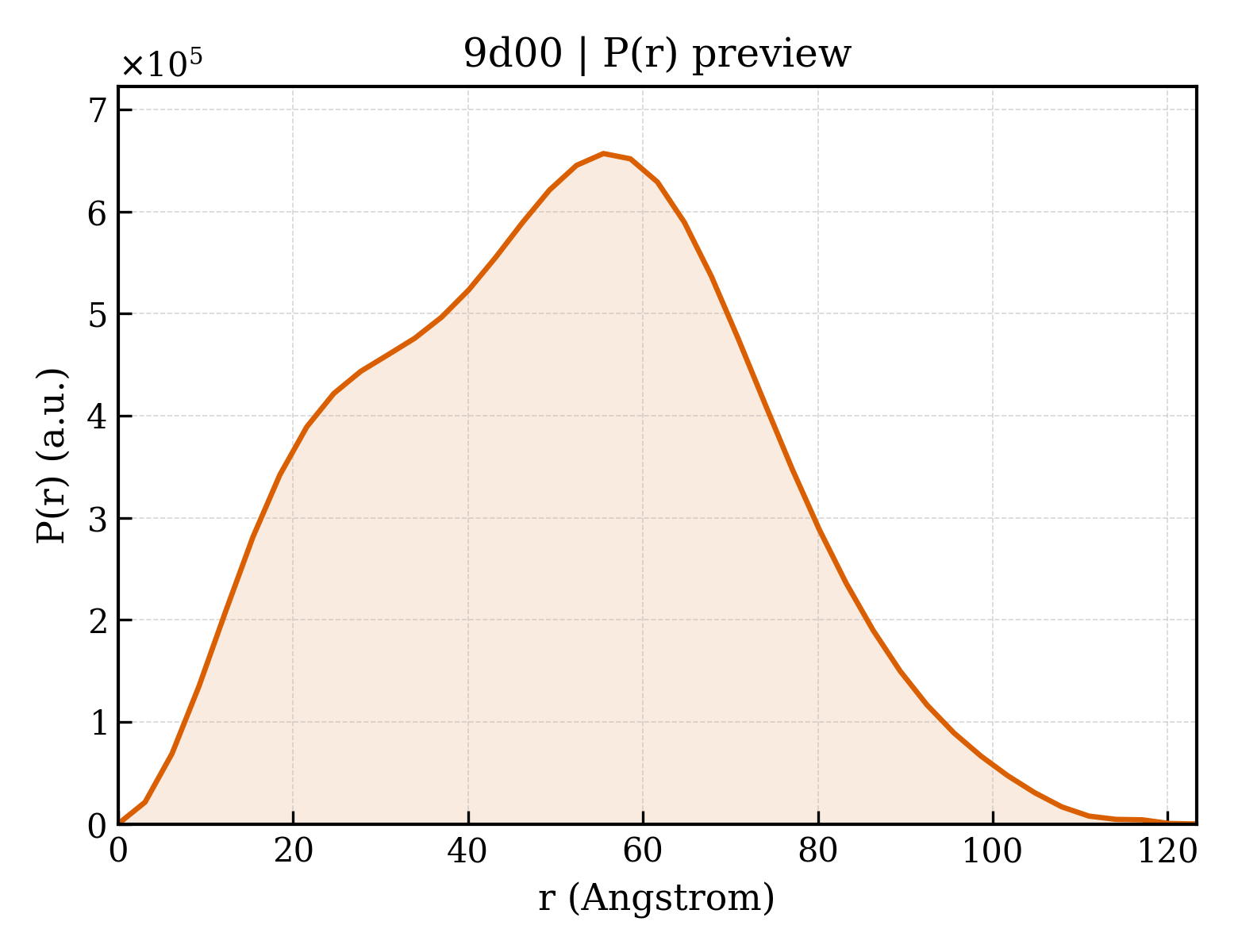

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	123.3 Å
Rg (实空间) rg_real	39.00 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	4.7340e+08
I(0) 误差 (实空间) i0_real_error	9.3600e+06
Rg (倒空间) rg_reciprocal	39.11 Å
I(0) (倒空间) i0_reciprocal	473500000.0000
解质量估计 total_estimate	0.8890
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	55.5 Å
偏度 Skewness skewness	0.090
峰度 Kurtosis kurtosis	-0.573
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	34600000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.874

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Mitogen-activated protein kinase kinase kinase kinase 1
分子量 formula_weight	34504.9 kDa
EC 编号 ec_number	2.7.11.1
突变 mutation	T165E, S171E
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	9632

GSMDVVDPDIFNRDPRDHYDLLQRLGGGTYGEVFKARDKVSGDLVALKMVKMEPDDDVSTLQKEILILKTCRHANIVAYHGSYLWLQKLWICMEFCGAGSLQDIYQVTGSLSELQISYVCREVLQGLAYLHSQKKIHRDIKGANILINDAGEVRLADFGISAQIGAELARRLEFIGTPYWMAPEVAAVALKGGYNELCDIWSLGITAIELAELQPPLFDVHPLRVLFLMTKSGYQPPRLKEKGKWSAAFHNFIKVTLTKSPKKRPSATKMLSHQLVSQPGLNRGLILDLLDKLKNPGKGPSIGDIEDEE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	4-[(1R)-1-aminopropyl]-6-methoxy-2-{6-[4-(propan-2-yl)-4H-1,2,4-triazol-3-yl]pyridin-2-yl}-2,3-dihydro-1H-isoindol-1-one
分子量 formula_weight	406.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	527

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	56.780 Å
晶胞边长 b length_b	80.330 Å
晶胞边长 c length_c	84.090 Å
晶胞夹角 α angle_alpha	103.45 °
晶胞夹角 β angle_beta	106.49 °
晶胞夹角 γ angle_gamma	103.18 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.951 Å
最低分辨率 resolution_low	33.340 Å
R 因子 r_factor	0.2474
R_work r_work	0.2457
R_free r_free	0.2791
