Mycobacteriophage Bxb1 tail tip - Composite map and model

Method: ELECTRON MICROSCOPY D_max: 267.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

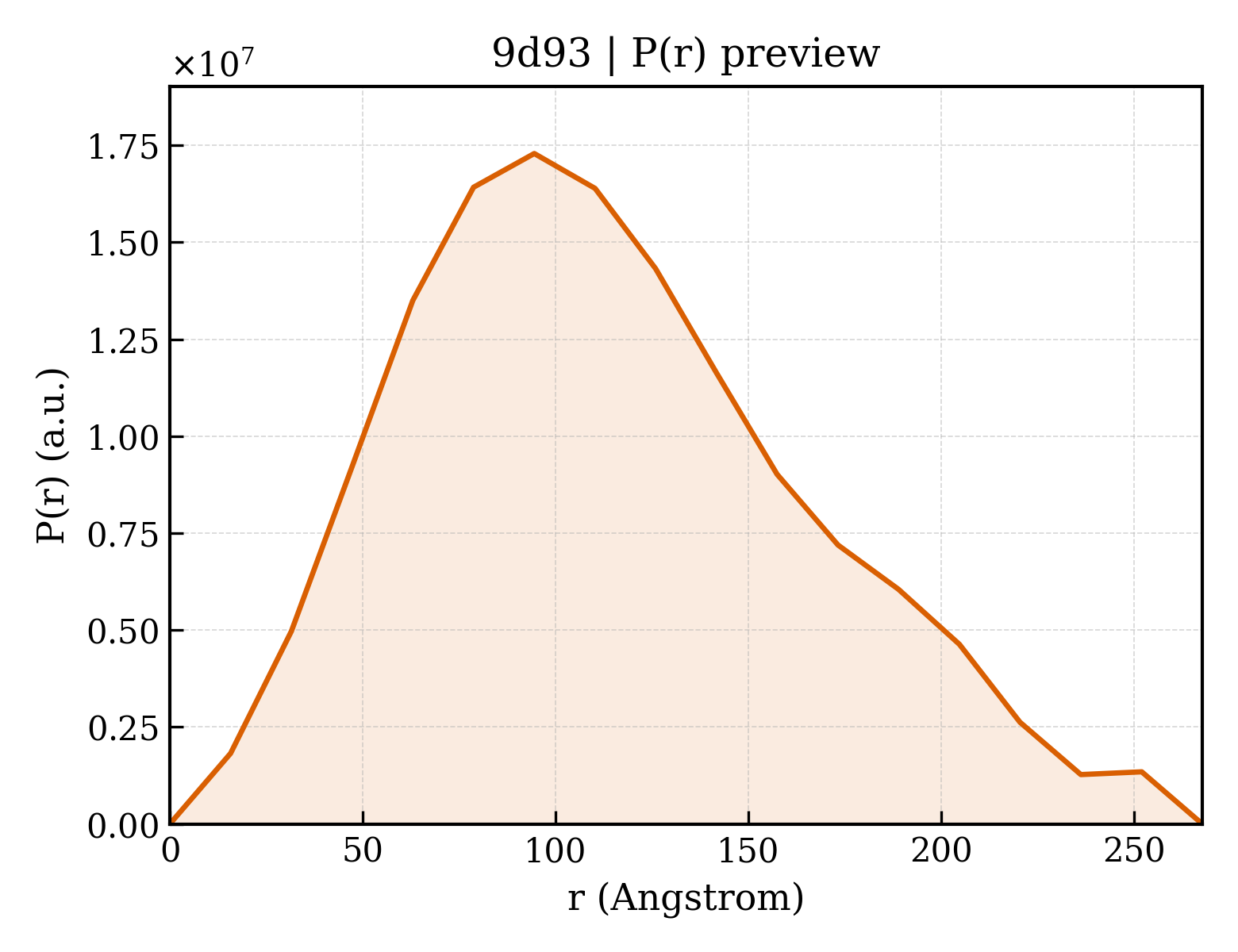

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9d93
沉积日期 deposition_date	2024-08-20
结构标题 title	Mycobacteriophage Bxb1 tail tip - Composite map and model
关键词 keywords	Bacteriophage, tail tip, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	93.15 Å
回转半径 Rg (电子) rg_electron	93.88 Å
零角强度 I(0) i0	28478900000.00
分子量 molecular_weight	1434500.0 kDa
排除体积 excluded_volume	1790300 Å³
包络体积 envelope_volume	3069000 Å³
水化壳体积 shell_volume	279490 Å³
包络直径 envelope_diameter	354.5 Å
壳层 Rg shell_rg	88.01 Å
包络 Rg envelope_rg	92.73 Å
形状 Rg shape_rg	93.87 Å
总 Rg total_rg	93.87 Å
总原子数 total_atoms	199287
残基数 n_residues	13374
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	267.8 Å
Rg (实空间) rg_real	87.97 Å
Rg 误差 (实空间) rg_real_error	1.17 Å
I(0) (实空间) i0_real	2.7250e+10
I(0) 误差 (实空间) i0_real_error	5.7160e+08
Rg (倒空间) rg_reciprocal	89.63 Å
I(0) (倒空间) i0_reciprocal	28160000000.0000
解质量估计 total_estimate	0.8981
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	94.5 Å
偏度 Skewness skewness	0.452
峰度 Kurtosis kurtosis	-0.307
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.5795
最高正则化参数 α highest_alpha	4970000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.922; Stabil: 0.978; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.012

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Tail tube, gp19
分子量 formula_weight	30170.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ja,Jb,Jc,Jd,Je,Jf
原子数 atom_count	199287

MALKDDAVLIAARGYVYTAAVGTAAPTPSQLKLIDLEHPEAWDRTGWDLVGHTSEDDLPEFGFDGGDSEVRGSWQKKKLREVETEEIADYVVINLTQFDETALELYFGPNQSATPGIFGVKSGSVVNERALLIVIVDNDVRLGFHARKASLKREDAISLATDEFGALPVRATFLDYQSYNLYEWIEEDWFNAVDAPVVYLLDLGGATGGDYTLLVGGKSTGDIAYNANASAIKTAIGAVDDGVAESAWTVTADGSDFEISGPLAVALGVDSTTGGSGVTVDVV

Entity 2 polymer

描述 description	Tail collar spacer, gp6
分子量 formula_weight	9696.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ka,Kb,Kc

MTTVTATVHDISGRPDDSHWTFSSDLREQDGVIITPRVVRVKPFNGELALTLPPGPVRVTHHQDRWLIDVPEEDSDLWDLIEAATD

Entity 3 polymer

描述 description	Tail collar fibers, gp4
分子量 formula_weight	36724.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	9

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	La,Lb,Lc,Ld,Le,Lf,Lg,Lh,Li

MTVTITADVRDVTGQPDNQQWVFSTVLRQQDGSILTQKQVRVNPVDGALSVELEPGFAIVVYGEYRWFIEVPETDAGLWGLIATSVAVPPDTSAELLADAVNGYLDANPPSADWDALSNVPSEFPPSAHDHVAADVTDLDSAIAAYLASNPPEAGSVAWDDIDDKPSTFTPSSHTHSIANVTGLQDALDEKLDEAAVDARVSLGTAALVDSAPSTLDTLNELAAALGDDPNFATTVASQIGAKADKATTITAGTGLTGGGDLSANRTLNVSFGTSSTTACVGNDSRLSNTRTPTDGSVTNAKVASGAGIALSKLATGYVAGSDNSGARTLTIWVGTEAQYTAIGTKDSNTIYLRTA

Entity 4 polymer

描述 description	Tail tip cage, gp23
分子量 formula_weight	74357.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ma,Mb,Mc,Md,Me,Mf

MASRLLDPDTLVELEGVNGEWFDLTNGTEGIYLATEVTGLLDPPVKATYEEPGNFPGARYLNHRVLRRDLVFGVEILNDENDETWLRRDSAWRKAWSFKRDAKLHITTGESGHRYLKVRLFESPTTDMVTDPRGREVNITKMVVVAGDPFWYEDDVVYPIEVQEDTTFDPNPLPWPWPQPELPVEDIEITVPNANPTDNIIWPKWTLPGSSEKPAEPYIPGLPWLGAPKSPATLWTVPDYKLDLDEDEDPSLGTRRIRMPGQIGGLRVEEVQQIYIDGRPTGGTFKIGYGDEWTEPIAYNASPNDVRAALIALEGISANDVEVSLGGATNEVQTVRLKGGALGGTFTLSLGSETTVGIPFNASDADLQGALVGLDSIGSADVRVKSTKINEVQVVELVGEPTSGSFTLTLDGQTTAPIAYNATPATVAARIADLPNIDGNYVKVEGLNEWFHSPYRITFGEAQSQGVITDIISGIIDFIGGLFGGNASGKGVGGIDIDEMTGDVGTLSGGAGLDVQVTTEQDGDRLYVVSFQRAAGGLNLPQLVGNASGLEGDDLSIETATNVDGGRPYVVRFTDDLQGVDVPTMTVDTDDLTGGYEVGSRVVVLREGYTYPAENVVVDSDPREEQVSSESGSPIWERMNSVRFLHYIPPYTGEVTFKLSVSGAVPGQIATLRLPRAWSRPWGLE

Entity 5 polymer

描述 description	Tapemeasure protein
分子量 formula_weight	84842.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Na,Nb,Nc

MAAGKEVGRLSIKVTPDLDGFYRELKAAVEAAEKMKVHIPVEPDMGNFRQEVAASTAGMSTRVKVQADVDRGLLDRLSNSLSGMKAPSFGSGINPTGYMLILGAAAALTPLIAGSLGAISAALLTLPGLIAAVAVPIGALALGIDGFKRAAERLKPAFDGLKESMSAAVENQFGPVFDQLGKAIPTLAANLPKVTQGMADVAKSIVDSVTSGEGLGRIESLISNIGAAISRSAPGLTSFVDGLLNLAEKFSGKLPAIADWINRTGESFSKWVTDFTTAGPDGVSKFDNAMSGLGDTLQMLGGGLVDILNKSLEFFSDPQKIQSFKAELDGLIASISTLVDLINSLAAAFSKVPGLSDGEANGVMDFAPIQIQGAIELIKQIPTAWEGVKLKAAEVWNSIPTMAATAIASIRATLATLPGLLSGIWTTVTASASSAFATIGAAVSAGARSVVNTAGNIFRSMGSVIANAFSAAVSAVQTAFSQMVSAAASGAQQVVAEVQALGGKIAAAAGNFGSILVAAGKALMDGLLSGIKAGLSAVLDFASGIAAKIAAVKGPLPKDRKELIPAGEALMEGLGTGIENGLDPVLDRAREIAKQIFSAFKETFGTAPTSLAFNLGSMQGDLSGLQTSLESTATASRDLTSSLTAPTAELASGSSLLGDDVKDQLDELKLAYDQLELQRKQLKVQKNEAGSKEDKAAIQDKIDALQAEKDKLAYQKDQLKIQQKQTGEMGEQKTLAQFLGEQIASTWQQGTDAVAGFARSNLDQAMSDLGIGGGAITNGLNAGLDWGVQALGNAVNIQVNSVDDAIAVKNNEVNKQALTYTRR

Entity 6 polymer

描述 description	Baseplate hub, gp25
分子量 formula_weight	67065.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Oa,Ob,Oc

MPAPAADMTTLAGHQQLWDTVMKRRQKREDERIAPPLIRLWDGDYKLRGQLVGERSHKFEFIENETGTASITISLDHYLAKWIASHKGRARRNVHVSFDKQGARWTGRMDHYDIVRTKEGDVYMEVVFKHDYEELKHIYVWANPFLRPEFQFPKLWVMFGPAKWALLLTLFVNILRLETSLWTLPDNPLDISEWFPFSLNPGNWRNIVKPFPFLADNSPLTIVFSRFKSFHDTAKNVLADSQLTIVCRRYFHGEDPHPFAELSGELGLPLIEGIASLIPLRHGCLVWDIVDNSGWGSETAFGGSLLTGLVRAVMNIASDGMTEGIDIYTGLPTYPGEYYTPGFLGTYPKAPHVVFMESPYTGIESSKFTYTEATDTSFVLGGQSMPGVNEVISAGINMGGDFLTSLINSQLATLGAFGGAIDLPPLGGIMDAVARPLYENVVLAFMEIPTLRAAGLSLPIAGLEDIVTGLGDFHYNEGWVDGADKAFTISAIMAARAKQWATRAKHSHEIQVSDAAPYIIGERGHGHFWLGDRVGTTVLGYPDPYTIFVERVTKLTYEWTSDGPKGWTITIGYKEPEDPILKAFELIQYINSNLGQLGIL

Entity 7 polymer

描述 description	Tail spike, gp29
分子量 formula_weight	64056.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Pa,Pb,Pc

MADDQWVPDVPDGAFVIGGGDYRYGQDMTEDIARSLFQVPDFNPANALLVLPQLLLRLPLEALQKFKDFIPNVLEGAFNTVAGAVDAIMGAIRETPRVLEQILSYLPQELRDELEHAAARIGAVIDAIVQALTGTLNIGHTIEDLIFSLTNIRPGAVGGVLGGGSIEETIKRIVDAIVSGIVGVTGIGAGISDLQSLIEQISSAAARGGFAWDILGIQNNKKPKSGLYKSERGNFDLDTLNSTVSVAPGTSIIAFDVIEQSMPIGLITWIGWGTSGITEFYINVYRCVDDRSDPELGELIHQSENIAGLLAGSASPGANMAYELTTPIEAVAGDLLAYEFIAVGGTHTMRGRDFNLPDNDGAPIGNVGATRSLSTPSLPPATLDKADVTWTDNVPRVGIAVDTGTGSDHHDPQVEFFEKPVAIPVPAWCDRIDAIVTGKGGEGADGFLGFYGNPGQPGSVNTVTWTRGEHFSGTTTILEWDGAELSIPGFEVSAANGSNGSGQRPVALGKPVGKGIEEVEYNGLKLAAGGDQHAYGGAGTKPGGGGNGGHWLGIYTQGGPGGPACAAVQFRKGALPGEVVGDGEGDVTPPNVSALHVDVSATSTSITITPSGAVDDA

Entity 8 polymer

描述 description	Tail wing brush, gp33
分子量 formula_weight	24772.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Qa,Qb,Qc

MSLKVGGLDVVGVFVGDAAATIYVGAMRIWPPVPDFTPFTISSEDPGYEDLIDEQVPEGASGCWVTLGGAGGGGGSGRRANSGYRYGGGGGGGGGYIDRVWIPRASLGSTFTLIRGLGGAGGARAAGSSNGNNGAPGGSTVFSSGSVSLTASGGAAGVKGTSSSASGSGGAGGTTSISGVSATGYTGGKGGNGGSSPSSGQSRTDGSGAGGGGGGGVRSNDNSFSGGSNGTSSGPAGNGGRGTDGSINTGGSNAGSGGDGYVLIEWE

Entity 9 polymer

描述 description	Tail wing arm, gp31
分子量 formula_weight	11315.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Ra,Rb,Rc,Rd,Re,Rf

MIDADDYTVNLTSHTTLANIPSGAIIAVSESLTGKSVTSAGWVKADPTVFPEVTGDTGEAVIVYKHTGTASTSTLLSYHDSPTYQFVIPNGSDIRVIWPTDGFIRF

Entity 10 polymer

描述 description	Tail wing base, gp30
分子量 formula_weight	54931.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Sa,Sb,Sc

MPSGLRGYNVYRNGVRQNTSPVTELGSVTITGLTPGTDYSSQITVTAIDMAGNESEPKTLAELEAEAATDELSPADPLAPAVRAQIDALVAAKMKPTSGKEADGAMVGIETPTGSYYKAYGGDRTKNQPLFLEQNFRYGSCSKMACNTLLLREIDRGHVDWDDTLDQFIDGIPNGDKITVRYLLLFQDGLKDWLQGDPAVQQTYFLNPTLNYDPLAYIRASTPVFEPGTDSHYSNAATLLMGKILEWCDAEFYTGRSARELIVEEWKNTVGMESLHWPTTNYMNQPYVRGWTPNMALPQIQAILGPFAFLAGLLGYPTSKDLEWTAVSTTWSDAAGSLAGNMEDFVKFGKALYEGEFLSEEMNQLRKEIFTRYVEYEPAGPHQGPGWMGFGLNSICWGHWLGWVGNLGGYIAVLFYNQDDGSVIATMLNNFAGHADAVDLFYQIAYLLNPESTGHRDWIFRPDPAEDADEVRDPTLYLTVESTGDNQIPADVPFEI

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.85 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	22280

fit	/app/data/saxs_computation/d9/9d93/9d93.fit
pddf	/app/data/pr_computation/d9/9d93/9d93.pr.out
profile	/app/data/saxs_computation/d9/9d93/9d93.dat
