Cryo-EM Structure of the Multimeric Phosphoenolpyruvate Binding Domain of Staphylothermus marinus Phosphoenolpyruvate Synthase

Method: ELECTRON MICROSCOPY D_max: 164.3 Å Quality: GOOD

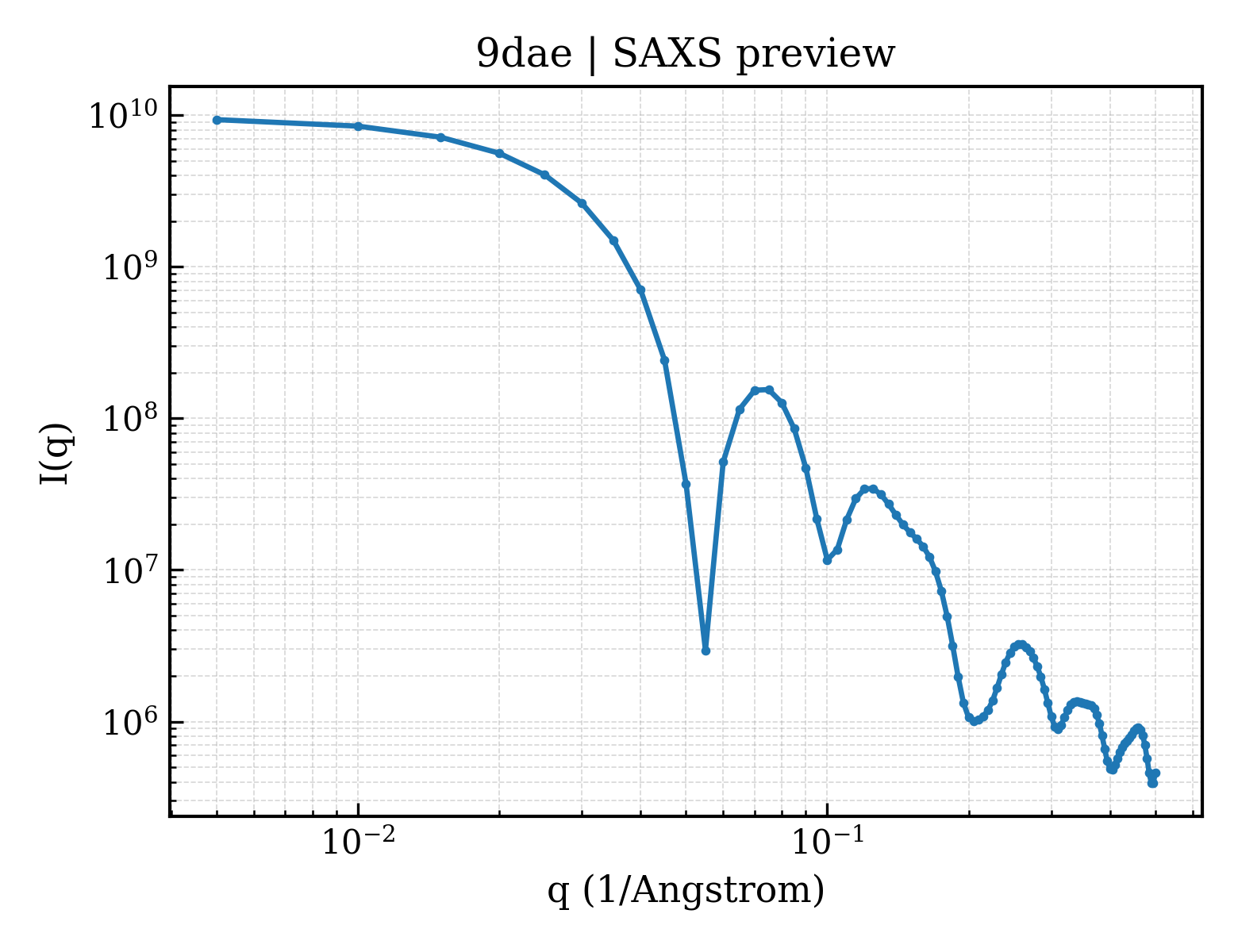

SAXS 散射曲线 SAXS Profile

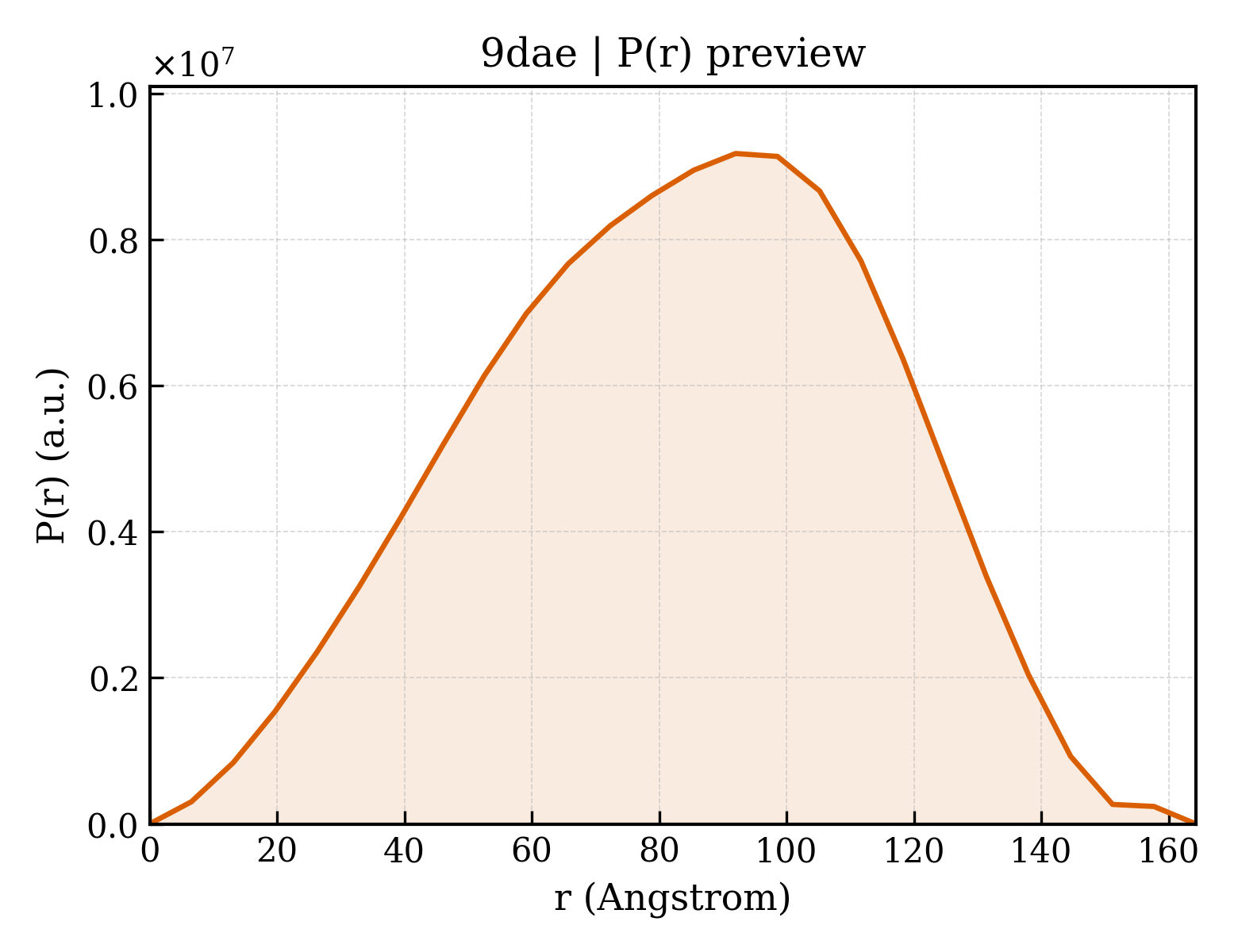

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dae
沉积日期 deposition_date	2024-08-22
结构标题 title	Cryo-EM Structure of the Multimeric Phosphoenolpyruvate Binding Domain of Staphylothermus marinus Phosphoenolpyruvate Synthase
关键词 keywords	phosphoenolpyruvate, enzyme, multimeric, pyruvate, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.17 Å
回转半径 Rg (电子) rg_electron	62.06 Å
零角强度 I(0) i0	9663680000.00
分子量 molecular_weight	883420.0 kDa
排除体积 excluded_volume	1125800 Å³
包络体积 envelope_volume	1561900 Å³
水化壳体积 shell_volume	196810 Å³
包络直径 envelope_diameter	176.6 Å
壳层 Rg shell_rg	75.50 Å
包络 Rg envelope_rg	58.62 Å
形状 Rg shape_rg	62.12 Å
总 Rg total_rg	62.04 Å
总原子数 total_atoms	62232
残基数 n_residues	7752
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	164.3 Å
Rg (实空间) rg_real	62.43 Å
Rg 误差 (实空间) rg_real_error	0.55 Å
I(0) (实空间) i0_real	9.6640e+09
I(0) 误差 (实空间) i0_real_error	1.6050e+08
Rg (倒空间) rg_reciprocal	63.79 Å
I(0) (倒空间) i0_reciprocal	9686000000.0000
解质量估计 total_estimate	0.8423
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	92.0 Å
偏度 Skewness skewness	-0.155
峰度 Kurtosis kurtosis	-0.615
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21850000000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.983; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Phosphoenolpyruvate synthase
分子量 formula_weight	95153.9 kDa
EC 编号 ec_number	2.7.9.2
来源方法 src_method	man
拷贝数 entity_count	24

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K,M,O,Q,S,V,X,Z,BA,DA,FA,HA,JA,LA,NA,PA,RA,TA,VA
原子数 atom_count	62232

MGSSHHHHHHSSGSNVPKEKRFIVWLDEVTKDDVVLVGGKNANLGEMIRAGIPVPPGFAVTAYAYKYFIEKTGLKDKIYPLLNSIDVNDKKVLDETTAKIRQWIMDTPMPPEVEEEIRKYYRELAKKIGMEPEKLRVAVRSSATAEDMPEASFAGQQDTYLNVYGEDNVVYYVKRCWASLFTSRAVFYRVAQGIPHEKSLMSVTVQKMVNSRTAGVMFTLHPVTGDEKVVVIEASWGLGESVVGGKVTPDEWVVDKQTLQIVDQKIHHKTLAIVFDPKKGKNVEIRWDENKQAWVSEEGPVDIEMVKHFHPDKPALKEEEVKRLAELALLIEKHYGRHMDIEWAVDYDIPFPDNVFIVQARLETVWSVRKEKEKAEKKAEIKGKNIVKLSEAKVLVRGLPASPGIGAGVAKVIFDPHSKEAQEFKEGEVLVTKMTDPDWVPLMKKAVAIVTDEGGMTSHAAIVSRELGIPAIVGTGNATQVIKSGIEVTVDGSRGVVYEGIVEDLVKPKEEVKAEVAGVGISPEQLLPLYPVTATKIYMNLGEPDAIEKYKDLPFDGIGLMRIEFIITDWVQYHPLYLIEQGKESLFIDKLAEGIAKVAQAIYPRPVVVRFSDFKTNEYRGLKGGEKYEPEERNPMIGWRGVSRYIHPKYEPAFRLEVRAIKKVREEMGLTNVWVMFPFVRTTWELERALKIMEEEGLKRGKDFKVWAMAEVPSIVLLADKFAEYVDGFSIGSNDLTQLILGADRDSNILAEMGYFDERDPAVLAGIKMIIEKAHSKGATVSICGQAPSVYPEIVEFLVEAGIDSISVNPDAVIATRRLVASIERKIMLKRLNKIMDKLNKLELGF

来源 Source

来源生物 organism	Staphylothermus marinus F1
NCBI 分类编号 ncbi_taxonomy_id	399550
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	24

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.24 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1138254
