9dei

Trypanosoma brucei mitochondrial RNA-editing catalytic complex 1, U-deletion (RECC1)

Method: ELECTRON MICROSCOPY D_max: 231.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

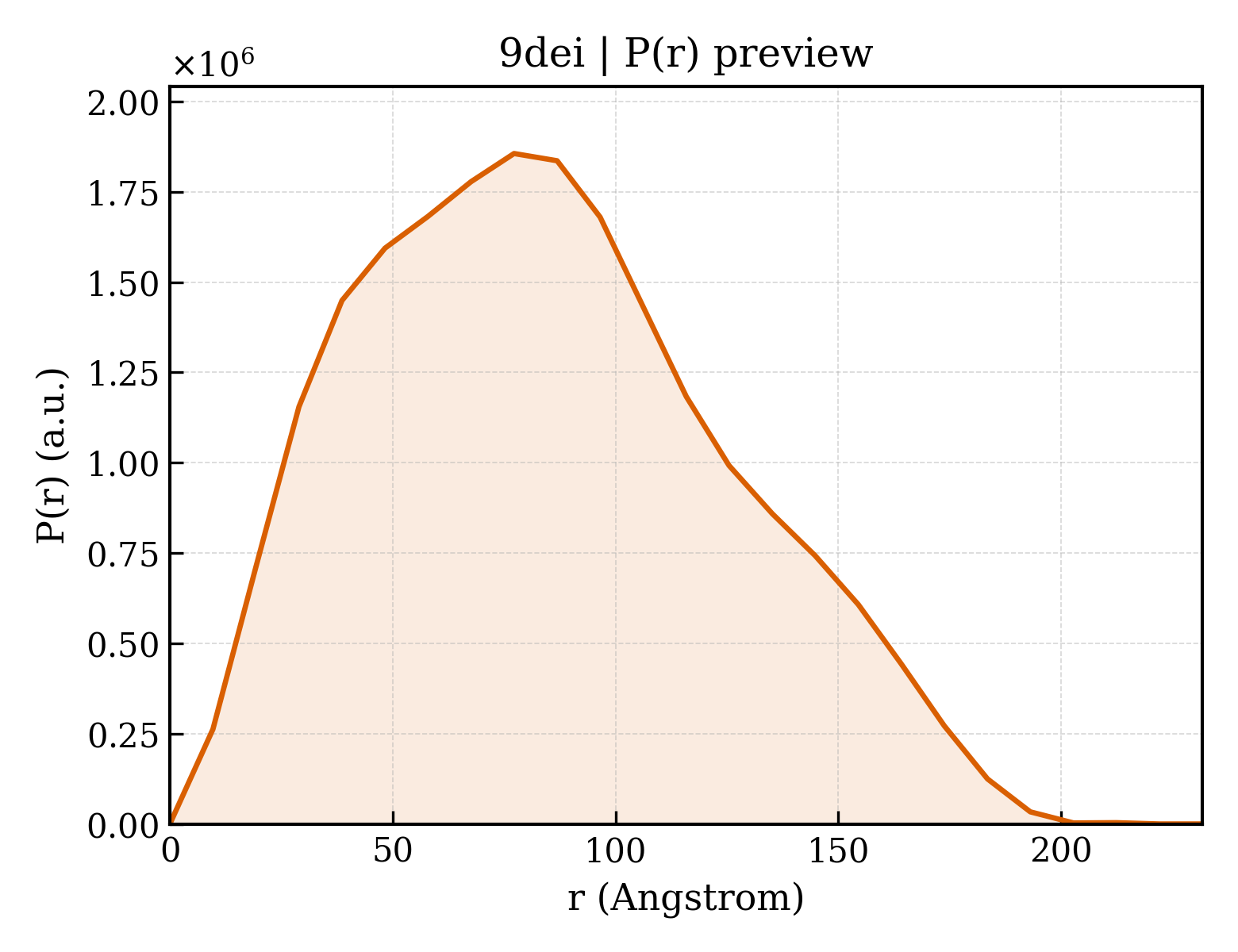

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dei
沉积日期 deposition_date	2024-08-29
结构标题 title	Trypanosoma brucei mitochondrial RNA-editing catalytic complex 1, U-deletion (RECC1)
关键词 keywords	RNA editing, tRNA, OB-fold, mitochondria, RNA BINDING PROTEIN; RNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.76 Å
回转半径 Rg (电子) rg_electron	66.29 Å
零角强度 I(0) i0	2511540000.00
分子量 molecular_weight	396670.0 kDa
排除体积 excluded_volume	486830 Å³
包络体积 envelope_volume	779860 Å³
水化壳体积 shell_volume	105560 Å³
包络直径 envelope_diameter	218.1 Å
壳层 Rg shell_rg	57.67 Å
包络 Rg envelope_rg	65.54 Å
形状 Rg shape_rg	66.30 Å
总 Rg total_rg	66.09 Å
总原子数 total_atoms	27753
残基数 n_residues	3381
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	231.7 Å
Rg (实空间) rg_real	66.09 Å
Rg 误差 (实空间) rg_real_error	2.79 Å
I(0) (实空间) i0_real	2.5120e+09
I(0) 误差 (实空间) i0_real_error	5.0460e+07
Rg (倒空间) rg_reciprocal	65.40 Å
I(0) (倒空间) i0_reciprocal	2508000000.0000
解质量估计 total_estimate	0.8009
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	77.2 Å
偏度 Skewness skewness	0.334
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0007
最高正则化参数 α highest_alpha	119500000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.816; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (15)

Entity 1 polymer

描述 description	KREPB5; RNA-editing catalytic complex core protein, B5
分子量 formula_weight	43818.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	28120

MRRAVVLHTAAPMCALTGKCVEDWESHRKSFDMRIFELLKGRVTSPTEPLPIKQIYATIANPCRLVEEFTCAKTTRRLGRLHTALSFLRRHNVLLHSLLFHVKETQTWNTTPDFDRLALYGESSLRHEVRARTLRLFPGIDSETYAALTSSVLSEEALHGLFDRLLMKALVGEKPVGKMRDWSLTPNQCGQMLCAIVGEMSWFAARTKATDRTHNNALFPPSDALILHVLCCHVLESLPAELLYNVLEPKVQRIKENWVNEPMSIPEQLHLKPRTIGSLSLSLVAKPLTEEEGRRKEVAVSAEKCQLSLTPERVIGSVRSTMLPRWNYKRFEERRYHILESDKRQVLPLAMSPVGRGDVSLASEQMPDERRRELVALALGGRYR

Entity 2 polymer

描述 description	KREPB8; RNA editing catalytic complex core protein, B8
分子量 formula_weight	41881.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MHRGPPALLHNVGVATRSKSFAASTKLPGRLTPLPSTSSTLQPTNTLLSSSAGIASLRQLVSASTLTSTSTSGKKRVGSLDAHCRLLSRGTSADSYMPMTSRSFDVFEGNNKQAWLDLKTGWCHLCQEPLGATMGVHIGDRDHTNLQYFLFLYAAHGRRWSSEEVLRSCLATAPTVHNYATRHTTWDHLHVMDDALRRAELEALLFHLTHPPQQALSHVLQGRSPLGFWYSGERMWKLRISRLVTQVFPPISAGMMTNFTQKCWGRSNGERMYDALRLQRIKAYYGWQPYESKEKKAFFVRQLLWELLSVEVRDEVDELTKHMADLALRRMAFEMIFLQSMEYMHKVQYVYDLMGRPTVDELAAMNLL

Entity 3 polymer

描述 description	MP90
分子量 formula_weight	90093.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGLHWPLARSSNWCHMRALSNEHLRRRVGAAVRSIASTAPCFALERVEVAHSHAYSRRGVTVGFTSSSSSPSGKTGSGGLSPASQSLHSSSSFDASNGDVLANYVNFVADDATGPAATKENGAQPMRSLRSASAVENLLFTDAAKNYCRLCMEEVQVTPKAHISTPYRGSHTNHTCREVVLDSLALLAIRGYPIDDVYFVWADTLYQSSVFQRIPELVSPRWTVDKRSEVLAKILFMLKDMGVIDISLAAQAPDLFDNTAQQVHHRRRVAFERLEYIGDNSWGNHLSNRMMLLFPDRQWTYSQNAYTFNCFRDACEMNVTLEFMFDTLRVGELLPPGVREKLGTGKIKADVVEAVIGELHVTLWGLEPQLYDSVCFVEINGVGEARLAALVQHCLTEIYDLIVLSYVQELSGSAVPLAKQIAADRIWNSVYPPVRKAKDRAPGGRKSRSTVVNVVGVGEVRQLPSLPSLFPAASKRPTRAPHPLRRLRKLGEIPEETVCAGTNKDVFVHLIESYERLDMLDDSLLPTLNMRRLQDVQFSKLKRQLVPSLSPAALEELHNCKELDAESVTPHKVGDKEVATDERVLDLEEVYFRDKYFDLFPTPLPNEVVTKEGDCDKRQSGASTSRAVIISLPRGFDGSRPCNRAQLHMARNTIYPSLTERPAHSPTAGITKGDRVCLFSLSVYVPPDTKRPSAGVVTDKNLHFGEFAFHGVRIKGIECASEPECISRRSNAPGSDVGTSLNRSSWKEGGDNSCGTLTVEDGTGENSVVGEDGDTGVNGGEGKAEDATGKHLLRAKWCRENPFFPRASLPLLGISVGA

Entity 4 polymer

描述 description	RNA editing complex protein MP46
分子量 formula_weight	46525.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MLRVENLRRSMTRLARHSLIRAVPFSPLSVGSSTDQTFGAPTRTPFRSHTCLLCDVSYESWGDHAESTTHIARHAICRTFVSPERHNAVMQQLWKHIRLDFGYVDEVTHKKEDRRRMRLASTMRHLQEKGVLHHSLPRVTVDAQSEVSLTVESDSFVNYMFLGESFARQETLDRVARLMPRAEALELSSIISFVLSKRRLAHFFDIFDMRKMVLNGDSSDDKASADGDVPPTIPRLQQDGKAVILFSCLGELQMFSRRDRSHSVATRSAAEQLVLNVLGTHVMENIIGELVHEALQTVVEEGTAVWREHCGELKHKLFEGTKAASPPIATTPNPVSNSGGPEVTADVNDQMWVDLCRLYVLDKNGSVPQLQPTVKRHSWHDVARALTLELTVPNPVNKSAVFAAAAPRLATKKK

Entity 5 polymer

描述 description	MP18 RNA editing complex protein, putative
分子量 formula_weight	18097.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,H,J,M,P

MLALTSRRLLLQQTFMRCCKSVNSVTLVGVVHDIQSGFVYEDAVTQFTLTTTSIDTTHPTQEVVVEKDHHTIRCFGELFSAEVKQKVKEGNVVCVNGRLRLSPQLEPSCNKHFYFPYIQVQPPHGQVAVIHGDRRTVPAAVNPAVEDIKSEKEGAGGDQSGVPS

Entity 6 polymer

描述 description	RNA-editing complex protein MP42
分子量 formula_weight	42318.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,N

MKRVTSHISRFLPLVLSQRGLSTYASPHVSSMRYYGATKCLLASTPDTPSFQCGECGKAFRLINALNHHIMTKHAGKAKAMMNKGGKLEEVNPEEIKNKPQGAMSQPTSPPPSSSTSGTEAASTSPTHSSFPGIPFSPVGGIGLVGTPVGAASHVVNTTTTAANSASGNALSDENADKKTFVCTICQKTFRLEAALQHHYQAKHNMEMPTSSSSSGGASAQPVLQGGATTAGVGSVGFSHTEEETGRSAMGTQYVHSQETILPQAPQYHLDVAPNAPEEGEVAAHWRCVNHCVMLGVVQNIQEGFVFEDKVLQFTLITDFEGPSPGDPDKDFHTVRVFDSDYSSRVKEQLRDGEWFLVTGRLRMVPQYDGSMRKYYHYPVIQVHPGCGSVLKV

Entity 7 polymer

描述 description	KREPA2
分子量 formula_weight	62983.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,K

MYRRFFRSAAVKHLGTTSAQCLMRATKYPCGAMCRNASSCHPQTLGYQQRFQSTTDKKFHCSVCKKPFRLEMAAKLHLQQAHGGDGSVEAGPGPGVEASSVNVVSTPVPSPISPVERTFVDEEERRPRRMRPTPKPLHQPDRDIPAAAMEEMLGVWDKIGLNRLEGNFVHSTMVMKVFAAPPDVSEIPLYEHVAPEGENPFDSLDHMTTGTVDATYVGHDAFAEVDLVDPFVAAPDQTLNPFRAGKVRNPFTRISPTQREVVKPLQPPQPKEEPLKAPVTPFGQLPMFGQTREPSASFAAAAVSVQAAANPNEVSSPFAAAVSSSPFVGQVASPFAPAQDVAGSPFEASPCAASSPFVTAGGQETSPFAAPSTPASFGQGSLFPPMGTGAPGFTAITETEQRQQELEHGCPTCGKKFSTFEGAAMHSKSKHGIVLESKKVKDRLNRKGVPDLPAYVPSPVDLSSTSPFGTRSAIGASWAETELIPHAQCVSNITIVGRVLDVSQASENVSHVTVFVEGERSGEEETLTLCCFGEVSQKIRGTLKRNATIFASGTLRLHPVYEASNNKYYVSPVVHVSMPTGTLAVIT

Entity 8 polymer

描述 description	RNA editing complex protein
分子量 formula_weight	23769.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MWVRSLLLCIRRDPLQRAVDVAYASGMLLGSGSSRGTTHFSETTAFTSSNFAADLRGGRVGLAGDGGTKCEDRNGELVRGRIQFASRCAEGPFVGASPTVTSCAHIEGVVRQVECGYVGGDRVLQFIIEVEEVPASGGTPMRLPLAVRWRPGSEVAQNRMDEWQKEMERLVGRRVLASGRLQVEECFDSGSRRLYKTPSLVLPATSTVEMISLQELEC

Entity 9 polymer

描述 description	KREPA5
分子量 formula_weight	19081.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MFSSTFRRLAIRPLNRVTMVGAMHDIQVGFLDRCSVFQFTLTCTVLDFQKVAEPQPKSPGSLPSSTRTAPNANGEEVEKHINKEQYTVRCLGSEAYTEALKNYLDDGCIVRVIGRLKTTEVVDAGKKQPFPCIIVEQGRWSTVSLVHSLRKQRRDWQLQNILTSVATLE

Entity 10 polymer

描述 description	RNA-editing complex protein MP81
分子量 formula_weight	81307.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MRRLTRRSDRLCGKGNGGSCLQMSPTHVGAVVTWSLNRLMPLHTRTIPLRCSLPTPESGTTEPRELCFYETFELTGEDVHYLLLHEAHVKHGVLLNVPPQLAPNGTPPEVPEVIMPAAQLERMGGMKLAYEPTHLPPPLHTTGARQLVLDESFYTTPTKEKKATTTAVSHVSESTAASGGRGGASATAAGTALPPRLPPDPTMKFHCSACGKAFRLKFSADHHVKLNHGSDPKAAVVDGPGEGGLLGGAVTITTAKVAKHSSSAASGTASRAGDSATLDVKQQPDPQKELSASGISAVKIPYSKAVLSLPDDELVDELLIDVWDAVAAQRDDVPKSNSANIFLPFASVVTGTADRRKEMEAVARPTARATPEGAAPGIKRPGAMAGGAVAVGKGRSGGQILPIRELIKKYPNPFGDSPNAAVQDLENEPLNPFLPEEELAAQLQVACEEDTVVTPSACTTDVSTGSVIGKKGSLEKLKEKLRGTRPSMAASAAKRRFTCPICVEKQQTLQQQQSENVGSGFCTDIPSFRLLDALLDHVESVHGEELTEDQLRELYAKQRQSTLYPQKSSTGDGAGSRETPDDSEKKEGSVGNTSMDELKSLPEEVRRVVPPAPVEQDALAVHIRAGSNALMIGRIADVQHGFLGAMTVTQYVLEVDGDERINSKGVTTPASACTPDPASTKAVEAKGEEGEVVEPEKEFIVIRCMGDNFPASLLKDQVKLGSRVLVQGTLRMNRHVDDVSKRLHAYPFIQVVPPLGYVKVVG

Entity 11 polymer

描述 description	tRNA-valine (anticodon AAC)
分子量 formula_weight	24480.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R

CGCUGAUGGUCUAGGUGGUUAUGACGUCGCUUUAACACGGCGAAGGUCUCGGGUUCGAGUCCCGAUCGGCGUACCA

Entity 12 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 13 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 14 non-polymer

描述 description	GUANOSINE-5'-MONOPHOSPHATE
分子量 formula_weight	363.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 15 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	367

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.99 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	452724
