9dgo

;Designed miniproteins potently inhibit and protect against MERS-CoV. Crystal structure of MERS-CoV S RBD in complex with miniprotein cb3 ;

Method: X-RAY DIFFRACTION D_max: 83.7 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

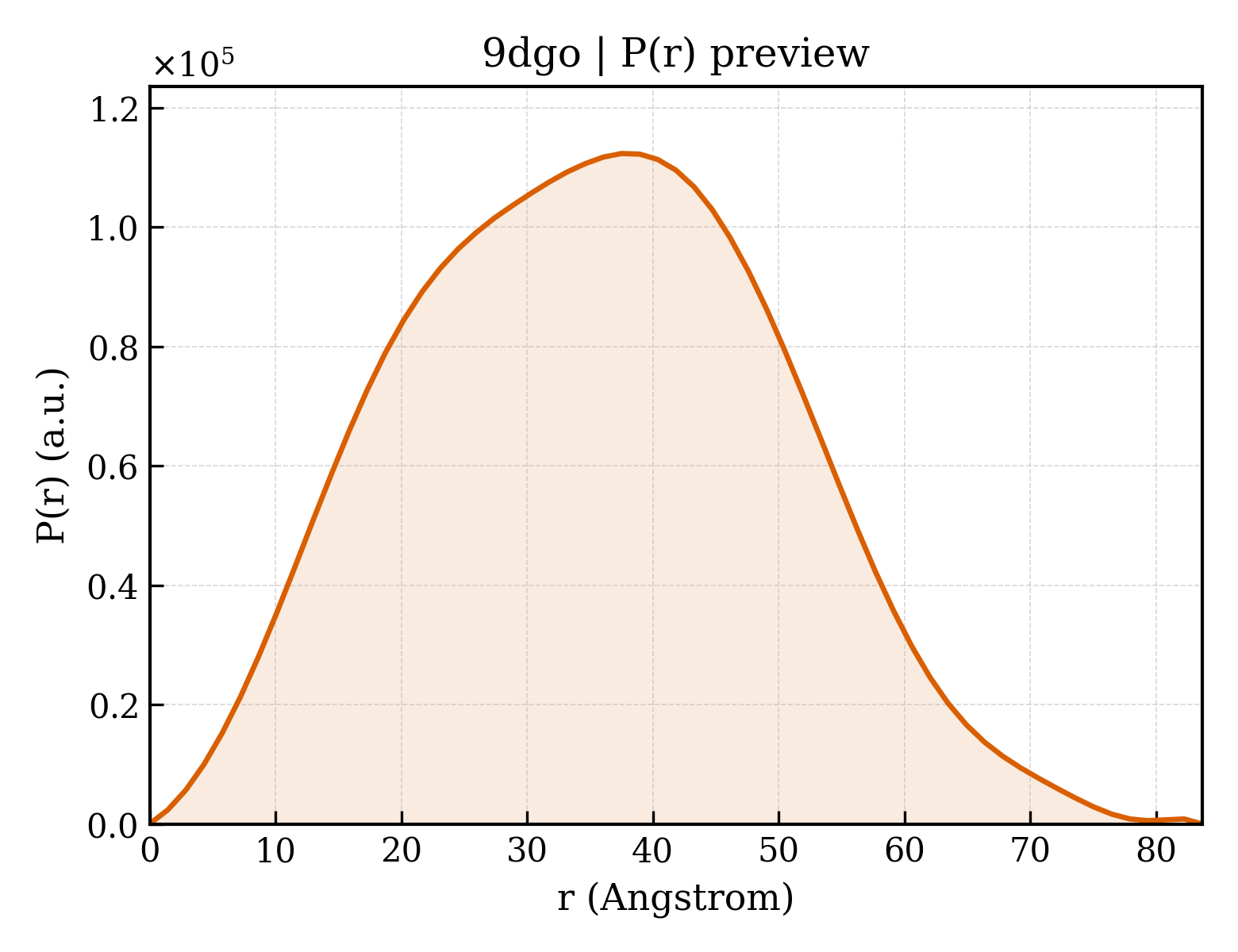

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dgo
沉积日期 deposition_date	2024-09-03
最后修订 last_revision	2025-06-18
结构标题 title	;Designed miniproteins potently inhibit and protect against MERS-CoV. Crystal structure of MERS-CoV S RBD in complex with miniprotein cb3 ;
关键词 keywords	;MERS-CoV, miniproteins, neutralization, fusion, cryo-EM, biolayer interferometry, MERS-CoV strains, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.24 Å
回转半径 Rg (电子) rg_electron	25.89 Å
零角强度 I(0) i0	57673500.00
分子量 molecular_weight	58872.0 kDa
排除体积 excluded_volume	73417 Å³
包络体积 envelope_volume	91903 Å³
水化壳体积 shell_volume	29495 Å³
包络直径 envelope_diameter	91.5 Å
壳层 Rg shell_rg	33.49 Å
包络 Rg envelope_rg	26.01 Å
形状 Rg shape_rg	25.90 Å
总 Rg total_rg	26.71 Å
总原子数 total_atoms	4144
残基数 n_residues	535
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	83.7 Å
Rg (实空间) rg_real	27.09 Å
Rg 误差 (实空间) rg_real_error	0.44 Å
I(0) (实空间) i0_real	5.7670e+07
I(0) 误差 (实空间) i0_real_error	8.1960e+05
Rg (倒空间) rg_reciprocal	27.14 Å
I(0) (倒空间) i0_reciprocal	57680000.0000
解质量估计 total_estimate	0.9089
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.5 Å
偏度 Skewness skewness	0.124
峰度 Kurtosis kurtosis	-0.520
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14580000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.977

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Spike glycoprotein
分子量 formula_weight	28045.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4492

MGILPSPGMPALLSLVSLLSVLLMGCVAETGTECDFSPLLSGTPPQVYNFKRLVFTNCNYNLTKLLSLFSVNDFTCSQISPAAIASNCYSSLILDYFSYPLSMKSDLSVSSAGPISQFNYKQSFSNPTCLILATVPHNLTTITKPLKYSYINKCSRLLSDDRTEVPQLVNANQYSPCVSIVPSTVWEDGDYYRKQLSPLEGGGWLVASGSTVAMTEQLQMGFGITVQYGTDTNSVCPKLGSLVPRGSGGSHHHHHHHH

来源 Source

来源生物 organism	Middle East respiratory syndrome-related coronavirus
NCBI 分类编号 ncbi_taxonomy_id	1335626
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Designed miniprotein cb_3
分子量 formula_weight	7037.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

GSPVKRFVREVLEEAEEAYEKGDRRQFEELLWLAEWAARDANDEELEEEIREFEKEVK

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	306

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.619 Å
晶胞边长 b length_b	76.291 Å
晶胞边长 c length_c	136.235 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.850 Å
最低分辨率 resolution_low	31.550 Å
R 因子 r_factor	0.1913
R_work r_work	0.1899
R_free r_free	0.2189
