SAXSdb — 9dix

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein H

Human betaherpesvirus 5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 30–709 Chain D； UniProt 30–709	Not recorded	Protein UL141 × 2 （Q6RJQ3） UL116 × 2 （A8T7J8） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.51 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DIX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9DIY Local Cryo-EM structure of HCMV gH/UL116 interaction Deposited 2024-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–709（680 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.36 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A8T7F0_HCMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–680； UniProt 30–709 Author chain D； PDBConstruct 1–680； UniProt 30–709

Protein UL141

Human betaherpesvirus 5

UniProt Q6RJQ3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain B； UniProt 30–279 Chain E； UniProt 30–279	Not recorded	Envelope glycoprotein H × 2 （A8T7F0） UL116 × 2 （A8T7J8） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.51 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DIX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4I9X Crystal structure of human cytomegalovirus glycoprotein UL141 targeting the death receptor TRAIL-R2 Deposited 2012-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 32–246（215 aa） Fragment：UL141, UNP residues 32-246 Chain B 32–246（215 aa） Fragment：UL141, UNP residues 32-246	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；295.15 K；20% PEG 8K, CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.15K	Resolution 2.10 Å R-free 0.274
4JM0 Structure of Human Cytomegalovirus Immune Modulator UL141 Deposited 2013-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 30–279（250 aa） Fragment：UL141 ECTODOMAIN, UNP residues 30-279 Chain B 30–279（250 aa） Fragment：UL141 ECTODOMAIN, UNP residues 30-279	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；295.15 K；0.2 M calcium acetate, 0.1 M imidazole pH 8, 10% (w/v) polyethylene glycol 8000, VAPOR DIFFUSION, SITTING DROP, temperature 295.15K	Resolution 3.25 Å R-free 0.279
9DIY Local Cryo-EM structure of HCMV gH/UL116 interaction Deposited 2024-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 30–279（250 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.36 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UL141_HCMVM
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–250； UniProt 30–279 Author chain E； PDBConstruct 1–250； UniProt 30–279

UL116

Human betaherpesvirus 5

UniProt A8T7J8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain C； UniProt 25–313 Chain F； UniProt 25–313	Not recorded	Envelope glycoprotein H × 2 （A8T7F0） Protein UL141 × 2 （Q6RJQ3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.51 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DIX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9DIY Local Cryo-EM structure of HCMV gH/UL116 interaction Deposited 2024-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 25–313（289 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.36 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A8T7J8_HCMV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–289； UniProt 25–313 Author chain F； PDBConstruct 1–289； UniProt 25–313

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dix
Deposition date deposition_date	2024-09-06
最后修订 last_revision	2024-11-20
Structure title title	HCMV gH/UL116/UL141 3-mer complex, ectodomain
Keywords keywords	Surface protein complex, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	45.41 Å
Radius of gyration Rg (electron density) rg_electron	45.21 Å
Forward intensity I(0) i0	630766000.00
Molecular weight molecular_weight	209180.0 kDa
Excluded volume excluded_volume	262150 Å³
Envelope volume envelope_volume	368390 Å³
Hydration-shell volume shell_volume	67208 Å³
Envelope diameter envelope_diameter	142.9 Å
Shell Rg shell_rg	50.75 Å
Envelope Rg envelope_rg	44.27 Å
Shape Rg shape_rg	45.25 Å
Total Rg total_rg	45.29 Å
Total atoms total_atoms	29122
Residues n_residues	1802
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

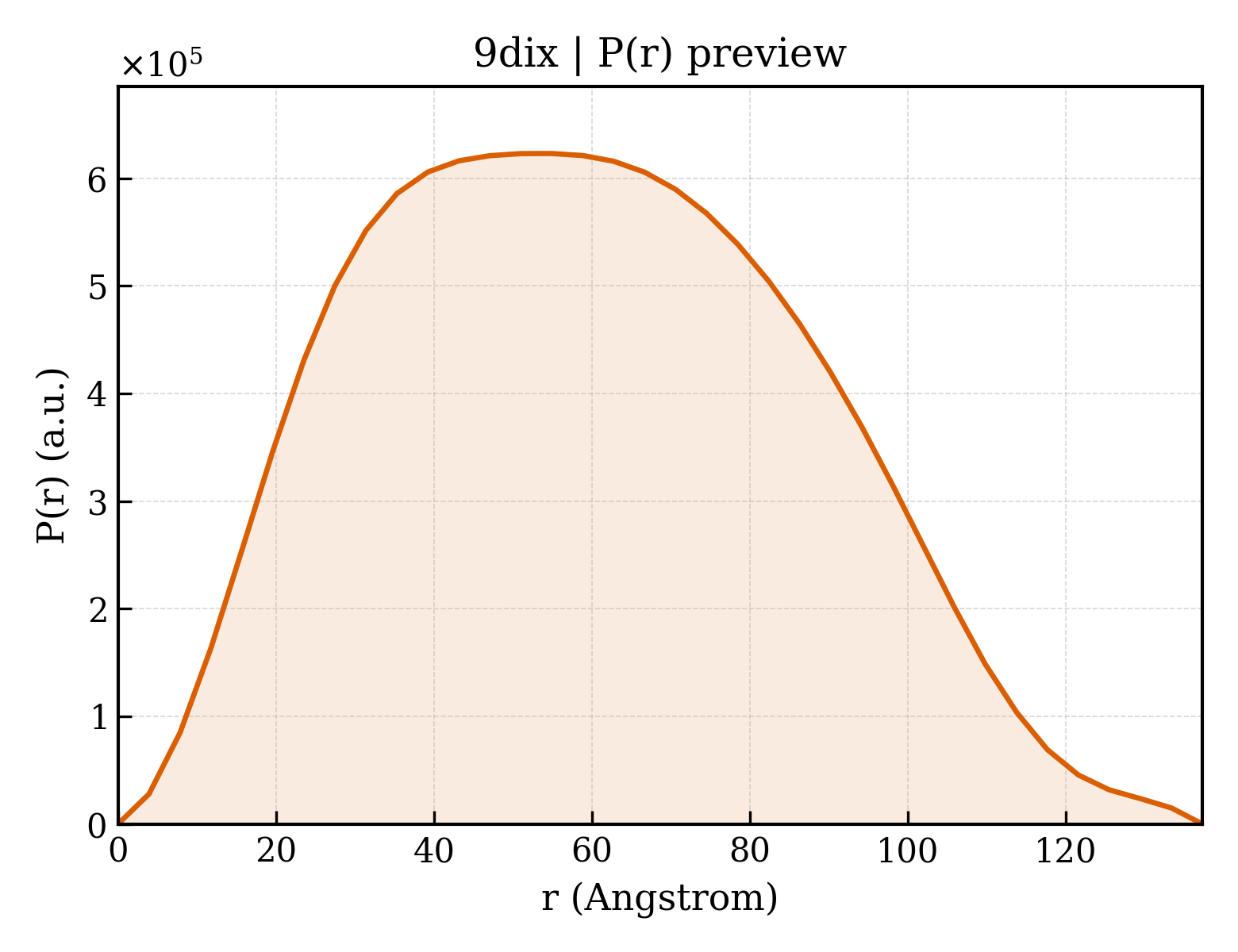

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	137.3 Å
Rg (real space) rg_real	46.06 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	6.1830e+08
I(0) uncertainty (real space) i0_real_error	8.8830e+06
Rg (reciprocal space) rg_reciprocal	45.41 Å
I(0) (reciprocal space) i0_reciprocal	630800000.0000
Solution quality estimate total_estimate	0.6841
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	54.9 Å
Skewness Skewness skewness	0.198
Kurtosis Kurtosis kurtosis	-0.689
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	2.4100
Highest regularization parameter α highest_alpha	120800000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.990; Stabil: 0.908; Sysdev: 0.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.226

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein H
Molecular weight formula_weight	77497.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	29122

ASEALDPHAFHLLLNTYGRPIRFLRENTTQCTYNSSLRNSTVVRENAISFNFFQSYNQYYVFHMPRCLFAGPLAEQFLNQVDLTETLERYQQRLNTYALVSKDLASYRSFSQQLKAQDSLGQQPTTVPPPIDLSIPHVWMPPQTTPHDWKGSHTTSGLHRPHFNQTCILFDGHDLLFSTVTPCLHQGFYLMDELRYVKITLTEDFFVVTVSIDDDTPMLLIFGHLPRVLFKAPYQRDNFILRQTEKHELLVLVKKTQLNRHSYLKDSDFLDAALDFNYLDLSALLRNSFHRYAVDVLKSGRCQMLDRRTVEMAFAYALALFAAARQEEAGTEISIPRALDRQAALLQIQEFMITCLSQTPPRTTLLLYPTAVDLAKRALWTPDQITDITSLVRLVYILSKQNQQHLIPQWALRQIADFALQLHKTHLASFLSAFARQELYLMGSLVHSMLVHTTERREIFIVETGLCSLAELSHFTQLLAHPHHEYLSDLYTPCSSSGRRDHSLERLTRLFPDATVPATVPAALSILSTMQPSTLETFPDLFCLPLGESFSALTVSEHVSYVVTNQYLIKGISYPVSTTVVGQSLIITQTDSQSKCELTRNMHTTHSITAALNISLENCAFCQSALLEYDDTQGVINIMYMHDSDDVLFALDPYNEVVVSSPRTHYLMLLKNGTVLEVTD

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Protein UL141
Molecular weight formula_weight	31039.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

SFPFATADIAEKMWAENYETTSPAPVLVAEGEQVTIPCTVMTHSWPMVSIRARFCRSHDGSDELILDAVKGHRLMNGLQYRLPYATWNFSQLHLGQIFSLTFNVSTDTAGMYECVLRNYSHGLIMQRFVILTQLETLSRPDEPCCTPALGRYSLGDQIWSPTPWRLRNHDCGMYRGFQRNYFYIGRADAEDCWKPACPDEEPDRCWTVIQRYRLPGDCYRSQPHPPKFLPVTPAPPADIDTGMSPWATRGGSGGGSLEVLFQGPGHHHHHHHH

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	UL116
Molecular weight formula_weight	35321.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

VETNATTVTSTTAAAATTNTTVATTGTTTTSPNVTSTTSNTVITPTTVSSVSNLTSSATSIPISTSTVSGTRNTRNNNTTTIGTNVTSPSPSVSILTTVTPAATSTTSNNGDVTSDYTPTFDLENITTTRAPTRPPAQDLCSHNLSIILYEEESQSSVDIAVDEEEPELEDDDEYDELWFPLYFEAECNLNYTLQYVNHSCDYSVRQSSVSFPPWRDIDSVTFVPRNLSNCSAHGLAVIVAGNQTWYVNPFSLAHLLDAIYNVLGIEDLSANFRRQLAPYRHTLIVPQTGGSGGSGSDDDDKAGWSHPQFEKGGGSGGGSGGGSWSHPQFEK

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 5 Entity 5 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.51 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	119525

fit	/app/data/saxs_computation/di/9dix/9dix.fit
pddf	/app/data/pr_computation/di/9dix/9dix.pr.out
profile	/app/data/saxs_computation/di/9dix/9dix.dat
