9dkk

;Designed miniproteins potently inhibit and protect against MERS-CoV. MERS-CoV S in complex with miniprotein cb3_GGGSGGGS_SB175, linker 7 (Local refinement of two RBDs and 2 miniproteins) ;

Method: ELECTRON MICROSCOPY D_max: 109.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

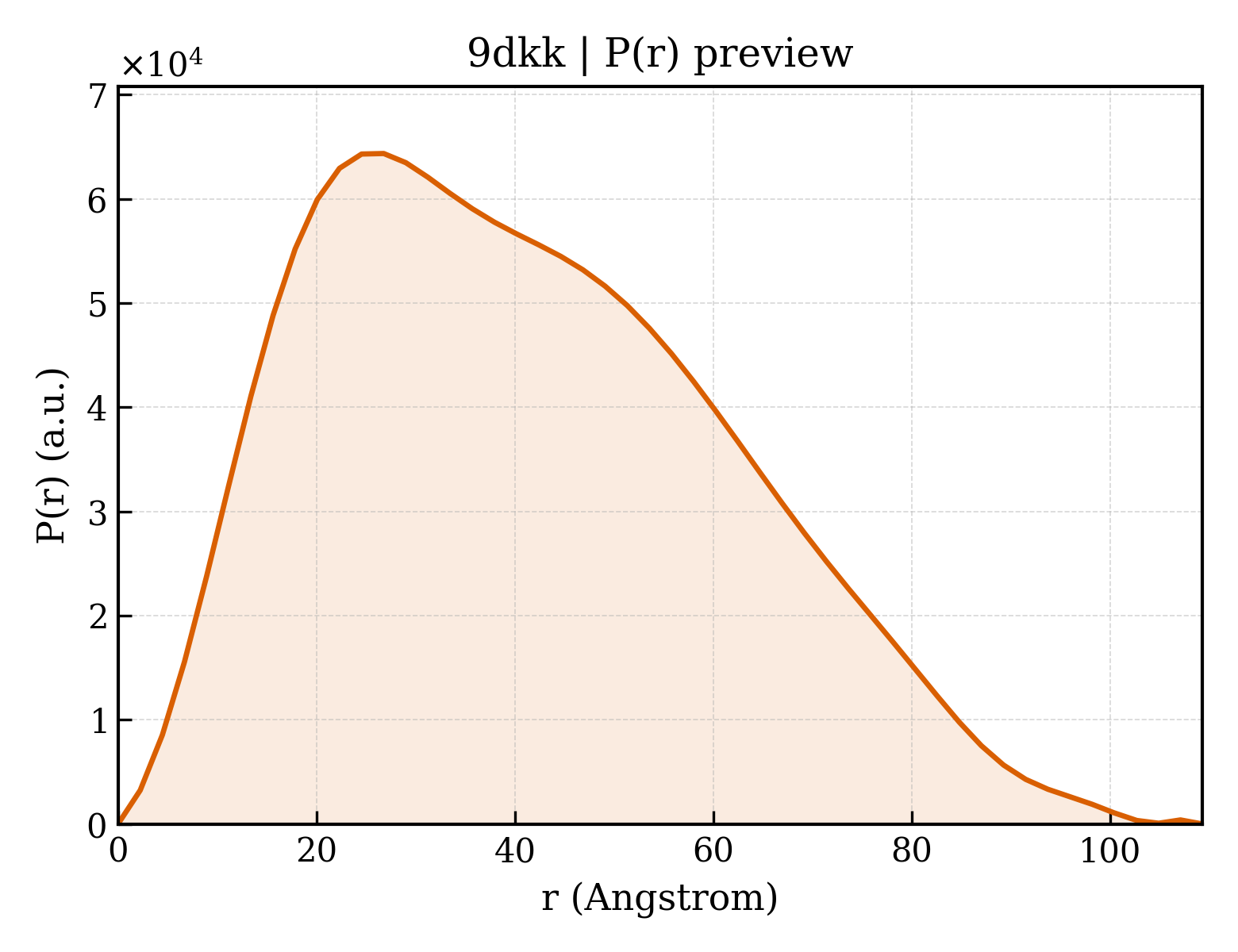

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9dkk
沉积日期 deposition_date	2024-09-09
结构标题 title	;Designed miniproteins potently inhibit and protect against MERS-CoV. MERS-CoV S in complex with miniprotein cb3_GGGSGGGS_SB175, linker 7 (Local refinement of two RBDs and 2 miniproteins) ;
关键词 keywords	;Coronavirus, betacoronavirus, MERS-CoV, single particle cryo-EM, neutralization assays, binding assays, miniproteins inhibitors, fusion assays, in vivo protection, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.12 Å
回转半径 Rg (电子) rg_electron	32.07 Å
零角强度 I(0) i0	43674400.00
分子量 molecular_weight	53467.0 kDa
排除体积 excluded_volume	67388 Å³
包络体积 envelope_volume	90112 Å³
水化壳体积 shell_volume	25302 Å³
包络直径 envelope_diameter	113.6 Å
壳层 Rg shell_rg	35.95 Å
包络 Rg envelope_rg	32.04 Å
形状 Rg shape_rg	32.03 Å
总 Rg total_rg	32.56 Å
总原子数 total_atoms	3782
残基数 n_residues	515
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	109.3 Å
Rg (实空间) rg_real	32.39 Å
Rg 误差 (实空间) rg_real_error	1.06 Å
I(0) (实空间) i0_real	4.3670e+07
I(0) 误差 (实空间) i0_real_error	7.9250e+05
Rg (倒空间) rg_reciprocal	32.28 Å
I(0) (倒空间) i0_reciprocal	43670000.0000
解质量估计 total_estimate	0.8390
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	26.8 Å
偏度 Skewness skewness	0.407
峰度 Kurtosis kurtosis	-0.543
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7046000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.694; Smooth: 0.772

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Spike protein
分子量 formula_weight	150006.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A
原子数 atom_count	3782

MGILPSPGMPALLSLVSLLSVLLMGCVAETGTVDVGPDSVKSACIEVDIQQTFFDKTWPRPIDVSKADGIIYPQGRTYSNITITYQGLFPYQGDHGDMYVYSAGHATGTTPQKLFVANYSQDVKQFANGFVVRIGAAANSTGTVIISPSTSATIRKIYPAFMLGSSVGNFSDGKMGRFFNHTLVLLPDGCGTLLRAFYCILEPRSGNHCPAGNSYTSFATYHTPATDCSDGNYNRNASLNSFKEYFNLRNCTFMYTYNITEDEILEWFGITQTAQGVHLFSSRYVDLYGGNMFQFATLPVYDTIKYYSIIPHSIRSIQSDRKAWAAFYVYKLQPLTFLLDFSVDGYIRRAIDCGFNDLSQLHCSYESFDVESGVYSVSSFEAKPSGSVVEQAEGVECDFSPLLSGTPPQVYNFKRLVFTNCNYNLTKLLSLFSVNDFTCSQISPAAIASNCYSSLILDYFSYPLSMKSDLSVSSAGPISQFNYKQSFSNPTCLILATVPHNLTTITKPLKYSYINKCSRLLSDDRTEVPQLVNANQYSPCVSIVPSTVWEDGDYYRKQLSPLEGGGWLVASGSTVAMTEQLQMGFGITVQYGTDTNSVCPKLEFANDTKIASQLGNCVEYSLYGVSGRGVFQNCTAVGVRQQRFVYDAYQNLVGYYSDDGNYYCLRACVSVPVSVIYDKETKTHATLFGSVACEHISSTMSQYSRSTRSMLKRRDSTYGPLQTPVGCVLGLVNSSLFVEDCKLPLGQSLCALPDTPSTLTPASVGSVPGEMRLASIAFNHPIQVDQLNSSYFKLSIPTNFSFGVTQEYIQTTIQKVTVDCKQYVCNGFQKCEQLLREYGQFCSKINQALHGANLRQDDSVRNLFASVKSSQSSPIIPGFGGDFNLTLLEPVSISTGSRSARSAIEDLLFDKVTIADPGYMQGYDDCMQQGPASARDLICAQYVAGYKVLPPLMDVNMEAAYTSSLLGSIAGVGWTAGLSSFAAIPFAQSIFYRLNGVGITQQVLSENQKLIANKFNQALGAMQTGFTTTNEAFQKVQDAVNNNAQALSKLASELSNTFGAISASIGDIIQRLDPPEQDAQIDRLINGRLTTLNAFVAQQLVRSESAALSAQLAKDKVNECVKAQSKRSGFCGQGTHIVSFVVNAPNGLYFMHVGYYPSNHIEVVSAYGLCDAANPTNCIAPVNGYFIKTNNTRIVDEWSYTGSSFYAPEPITSLNTKYVAPQVTYQNISTNLPPPLLGNSTGIDFQDELDEFFKNVSTSIPNFGSLTQINTTLLDLTYEMLSLQQVVKALNESYIDLKELGNYTYYNKGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGGSGLNDIFEAQKIEWHEGGSHHHHHHHH

来源 Source

来源生物 organism	Middle East respiratory syndrome-related coronavirus
通用名 common_name	MERS-CoV
NCBI 分类编号 ncbi_taxonomy_id	1335626
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Miniprotein cb3_GGGSGGGS_SB175
分子量 formula_weight	16632.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,C

MSGSPVKRFVREVLEEAEEAYEKGDRRQFEELLWLAEWAARDANDEELEEEIREFEKEVKGGGSGGGSEALEELEKALRELKKSTDELERSTEELEKNPSEDALVENNRLIVENNKIIVEVLRIIAKVLKGSHHWGSTHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	169944
